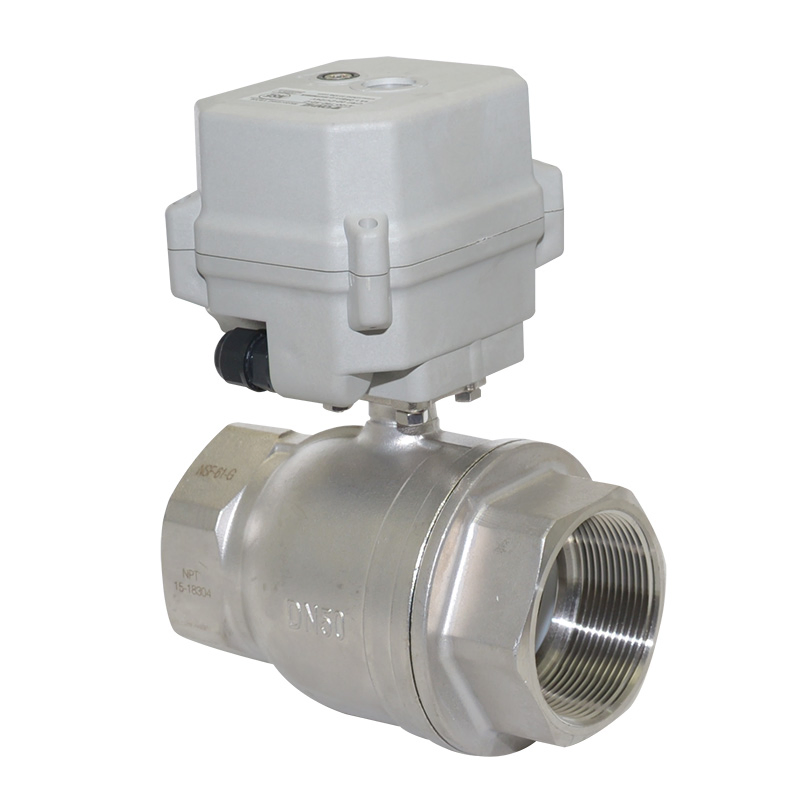

1-1/2' DC12V 2 Way SS304 NPT NSF Motorized Ball Valve

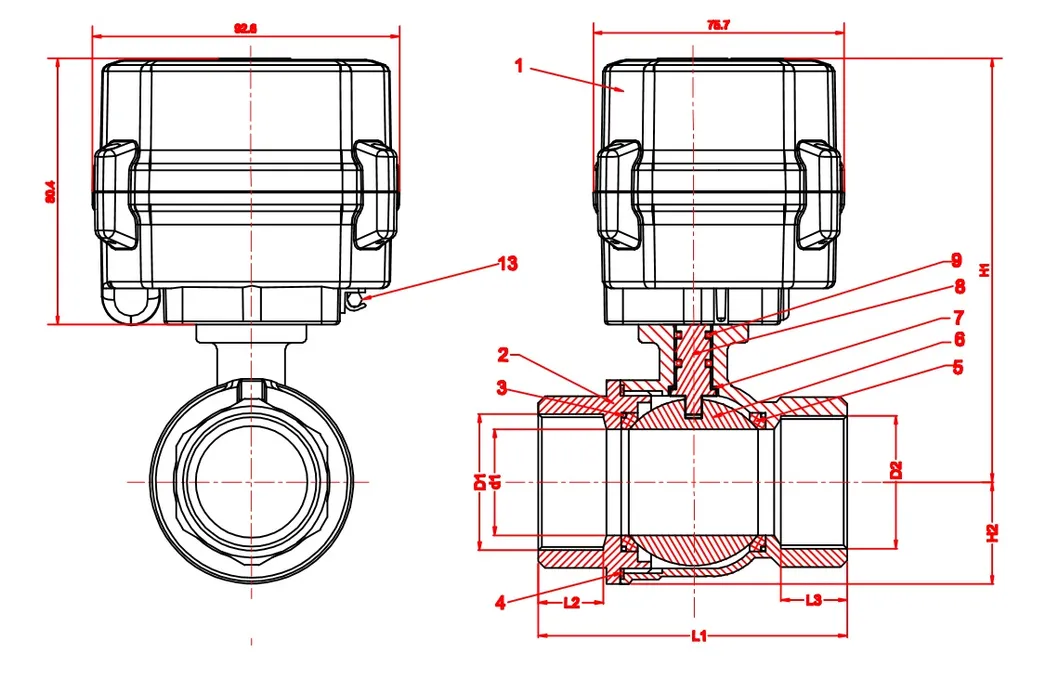

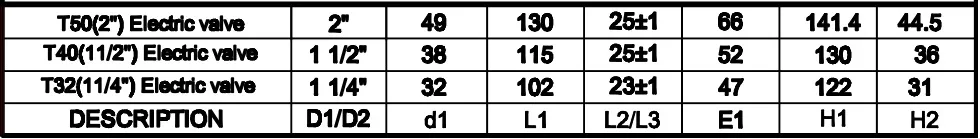

Product size




Product Parameters
Item No.:  A150-T50-S2-B
Valve body material: SS304
Actuator material:  PPO
Product size:   NPT/BSP 1-1/4''  1-1/2''  2'' (optional)
Max working pressure:  1.0MPa
Criculation medium:  Fluid,air
Working voltage:  DC12V DC24V AC/DC9-24V AC/DC110-230V (optional)
Wiring diagram:   CR201 CR202 CR303 (optional)
Working current:  ≤1A
On/off time:   ≤12s
Life time:   70000times (testing pressure is 0.4MPa,medium is water)
Sealing material:   EPDM&PTFE
Actuator rotation:   90°
Torque force:  15N.m
Cable length:   0.5m,1.5m  (optional)
Environment temperature:  -15ºC~50ºC
Liquid temperature:  2ºC~90ºC

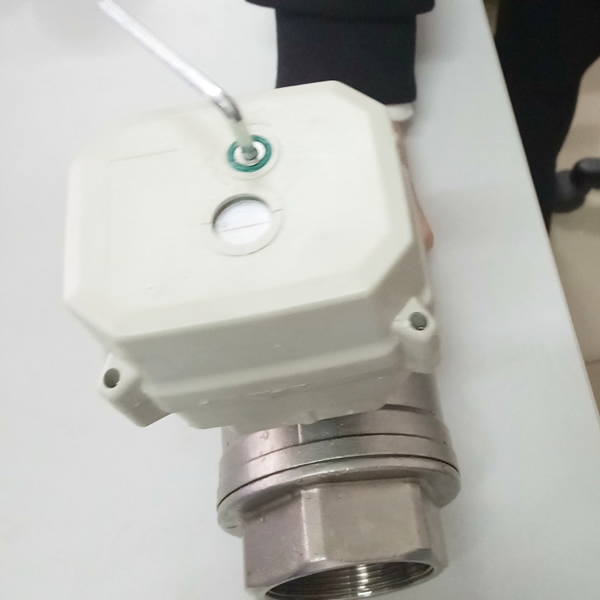

Manual override:   Yes
On/off indicator:    yes
Protection class:    IP67

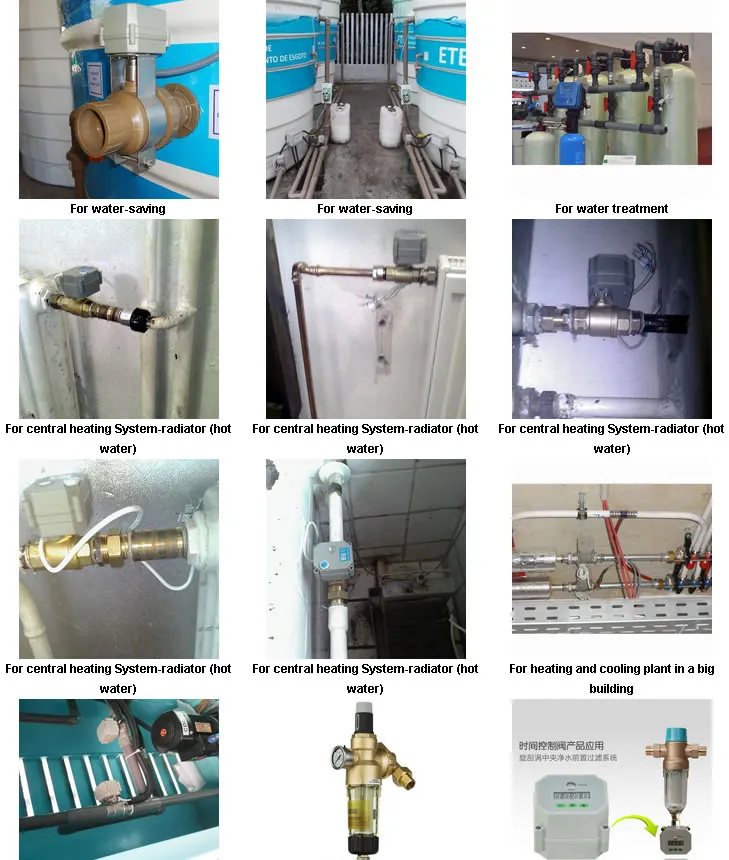

Application range



Company introduction

Taizhou Tonhe Flow Control Co., Ltd. is a professional manufacturer and exporter of electric control valves. We pay high attention to the quality control and new products R&D,specialized in motorized valves, electric fluid control valves, electric actuator, intelligent design, manufacture, sales and technical service.

Our main products are Tonhe series straight-through motorized valve,which has compact size with smart shape, perform reliably  with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
