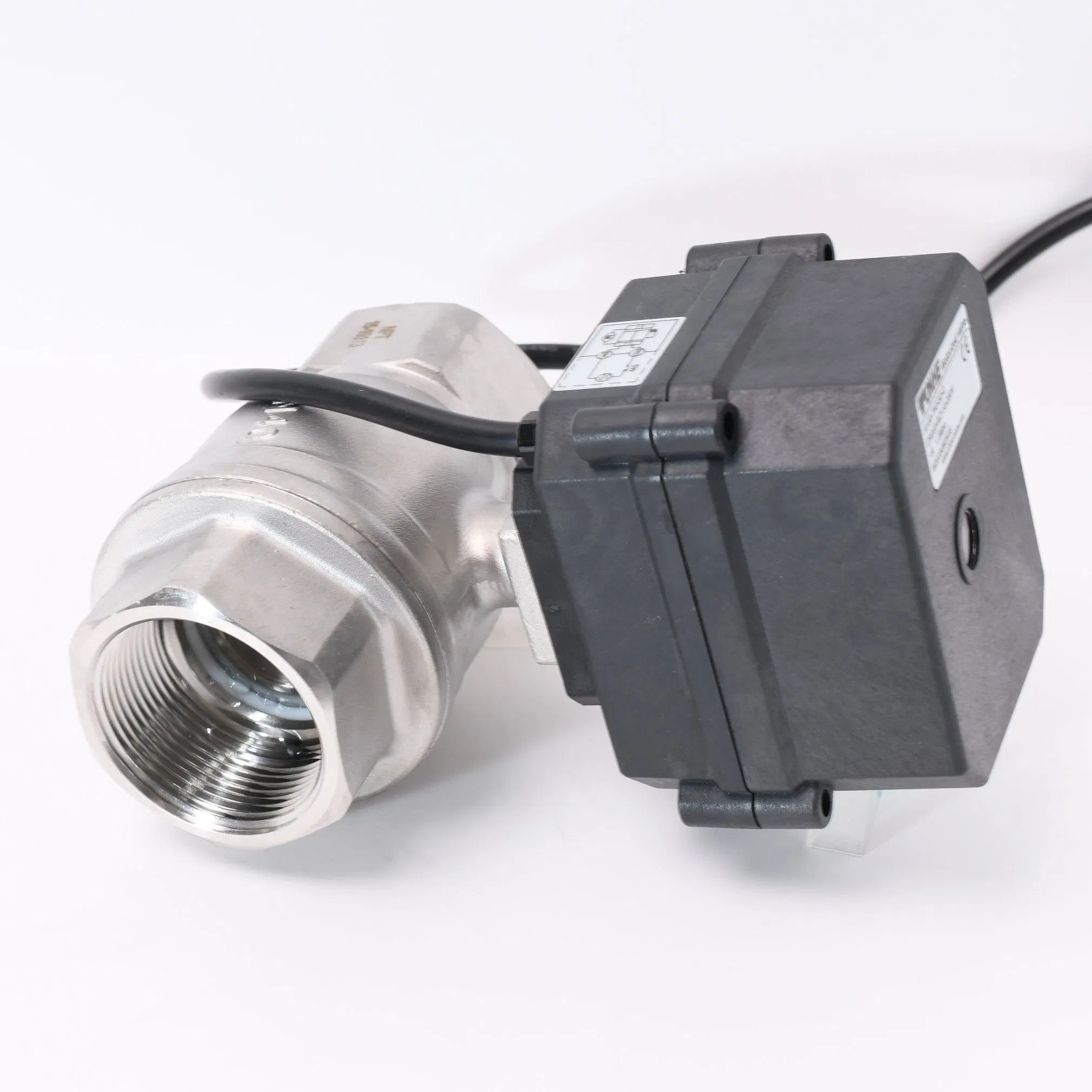

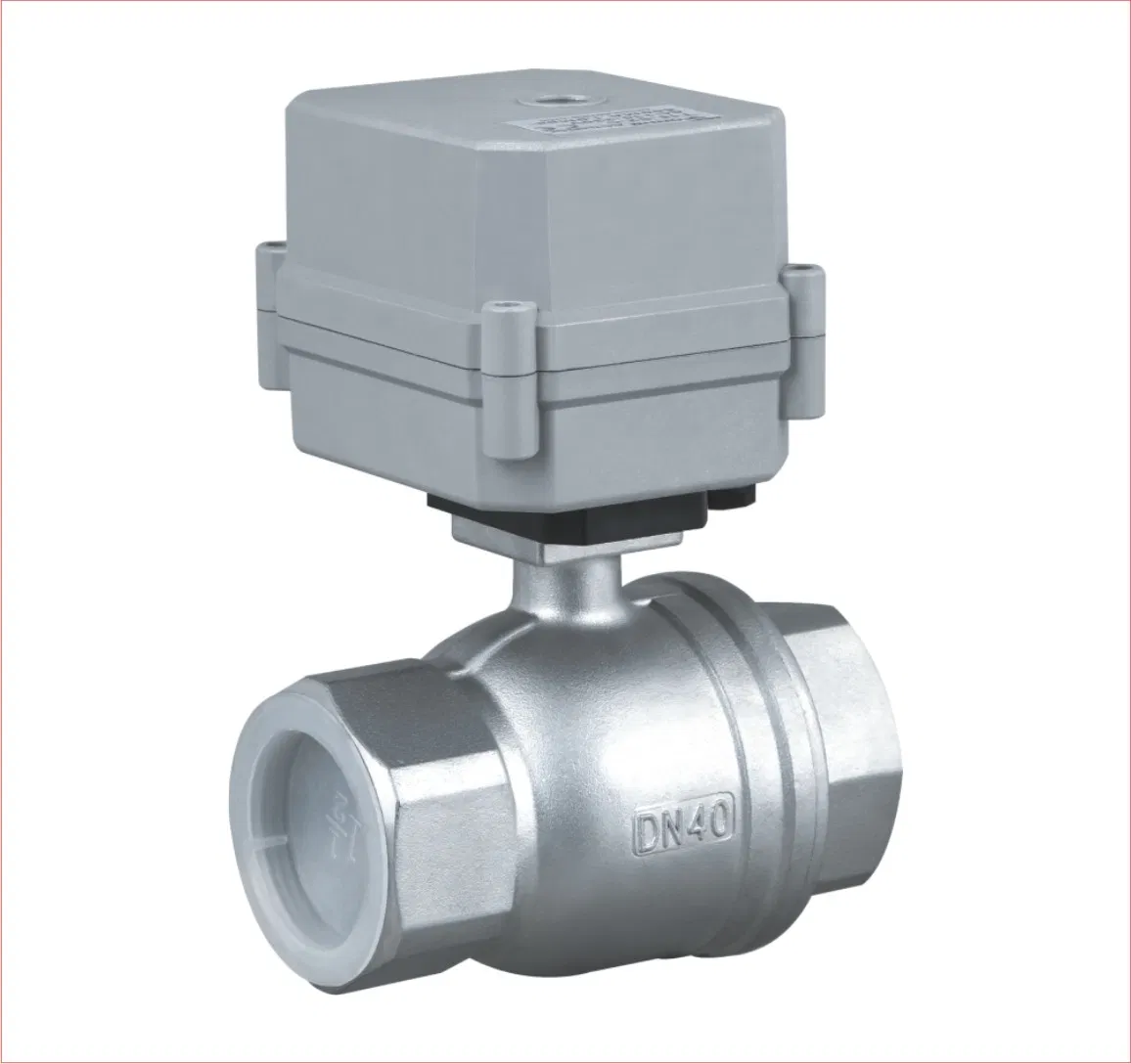

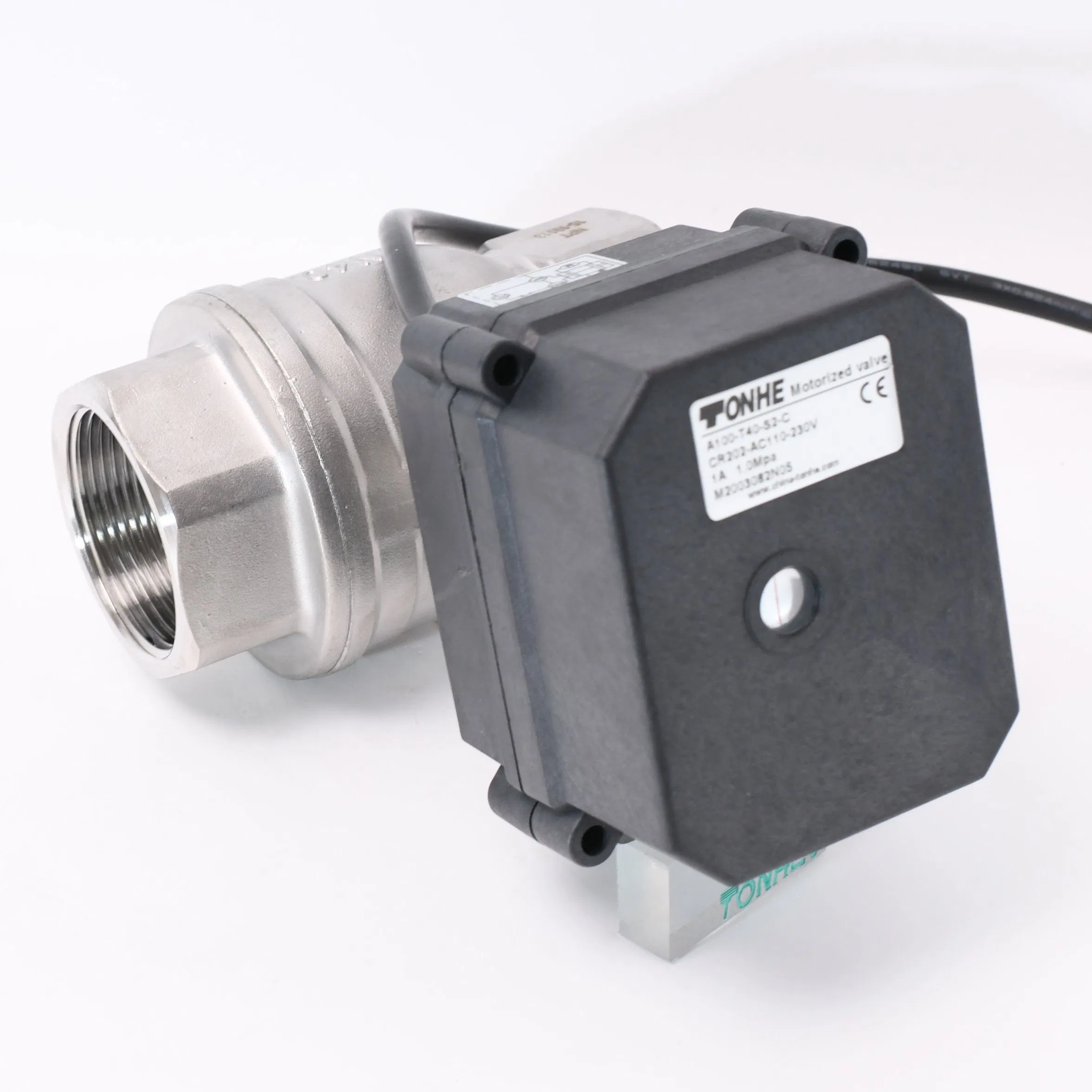

2way 1-1/2' Stainless Steel SS304 Direct Produced Electric Motorized Valve
Technical ParametersProduct size: NPT/BSP 1-1/4'' 1-1/2'' 2''(optional)Maximum working pressure: 1.0MPaCirculation medium: Fluid,airRated voltage: DC12V DC24V AC/DC9-24V AC/DC110-230V(optional)Wiring diagram: CR201 CR202 CR303 CR401 CR501 CR502 CR703 CR704 CR705 CR706(optiona......
Send Inquiry
Product Description
Technical Parameters
Product size: NPT/BSP 1-1/4'' 1-1/2'' 2''(optional)
Maximum working pressure: 1.0MPa
Circulation medium: Fluid,air
Rated voltage: DC12V DC24V AC/DC9-24V AC/DC110-230V(optional)
Wiring diagram: CR201 CR202 CR303 CR401 CR501 CR502 CR703 CR704 CR705 CR706(optional)
Static current: ≤1A
Open/close time: ≤15s
Life time: 7000times(testing pressure is 0.4MPa,medium is water)
Valve body material: SS304
Actuator material: PPO
Sealing material: FKM&PTFE
Actuator rotation: 90°
Torque force: 10N.m
Cable length: 0.5m, 1.5m(optional)
Environment temperature: -15ºC~50ºC
Liquid temperature:2ºC~90ºC
Manual override: No
Indicator: yes
Protection class: IP67
Confirm thread,size,voltage and wiring diagram before ordering.

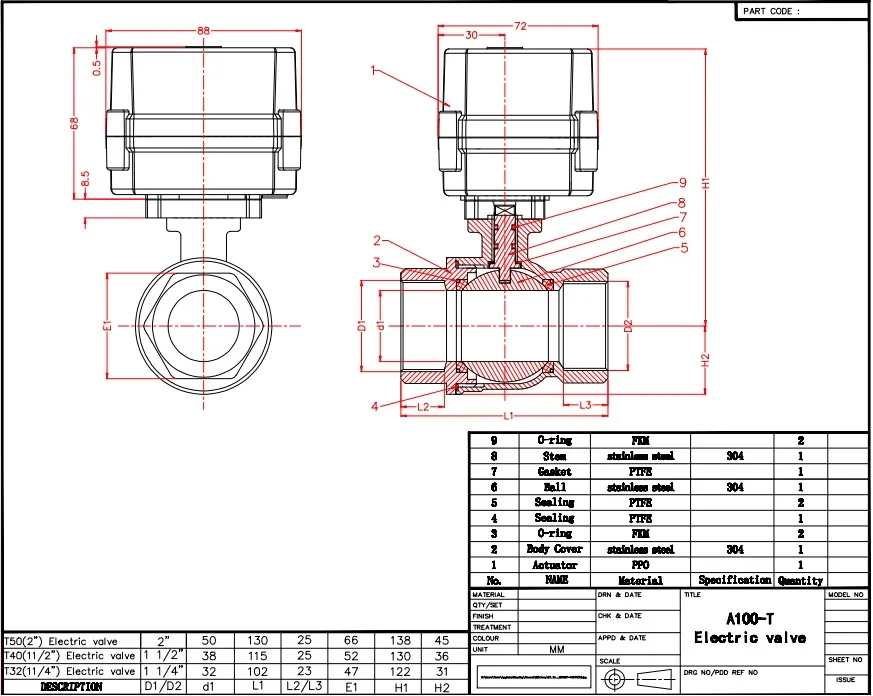

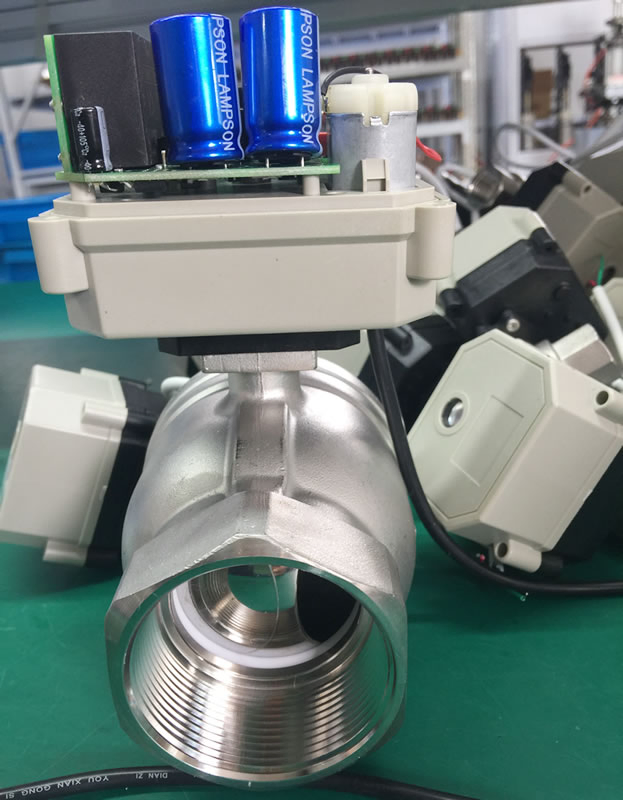

Assemble Diagram

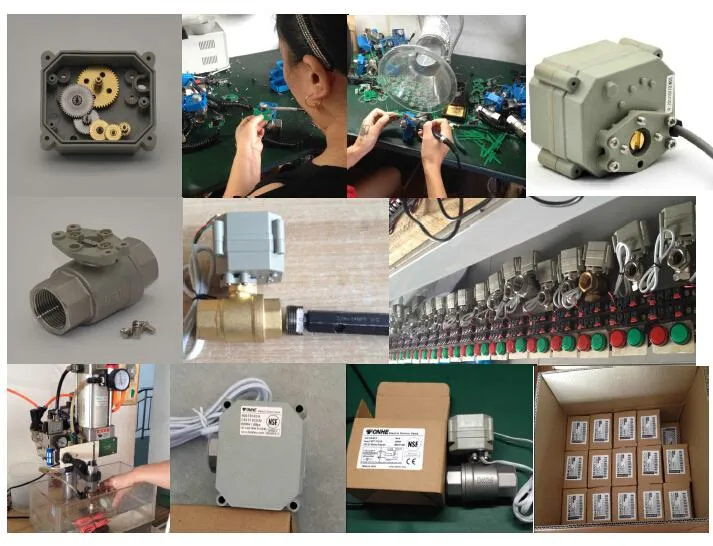

Inspection & Packing method

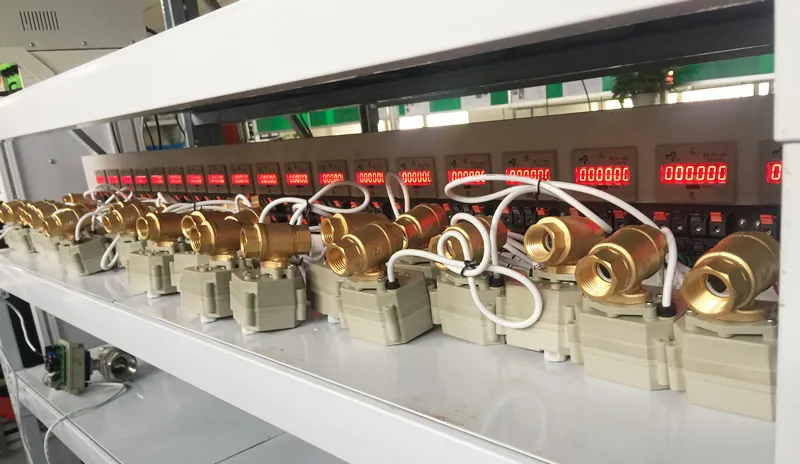

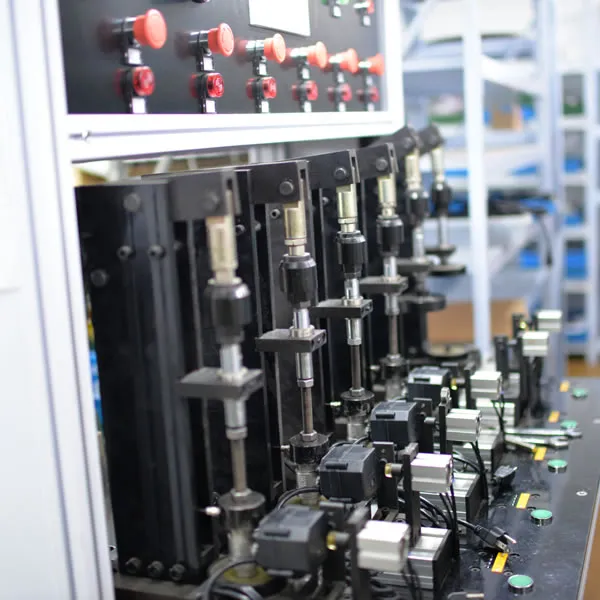

professional power-on test,water test and air-leakage test before packing.
Product weight:0.15kg/pc(include inner carton box)

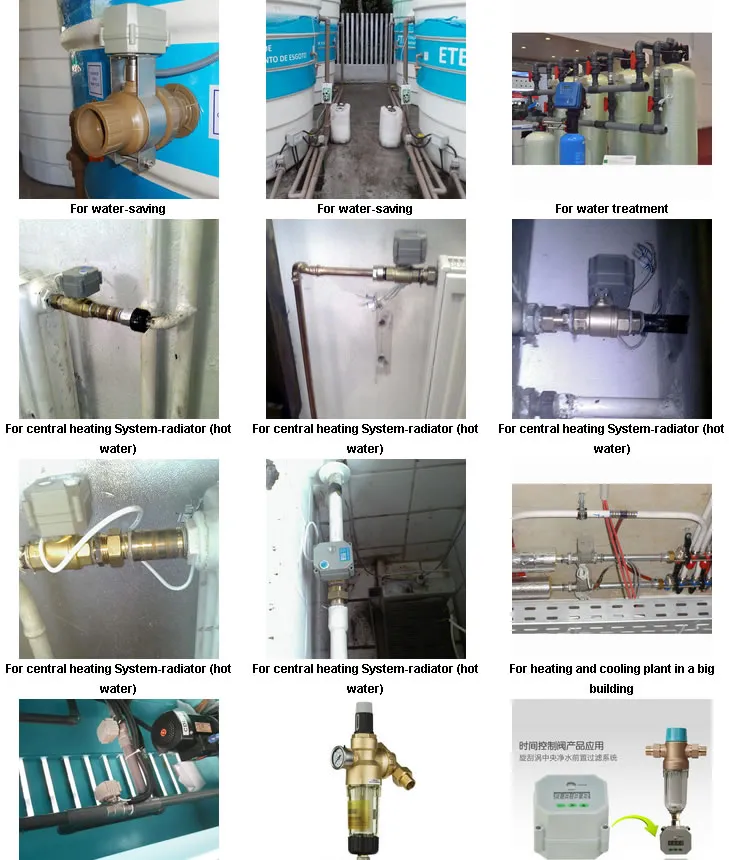

Application
Contact Way
sales person: Esther
http://cntonhe.en.made-in-china.com http://cntonhe.en.made-in-china.com
Add: No.1012 Xincheng Road,Huangyan,Taizhou,Zhejiang,China
Thank you for your business!
