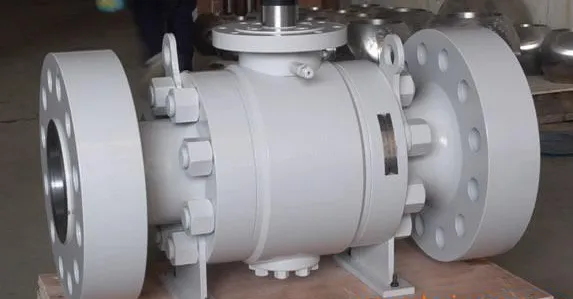

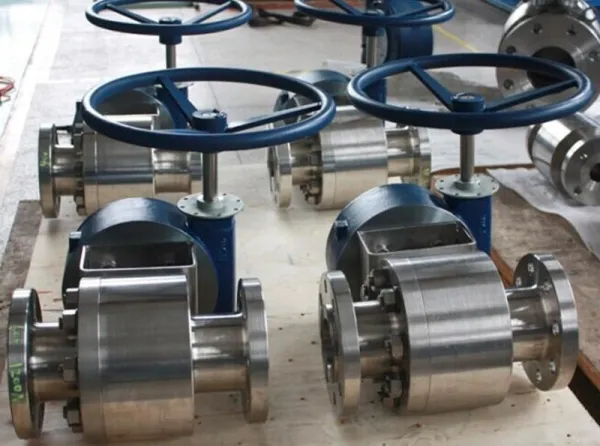

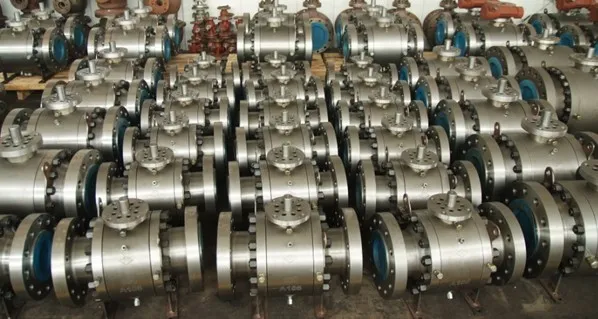

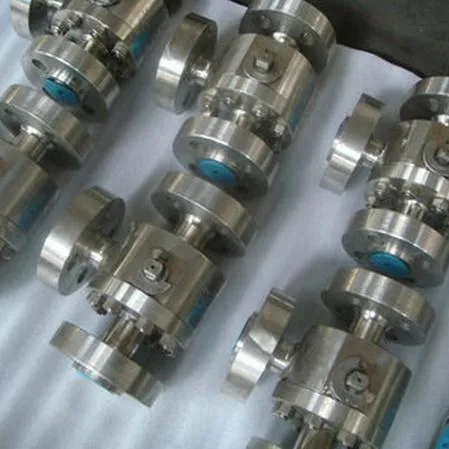

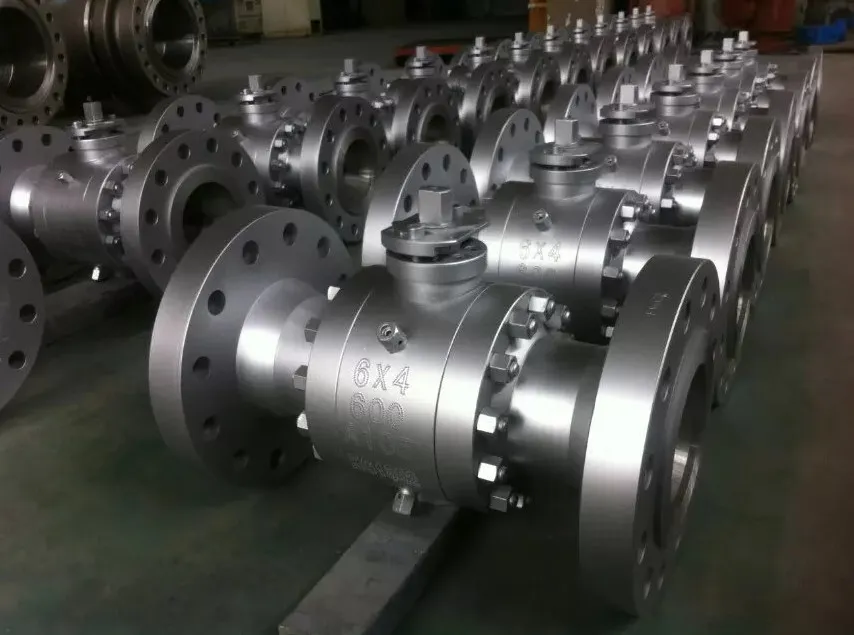

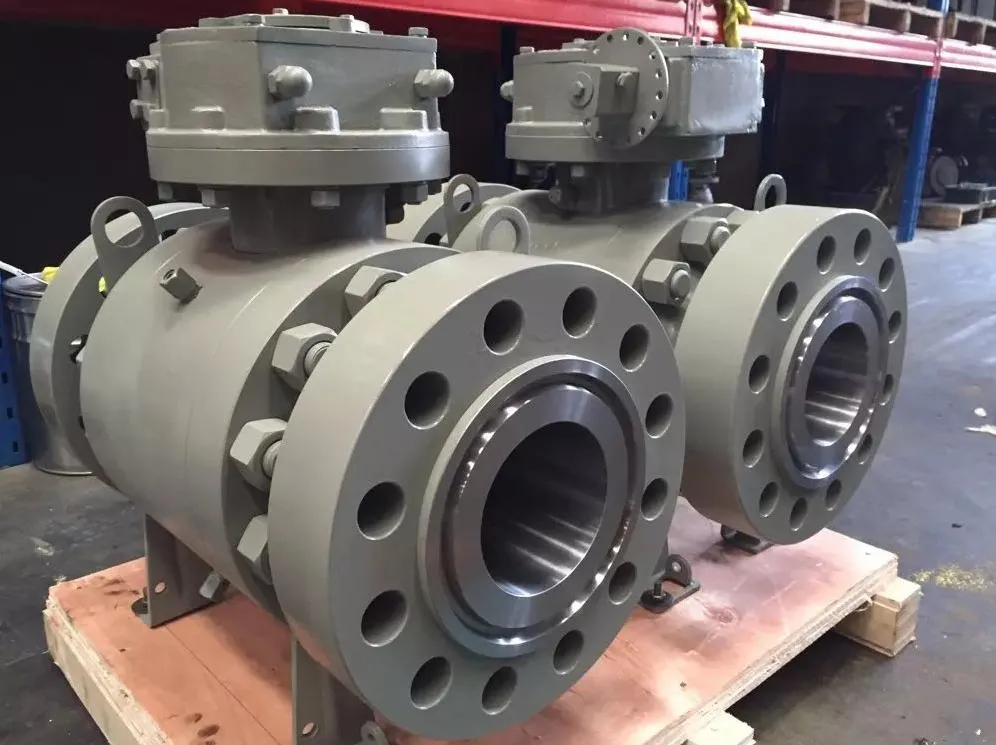

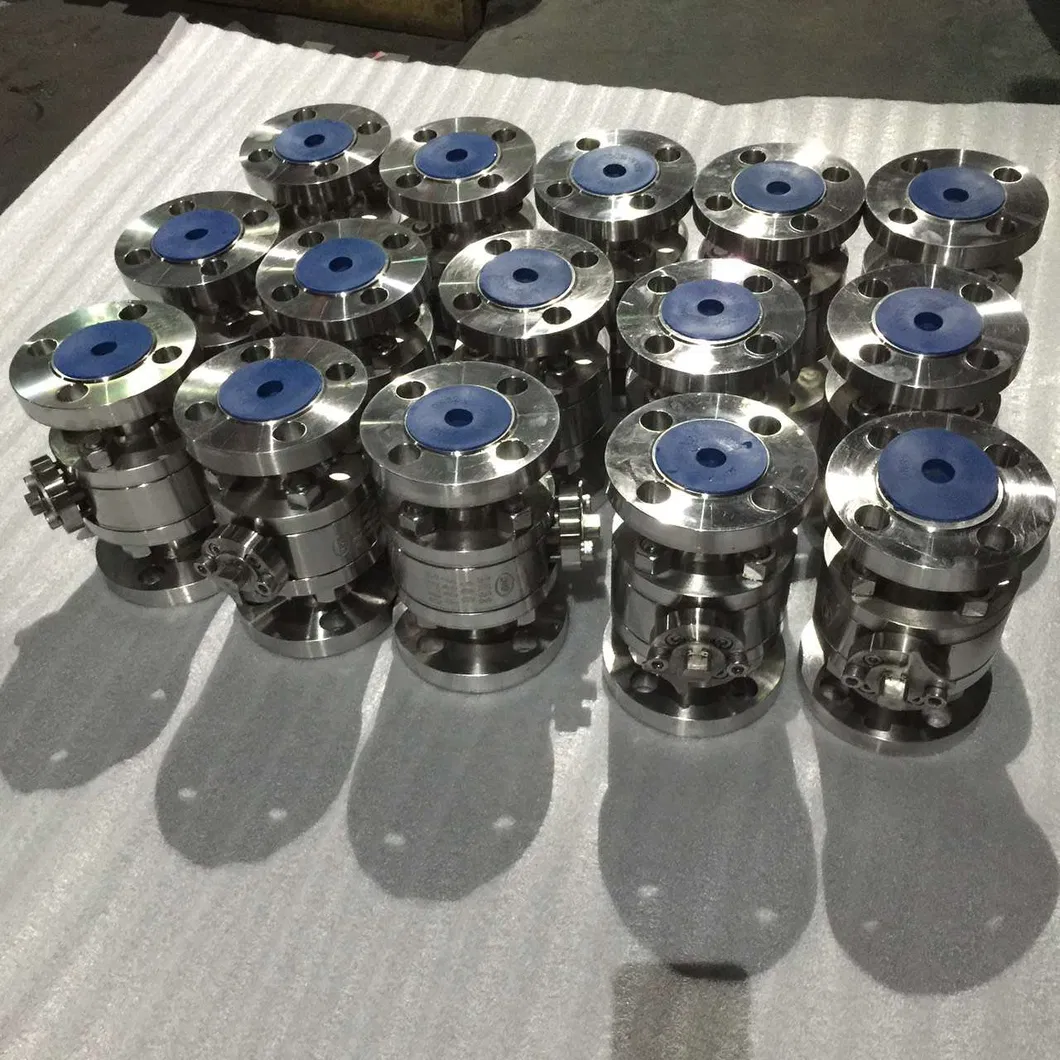

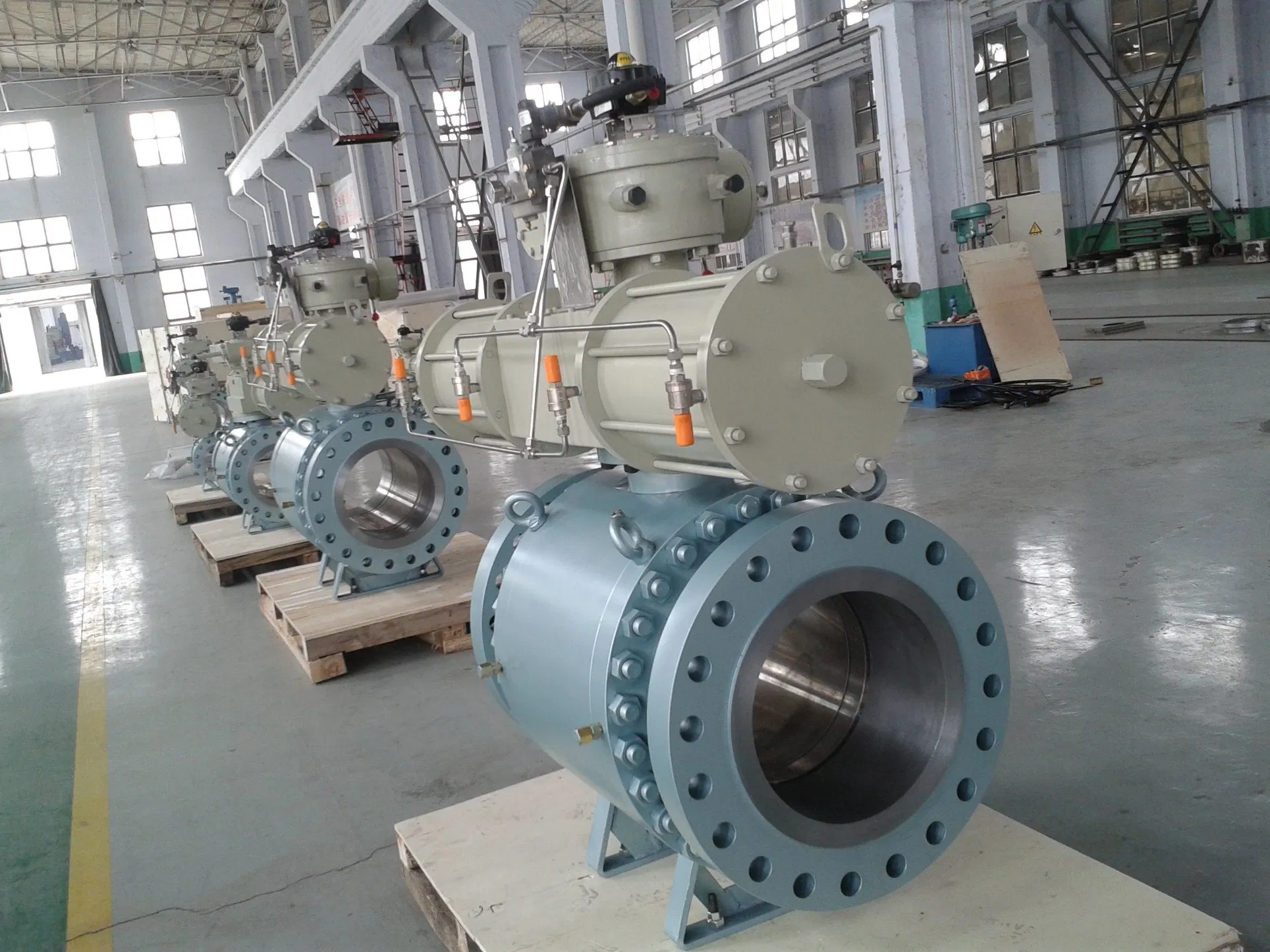

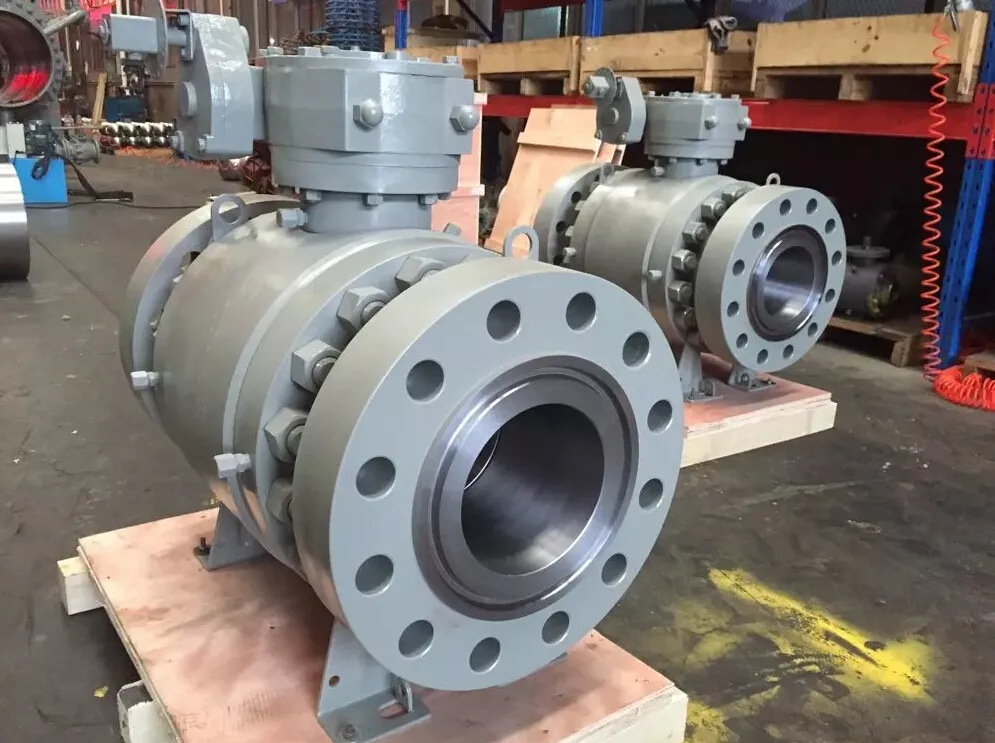

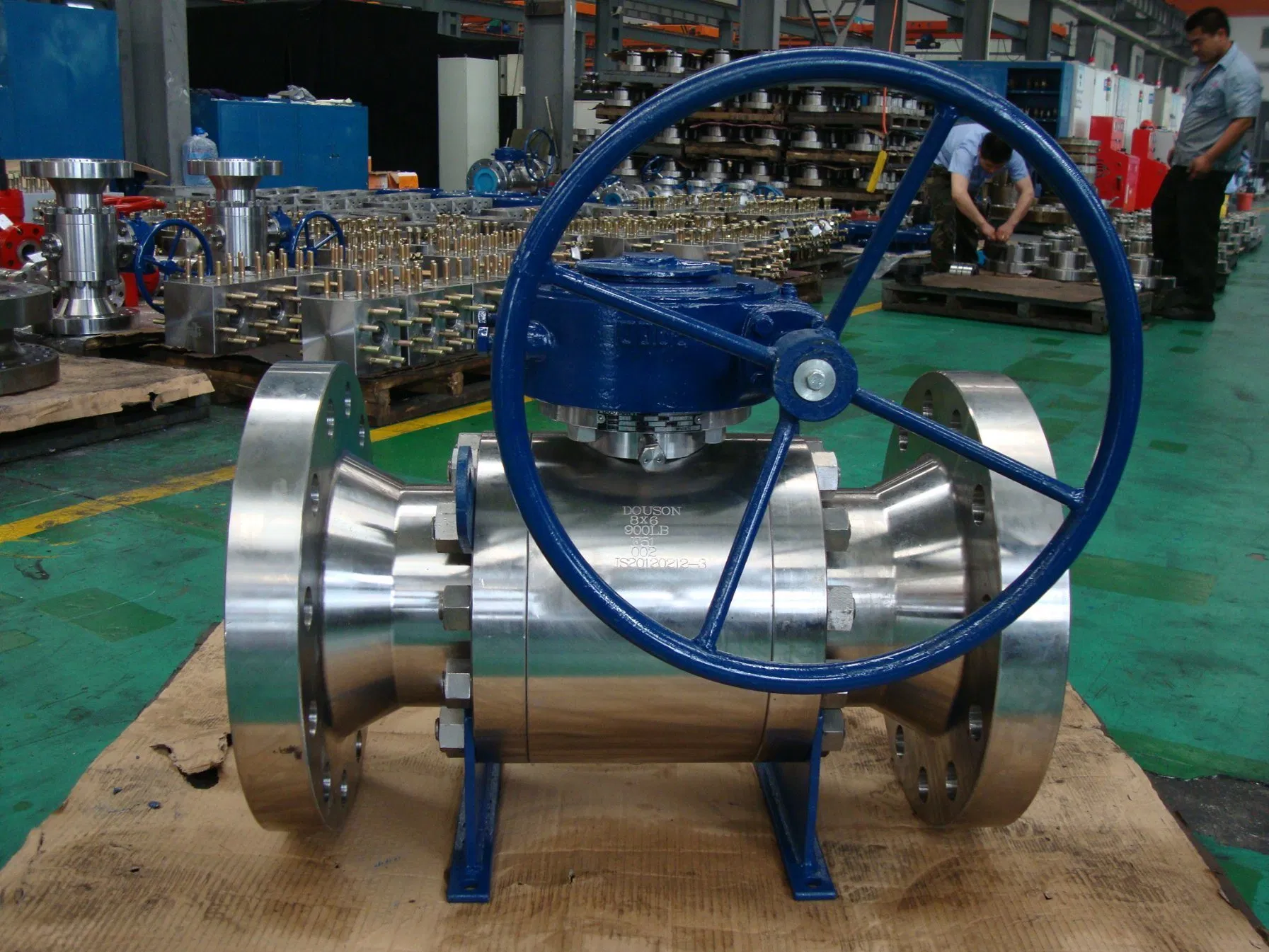

3PC API 6D Pipeline Forged Steel Ball Valve
API pipeline ball valve is suitable for the pipeline of various working conditions such as petroleum, chemical industry, thermal power station, etc., which is Class150~Class1500, and the working temperature is -28~300ºC, to cut off or connect the medium. The applicable media for API pipelin......
Send Inquiry

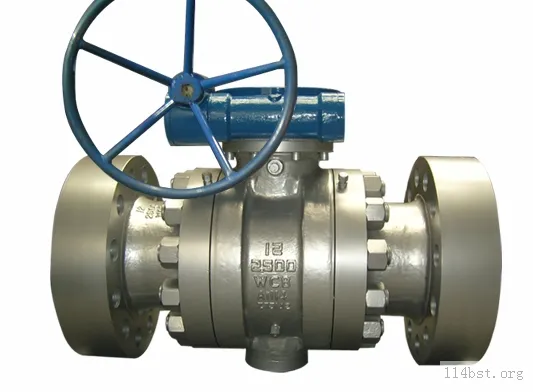

Product Description
API pipeline ball valve is suitable for the pipeline of various working conditions such as petroleum, chemical industry, thermal power station, etc., which is Class150~Class1500, and the working temperature is -28~300ºC, to cut off or connect the medium. The applicable media for API pipeline ball valves are: petroleum, purified natural gas, sour natural gas, coal gas, water, coal slurry and other media. The operating modes of the driving device of the API pipeline ball valve include: manual, worm gear, pneumatic, electric, gas-liquid linkage, etc.
Design and manufacturing: API 6D, API 608 or ANSI B 16.34
Structure length: ANSI 6D, ANSI B 16.10
Flange standard: ANSI B 16.5a
Pressure inspection: API 6D, API 598
Materials of parts.
Note:1)A105+ENP optional;2)Spiral wound construction

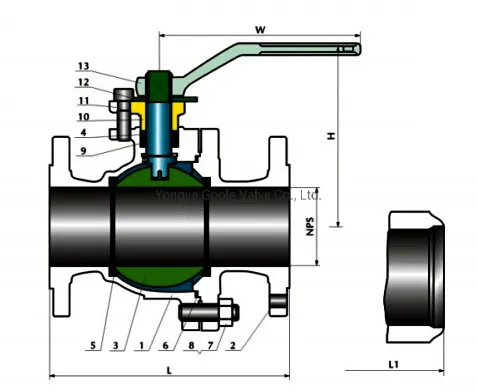

Dimensions & weight.
Design and manufacturing: API 6D, API 608 or ANSI B 16.34
Structure length: ANSI 6D, ANSI B 16.10
Flange standard: ANSI B 16.5a
Pressure inspection: API 6D, API 598
Materials of parts.
| NO | Part name | ASTM Material | ||
| Carbon steel | 18Cr-9Ni-2Mo | Carbon steel | ||
| 1 | Body | A216-WCB | A351-CF8M | A352-LCB |
| 2 | Bonnet | A216-WCB | A351-CF8M | A352-LCB |
| 3 | Ball | A182-F304 | A182-F316 | A182-F304 |
| 4 | Stem | A276-304 | A276-316 | A276-304 |
| 5 | Seat ring | R.PTFE | ||
| 6 | Bonnet gasket | Graphite+304 | PTFE | Graphite+304 |
| 7 | Bonnet stud | A193-B7 | A193-B8 | A193-L7 |
| 8 | Bonnet stud nut | A194-2H | A194-8 | A194-4 |
| 9 | Packing | PTFE | ||
| 10 | Gland flange | A216-WCB | A351-CF8M | A352-LCB |
| 11 | Gland bolt | A193-B7 | A193-B8 | A193-B7 |
| 12 | Stop plate | Carbon steel | Carbon steel+Zn | Carbon steel |
| 13 | Handle | Carbon steel | ||
Dimensions & weight.
| Size | in | 1/2" | 3/4" | 1" | 1 1/2" | 2" | 2 1/2" | 3" | 4" | 6" | 8" | 10" |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | |
| L(RF) | in | 4.25 | 4.62 | 5.00 | 6.50 | 7.00 | 7.50 | 8.00 | 9.00 | 15.50 | 18.00 | 21.00 |
| mm | 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 394 | 457 | 533 | |
| L1(BW) | in | 5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 11.12 | 12.00 | 18.00 | 20.50 | 22.00 |
| mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | |
| H | in | 2.12 | 2.12 | 2.75 | 3.50 | 4.12 | 6.12 | 7.25 | 8.00 | 10.00 | 11.00 | 13.50 |
| mm | 55 | 55 | 70 | 90 | 105 | 155 | 185 | 205 | 255 | 280 | 345 | |
| W | in | 5 | 5 | 6 | 8 | 14 | 16 | 20 | 20 | 24 | 32 | 32 |
| mm | 130 | 130 | 160 | 200 | 350 | 400 | 500 | 500 | 600 | 800 | 800 | |
| WT(Kg) | RF | 2.3 | 3 | 4.5 | 7 | 9.5 | 15 | 19 | 33 | 93 | 160 | 200 |
| BW | 1.8 | 2.8 | 3.7 | 6.2 | 8.5 | 14 | 21 | 35 | 98 | 170 | 225 |
