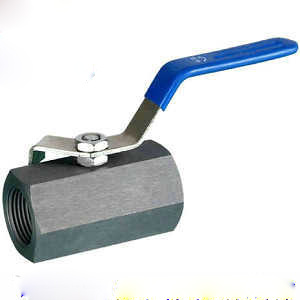

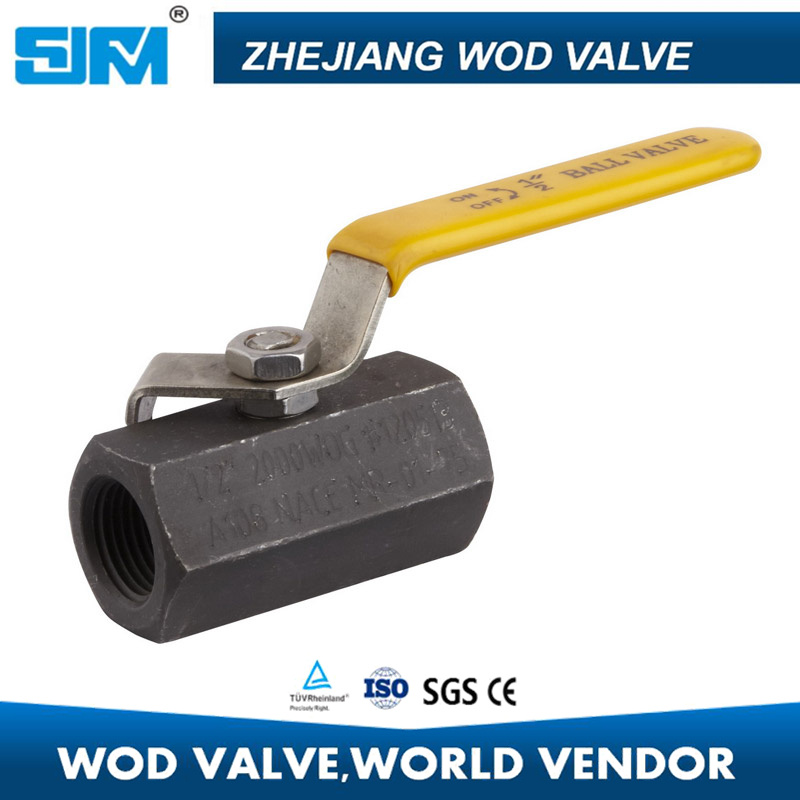

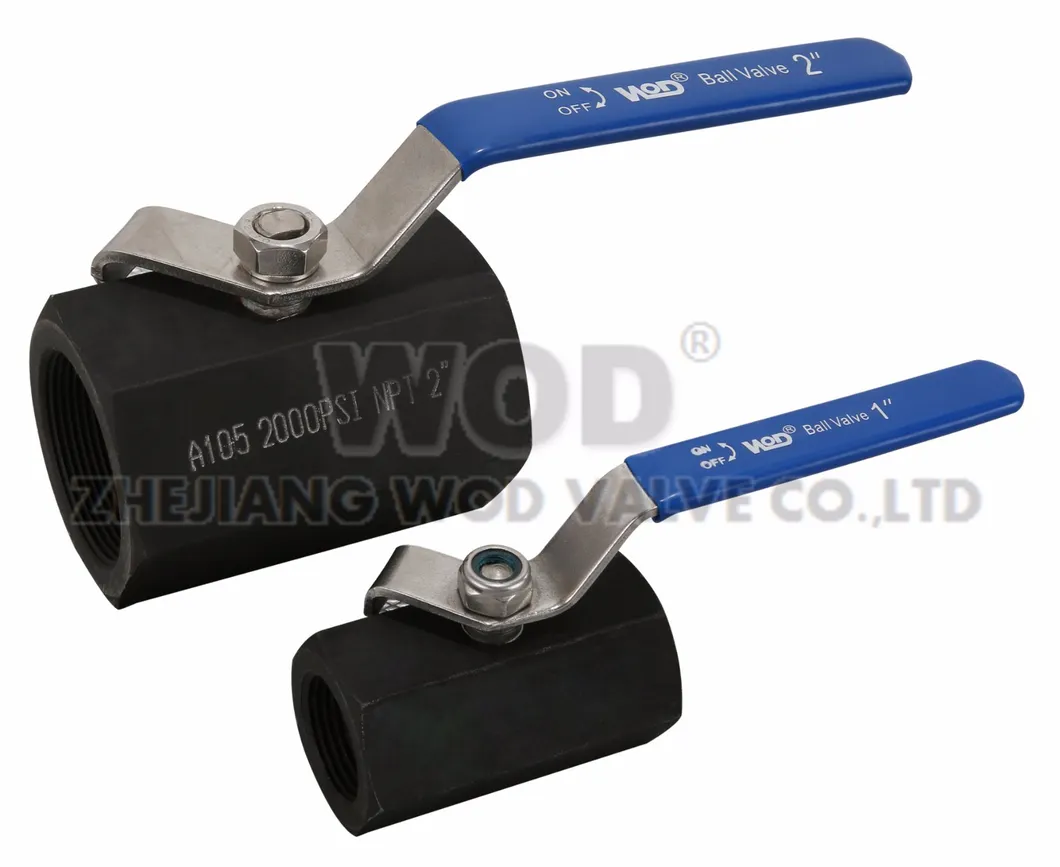

Female Threaded Ball Valve A105 /Wcb 1000wog

Product Description

Products name	Female Threaded Ball Valve A105/WCB 1000WOG
Modle	Q11F
Nominal diameter(DN)mm	1/4-4"
Working pressure:	1000WOG/PN63
Seat	PTFE
Design standard	ASME16.34 GB/T12237
Stem/shaft	SS201
Body	WCB
Ball	SS304
Applicable Media	Water,Oil,Gas and Corrosive Liquid
Temperature Applicable	(-20°C-180°C)
Material	A105 A103
Threaded standard	NPT /BSPT /BSP /DIN/ PT
End connection	Threaded

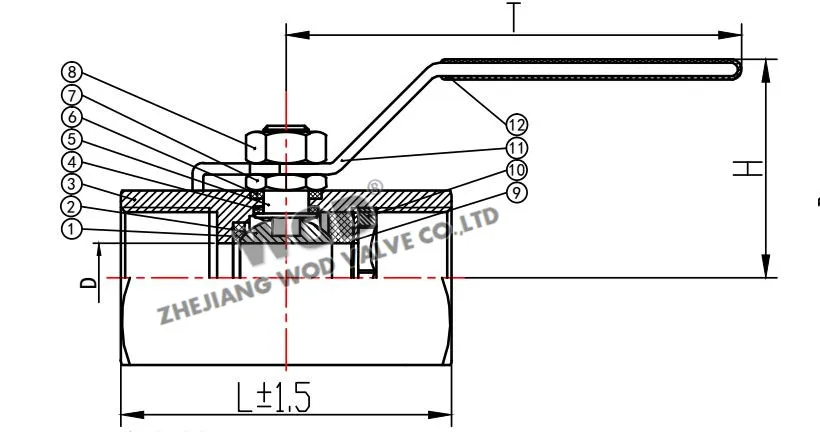

MAIN PARTS:

1.SEAT	PTFE
2.BALL	SS304
3.BODY	WCB
4.THRUST WHASHER	PTFE
5.STEM	SS304
6.PACKING	PTFE
7.NUT	SS201
8.NUT	SS201
9.WASHER	SS201
10.CAP	WCB
11.HANDLE	SS201
12.HANDLE COVER	PVC

Choose WOD, do not hesitate:
1.Design team:
We have the professional design people
Customer's sample is always welcomed
2.Professional factory:
We are manufacturer, specializing in manufacturing stainless steel thread valves for 8 years, competitive price with good quality, the deadline usually is 30-45 days
3.Sample:
We can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
4.Rapid response to your needs:
We will reply within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.

Advantage:
1.We offer the non-standard valves, according to customer requirements
2.If you want, you can have your own logo on the products
3.Exported to more than 10 countries in America and Asia
4.We can promise the quality, passed the CE certification
Female Threaded Ball Valve A105/Wcb 1000wog

FQA
Q1:Are you factory or trading company?
We are a factory with more than 8 years experience and sells more than 30 countries.
Q2: How about MOQ?
For some small size, like 1/4''-1''(DN8-DN25),the MOQ:100pcs/each size.
Q3:Are you OEM?
Yes,we are OEM.
Q4:If yr company can be customized?
Yes, we can according to customer's drawing or sample.
Q5:How about the warranty?
The warranty time is 18 months after leaving our factory.
