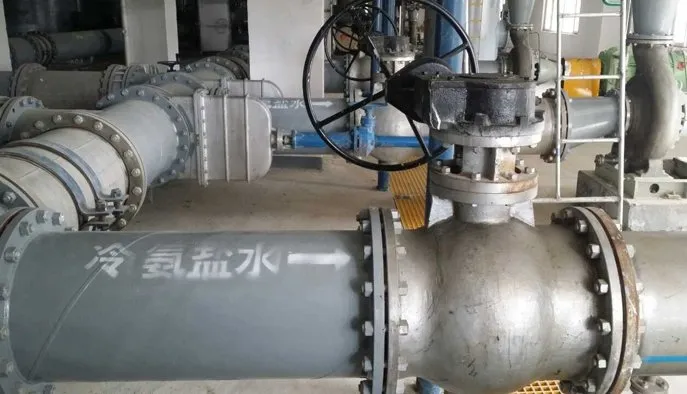

Flange Connection Double Eccentric Plug Valve
Eccentric semi ball valve is a high performance valve we have developed with advanced technology. It is designed on the base of O type ball valve, which solves the difficulties of conveyance of ''solid-liquid" and "solid-gas" two phase medium.FeaturesStraight-through valve bod......
Send Inquiry
Product Description

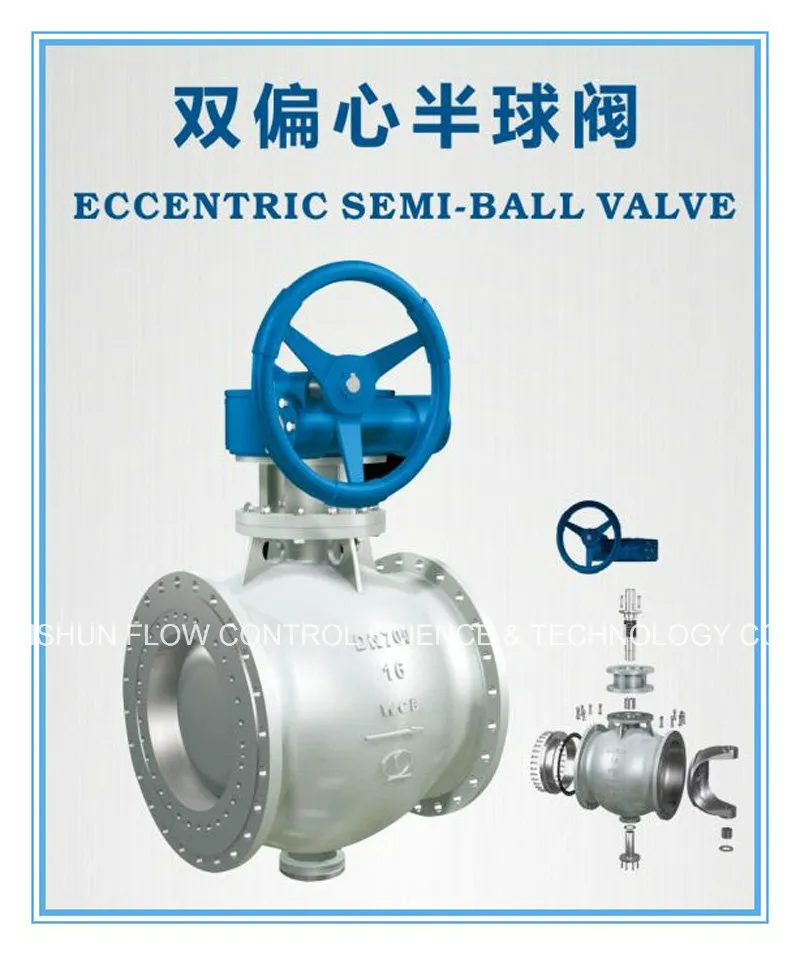

Eccentric semi ball valve is a high performance valve we have developed with advanced technology. It is designed on the base of O type ball valve, which solves the difficulties of conveyance of ''solid-liquid" and "solid-gas" two phase medium.
Features
Straight-through valve body :In full open state, the rectilinear flow of fluid makes for less energy loss than other valves.
Convenient operation: The valve disc will be separated from the valve seat when the E-ball valve is opened. The starting torque is small and turning of the eccentric half ball valve with worm wheel is flexible.
Double eccentric structure: With the utilization of the eccentric-locked cam mechanism, closing of the double eccentric half ball valve is tight and reliable with outstanding sealing performance.
Wedge clamping force: When closing the eccentric half ball valve, dirt and the adhesion on the sealing surface can be removed, which is conducive to the avoidance of scale formation.
The material of sealing surface is hard alloy,so the valves have anti-flushing function.
Application
Steel industry
This semi-ball valve is widely used for dust removeal system of steel industry
Natural alkali industry :
This semi-ball valve is widely used in the following position:
1.Inlet and outlet of pumps for Ammonia water I and Ammonia water II beside carbonating tower
2.Inlet and outlet of mother liquor I and mother liquor II pumps .
3.Installation on the pipe under the cabonation tower to control of shut off the secondary salt solution.
Coal chemical industry
The valve is usually used for high or low pressure coal slurry pump ,ash water pump ,chilling water pump and black water pipes.
Alumina Industry
This semi-ball valve is widely used in the following position:
outlet of rough liquor pump in controlling subsider
Outlet of green liquor pump in controlling subsider
outlet of leaf fillter in controlling subsider
Raw Liquor Pump Outlet
Pregnant Liquor Tank In Evaopration Worhshop
Features
Straight-through valve body :In full open state, the rectilinear flow of fluid makes for less energy loss than other valves.
Convenient operation: The valve disc will be separated from the valve seat when the E-ball valve is opened. The starting torque is small and turning of the eccentric half ball valve with worm wheel is flexible.
Double eccentric structure: With the utilization of the eccentric-locked cam mechanism, closing of the double eccentric half ball valve is tight and reliable with outstanding sealing performance.
Wedge clamping force: When closing the eccentric half ball valve, dirt and the adhesion on the sealing surface can be removed, which is conducive to the avoidance of scale formation.
The material of sealing surface is hard alloy,so the valves have anti-flushing function.
Application
Steel industry
This semi-ball valve is widely used for dust removeal system of steel industry
Natural alkali industry :
This semi-ball valve is widely used in the following position:
1.Inlet and outlet of pumps for Ammonia water I and Ammonia water II beside carbonating tower
2.Inlet and outlet of mother liquor I and mother liquor II pumps .
3.Installation on the pipe under the cabonation tower to control of shut off the secondary salt solution.
Coal chemical industry
The valve is usually used for high or low pressure coal slurry pump ,ash water pump ,chilling water pump and black water pipes.
Alumina Industry
This semi-ball valve is widely used in the following position:
outlet of rough liquor pump in controlling subsider
Outlet of green liquor pump in controlling subsider
outlet of leaf fillter in controlling subsider
Raw Liquor Pump Outlet
Pregnant Liquor Tank In Evaopration Worhshop
