Forged Steel Floating Ball Valve with Extend Body

Product Description

Features:

Three, Two-Pieces Forged Body
Floating Type, Full & Reduced Bore
Blow-out Proof Stem
Fire Safe Design

Specifications:

Design: ASME B16.34/BS 5351
Face to Face: Manufacturer Standard
Screwed End: ASME B1.20.1
SW, BW, End: ASME B16.11
Test: API 598
Fire Safe Test: API 607/API 6FA

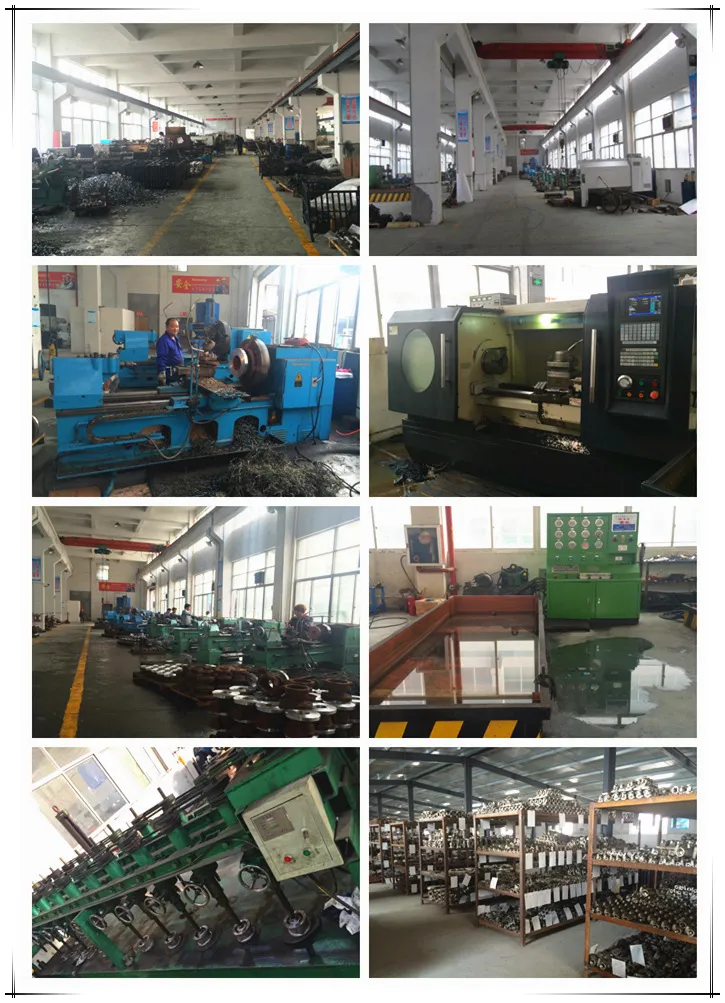

WORKSHOP

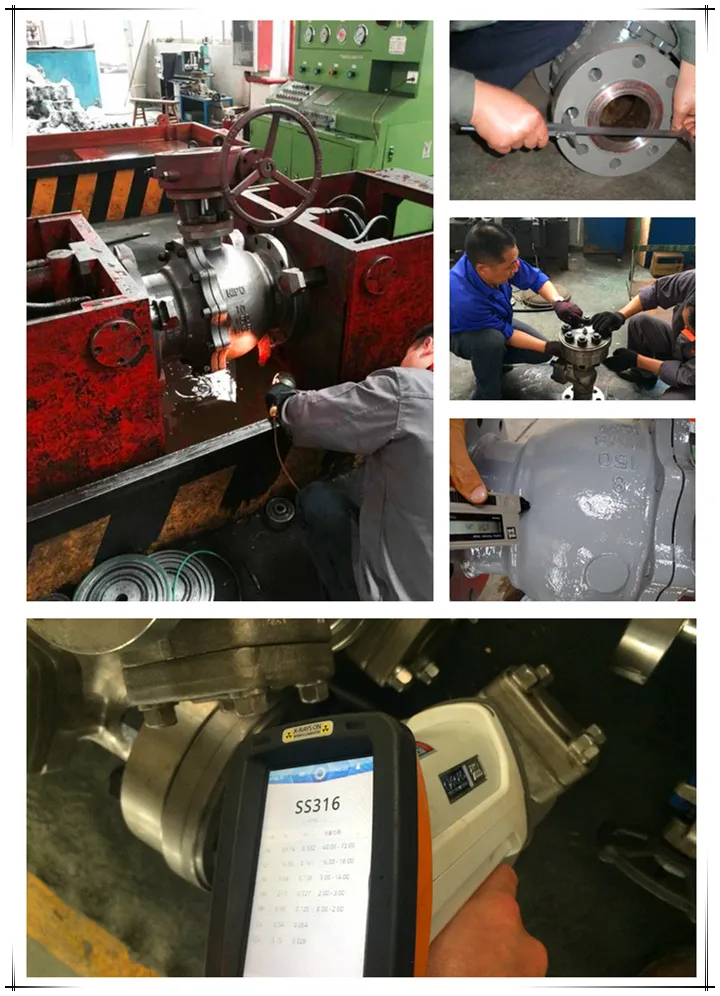

INSPECTION

We welcome all the world customers to contact us for more cooperation.

With our years of technical knowledge and experience, we assure you,

Naibang will be one of your best parters in China.

No.	Part	Material
1	Bonnet	ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51
2	Seat	PTFE RPTFE PEEK PPL
3	Body Gasket	PTFE Graphite
4	Thrust-Washer	A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51
5	Stem	Stainless Steel
6	Stop Nut	Carbon Steel
7	Spring Gasket	A216-WCB 10256+Cr
8	Lever	ASTM A182-F304,F316
9	Backup Ring	1015+Cr Carbon Steel+Cr
10	Limited Plate	Stainless Steel
11	Positioning pin	PTFE Graphite
12	Packing	PTFE
13	"O"-Ring	NBR Viton
14	Antistatic Spring	Stainless Steel SS316
15	Ball	ASTM A105+ENP ASTM A182-F6,F304,F316,F316L,F51
16	Body	ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51
17	Stud	ASTM A193-B7,B8M,B8,B8M
18	Nut	ASTM A194-2H,2HM,8,8M
