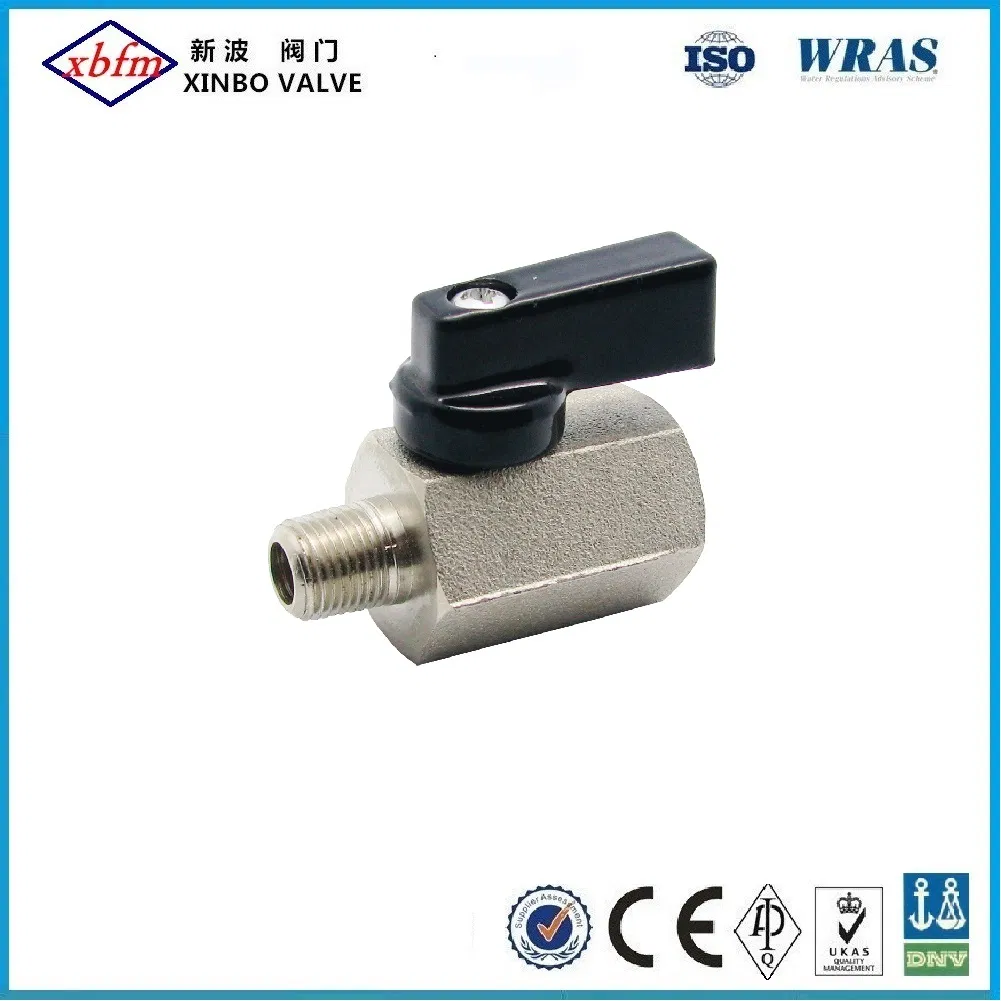

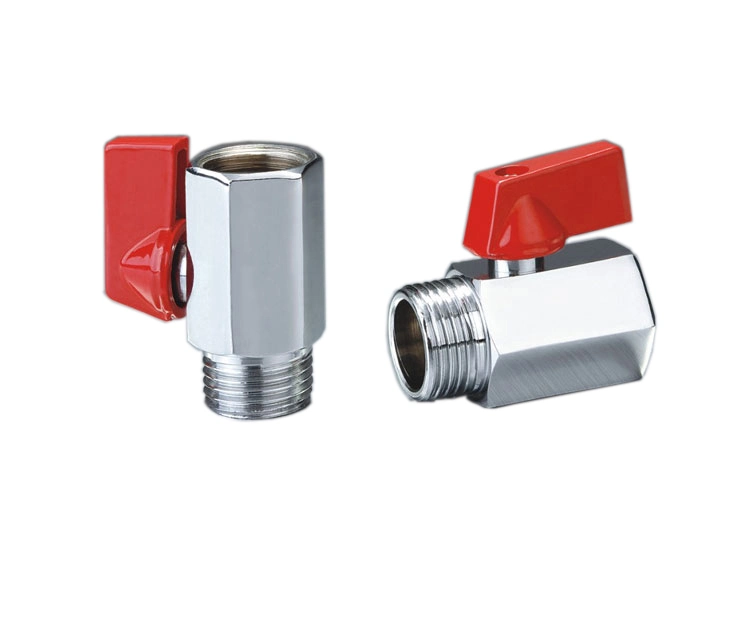

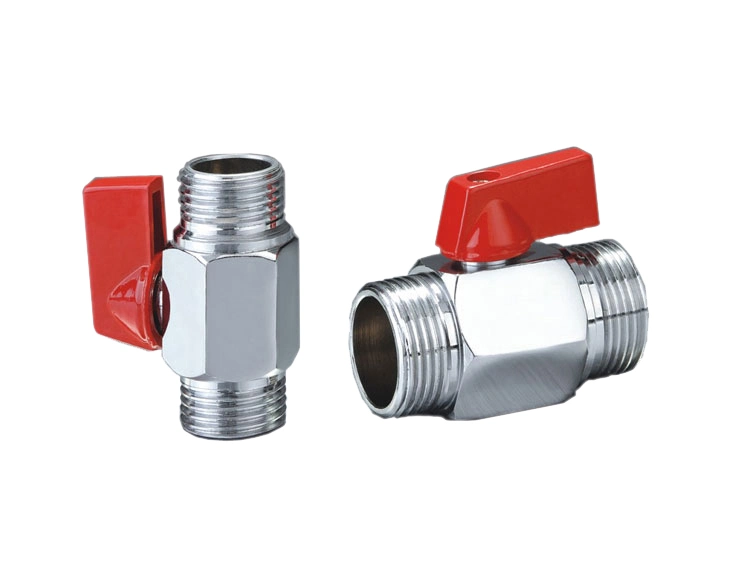

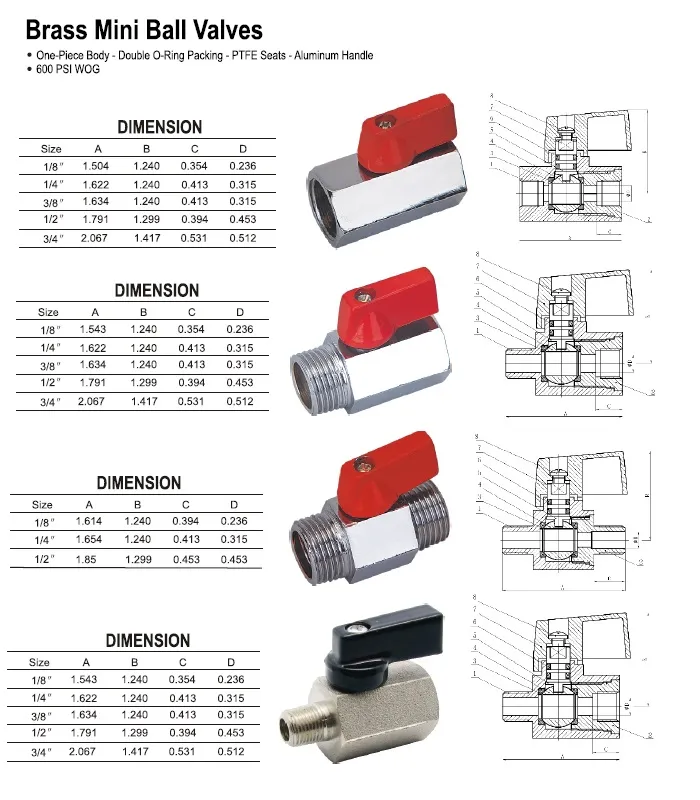

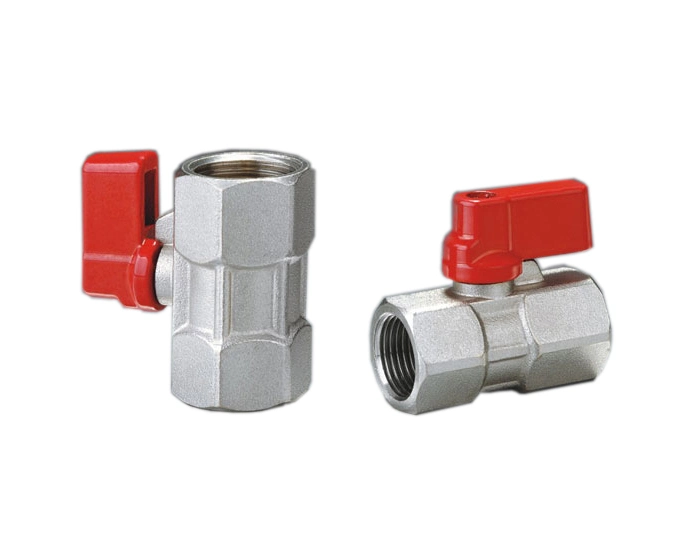

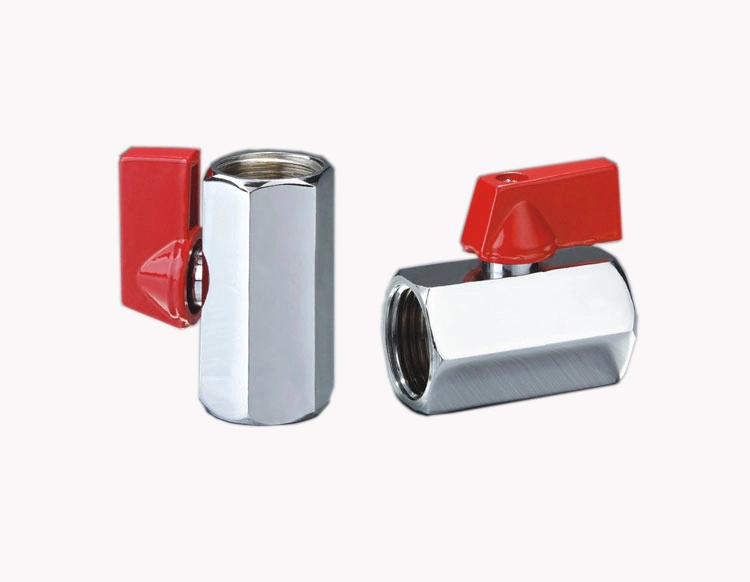

FXM, MXM ,FXF Brass Mini Ball Valve  Brass Mini Ball Valve , Mini brass ball valve , mini ball valve







High Quality  Ball Valve
Commodity Name:   Brass Ball Valve with Butterfly Handle , water meter ball valve/lockable ball for water meter/Anti-theft Ball Valve ,Brass forged body, brass ball chrome plated,brass stem and brass handle.Full port, PTFE seals.

• Material: Forged Brass ( CW617N, CW614 ,CW602N,ASTM C37700)

• Size: 1/4'',3/8'',1/2'',3/4'',1''

• Technical Specification:

• Norminal pressure: 3.0Mpa

• Tested Pressure: 2.0Mpa

• Working medium: Water, oil, gas

• Working temperature: -20° C≤ T≤ 120° C

• Thread standard: According  ISO228, ISO7/1, DIN2999/

• For the handle, it could be changed to Zinc alloy and aluminum handle

• Package details: Each valve by one polybag, inner box, Cartons with wooden pallets

• Application: House connection and drinking meter networks, water pipe connection and flow control

• brass forged body, brass ball chrome plated,, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle

Why Choose US

We control the material of PTFE(Teflon) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

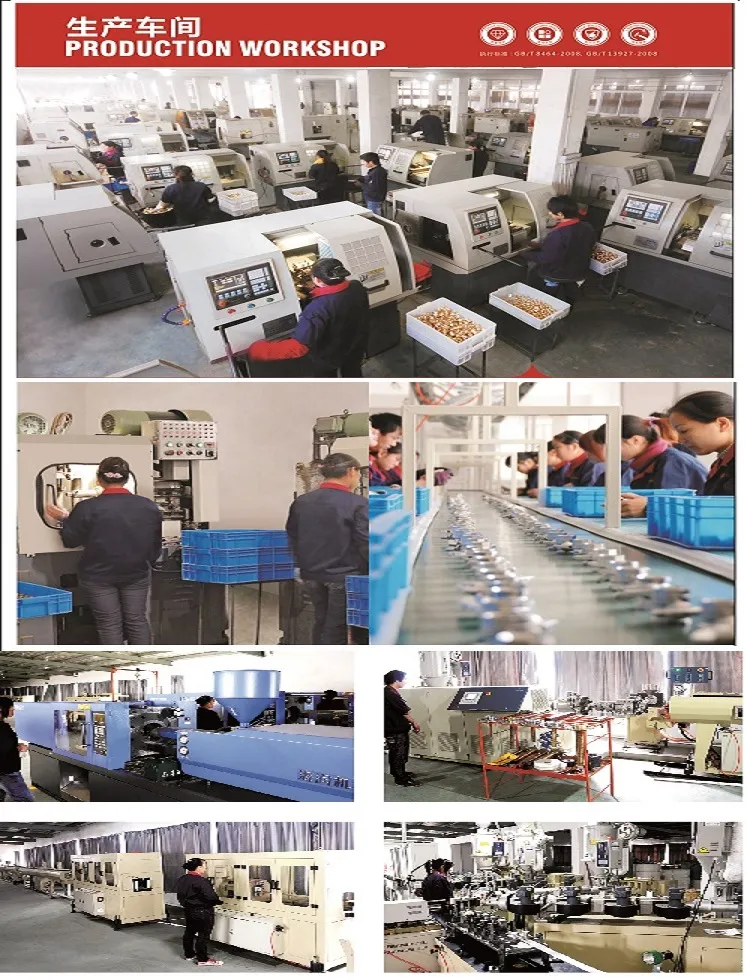

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.

Pre-sale service

1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality+Factory Price+Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone
