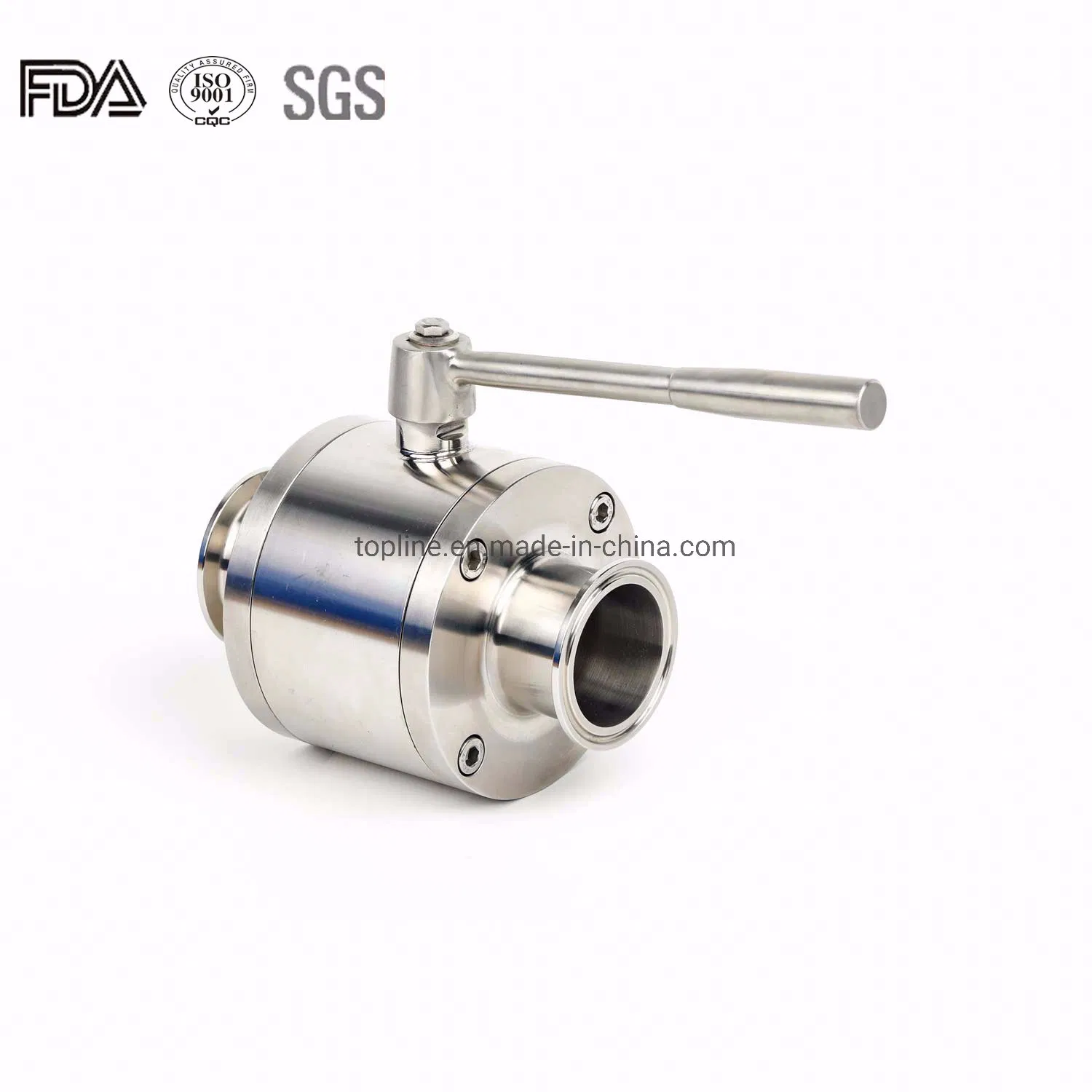

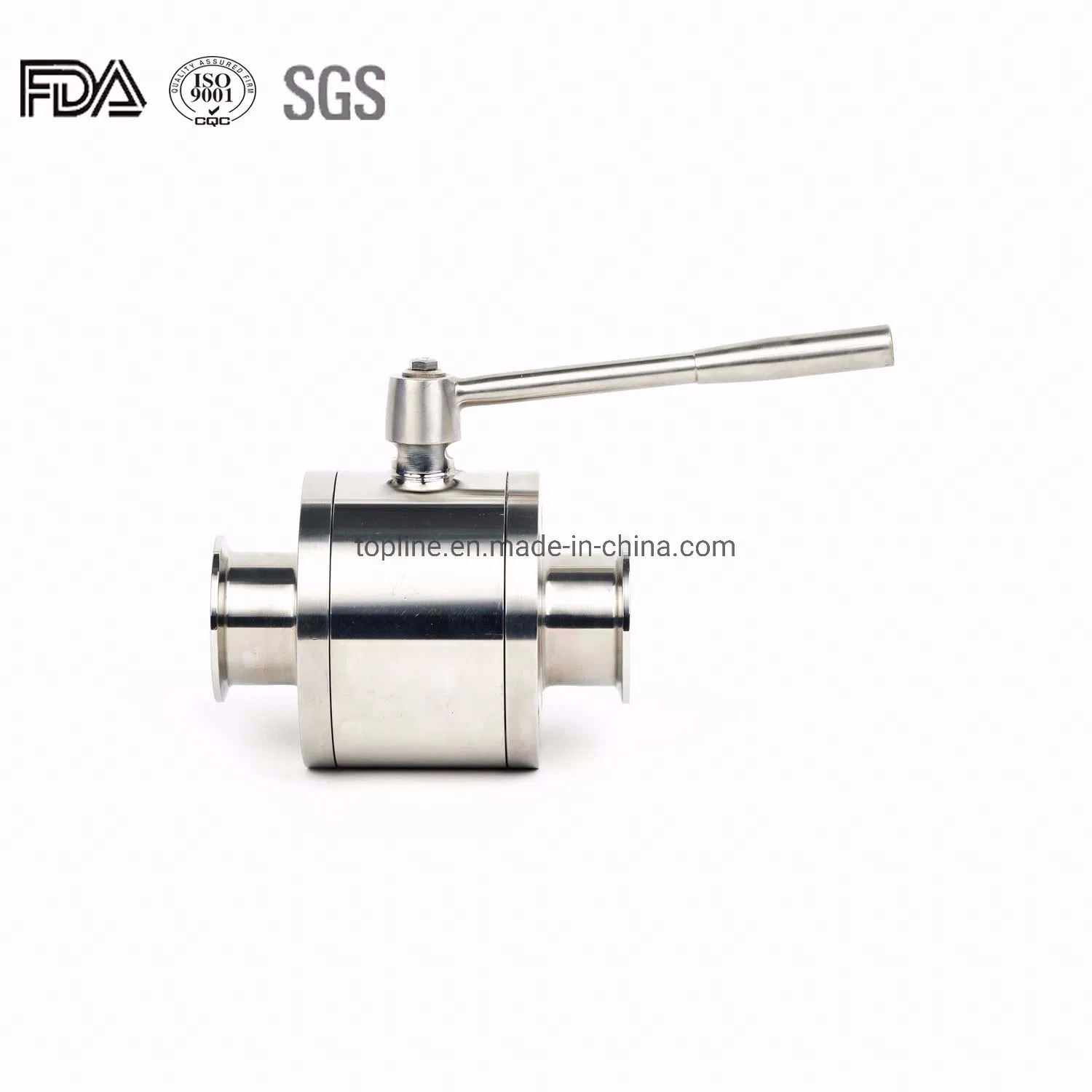

Hygienic Ball Valve
*Hygienic Ball Valve*Material: AISI304, AISI316L*Standard: DIN/SMS/3A/ISO/IDF/RJT*Size: DN25-DN100&1/2"-4"Design and Features*Free of maintenances*Compact and Protable*Small operating torque*Gasket according to PTFE FDA 177.2600*Handle can be installed by the side of the valve body, no......
Send Inquiry
Product Description
*Hygienic Ball Valve
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN25-DN100&1/2"-4"
Design and Features
*Free of maintenances
*Compact and Protable
*Small operating torque
*Gasket according to PTFE FDA 177.2600
*Handle can be installed by the side of the valve body, no matter any of flow direction
*Connections: threaded, tri-clamp, welding
*The valve can match with pneumatic or electric actuators
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN25-DN100&1/2"-4"
Design and Features
*Free of maintenances
*Compact and Protable
*Small operating torque
*Gasket according to PTFE FDA 177.2600
*Handle can be installed by the side of the valve body, no matter any of flow direction
*Connections: threaded, tri-clamp, welding
*The valve can match with pneumatic or electric actuators

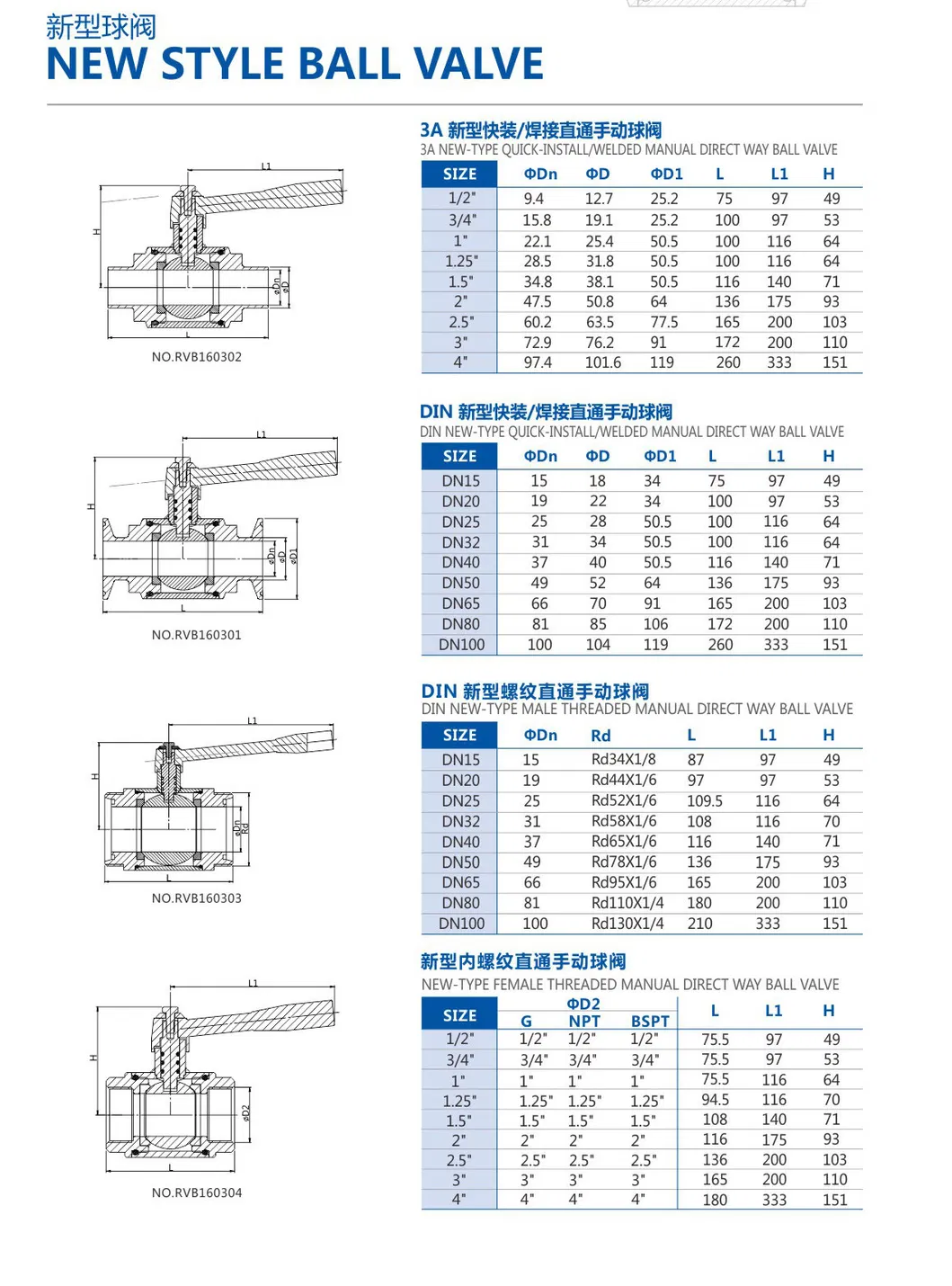

| Connecting Ends | Clamped | |
| Standard | DIN, SMS, 3A, ISO, IDF, RJT, BS | |
| Available Sizes | DN25-DN100, 1"-4" | |
| Metal Material | Parts in contact with fluid | 304, 316L (DIN 1.4301, 1.4304) Forging |
| Other parts | 304 | |
| Seal Material | Options | PTFE |
| Operation | Manual | Pulling handle |
| Pneumatic | NC, NO, A/A | |
| Electric | ||
| Pressure | Max. working pressure | 10 bar |
| Air supply pressure | 5~8 bar | |
| Surface Finish | Internal surface | Ra < 0.8 μm |
| External surface | Ra <1.6 μm | |
