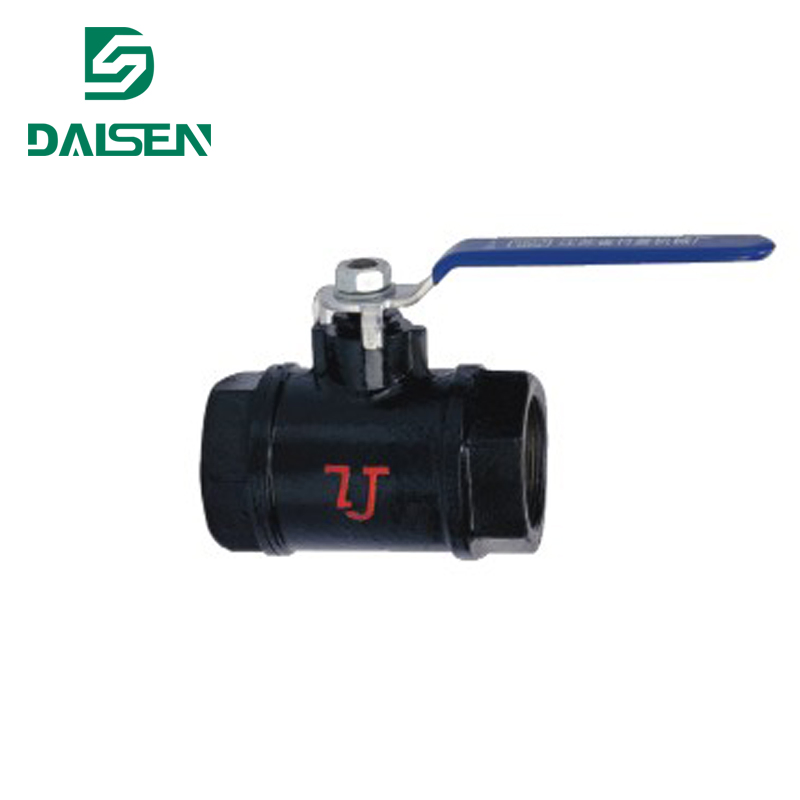

Malleable Iron Ball Valve for Water Industrial Usage
Size15(1/2")20(3/4")25(1")32(11/4")40(11/2")50(2")65(21/2")L(mm)667690105120140167H(mm)60.561.562677687102.5L1(mm)110110130130155175175 Parts nameBodyConnectorStemPackingSealing RingBallHand WheelMaterialsMalleable cast iron45steelTefionStainless steelSteelProduct ......
Send Inquiry
Product Description

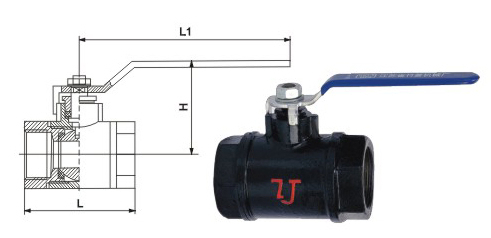

| Size | 15 (1/2") | 20 (3/4") | 25 (1") | 32 (11/4") | 40 (11/2") | 50 (2") | 65 (21/2") |
| L(mm) | 66 | 76 | 90 | 105 | 120 | 140 | 167 |
| H(mm) | 60.5 | 61.5 | 62 | 67 | 76 | 87 | 102.5 |
| L1(mm) | 110 | 110 | 130 | 130 | 155 | 175 | 175 |
Parts name | Body | Connector | Stem | Packing | Sealing Ring | Ball | Hand Wheel |
Materials | Malleable cast iron | 45 steel | Tefion | Stainless steel | Steel | ||
Product Standards:GB/T 15185-1994
Main technique number
Design Standard:CJ216- -2005 BS5163
Face To Face:BS5163/ISO5752 3 Series
End Flange:BS4504/BS EN 1092
Test:EN1074
Test Pressure Mpa
Dody:2.4/1.5
Seat:1.76/1.1
Usable Mediums:Fresh water, air or other gas, oil, ternperature is not higher than 70ºC
Design Standard:CJ216- -2005 BS5163
Face To Face:BS5163/ISO5752 3 Series
End Flange:BS4504/BS EN 1092
Test:EN1074
Test Pressure Mpa
Dody:2.4/1.5
Seat:1.76/1.1
Usable Mediums:Fresh water, air or other gas, oil, ternperature is not higher than 70ºC
