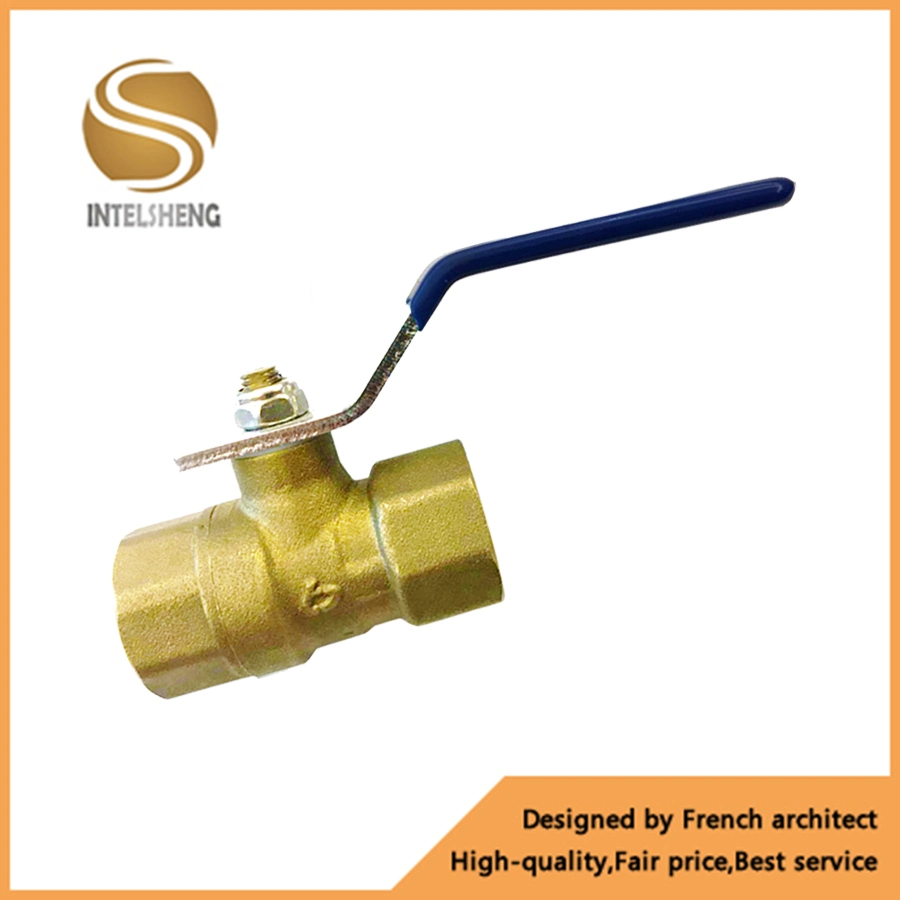

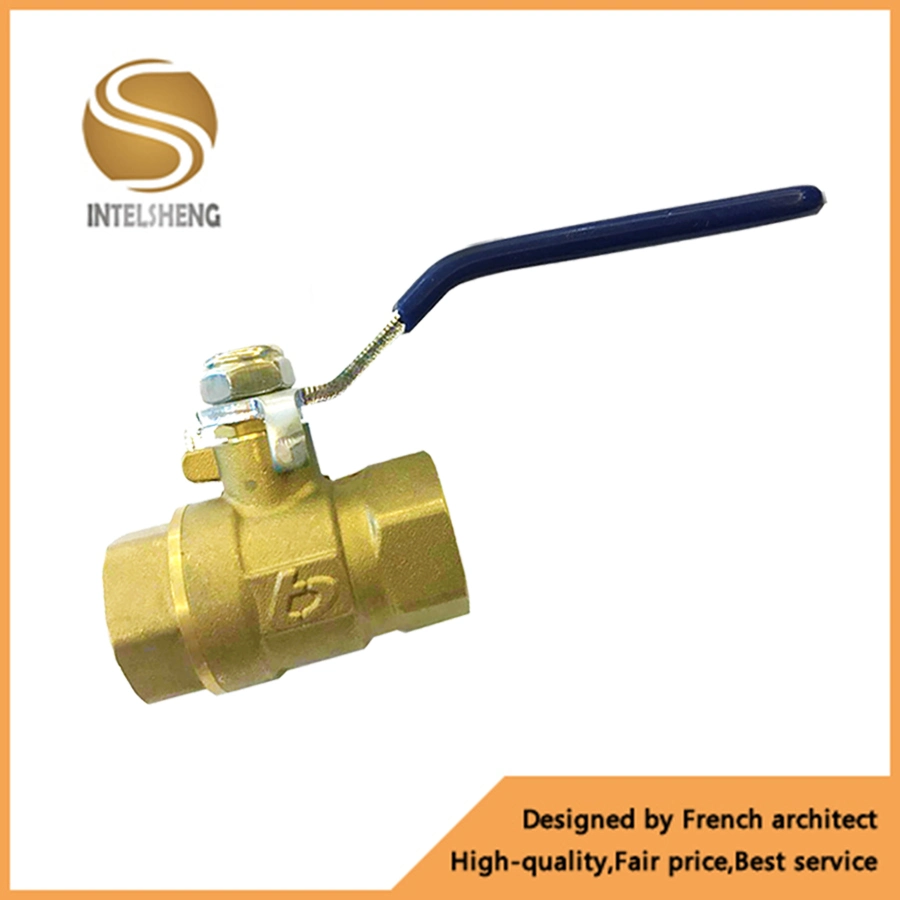

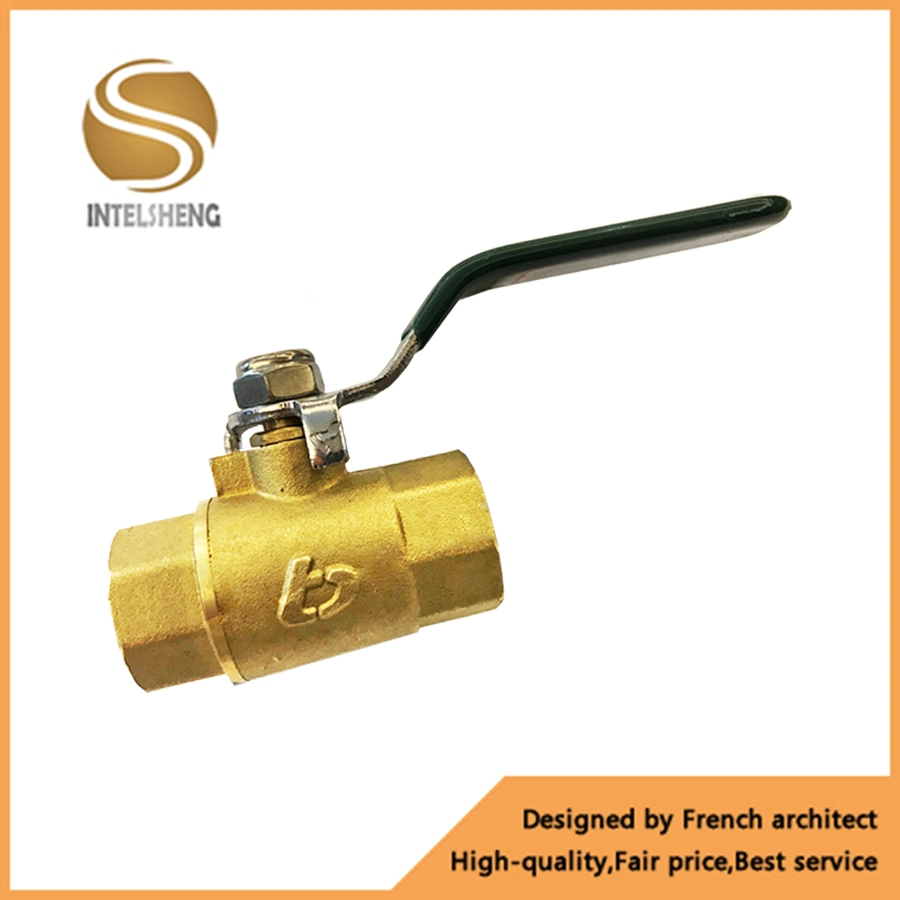

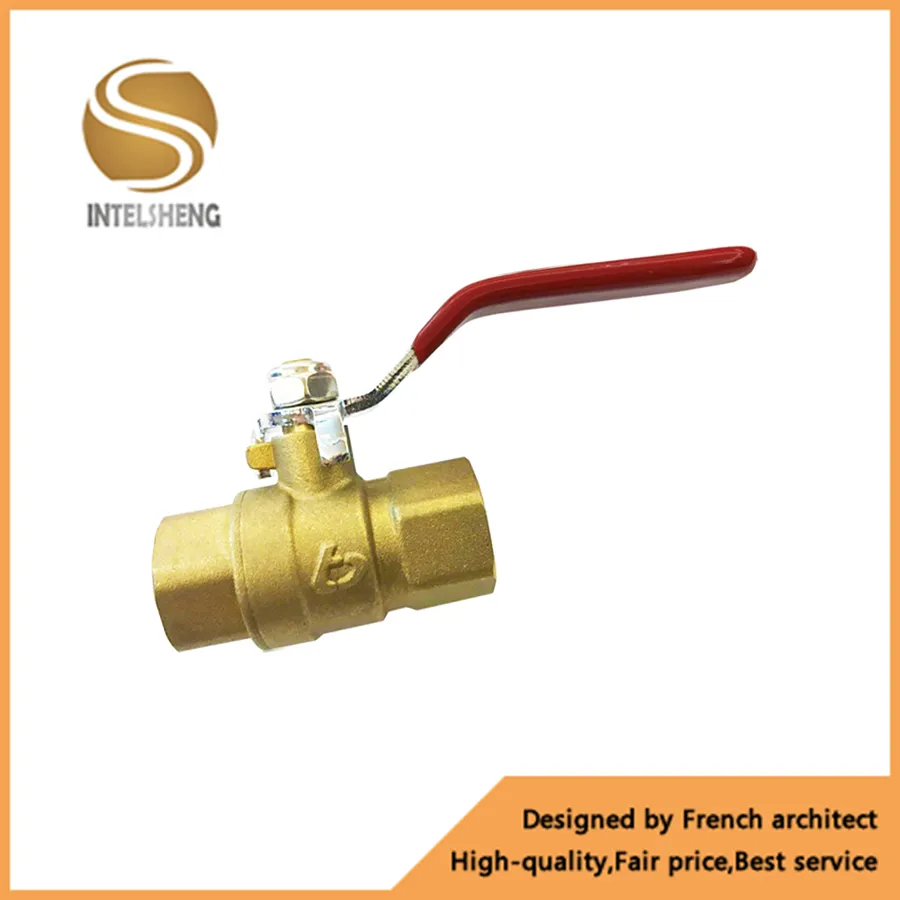

Pn25 1/2 3/4 1 1-1/4 1-1/2 Inches BSPT /NPT Thread Catalog Pricelist Brass Ball Valve with Chrome Plated Long Handle
Specification SPECIFICATIONS FOR Manufacture Supplier Brass Ball Valves: ItemBrass ball valveModel NumberCN1261MaterialBrass/Copper/CW617N/CW614N/CW612N/C36000Size1/4''-4''HandleIron/SS201/SS304 plate (blue and red)Working pre......
Send Inquiry
Product Description
Specification
SPECIFICATIONS FOR Manufacture Supplier Brass Ball Valves:
Descriptions(CBV-002):
Body Material: Brass
Ball: brass chrome plated
Ball seat and packing: PTFE
Stem and gland: brass
Color: Chrome plated
Handle: Steel chrome plated with PVC coating
Medium: water, oil, air,gas
Temperature: -10ºC-110ºC
Thread: Female × Female (1/2 inch ,3/4 inch ,1 inch)
Handle: Iron/SS201/SS304 plate (blue and red)
Working pressure: Up to PN 32.0
Ball valves: 600 WOG full port, reduced port.
Thread: PT. PF. NPT. G. BSP. NPS . BSPT
Available from Male to Male
Mainly use in Agricultural field and Air pump

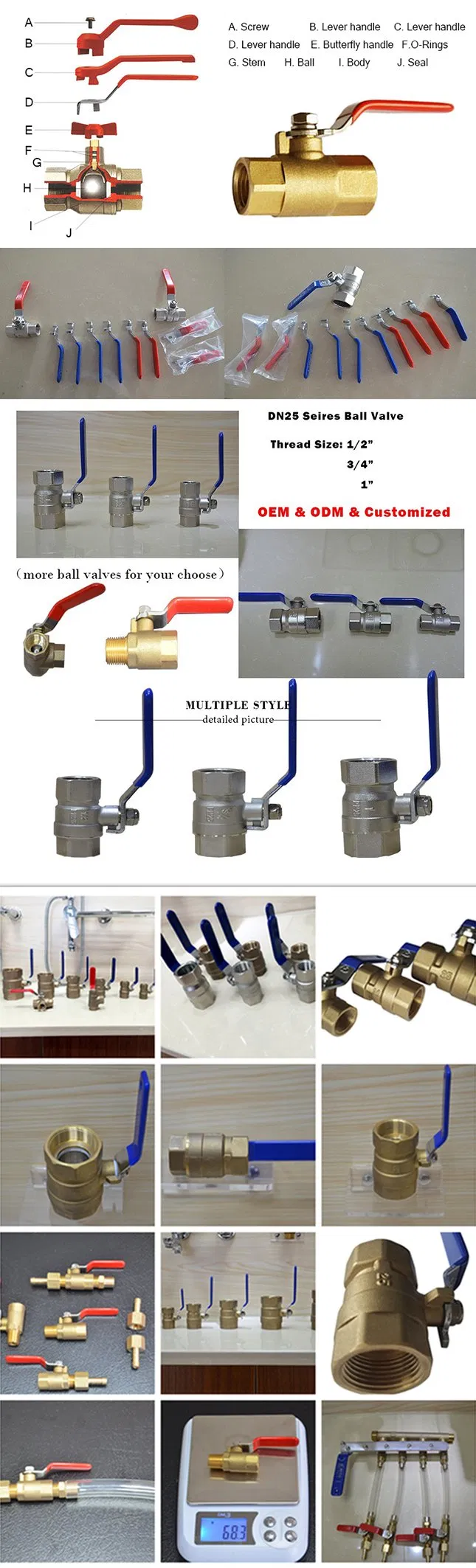

Ball Valve Structure:
About Ball valve:
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting
ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it
is pivoted90-degrees by the valve handle. The handle lies flat in alignment with the flow when open,
and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
In the case that a ball valve is used for cryogenics or product that may expand inside of the ball, there
is a vent drilled into the upstream side of the valve. This is referred to as a vented ball. Safety is the
number one concern when engineers specify a vented ball.
Marks: A ball valve should not be confused with a "ball-check valve", a type of check valve that uses
a solid ball to prevent undesired backflow.
1/2''-2'' Brass Ball Valve Specifications:
Related products
Hot Sale products
Why Choose Us
FAQ
Q: Are you trading company or manufacturer ?
A: We are a trading and manufacturer company.
Q: Do you have standard products?
A: Yes, we have standard products. We also manufacture customized products by drawings or
samples.Customers give us drawings and specifications, and we will manufacture accordingly.
Q: What is your payment term?
A: We can accept Paypal or Western Union for trail order, and T/T 30% down payment, balance
to be paid before shipment. or L/C for normal order
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: What is your advantages?
A: As a professional brass valve and brass fitting manufacturer,we have most advantages:
1. Made from high quality Brass.
2. Direct factory price.
3. ODM/OEM and customized services are welcome.
4. Punctuality delivery time.
5. Sample can be offered.
6. Accept small quantity order.
7. Easy to install.
.............More
SPECIFICATIONS FOR Manufacture Supplier Brass Ball Valves:
| Item | Brass ball valve |
| Model Number | CN1261 |
| Material | Brass/Copper/CW617N/CW614N/CW612N/C36000 |
| Size | 1/4''-4'' |
| Handle | Iron/SS201/SS304 plate (blue and red) |
| Working pressure | PN1.0-32.0 |
| Guarantee time | 3 years |
| MOQ | 300 pieces |
| Packing | Standars export package or Customized |
| Payment | TT,L/C,D/P,Western Union |
| Trademark | INTELSHENG |
| Sample time | 8-10days,depends on product style and workmanship |
| Insurance | Cathay Insurance |
| Customized | All customized services are welcome |
| Payment Terms | 30% prepaid; 70% balance payment after finish the production before delivery |
| QC system | 100% inspection before shipment |
Descriptions(CBV-002):
Body Material: Brass
Ball: brass chrome plated
Ball seat and packing: PTFE
Stem and gland: brass
Color: Chrome plated
Handle: Steel chrome plated with PVC coating
Medium: water, oil, air,gas
Temperature: -10ºC-110ºC
Thread: Female × Female (1/2 inch ,3/4 inch ,1 inch)
Handle: Iron/SS201/SS304 plate (blue and red)
Working pressure: Up to PN 32.0
Ball valves: 600 WOG full port, reduced port.
Thread: PT. PF. NPT. G. BSP. NPS . BSPT
Available from Male to Male
Mainly use in Agricultural field and Air pump

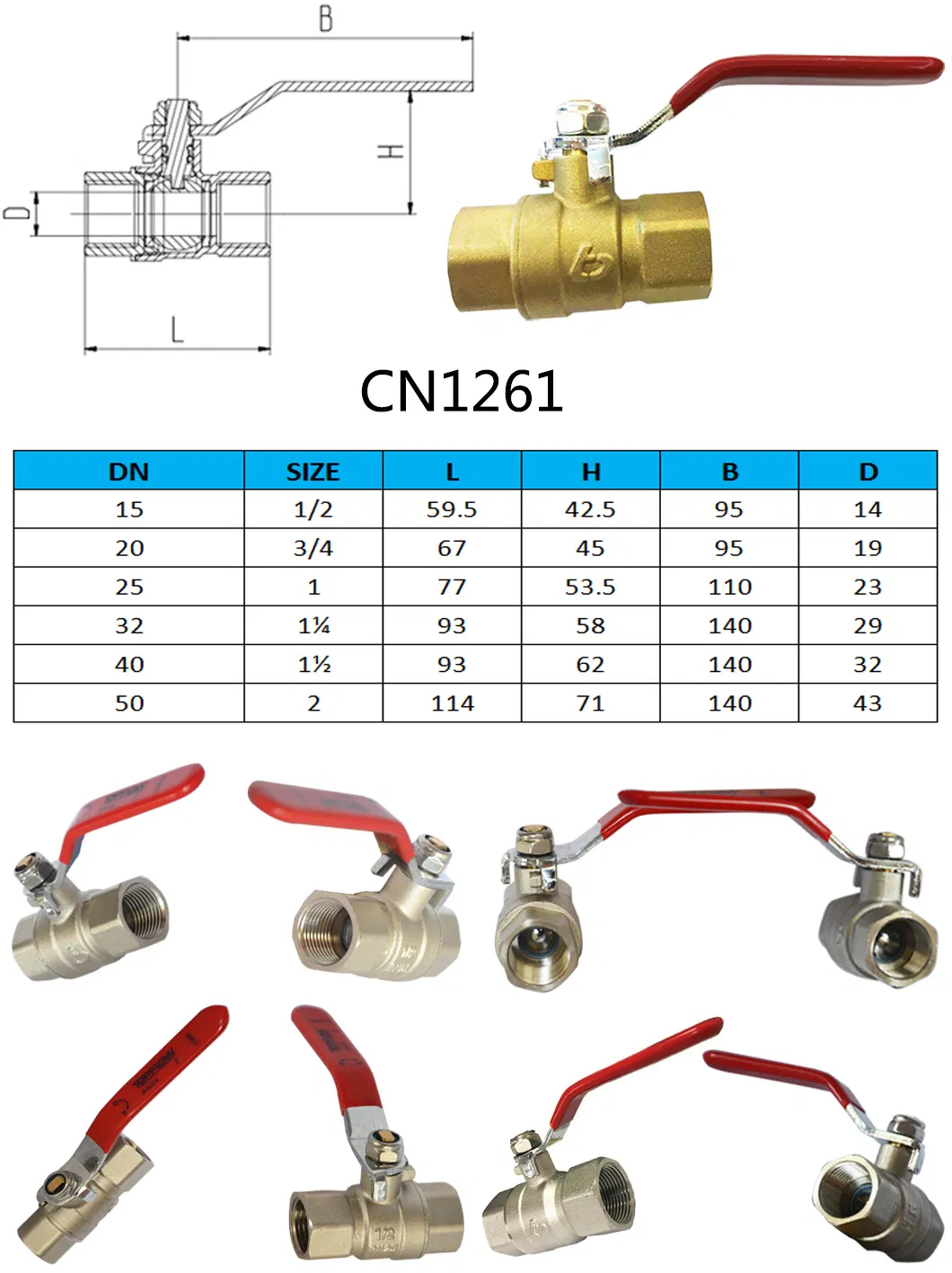

Ball Valve Structure:
About Ball valve:A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting
ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it
is pivoted90-degrees by the valve handle. The handle lies flat in alignment with the flow when open,
and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
In the case that a ball valve is used for cryogenics or product that may expand inside of the ball, there
is a vent drilled into the upstream side of the valve. This is referred to as a vented ball. Safety is the
number one concern when engineers specify a vented ball.
Marks: A ball valve should not be confused with a "ball-check valve", a type of check valve that uses
a solid ball to prevent undesired backflow.
1/2''-2'' Brass Ball Valve Specifications:
| Ball valve | Thread Size (M&F) | Weight (g) | Body Material | Ball Material | Handle Material |
| DN15 | 1/2'' | 178 | BRASS COPPER CW617N | BRASS CHROM PLATED | Iron SS301 SS304 |
| DN20 | 3/4'' | 250 | |||
| DN25 | 1'' | 393 | |||
| DN32 | 1¼'' | 581 | |||
| DN40 | 1½'' | 807 | |||
| DN50 | 2'' | 1181 |
Related products
Hot Sale products

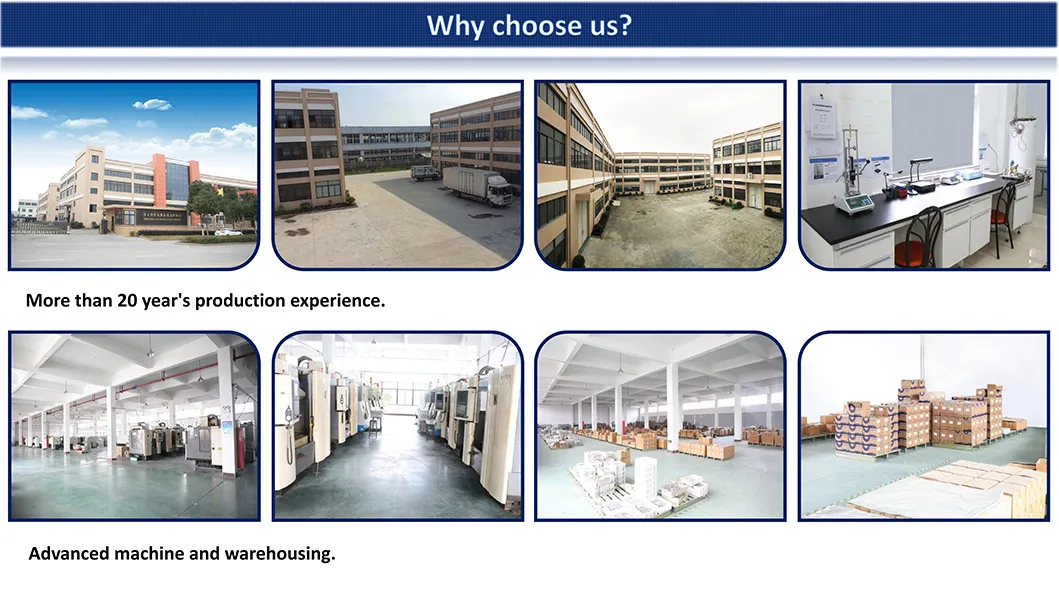

Why Choose Us
- We are factory and International trading company
- Imported Advanced Machineries manufacture high- performance products.
- More than 20 years' experienced French R&D team provide the best designing
- Offering the reasonable price, delivering on time , providing a 24-hour after-sales calling service
- Diversified brass products, helps customer to carry out one-stop procurement
FAQ
Q: Are you trading company or manufacturer ?
A: We are a trading and manufacturer company.
Q: Do you have standard products?
A: Yes, we have standard products. We also manufacture customized products by drawings or
samples.Customers give us drawings and specifications, and we will manufacture accordingly.
Q: What is your payment term?
A: We can accept Paypal or Western Union for trail order, and T/T 30% down payment, balance
to be paid before shipment. or L/C for normal order
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: What is your advantages?
A: As a professional brass valve and brass fitting manufacturer,we have most advantages:
1. Made from high quality Brass.
2. Direct factory price.
3. ODM/OEM and customized services are welcome.
4. Punctuality delivery time.
5. Sample can be offered.
6. Accept small quantity order.
7. Easy to install.
.............More
