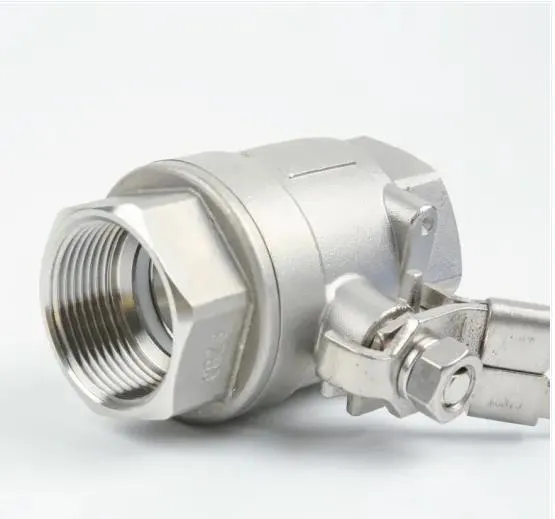

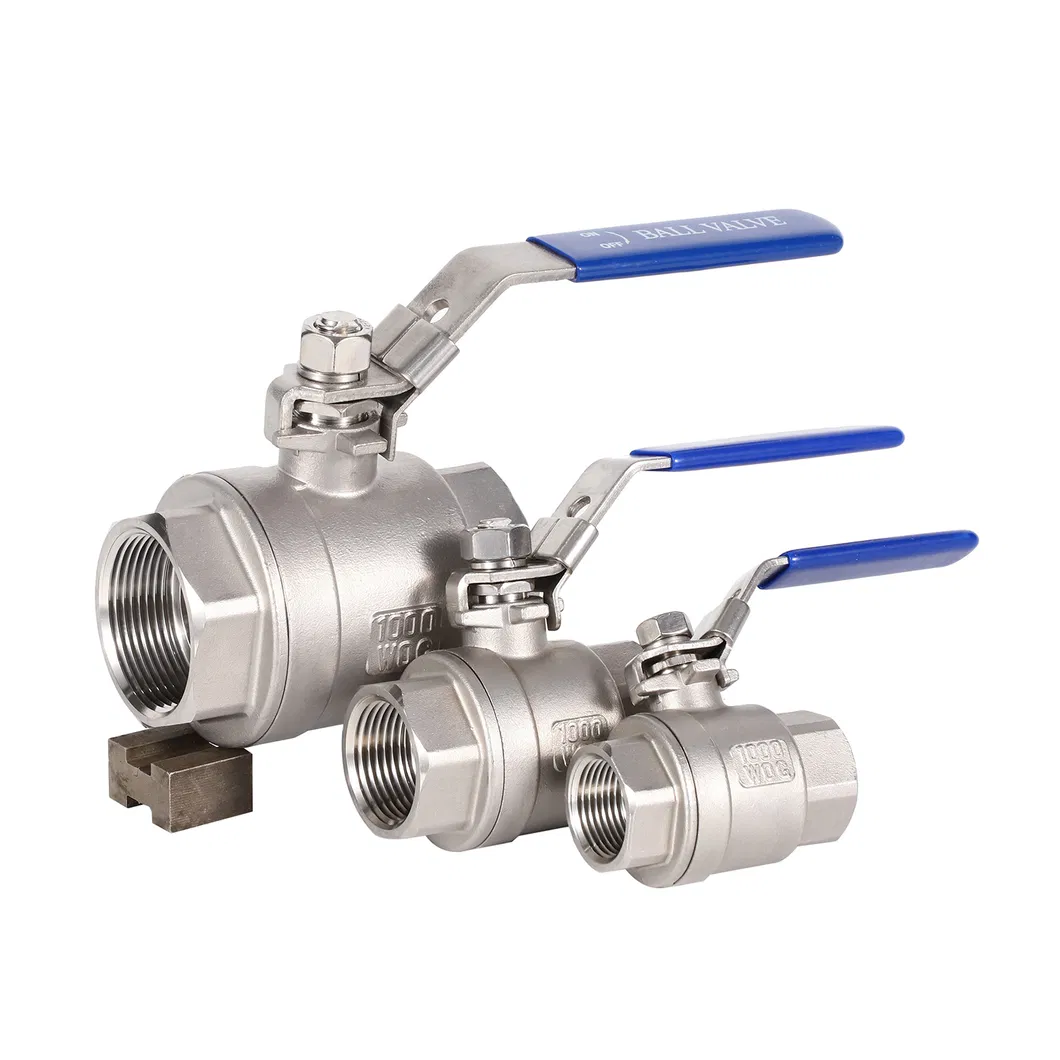

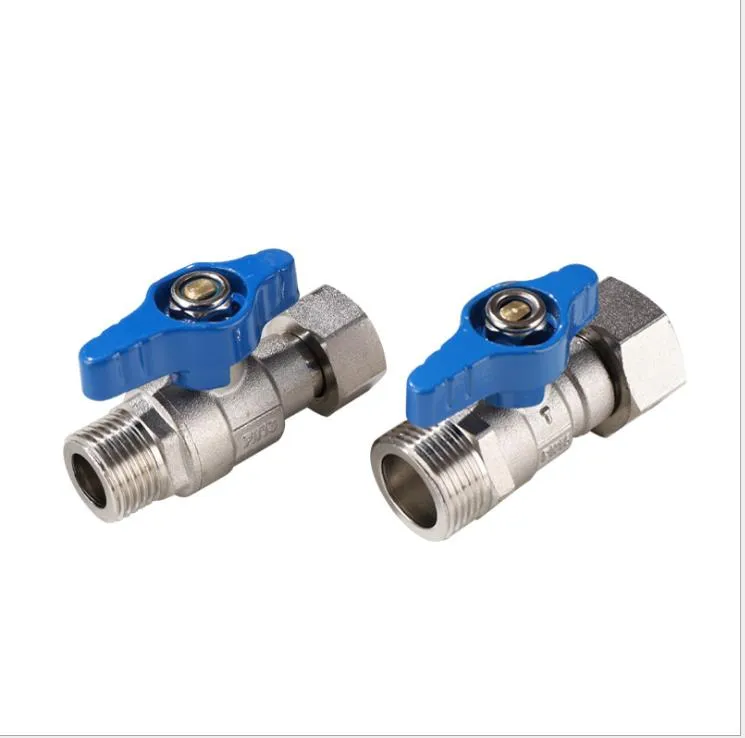

Sanitary Stainless Steel Ball Valve Quick Installation Ball Valve Sanitary Valve Straight Through Ball Valve Pipeline Valve 304

Product Description

Stainless steel thread ball valve PN16 ~ PN63 is suitable for the working temperature - 29 ~ 180 ºC (seal for enhanced ptfe) or - 29 ~ 300 ºC (seal for para polystyrene) of various pipelines, used to truncate or on line in the medium, choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, and other media.

Design and Features	Free maintenances
	Compact and portable
	Small operating torque
	Gasket complies with PTFE FAD 177.2600
	Handle lever can be installed on the side of valve body, no matter of flow direction
Connection	Thread, clamp, weld, flange
Standard	DIN, SMS, RJT
Material	SS304, SS316L
Size	DN10-DN100, 1/2"-4"
Type of Ball Valves	One way ball valve, three-piece ball valve, three-way ball valve
Type of Cores	T Type, L type, direct type, butterfly type
Power	Pneumatic and electric actuators

OD	Threaded	(mm)						Weight WT(g)
OD	Threaded	d	L	W	H	E	D	D
6	1/4″	8	60	110	56	11.5	30	320
10	3/8″	18	60	110	58	11.5	31	320
15	1/2″	10.5	60	110	58	14	32	350
20	3/4″	13	67.5	110	62	15	38	430
25	1″	17	73	110	68	15	45	570
32	1 1/4″	22	90	150	75	18	53.4	1000
40	1 1/2″	25	97.5	150	83	19	63	1550
50	2″	32	112	150	90	19	73	2170
65	2 1/2″	40	132	180	95	21	92	3625
80	3″	50	156	220	100	27	109	5800
100	4″	65	196	250	115	29	138	7200
