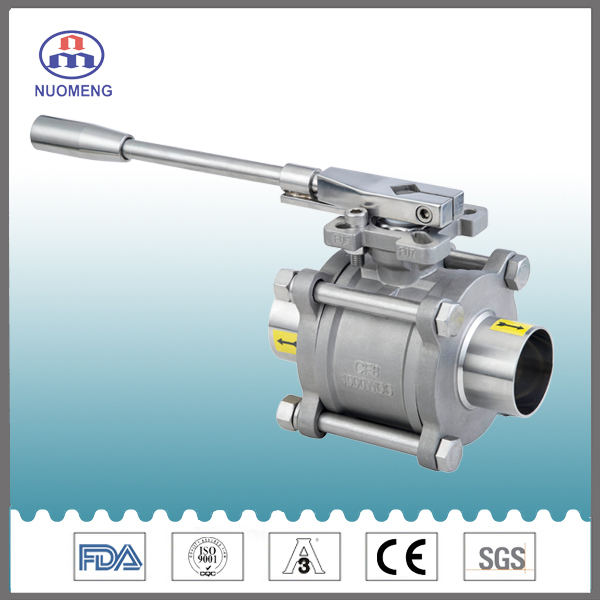

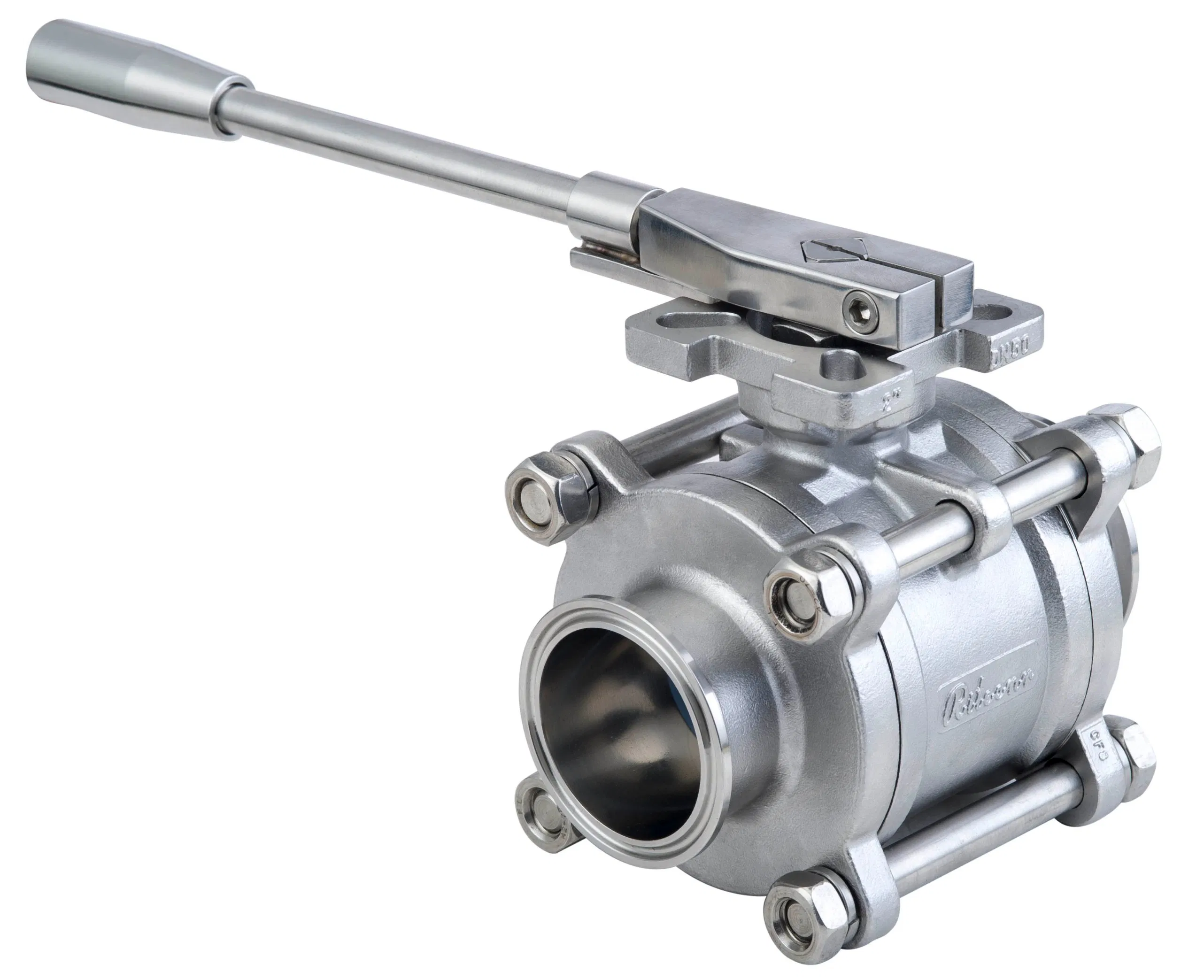

Product Name: Sanitary Stainless Steel Three Piece Welded Manual Ball Valve

Application:
This type of ball valve series is a kind of sanitary valve which used to control the material transfer.It is widely used in food,beverage processing,pharmaceutical and chemical industry area.

Working principle:
With the 90° rotary handle,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow.

Material: Steel parts: 304 stainless steel, stainless steel 316L
Seal: VMQ, FPM, EPDM, PTFE

Standard design: SMS. Our company offers other standard, such as 3A, DIN, IDF, RS/RJT, ASME/BPE, ETC.

The parts of valve usually include: Valve body which divided into two parts, the ball with through cavity, valve stem and control sets(handle/actuator)etc.

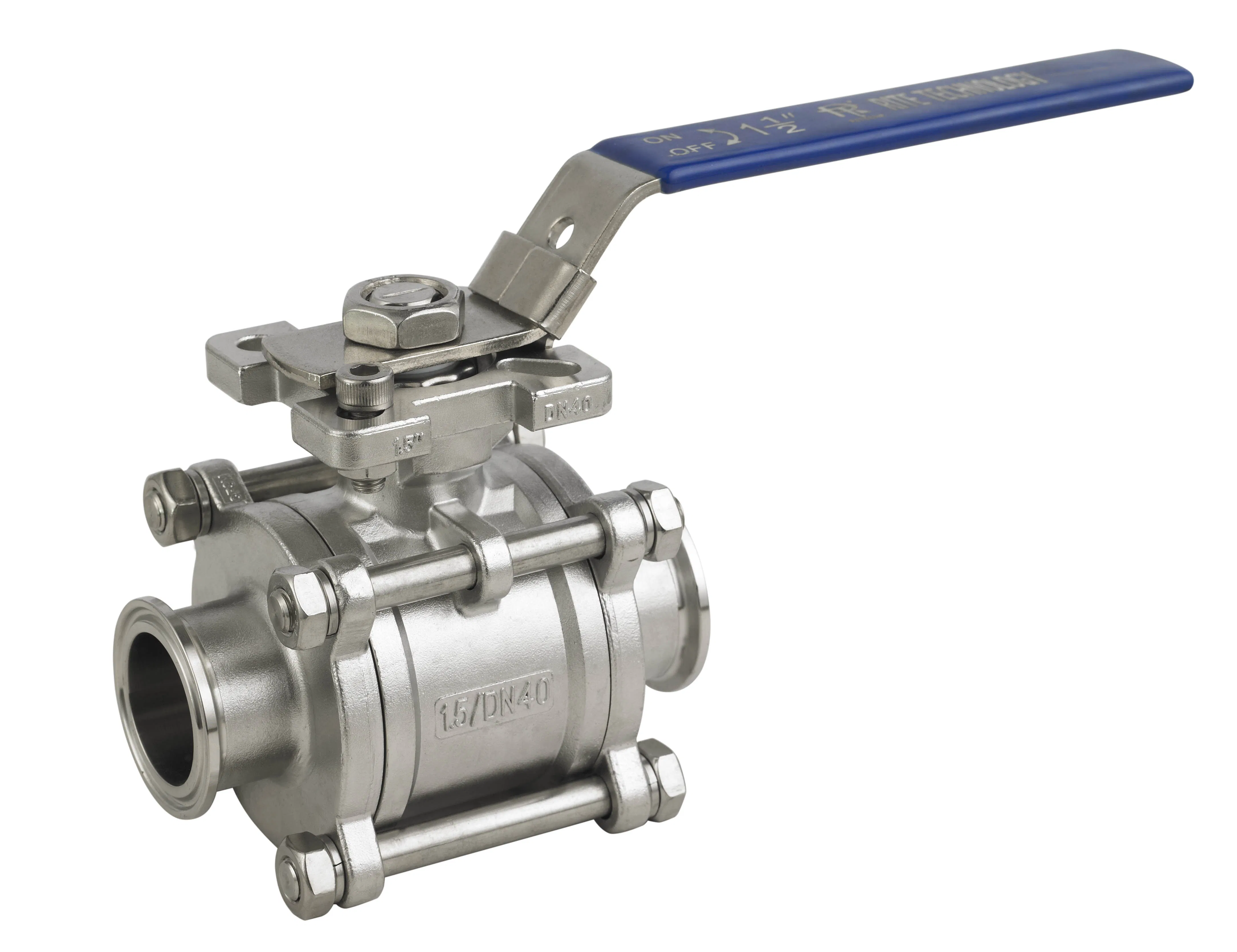

Connection: Weld, Our company also offers clamp, weld/clamp, etc.

SMS-NO.RQ0103	Size	Length	outer diameter	inner diameter	G	H	L	ISO5211	S	N.m
	12.7	93	12.7	9.7	40.3	71	130	F03 PCD36 6X4 F04 PCD42 6X4	9	5.5
	19	103.5	19.05	16.05	42.3	73	130	F03 PCD36 6X4 F04 PCD42 6X4	9	5.5
	25	110	25.4	22.4	53.4	91.6	165	F04 PCD42 6X4 F05 PCD50 7X4	11	11.8
	32	120	31.8	28.8	58.4	96.6	165	F04 PCD42 6X4 F05 PCD50 7X4	11	14.2
	38	129	38.1	35.1	70.8	104	190	F05 PCD50 7X4 F07 PCD70 9X4	14	19.0
	51	145	50.8	47.8	77.8	110	190	F05 PCD50 7X4 F07 PCD70 9X4	14	23.7

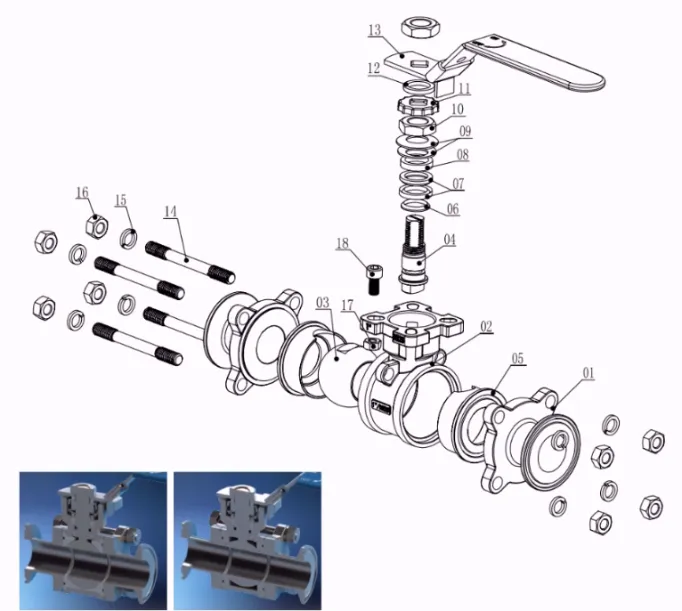

Parts List
01	Valve Cap	10	Nut
02	Valve Body	11	Stopper Ring
03	Ball Core	12	Gasket
04	Valve Stem	13	Pull Handle
05	Body Seal	14	Bolt
06	Washer Gasket	15	Spring Washer
07	V-seal Components	16	Nut
08	Gasket	17	Nut
09	Spring Gasket	18	Bolt
