Product Description

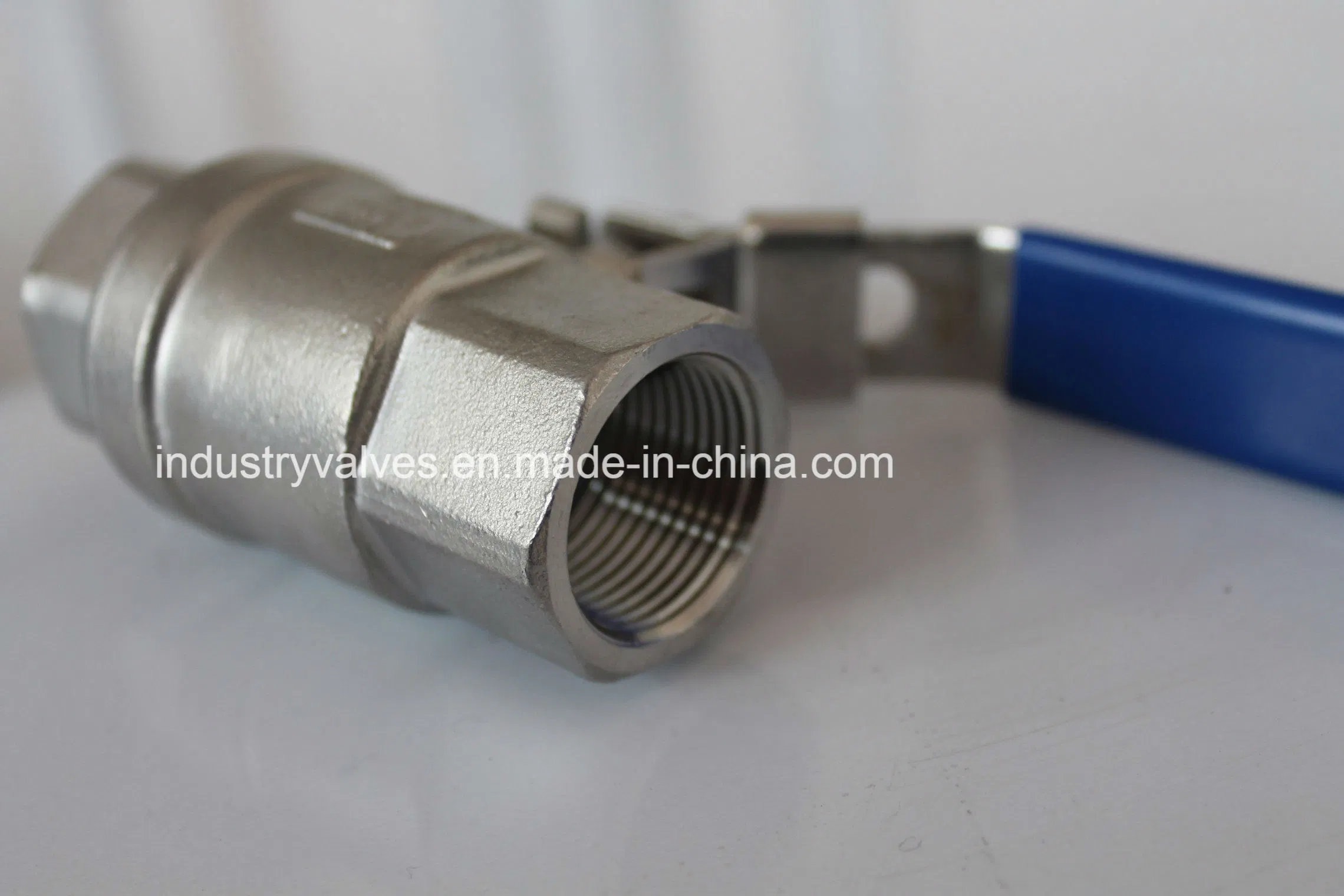

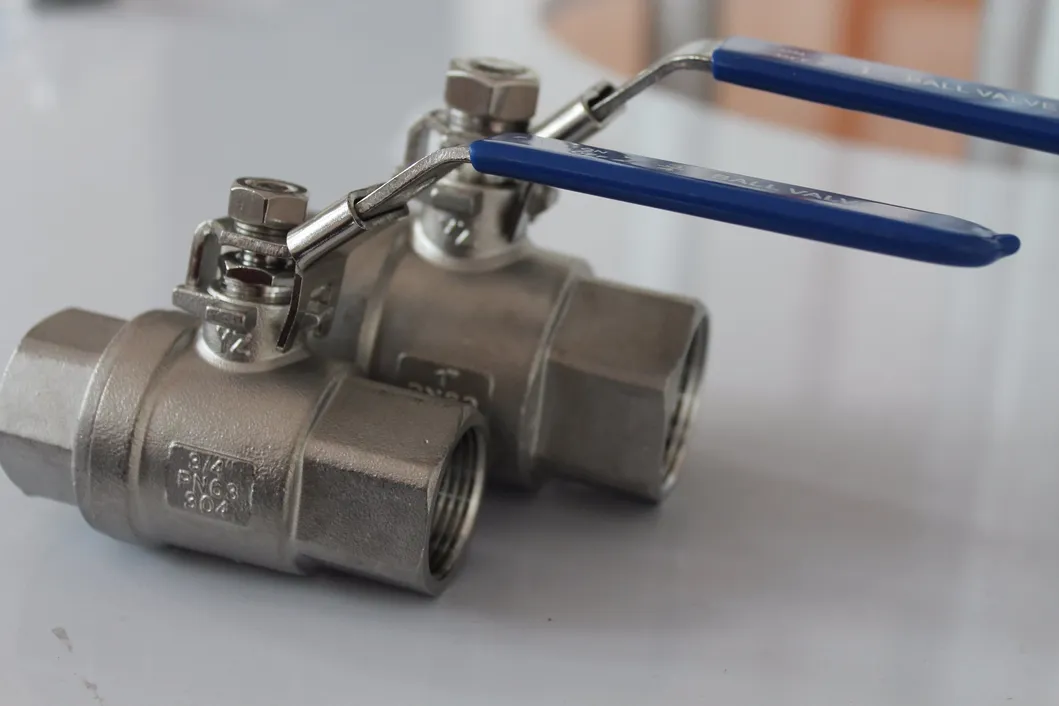

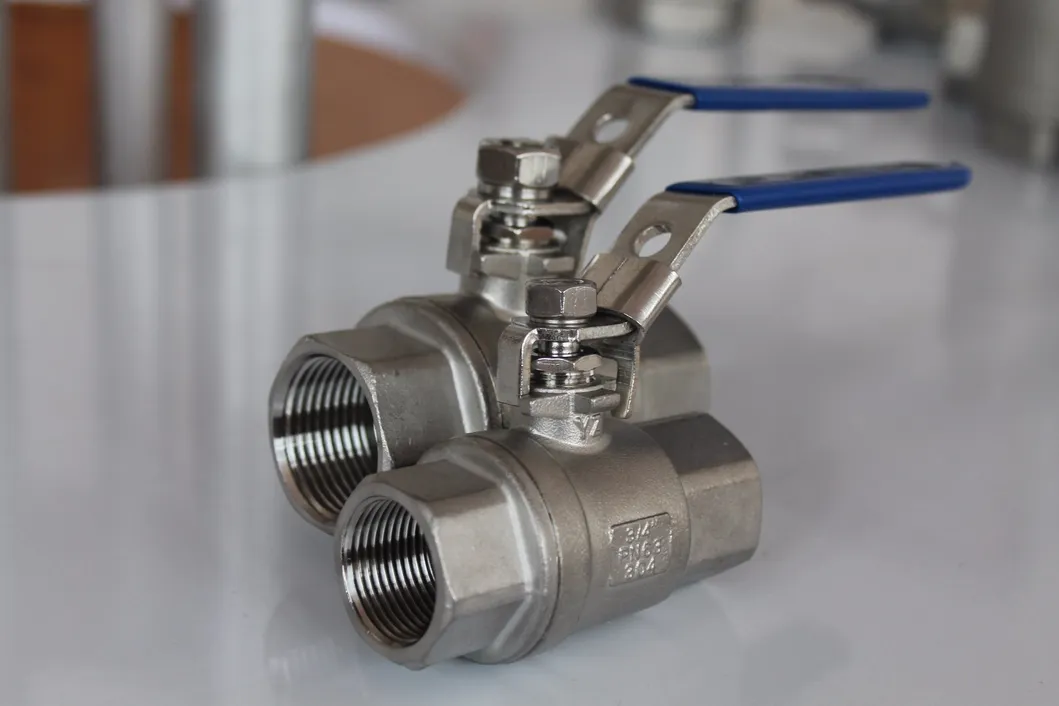

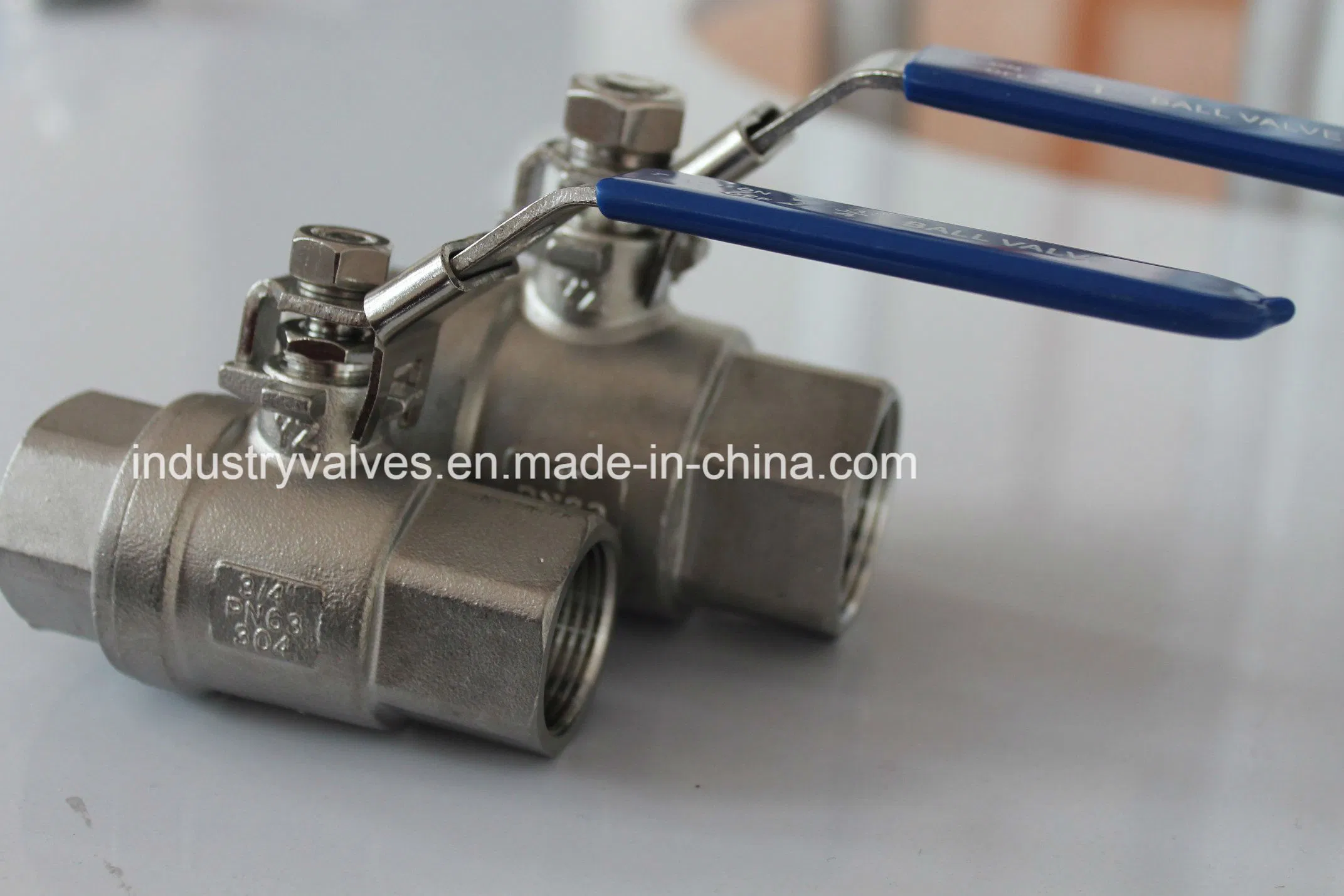

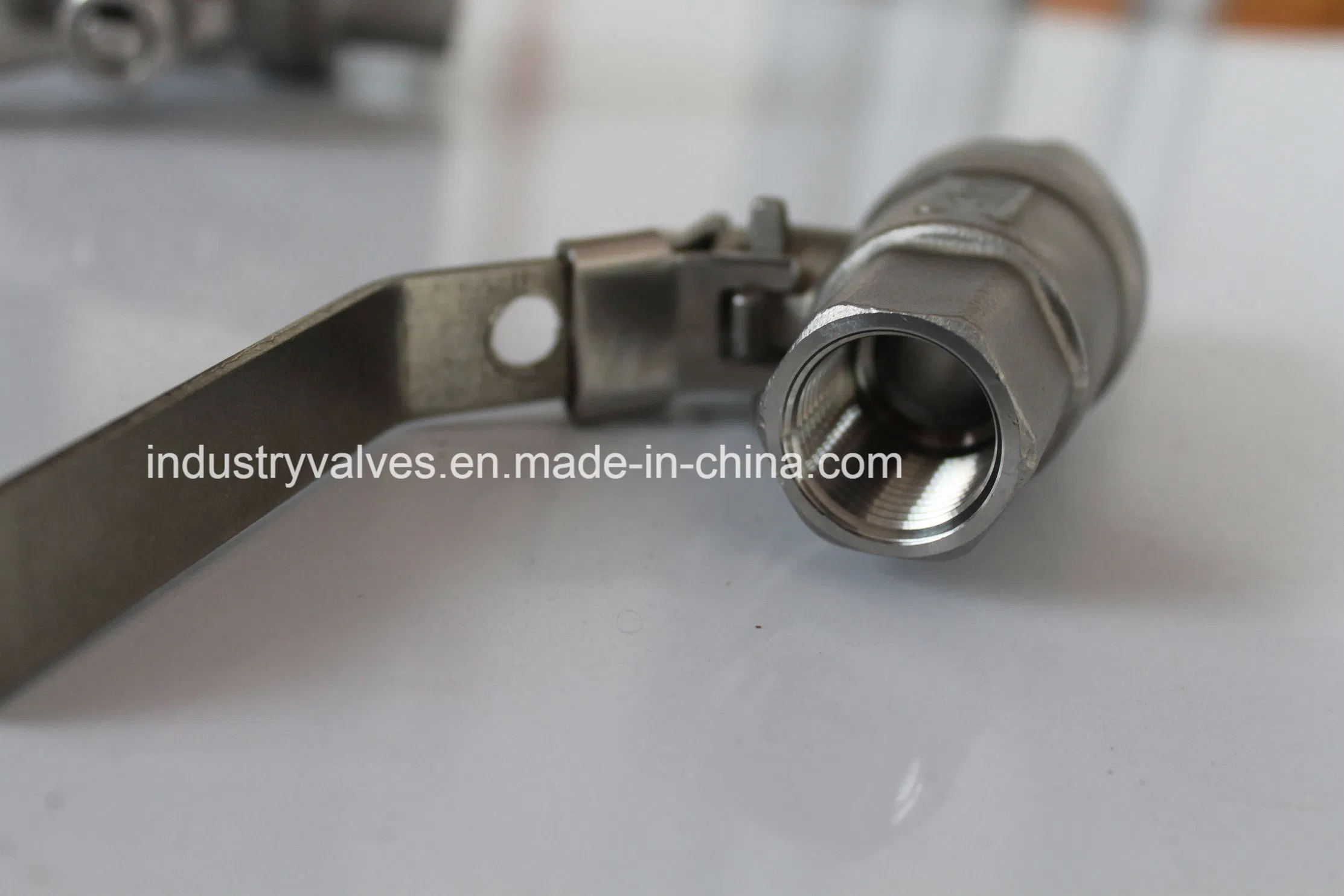

SS304 / SS316 DIN M3 2pc Threaded Inox Bola Valvulas

2PC Stainless Steel DIN M3 Ball Valve, which face to face dimension standard is as per DIN3202-M3. It's much longer than common 2pc ball valves, which is design for different market requirements.A floating ball valve is one where the ball is not held in place by a trunnion. In normal operation, this will cause the ball to float downstream slightly. This causes the seating mechanism to compress under the ball pressing against it. Furthermore, in some types, in the event of some force causing the seat mechanism to dissipate (such as extreme heat from fire outside the valve), the ball will float all the way to metal body which is designed to seal against the ball providing a somewhat fail safe design.
RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
2PC Stainless Steel Thread Ball Valve includes 2PC Thread 1000WOG Ball Valve, Two Piece Floating 2000PSI Ball Valve, Full Port 2 Piece Male Thread Ball Valve, Stainless Steel 2PC Economic type Ball Valve, 2 Piece Korean Reduce Port Ball Valve, Two Piece Floating Ball Valve with ISO5211 High mounting Pad, 2PC Pneumatic Ball Valve, Two Piece CF8M Motorized Ball Valve, 2PC Full Port Floating Ball Valve with Electric Actuator.
Manually operated ball valves can be closed quickly and thus there is a danger of water hammer. Some ball valves are equipped with an actuator that may be pneumatically, hydraulically or motor operated. These valves can be used either for on/off or flow control. A pneumatic flow control valve is also equipped with a positioner which transforms the control signal into actuator position and valve opening accordingly.

Product Name	SS304 / SS316 DIN M3 2pc Threaded Inox Bola Valvulas
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/4''~4'' ( DN6~DN100)
3. Thread standard	ISO9001 & CE, TS
4. Port	Full Port
5. Working Pressure	1000WOG( PN64/6.4 Mpa)
6. Connection Ends	NPT/BSP/BSPT/DIN259/DIN2999
7. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Locking	Option
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

SS304 / SS316 DIN M3 2PC Threaded Inox Bola Valvulas

Competitive Advantage:

1. Our products is guaranteed within 18 months after delivery.
2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.

Materials & Measurements
Materials List

Item	Part Name	Material	Qty
1	Body	A351 CF8M/CF8	1
2	End Cap	A351 CF8M/CF8	1
3	Ball	316SS/304SS	1
4	Seat	RTFE	2
5	Body Seal	PTFE	1
6	Thrust Washer	RTFE	1
7	Stem Packing Set	PTFE	1
8	Packing Gland	304SS	1
9	Stem	316SS	1
10	Belleville Washer	301SS	2
11	Gland Nut Lock Washer	304SS	1
12	Handle	301SS	1
13	Handle Nut	304SS	1
14	Handle Cover	Vinyl	1

Note: All the data should be confirmed with the approved drawings of manufacturer.

RST VALVE is looking forward to strengthening cooperation with various sectors of society to create brilliancy together.
SS304 / SS316 DIN M3 2PC Threaded Inox Bola Valvulas

RFQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
