Product Description

Specifications
1.DN50-1200(2"~48")
2.PN10/16(150/200PSI)
3.API, ANSI, ASME, DIN, BS,JIS, ISO approved
4.material:CI,DI,WCB,SS,ALB,brass,etc.

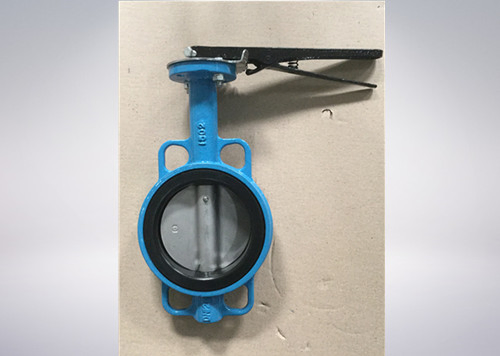

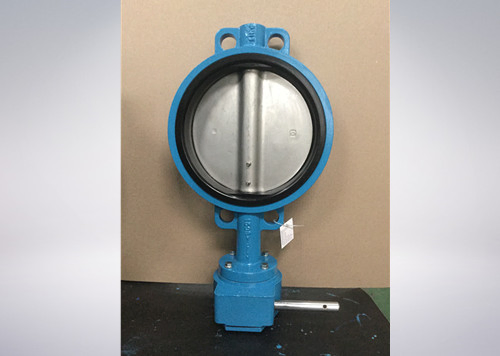

Wafer Type Butterfly Valve with Handle, Wormgear, Pneumatic, Electric Driver

Features:
1.Small in size and light in weight. Easy installation and maintenance. It can be mounted wherever needed.
2.Simple and compact construction, quick 90 degree on-off operation.
3.Flow curve tending to straight line. Excellent regulation performance.
4.Long service life. Standing the test of thousands opening/closing operation.
5.Wide selection of materials, applicable for various media.

Standard:

Design standard	Face to face	End flange	Test & inspection
MSS SP-67 API609 EN593	API609 ISO5752 series 20 BS5155	DIN PN10/16/25 ANSI B 16.1 BS4504 ISO PN10/16 JIS B 2212/2213 BS 10 table D BS 10 table E	API 598

Performance:

PN(MPa)	DN(mm)	Testing Pressure (MPa)		Applicable Temp. °C	Applicable Medium
		Shell	Sealing
1.0/1.6	DN50 ~ DN1000	1.5	1.1	-45~ 150	Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc.
