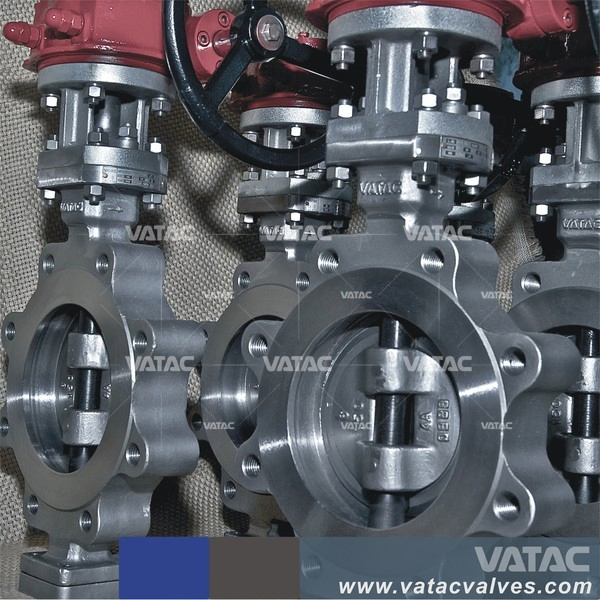

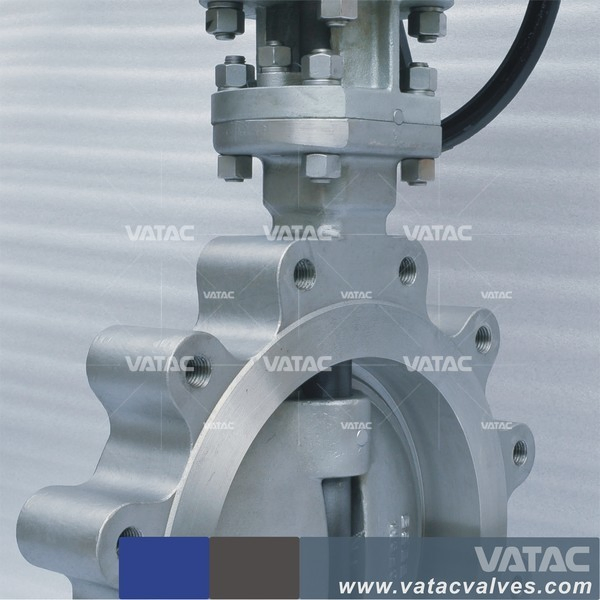

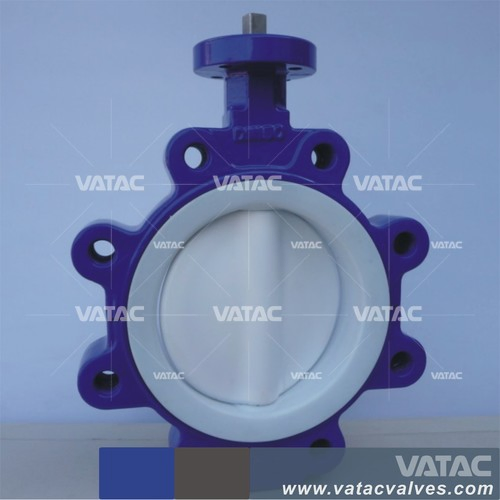

Ci /Di/Wcb/Lcb NBR/EPDM Seated Full Lug Butterfly Valve
CI/DI/WCB/LCB NBR/EPDM Seated Full Lug Butterfly Valve Conform to API 609, DIN 3202. They are tested according to API 598, and marked as per MSS SP-25 Construction is as follows: - Concentric Type- Single Type Body- Soft Seated- Double Half Stem- Through Stem With Pin- Uni-direction or Bi-direction......
Send Inquiry
Product Description
CI/DI/WCB/LCB NBR/EPDM Seated Full Lug Butterfly Valve Conform to API 609, DIN 3202. They are tested according to API 598, and marked as per MSS SP-25
Construction is as follows:
Main Part & Materials
Normal Pressure Rating
PN6~PN16, CLASS150
Normal Size Range
DN50~DN1400, 2"~56"
Construction is as follows:
- Concentric Type | |||
| - Single Type Body | |||
| - Soft Seated | |||
| - Double Half Stem | |||
| - Through Stem With Pin | |||
| - Uni-direction or Bi-direction | |||
| - Flanged Ends to ASME B16.5 | |||
| - Wafer or Lug Suit to Flanged(ASME B16.5 or B16.47) |
Main Part & Materials
Part Names | Part Materials | ||||||
| Body | Cast Iron | Ductile Iron | |||||
| A126 B | GG25 | FC 20 | A536 | A395 | GGG40 | GGG50 | |
| Disc | Ductile Iorn/CF8/CF8M/CF3/CF3M/Alum-Bronze | ||||||
| Stem | SS410/SS420/SS416/SS304/SS316/Monel | ||||||
| Seat/Seat Ring | NBR/EPDM/PTFE | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Suitable Medium | Water, Waste Water, Sewage | ||||||
| Suitable Temperature | -29~150 °C | ||||||
Normal Pressure Rating
PN6~PN16, CLASS150
Normal Size Range
DN50~DN1400, 2"~56"
