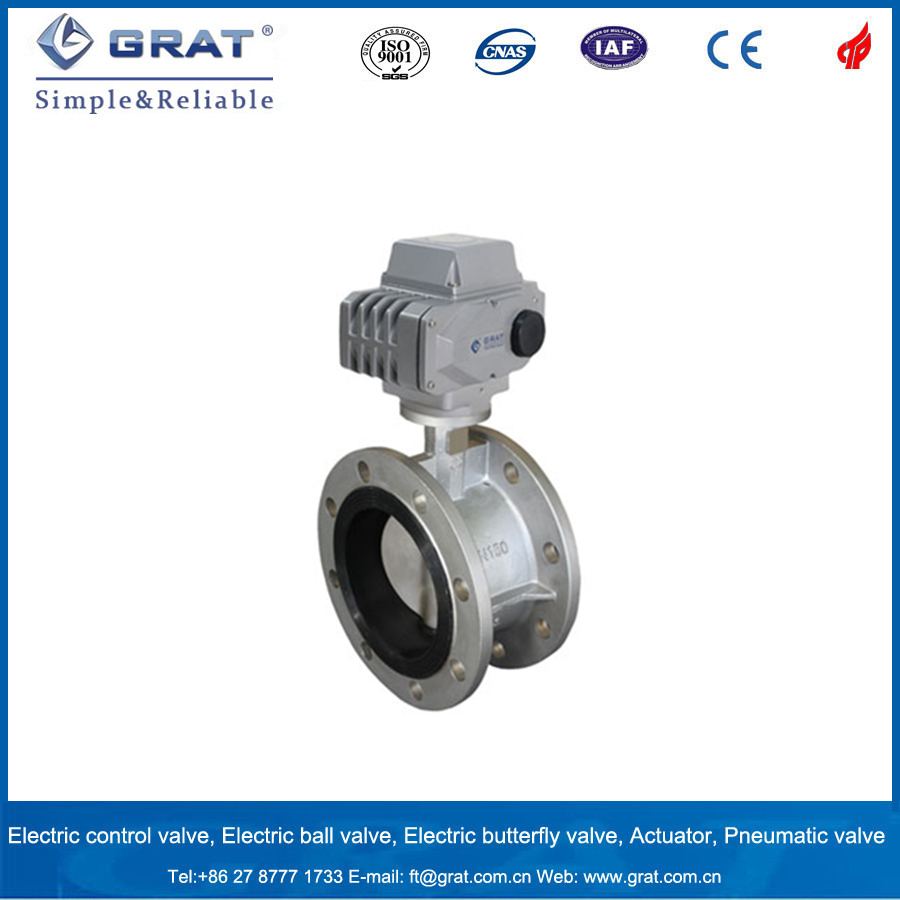

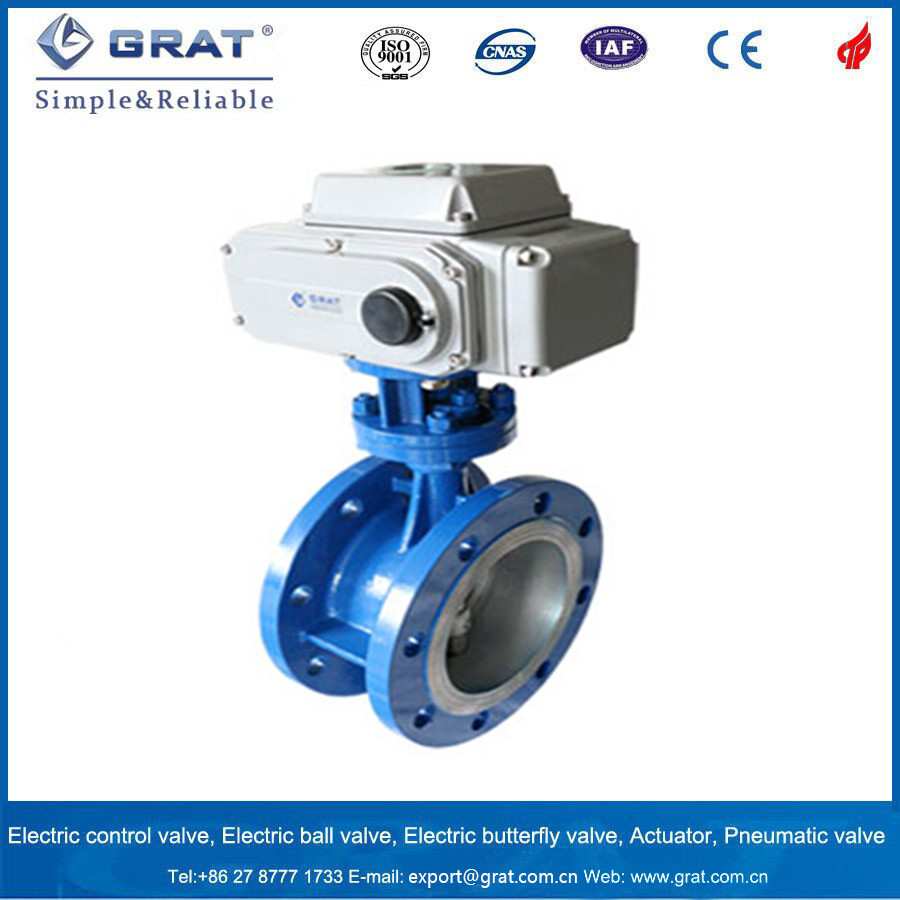

Dn100 SS304 Pn10 AC110V Shut off Electric Butterfly Valve for 120 Degrees Celsius Compressed Air
DN100 SS304 PN10 AC110V Shut Off Electric Butterfly Valve For 120 Degrees Celsius Compressed Air Product DescriptionSoft sealed electric butterfly valves have the structure of 3D eccentric metal sealed, whose seal mode is metal-to-metal, also can be changed into the other seal m......
Send Inquiry
Product Description
DN100 SS304 PN10 AC110V Shut Off Electric Butterfly Valve For 120 Degrees Celsius Compressed Air
Product Description
Soft sealed electric butterfly valves have the structure of 3D eccentric metal sealed, whose seal mode is metal-to-metal, also can be changed into the other seal modes such as the metal seal ring to the metal, and the stainless steel plate seal ring or the graphite composite plate seal ring to the metal. This 3D eccentric metal seal butterfly valve with high performance is a device to regulate and cut off the medium of those piping in petroleum, chemical, power, metallurgy and city heat supply system.
The parameters
Installation Diagram
The material for main parts
Control Diagram
Our Services
1.Professional consultation before customer place the order
2.In 24 hours response after sale
3.One year warranty
4.Safe packing for shipment
5.Welcome sample order
Packing&Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case
2.Transportation:by sea,by air,by train
Company Introduction
Wuhan Grat Control Valve is a professional valve manufacturer established in 2005.It is specialized in researching and developing various automatic valves for industrial automation and on-site implimentation products.

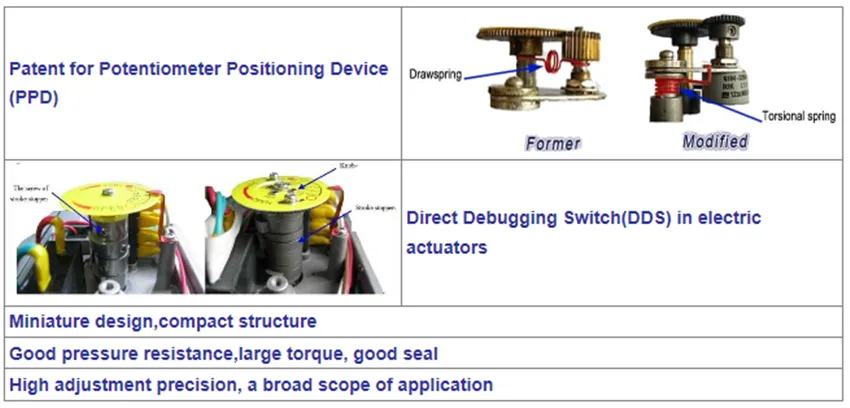

In 10 year development,Grat has obtained 9 patents like small flow control valve and potentiometer position device,and do business with more than 1000 companies all over the world.Some of them are world famous enterprises such as Dunham-bush,Grundfos,Johnson control and Hitachi,ect.
According to ISO9001:2008 quality management system,Grat strictly controls the product quality and the whole production process.In 2015,Grat got CE certificates and passed successfully EMC tests and CNAS 100000 times lifetime tests.
With the ERP and CRM systems applied in management,they enhance the resource and information level and improve the ability of customer relationship.High quality and good service are our advantages to win the market.
Clients
Certificates & Test reports
Application
Product Description
Soft sealed electric butterfly valves have the structure of 3D eccentric metal sealed, whose seal mode is metal-to-metal, also can be changed into the other seal modes such as the metal seal ring to the metal, and the stainless steel plate seal ring or the graphite composite plate seal ring to the metal. This 3D eccentric metal seal butterfly valve with high performance is a device to regulate and cut off the medium of those piping in petroleum, chemical, power, metallurgy and city heat supply system.
The parameters
| Body ratings | PN1.0/PN1.6Mpa/PN2.5Mpa |
| Valve size | DN50-DN1200 |
| Seal material | Alloy metal seal |
| Stem seal | NBR, HNBR, PTFE, GRAPHITE |
| Body material | WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel |
| Disc material | WCB/SUS304/SUS316L/CF8/CF8L Stainless Steel |
| Body connections | Wafer/flange |
| Power supply | AC220V |
| Control signal | 4~20mA 0~5V |
| Output signal | 4~20mA 0~5V |
| Operating pressure | PN1.6Mpa, PN2.5Mpa |
| Medium temperature | Below 540 Celesius degree |

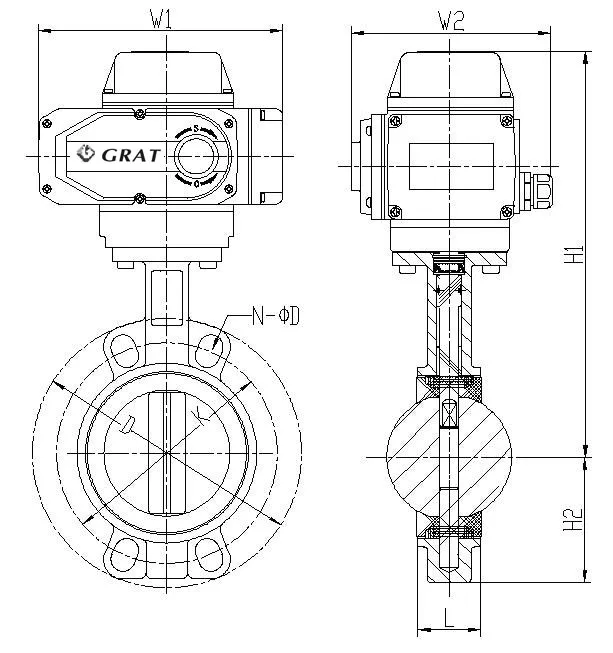

Installation Diagram
The material for main parts
Item | Part name | Material |
1 | Body | Carbon steel,CF8 Stainless steel,CF8M Stainless steel,CF3M Stainless steel |
2 | Disc | Carbon steel,CF8 Stainless steel,Cram Stainless steel,CF3M Stainless steel |
3 | Rotatable shaft | 2Cr13,304 Stainless steel,316 Stainless steel,316L Stainless steel |
4 | Disc seal ring | all kinds of stainless steel composite |
5 | Shaft sleeve | ZCuZn38Mn2Pb2,stainless steel composite, PTFE |
6 | Packing | Grafoil |

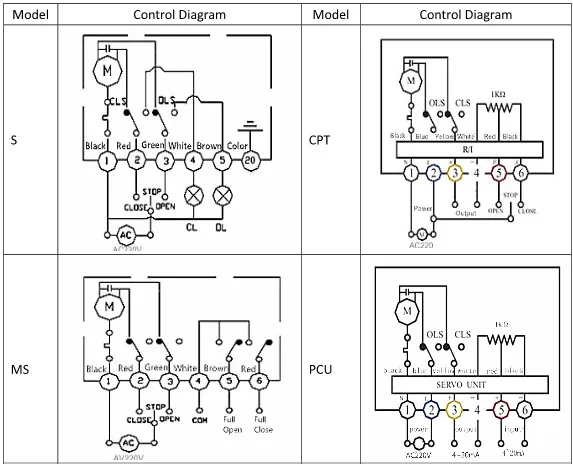

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
Our Services
1.Professional consultation before customer place the order
2.In 24 hours response after sale
3.One year warranty
4.Safe packing for shipment
5.Welcome sample order
Packing&Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case
2.Transportation:by sea,by air,by train
Company Introduction
Wuhan Grat Control Valve is a professional valve manufacturer established in 2005.It is specialized in researching and developing various automatic valves for industrial automation and on-site implimentation products.
In 10 year development,Grat has obtained 9 patents like small flow control valve and potentiometer position device,and do business with more than 1000 companies all over the world.Some of them are world famous enterprises such as Dunham-bush,Grundfos,Johnson control and Hitachi,ect.
According to ISO9001:2008 quality management system,Grat strictly controls the product quality and the whole production process.In 2015,Grat got CE certificates and passed successfully EMC tests and CNAS 100000 times lifetime tests.
With the ERP and CRM systems applied in management,they enhance the resource and information level and improve the ability of customer relationship.High quality and good service are our advantages to win the market.
Clients

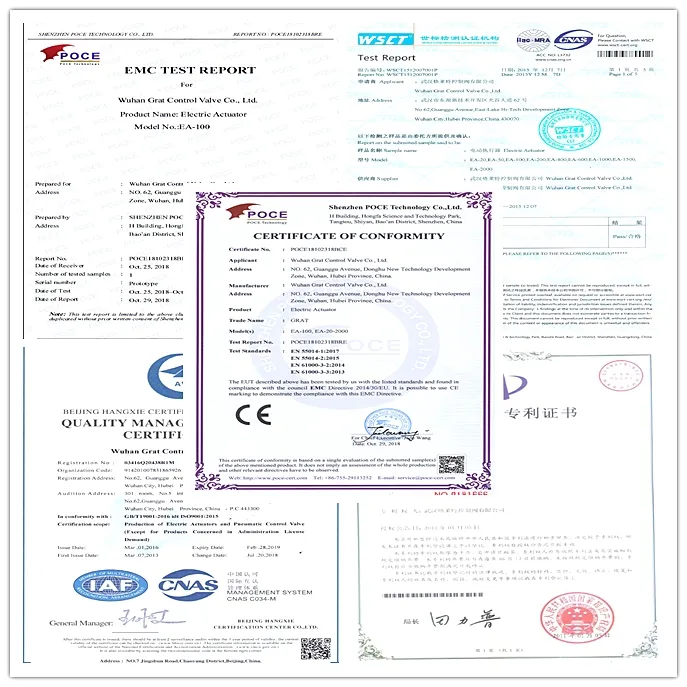

Certificates & Test reports

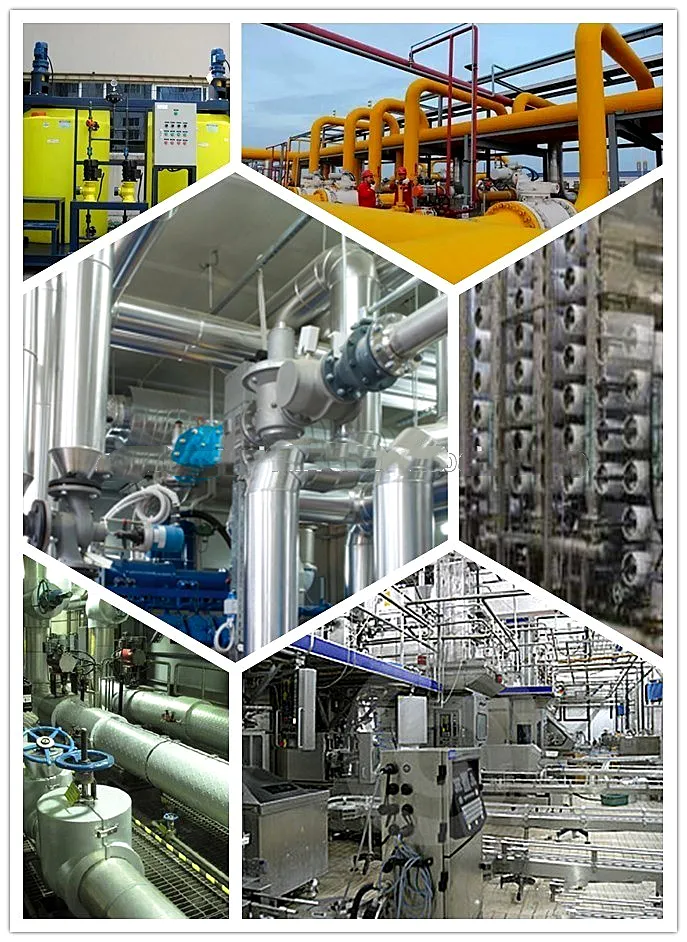

Application
