Product Description

Ductile Iron GGG50 PN16 Gear Operated Double Flange Butterfly Valve Resilient Seat DN700 China Factory EN593 14 Series Double offset / Eccentric Butterfly Valve

Nominal Diameter: DN100-DN3600

Nominal Pressure: 10Bar/16Bar/150lbs/25bar

Design Standard: BS EN593/BS5155/API609/DIN3354

FTF Dimension: ISO 5752 SERIES 13&14 /BS EN558 SERIES 13&14 /API609/DIN3202/ASME B16.10

Flange Connection: ASME B16.1 Class125/ASME B16.5 CL150/ASME B16.47 CL150/AWWA C207/

DIN 2501 PN10-16-25/EN1092 PN10-16-25

Inspection and Test: EN12266-1/API 598/ISO5208

Material list:

Body

Ductile Iron: ASTM A536 60-40-18/ DIN1693 GGG40,GGG50
Carbon Steel: ASTM A216 WCB
Stainless Steel: ASTM A351 CF8/CF8M

2. Disc

Ductile Iron: ASTM A536 60-40-18/ DIN1693 GGG40,GGG50
Carbon Steel: ASTM A216 WCB
Stainless Steel : ASTM A351 CF8/CF8M
Bronze AL-Bronze: ASTM B148 C954

3. Stem

Stainless Steel: ASTM A182 304/316/410
Alloy: Monel K500

       4. Seat                        SS304/SS316/Brass
       5. Sealing Ring          EPDM/NBR
       6. Retaining Ring       Carbon Steel/SS304/SS316
       7. Screw                     Carbon Steel/SS201/SS304/SS316
       8. Packing                 NBR/EPDM/Flexible Graphite
       9. Yoke                     Cast Iron/Carbon Steel
      10. Bushing               PTFE/Bronze
      11. Pin

Stainless Steel ASTM A182 304/316/410
Alloy Monel K500

Some Ending Clients

Advantages of Double eccentric Butterfly Valve

1. The double eccentric butterfly valve shaft is placed offset to one side of the valve centerline. The benefits of this valve versus a single eccentric are that the valve seat and the disk will not contact while traveling. The disc will cam away from the seat while opened, and contact is not established before the final shut off position.

2. The double eccentric type is the difference of the pressure-area on the disc. Since the stem is offset to one side the pressure area will be slightly bigger on one side of the shaft. If the valve installed in the preferred direction the process pressure will help the valve making a better sealing.

3. Small operation torque of big size butterfly valve

Ductile Iron Ggg50 Pn16 Gear Operated Double Flange Butterfly Valve Resilient Seat DN700 China Factory En593 14 Series Double Offset / Eccentric Butterfly Valve

MOQ

We do not have any MOQ for this valve, 1 set order is also can be accepted.

Delivery

It depends on the order quantity, but not more than 35-40days after received payment

By sea	LCL shipment
	Container shipment
By air	By air cargo or courier for sample

Payment way

30% deposit, the balance will be paid before loading.

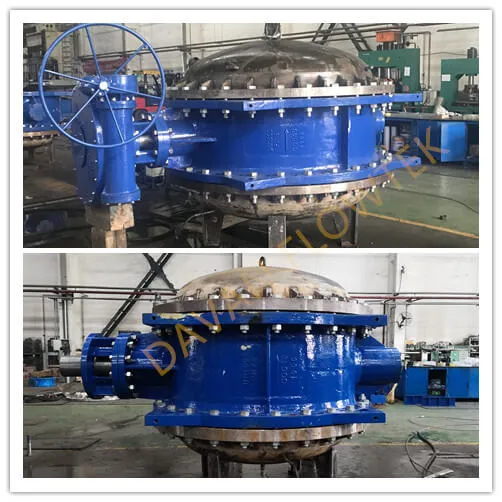

Hydraulic testing

We promise 100% hydraulic testing before exporting, with a testing machine and testing bowl(for big size).

Body testing: 1.5* design pressure

Sealing testing 1.1* design pressure

We can provide a 12-month warranty after the shipping date.
Ductile Iron Ggg50 Pn16 Gear Operated Double Flange Butterfly Valve Resilient Seat DN700 China Factory En593 14 Series Double Offset / Eccentric Butterfly Valve

Ductile Iron Ggg50 Pn16 Gear Operated Double Flange Butterfly Valve Resilient Seat DN700 China Factory En593 14 Series Double Offset / Eccentric Butterfly Valve

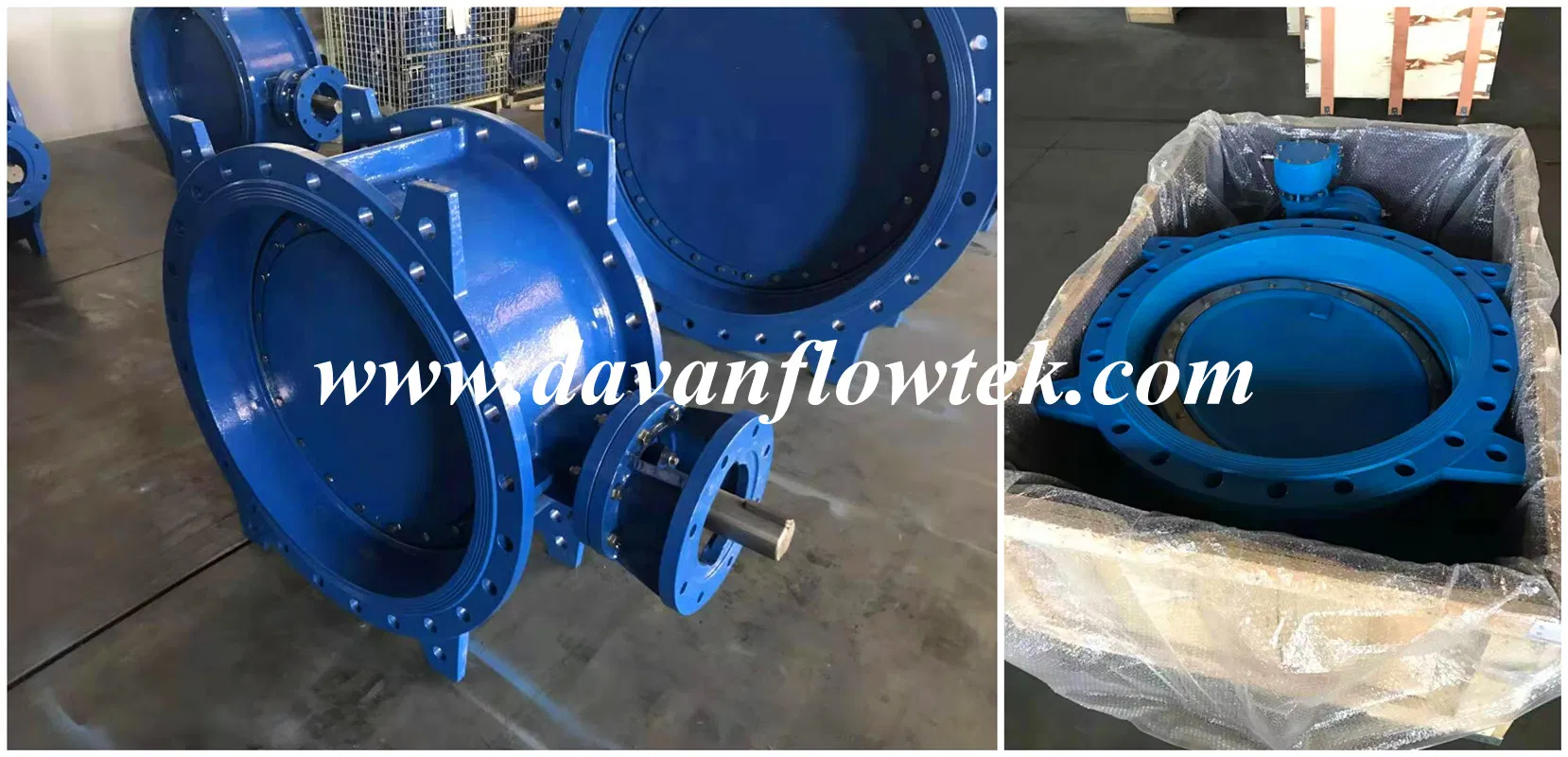

Packing way

Plywood case in exporting standard, bubble plastic packing inside

For large size, we will use steel pallet with bubble plastic packing outside

Ductile Iron Ggg50 Pn16 Gear Operated Double Flange Butterfly Valve Resilient Seat DN700 China Factory En593 14 Series Double Offset / Eccentric Butterfly Valve

Our Overseas Exhibition
