JIS China Made Low Price Flange Type Marine Stainless Steel Pn25 Gate Valve

Cast Iron 5K JISF7363 Marine Gate Valve 1. The product design and manufacture meet the requirements of foreign advanced standards, with reliable sealing and excellent performance.2. Compact and reasonable structure design, beautiful appearance.3. Using wedge-type single gate structure, high sealing ......

Send Inquiry

Product Description

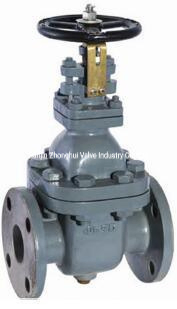

Cast Iron 5K JISF7363 Marine Gate Valve
JIS China Made Low Price Flange Type Marine Stainless Steel Pn25 Gate Valve

1. The product design and manufacture meet the requirements of foreign advanced standards, with reliable sealing and excellent performance.

2. Compact and reasonable structure design, beautiful appearance.

3. Using wedge-type single gate structure, high sealing processing accuracy, easy opening and closing.

4. Valve body materials are complete in variety, and packing and gaskets are reasonably selected according to actual working conditions or user requirements, which can be applied to various pressure, temperature and medium working conditions.

5. Adopt a variety of domestic and foreign pipe flange standards and flange sealing surface types to meet various engineering needs and user requirements of the marine shipping industry.

Notice:We are a factory with 16 years of experience, we believe that we have absolute advantages in price and quality

Standards & Specifications
Design & Manufacture	FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366
Face to Face	FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366
Flange drilling	FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366
Working Pressure(KG)	5K/10K/16K
Sealing Pressure(KG)	7.7/15.4/24.2
Body Pressure(KG)	10.5/21/33
Working Temperature	NBR(0~70ºC)
	EPDM(0~120ºC)
	Bronze(0~400ºC)
Operating mode	Hand wheel, Gear box, Pneumatic, Electric, Hydraulic actuators
Applicable medium	Water, oils, Chemicals, Foodstuff, Medicament, Gas etc.
Application field	Water supply and drainage, Water conservancy projects, Building project, Food and beverage, Chemical industry, Petroleum industry, Dry powder and Gas plants etc .
Application field

Size & Material
Size Range		DN50-300
Flange connection size	JIS	5K/10K/16K
Main material	Body	Cast iron, Cast Steel, Bronze
	Gate	Stainless steel, Bronze
	Bonnect	Cast iron, Ductile iron, Cast steel
	O-ring seals	NBR,EPDM
	Thrust bearings	Bronze
	Wedge disc	Cast iron, Cast Steel, Bronze
	Bolt	Carbon Steel, Alloy Steel
	Seals	NBR,EPDM
	Stem	Stainless steel, Bronze
	Gland	Ductile Iron, cast steel
	Dust Cover	PTFE
	Hand wheel	Cast iron, Ductile Iron

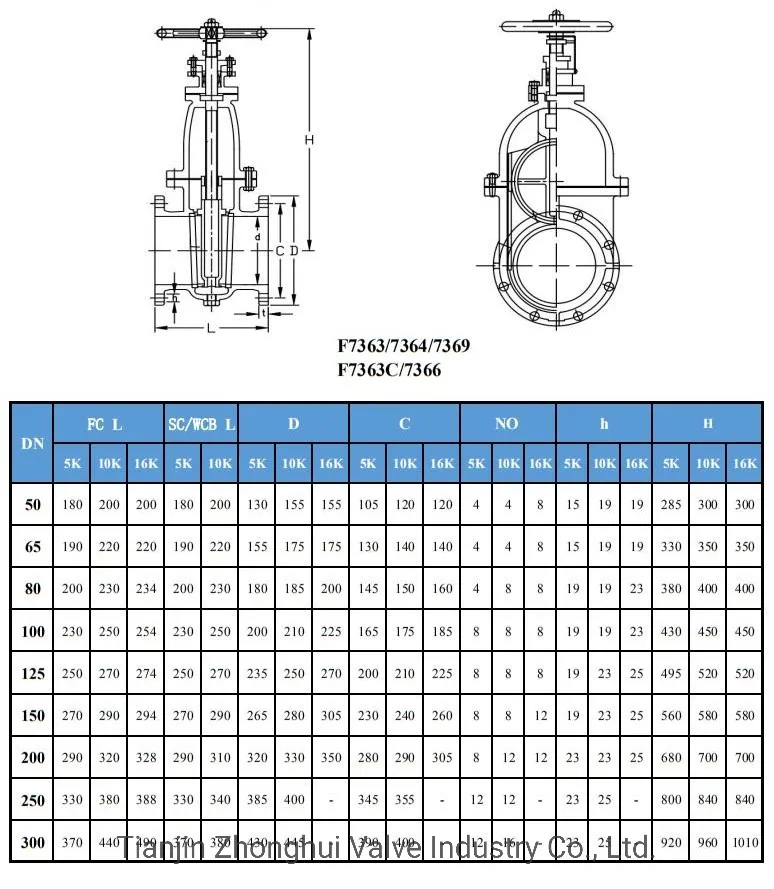

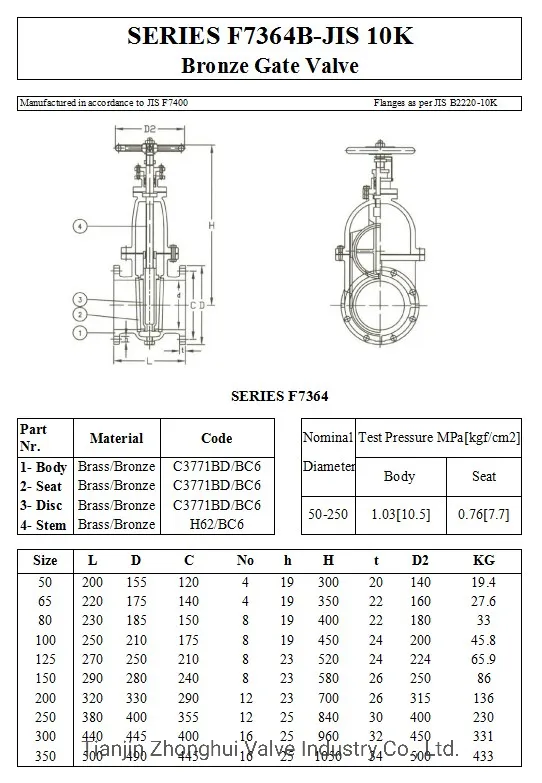

Marine Gate Valve drawings & Dimensions

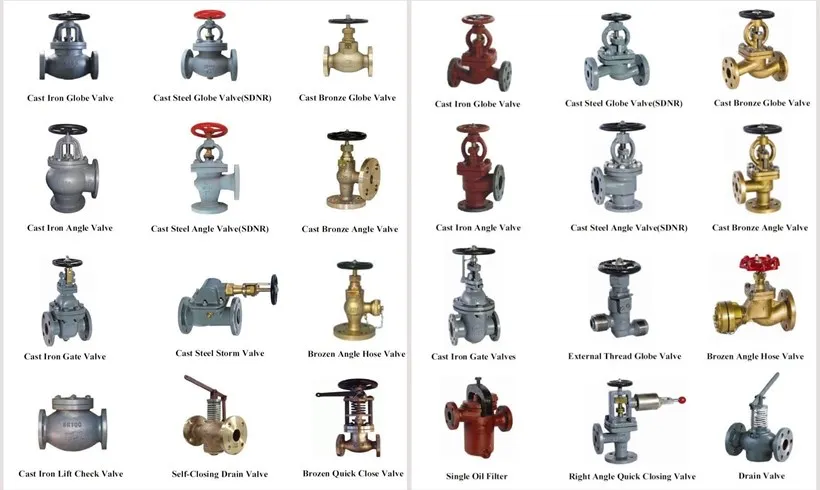

Related product show

Tianjin zhonghui Valve Industry Co.,Ltd is an integrity valve manufacturer, which has its own foundry, matching shop, and assembly line. As a result, we can control the overall quality by ourselves and guarantee delivery time. Our main products are gate valve, butterfly valve, check valve and control valve. Also, we can provide valve parts, including valve body, disc, seat, stem and spare parts. Our butterfly valve satisfies to the international standard like GB, ANSI/API, DIN as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. We have been exported to Korea, Japan, Singapore, France and so on. We await your consultation and visit.

Our products

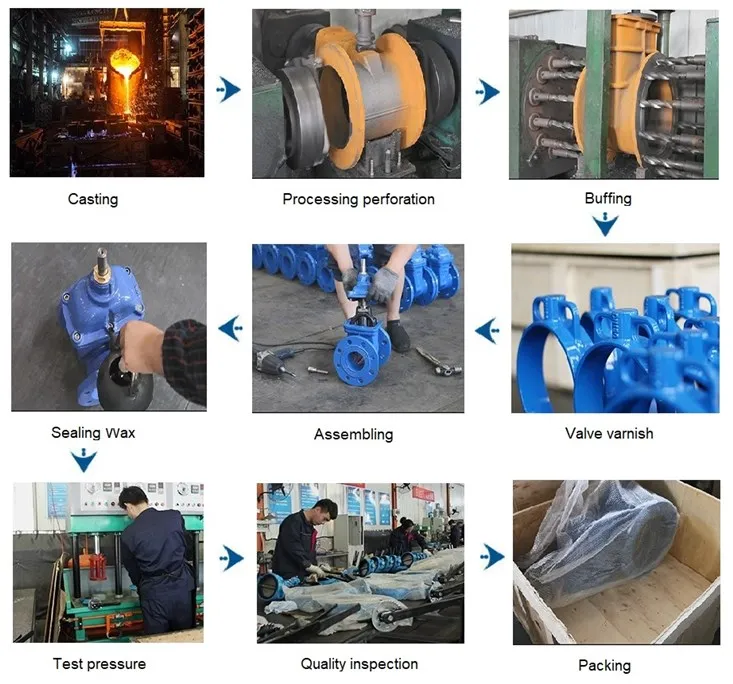

Production processes

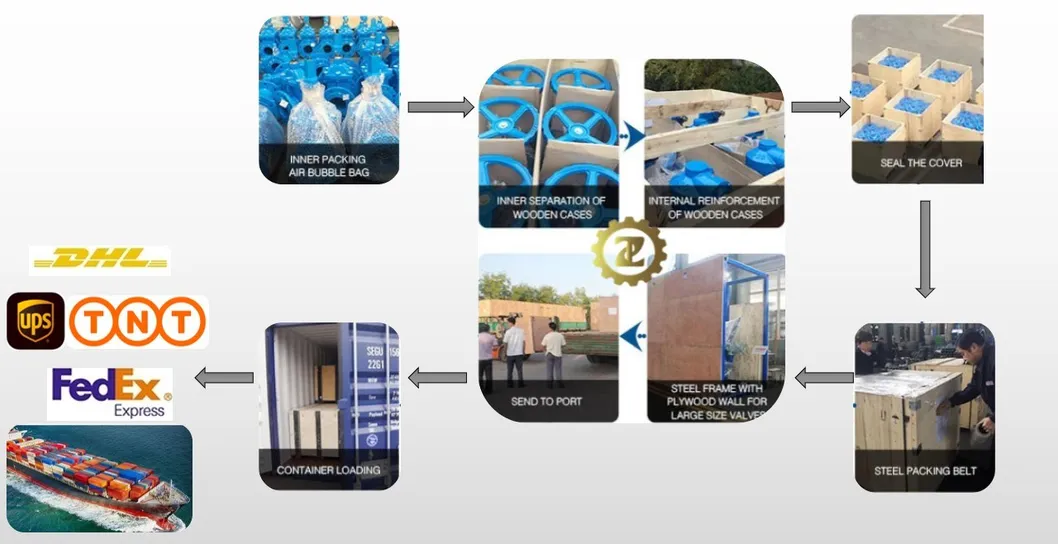

Packaging & Logistics

Certifications: CE & ISO9001

FAQ
Q1:Can I have my own customized product?
A:Yes,your customized requirements for color,size,package, mark,etc.

Q2:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?
A:Payment≤1000USD,100% in advance,Payment≥1000USD,30%T/T in advance,balance before shipment
