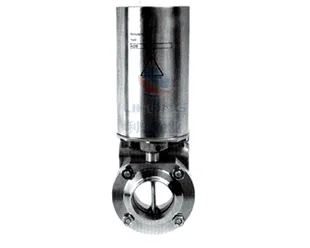

Stainless Steel Pneumatic Butterflyv Valve
Pneumatic Butterfly ValveConnection mode demandable:Welding /liner/ clamp...Specification: DN25-DN150 or 1"-6"Material quality: SUS304, SUS316LStandard: ISO, DIN, SMSSpec(ISO)ABDLH20507819.051308225507825.41308232507831.81308238508638.113086515210250.814096635611563.5150103765612876.115011......
Send Inquiry
Product Description
Pneumatic Butterfly Valve
Connection mode demandable:
Welding /liner/ clamp...
Specification: DN25-DN150 or 1"-6"
Material quality: SUS304, SUS316L
Standard: ISO, DIN, SMS
Connection mode demandable:
Welding /liner/ clamp...
Specification: DN25-DN150 or 1"-6"
Material quality: SUS304, SUS316L
Standard: ISO, DIN, SMS

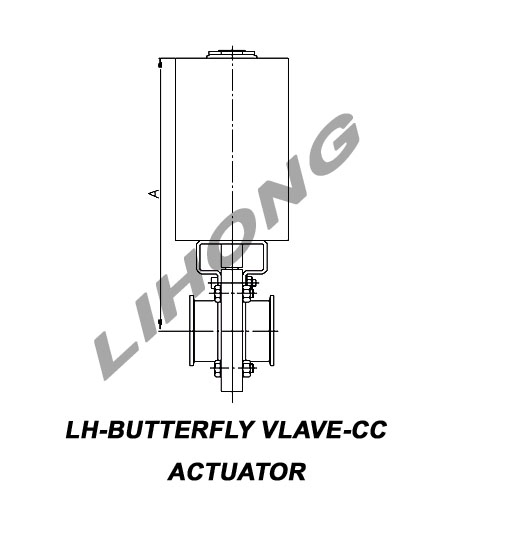

| Spec(ISO) | A | B | D | L | H |
| 20 | 50 | 78 | 19.05 | 130 | 82 |
| 25 | 50 | 78 | 25.4 | 130 | 82 |
| 32 | 50 | 78 | 31.8 | 130 | 82 |
| 38 | 50 | 86 | 38.1 | 130 | 86 |
| 51 | 52 | 102 | 50.8 | 140 | 96 |
| 63 | 56 | 115 | 63.5 | 150 | 103 |
| 76 | 56 | 128 | 76.1 | 150 | 110 |
| 89 | 60 | 139 | 88.9 | 170 | 116 |
| 102 | 64 | 154 | 101.6 | 170 | 122 |
| 108 | 64 | 159 | 108 | 170 | 126 |
| 133 | 80 | 185 | 133 | 190 | 138 |
| 159 | 90 | 215 | 159 | 190 | 153 |
