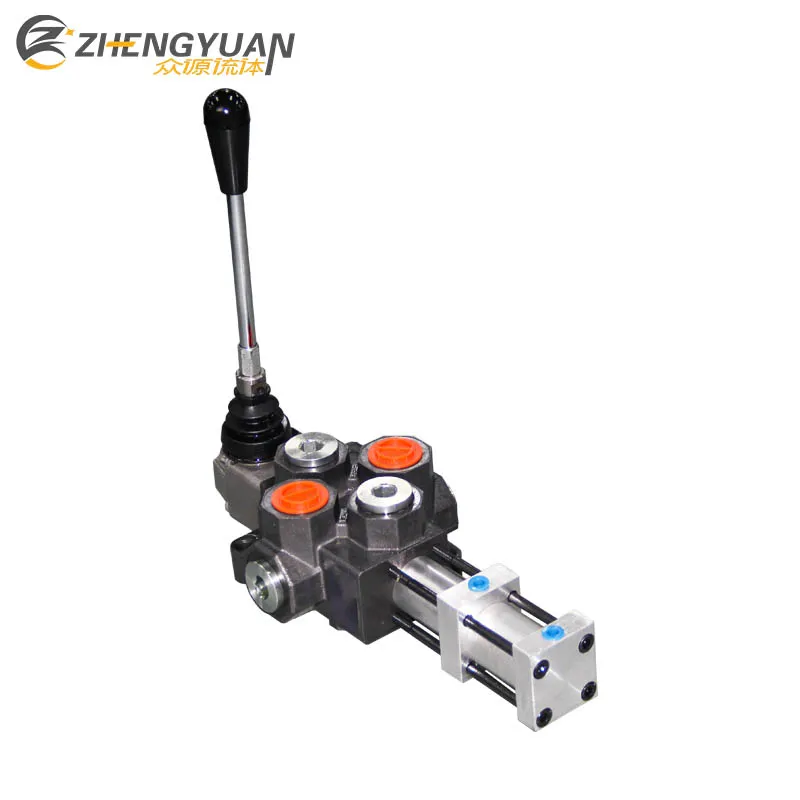

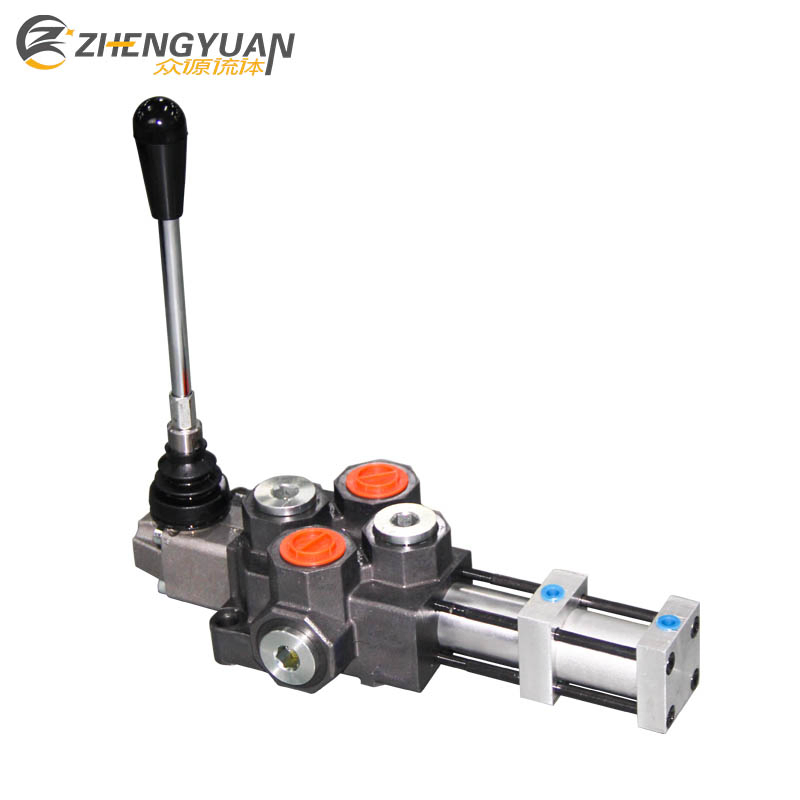

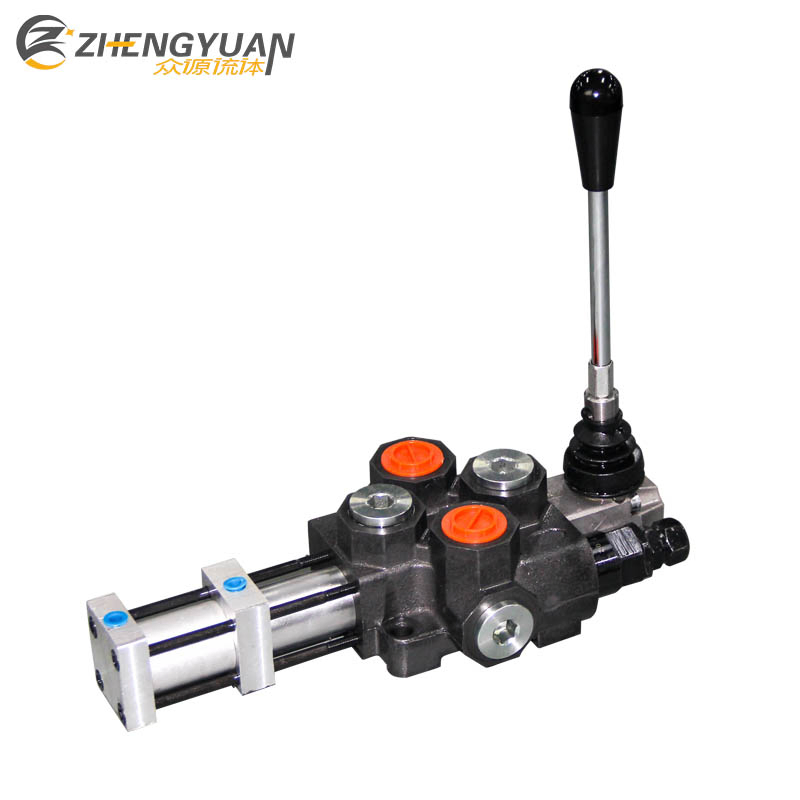

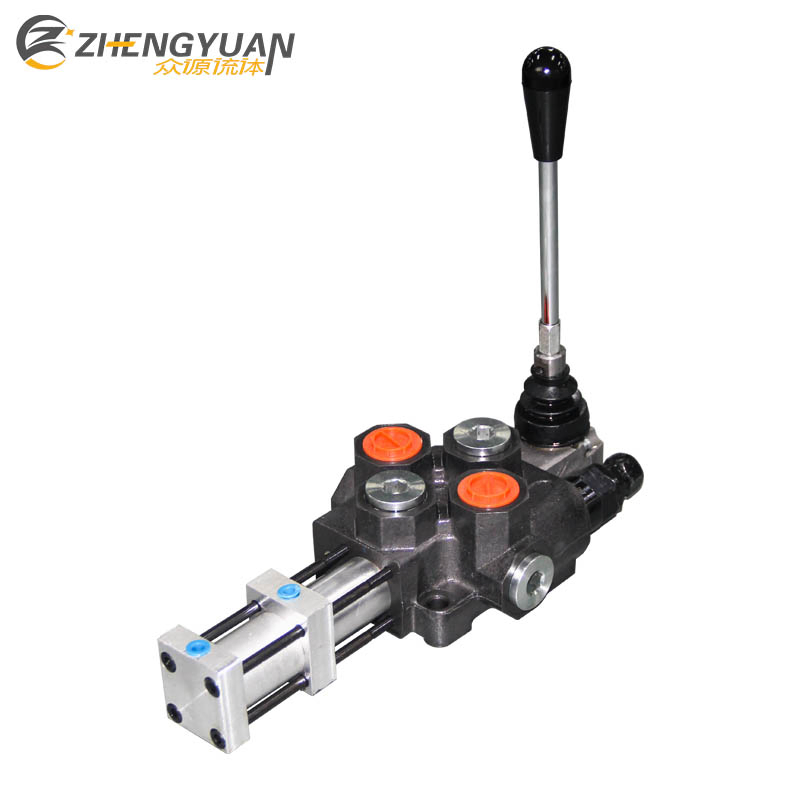

20mm Interchangeable Spool SD14 Directional Control Valve 250bar G3/4
Product Description: Nom. Pressure(Mpa)Max.Pressure(Mpa)Nom.Flow rate(L/min)Max.Flow rate (L/min)Back Pressure(Mpa)hydraulic oilTem.range(ºC)Visc.rang(mm²/S)filtrating accuracy(um)2025120120≤1-20~+8010-400≤101. Nominal Flow:120L/min, Working Pressure 160-250Bar (16Mpa......
Send Inquiry
Product Description
Product Description:
| Nom. Pressure(Mpa) | Max.Pressure(Mpa) | Nom.Flow rate(L/min) | Max.Flow rate (L/min) | Back Pressure(Mpa) | hydraulic oil | ||
| Tem.range(ºC) | Visc.rang(mm²/S) | filtrating accuracy(um) | |||||
| 20 | 25 | 120 | 120 | ≤1 | -20~+80 | 10-400 | ≤10 |
1. Nominal Flow:120L/min, Working Pressure 160-250Bar (16Mpa-25Mpa)
2. Control way: Manual control, Pneumatic Control, Remote Control, electric pneumatic control
3. Positioning Returning Modes:W( Detent);T(Spring Return)
4. Spool Functions: O (cylinder spool),Y,W A etc
5. Thread: G3/4;SAE12
6. Oil Way: Parallel Circuit
7. Material: Casting iron
8. Application: Sanitation Machines, Mining Machines, tractors, etc
