Product Description

Electric Temperature Control Valve Made in China, Differential Pressure Bypass Valve

Product features :

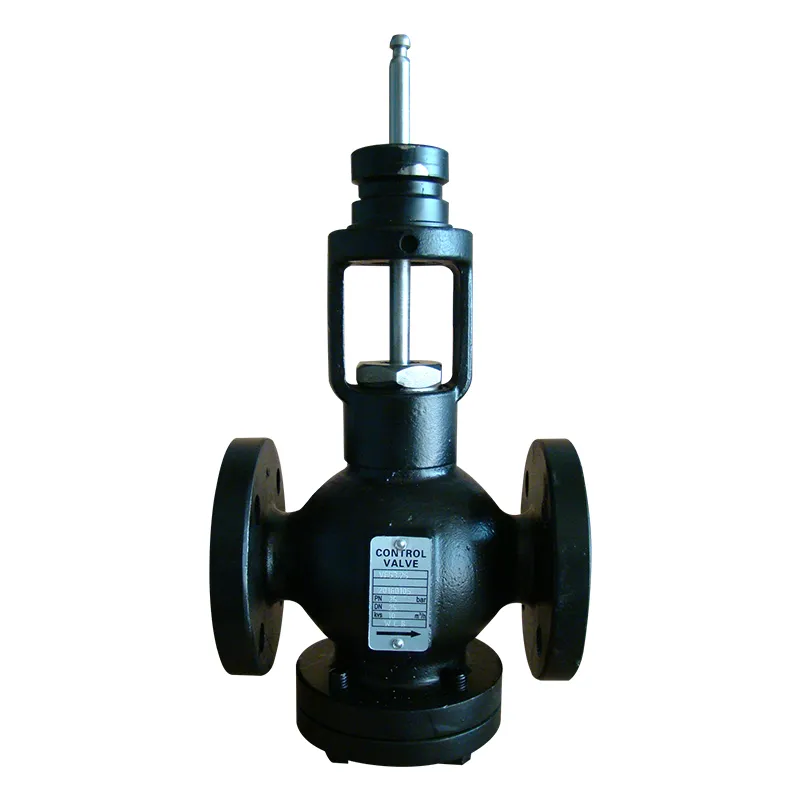

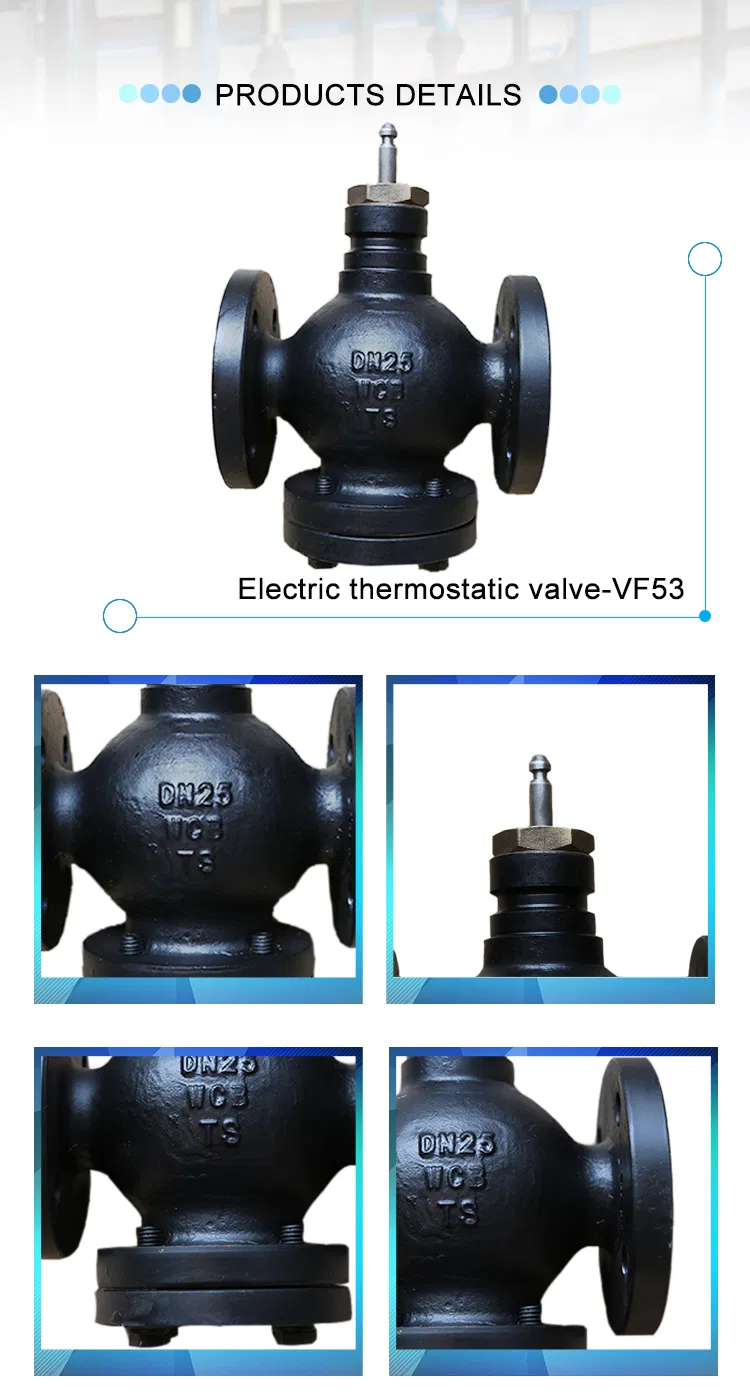

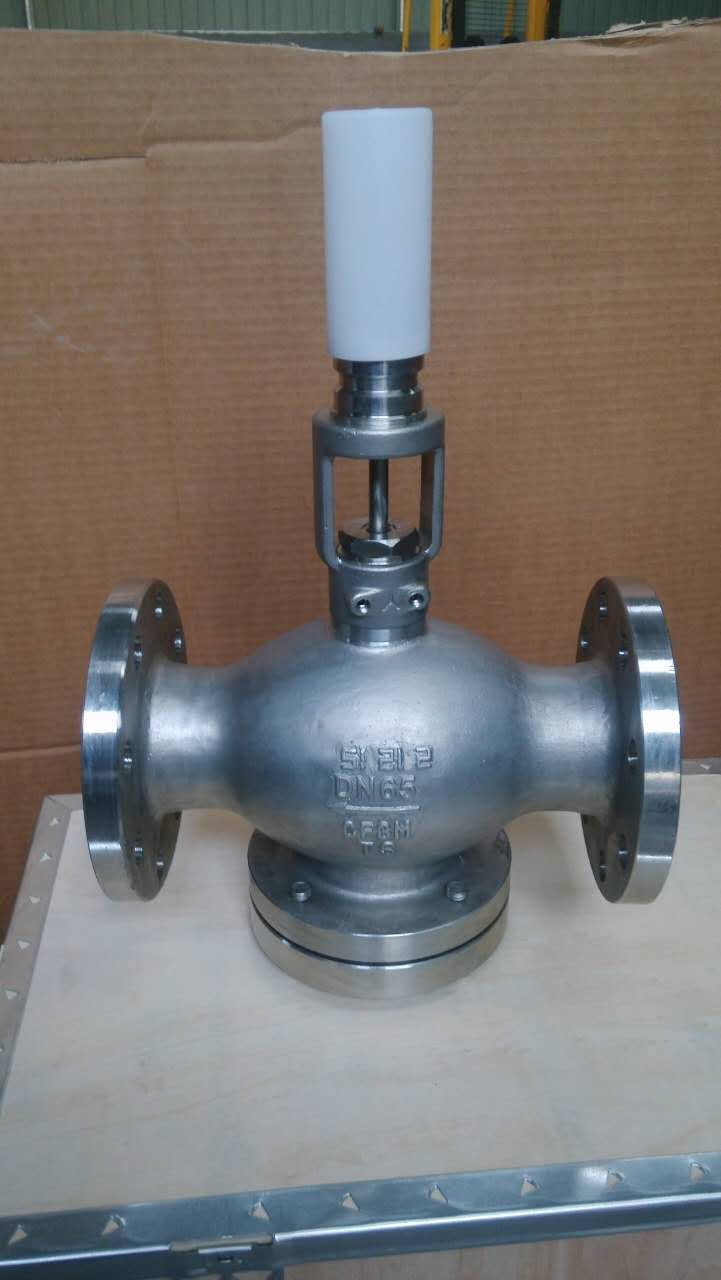

Precision casting WCB
The valve body adopts the pressure balance type, which guarantees the high clearance ability under the low pressure, and the switching free ability under the high pressure difference
Maximum allowable differential pressure is 1000kpa
The stem seal uses special sealing process
The full metal joint seat increases the value of the life of the valve
The product meets GB/T17213-2015 flange connection standard

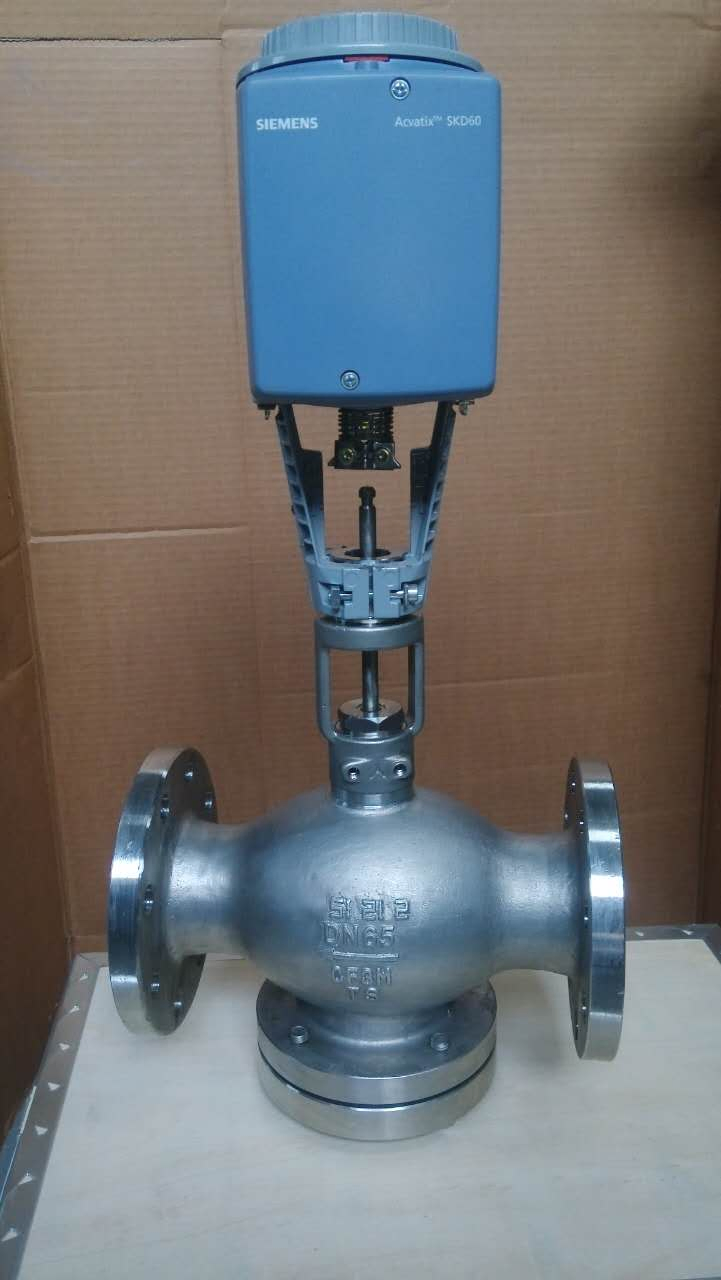

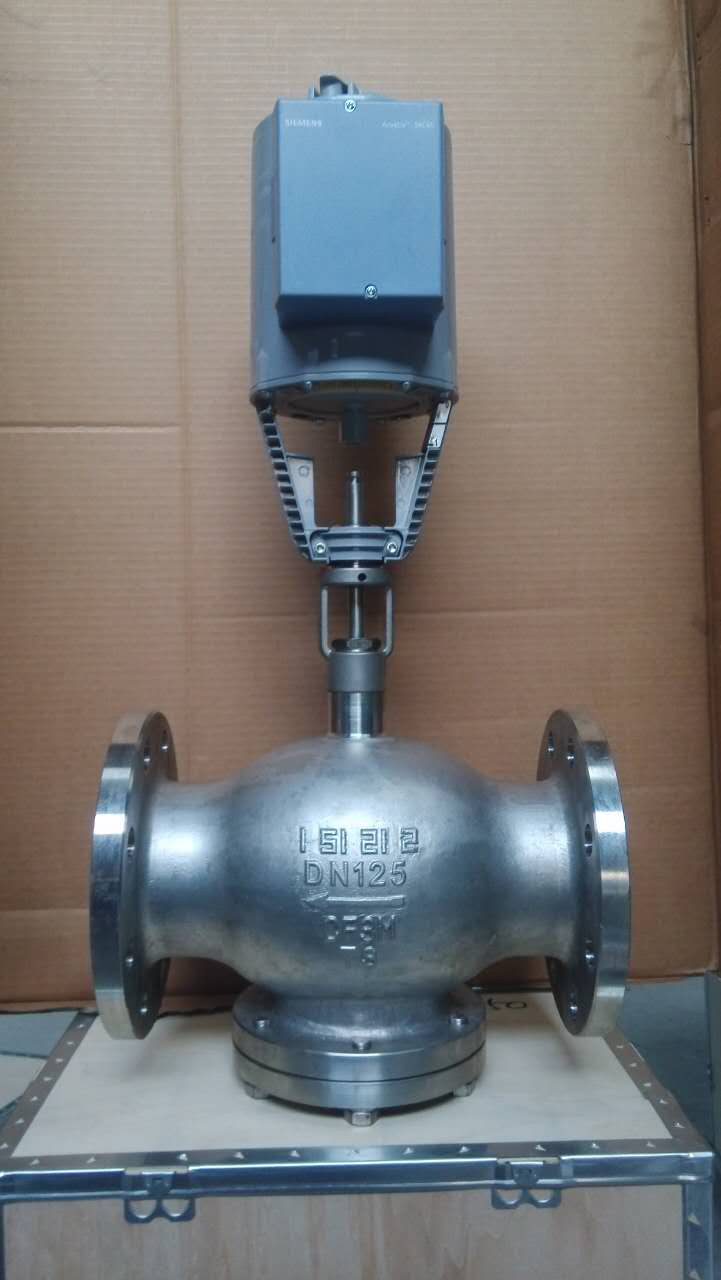

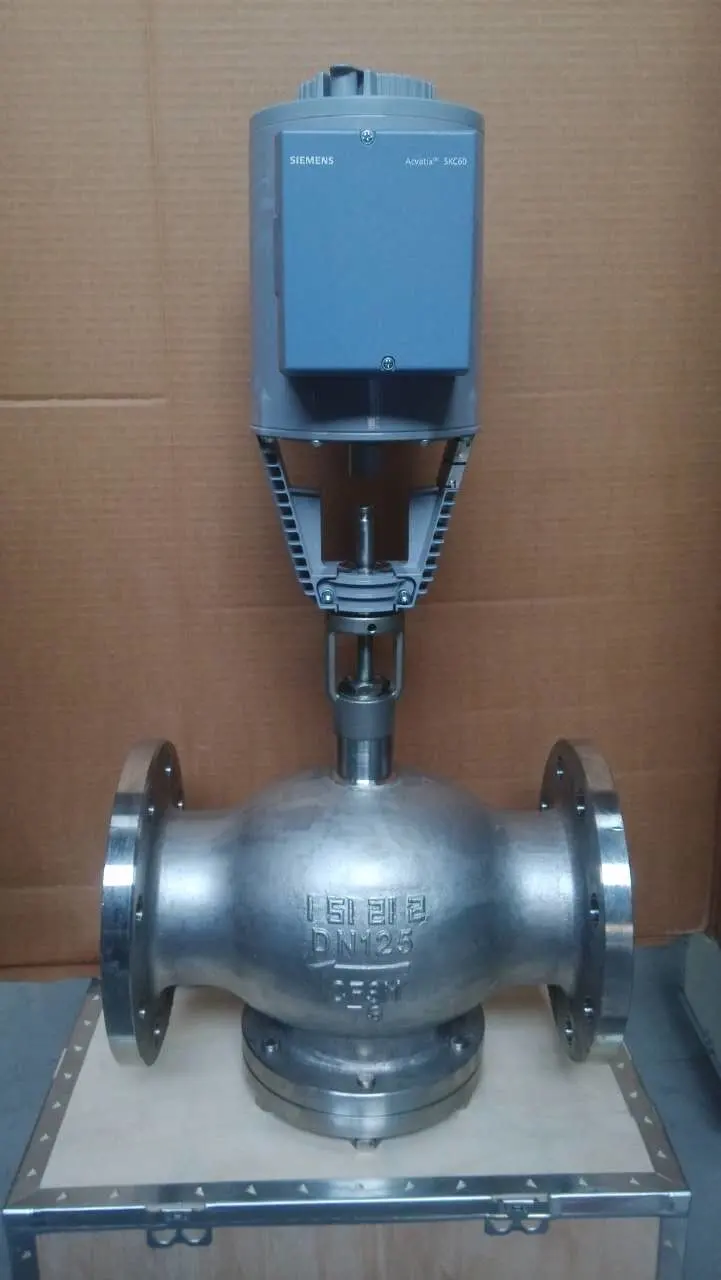

Stainless steel electric temperature control valve

application:
Suitable for Continuous Control in Regional Heating System and HVAC System.

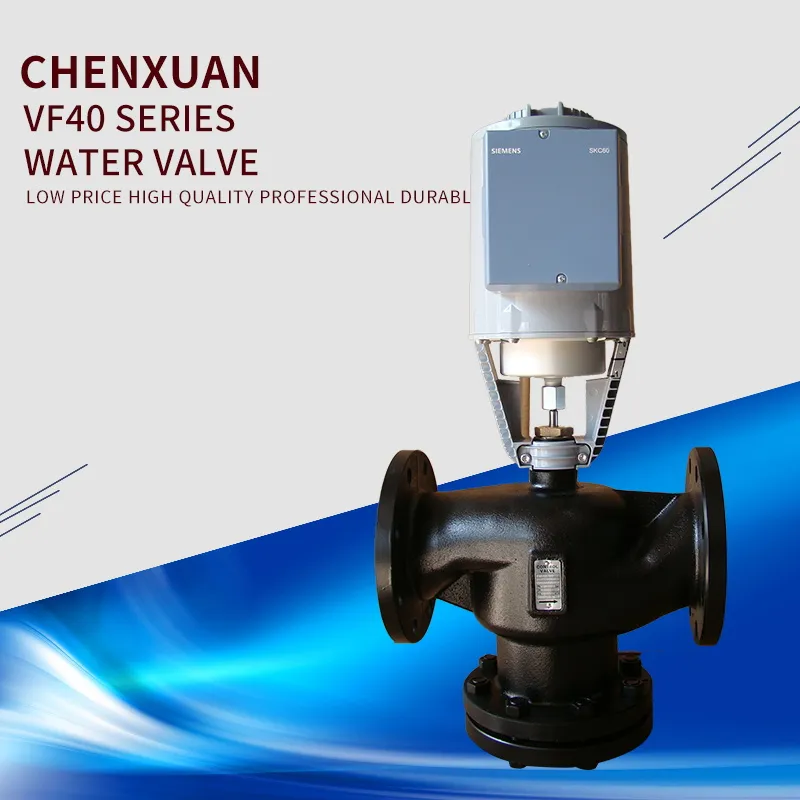

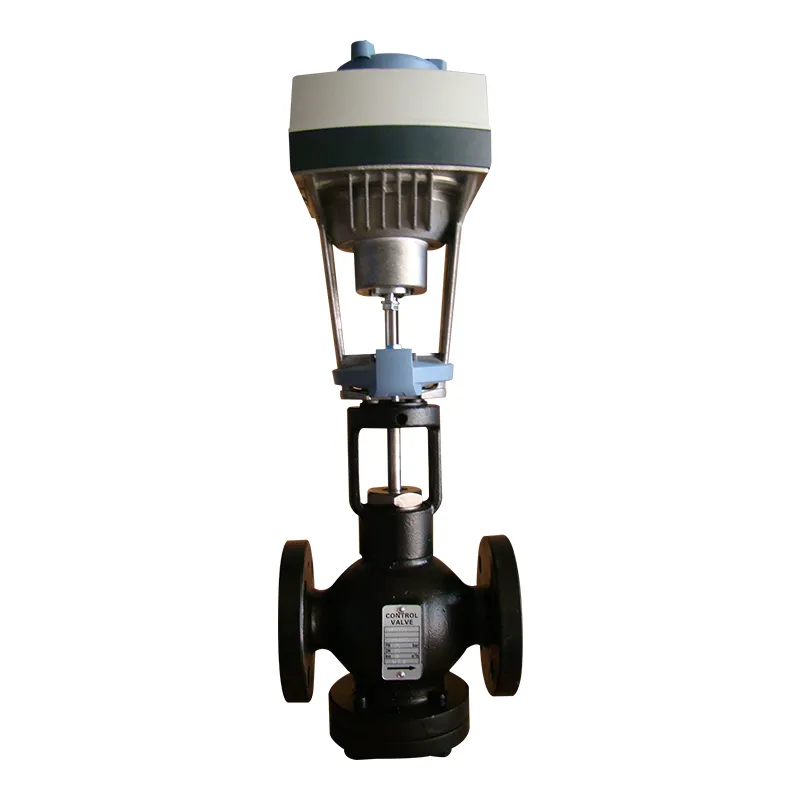

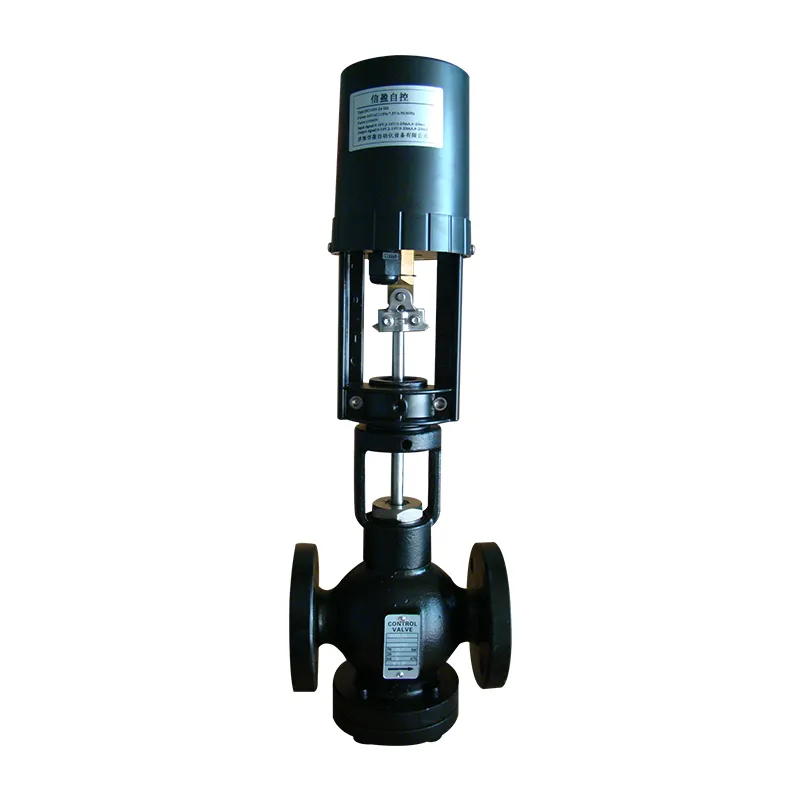

It can be installed with Siemens SAX, SKD, SKB, SKC series executor.

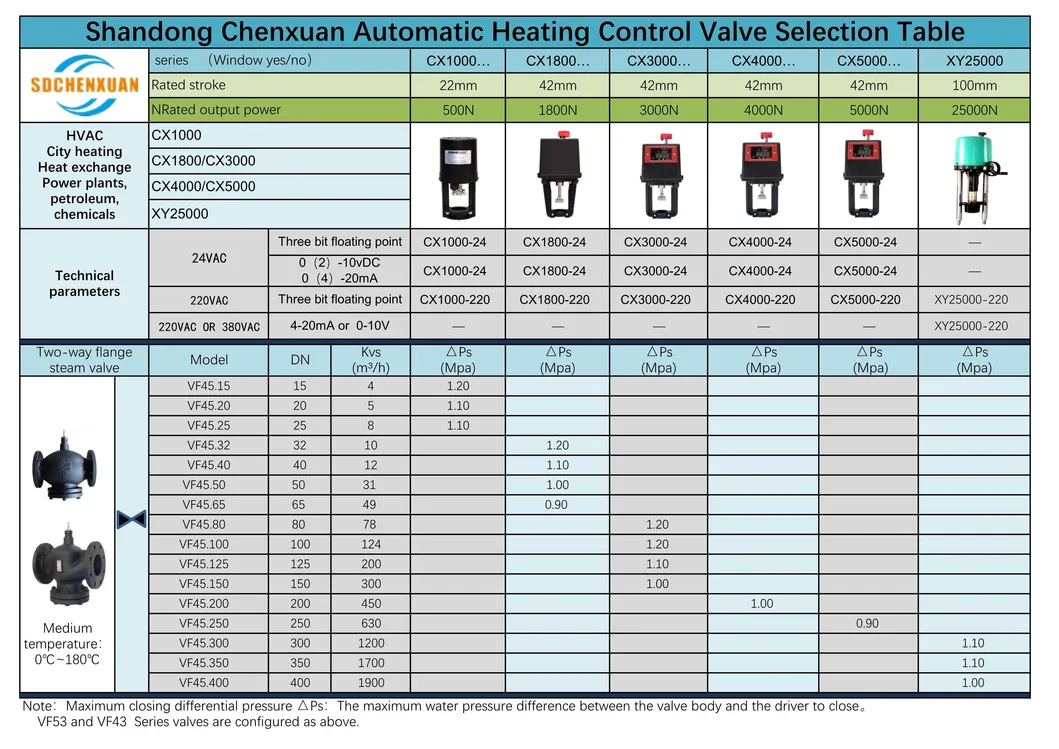

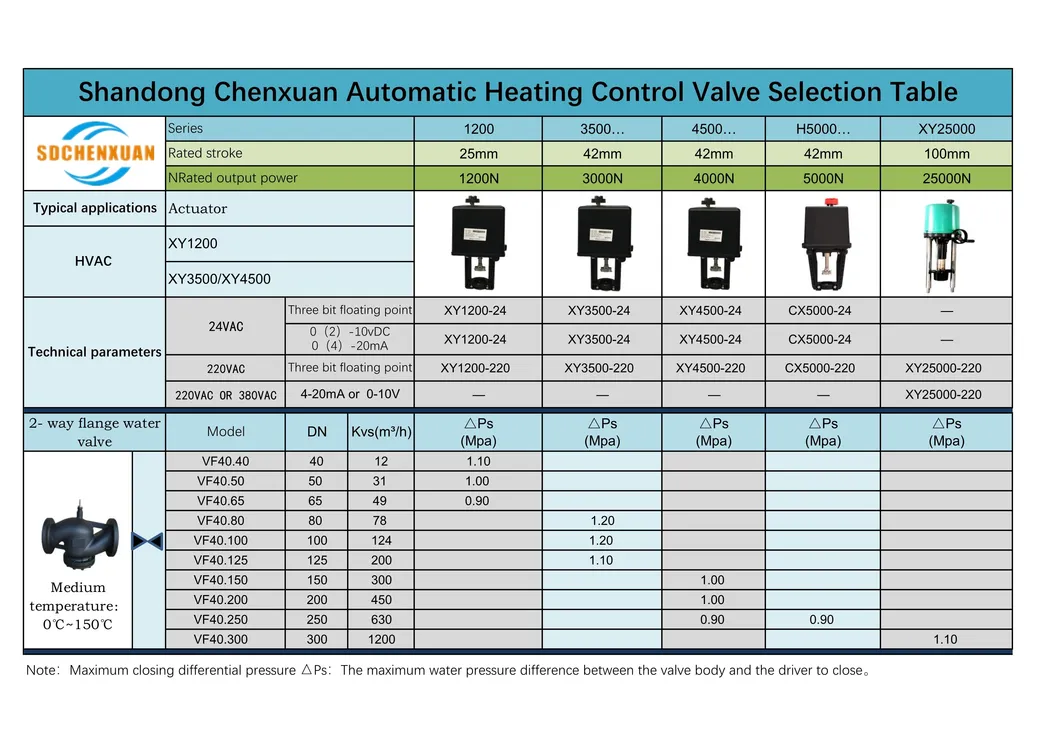

Order description:

Order model	DN	kv (m³/h)	Trip	SAX 800N	SKD 1000N	SKB 2800N	SKC 2800N
VF53.15	DN15	4	20mm	√	√	○	○
VF53.20	DN20	8		√	√	○	○
VF53.25	DN25	10		√	√	○	○
VF53.32	DN32	12		√	√	○	○
VF53.40	DN40	19		√	√	○	○
VF53.50	DN50	31		√	√	√	○
VF53.65	DN65	49		√	√	√	○
VF53.80	DN80	78		√	√	√	○
VF53.100	DN100	124		○	√	√	○
VF53.100	DN100	150	40mm	○	○	○	√
VF53.125	DN125	200		○	○	○	√
VF53.150	DN150	300		○	○	○	√
VF53.200	DN200	420		○	○	○	√
VF53.250	DN250	580		○	○	○	√

√ Represents an optional actuator,○ Represents an optional actuator
