Product Description

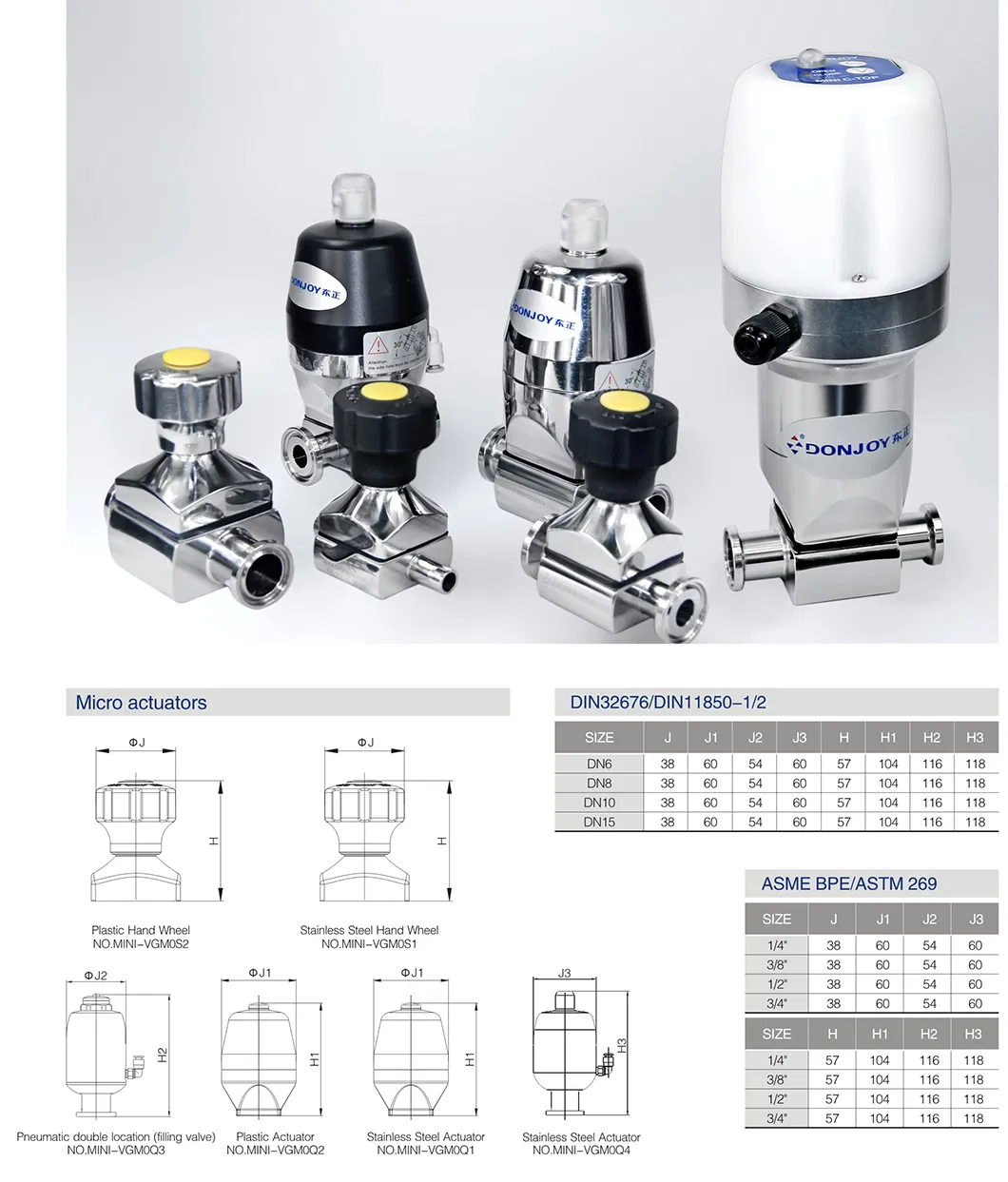

3A Sanitary U Type ASME Bpe Diaphragm Valve

Donjoy for all diaphragm valve conducted a comprehensive technology update in 2015. The upgraded design more in line with GMP, ASME BPE, EHEDG and 3A of the technical requirements of high purity. Especially for handling dead angle reached requirement ≤ 1D to ≤ 3D.

Advantage:
1.Reliable, long life diaphragm - available in high performance EPDM+PTFE for continuous steam operation at temperatures up to 150 °C
2.Hygienic design - high-grade valve bodies and low Ra surface finishe
3.Zeo dead leg

Technical specification:

Size	1"-4", DN25-DN100
Material	Forging body: 1.4404/ 316L/ASME BPE 316L/ 1.4435 BN2 Fe≤0.5
Material	Casting body: 1.4404/316L/ ASTM A351 CF3M
Max. temperature	-30 ºC to 150 ºC (depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 ºC to 130 ºC(depending on diaphragm) (plastic wheel)
Max. pressure	10 bar
Connection design	welding, clamp, flange, thread, DIN 11864 aseptic flange, clamp, thread

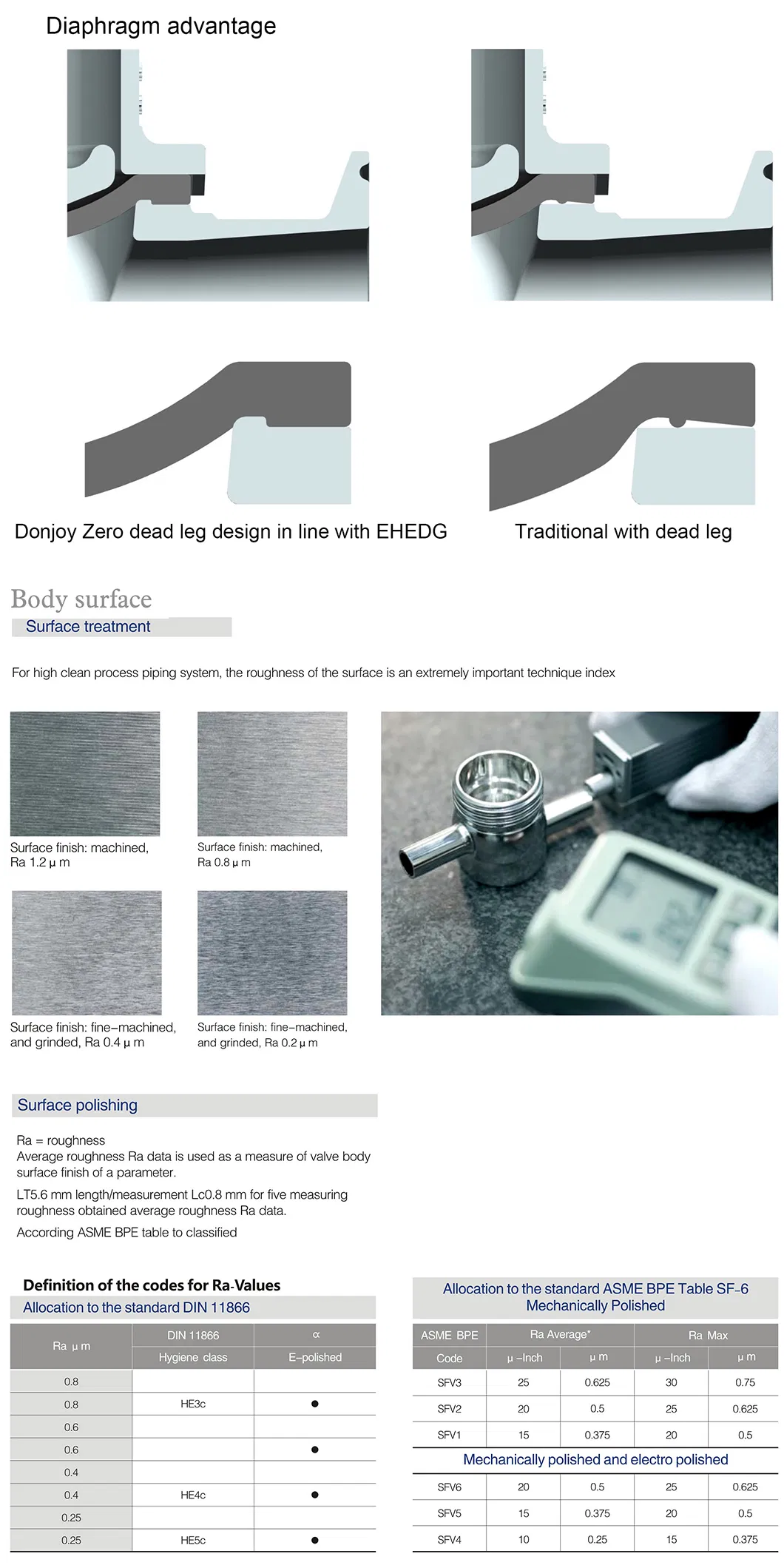

Surface	Standard inside surface mirror polished RA≤0.4 micron, or RA≤0.3 micron (option)

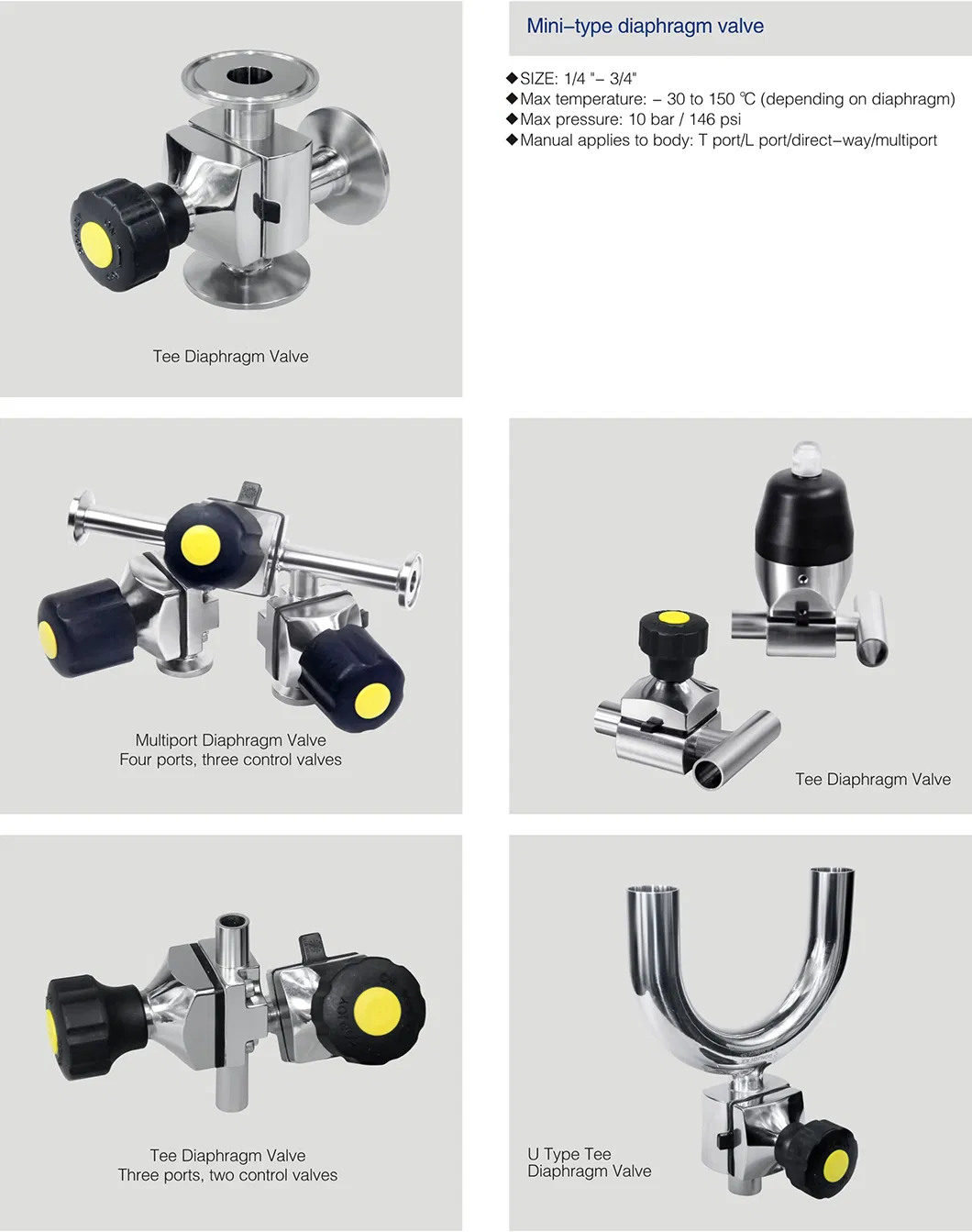

Body structure	T type-Tee, L type-Tee, U type-Tee, multiport, tank bottom valve and various body structures

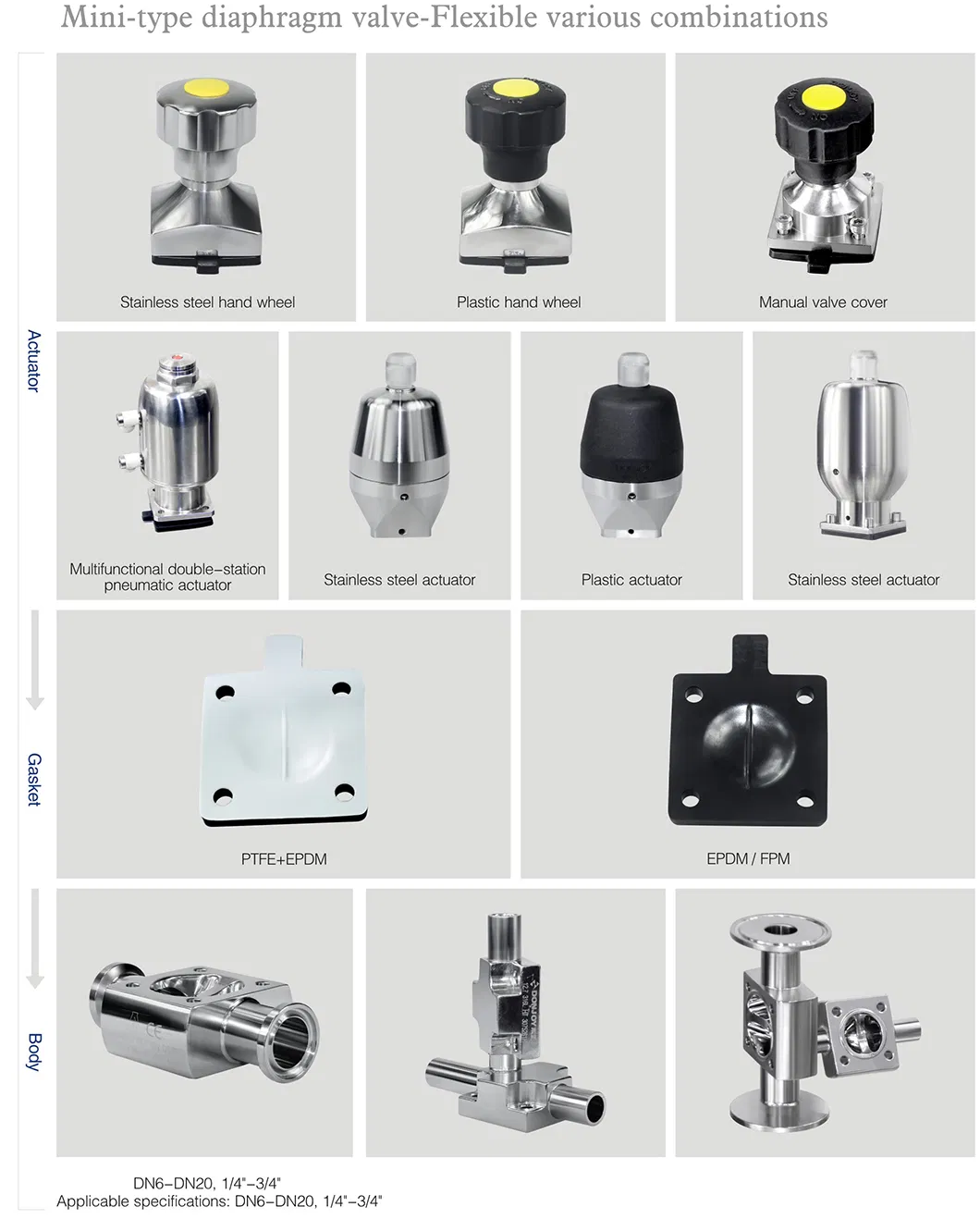

Operation way	Manual: plastic and stainless steel handwheel
	Pneumatic: plastic box stainless steel pneumatic actuator, multifunctional pneumatic actuator.
	Control:IL-TOP intelligent positioner, C-TOP intelligent control unit, FKQ-TOP, position feedback device, intelligent electric actuator, manual flow regulator
Long life design	Below 2 bar, maximum life of 800 million times.
Application scope	dairy, food, beverage, water processing, wine fine chemicals, pharmaceutical industries etc.
Certificate	3-A,CE PED/97/23/EC, FDA.177.2600ISO9001
Packaging details	Bubble pack for each valve. Outside packing is by carton or plywood case.

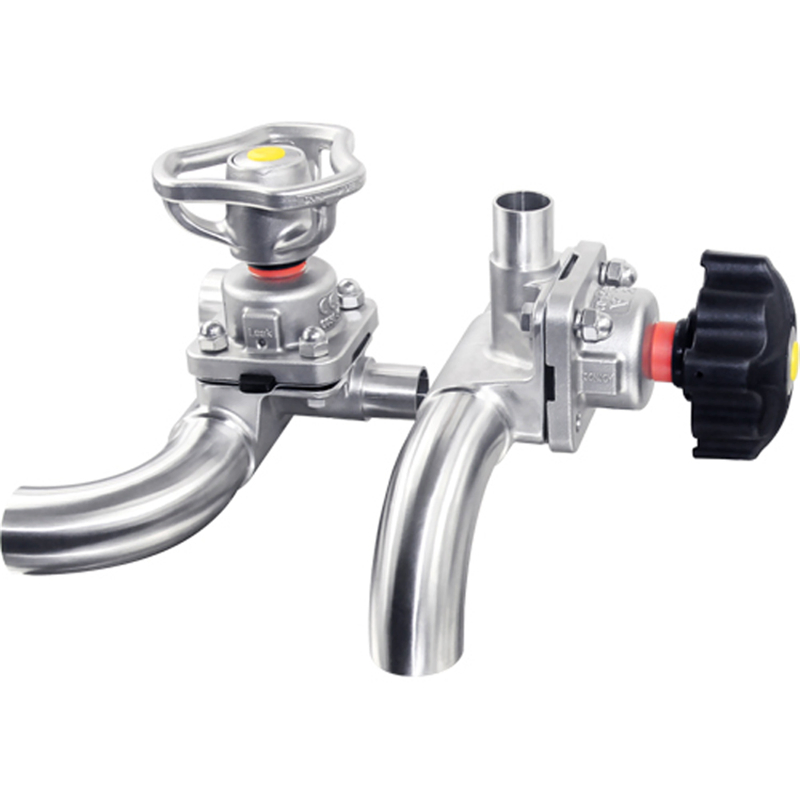

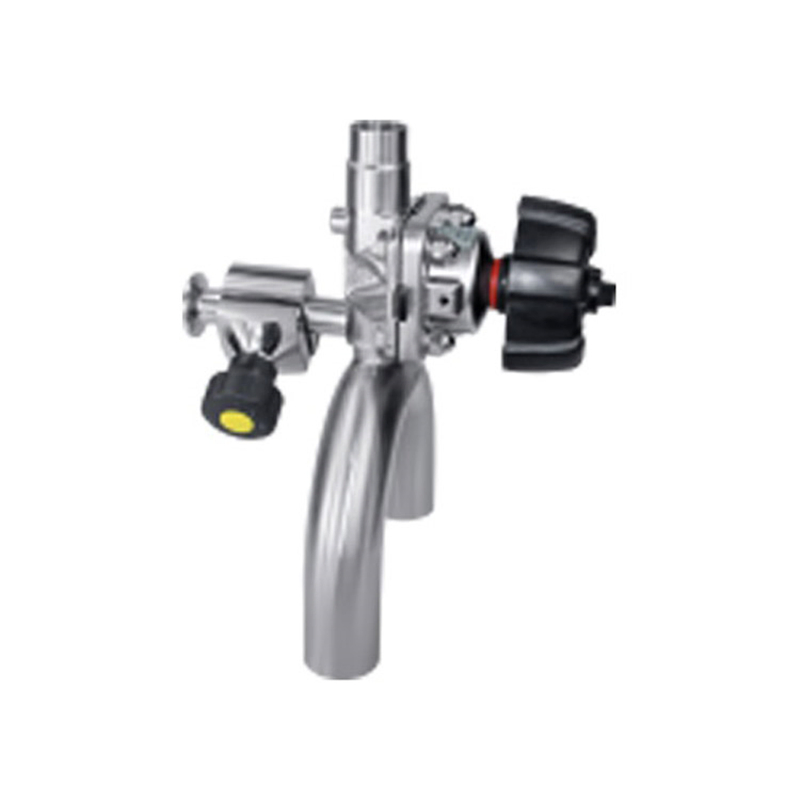

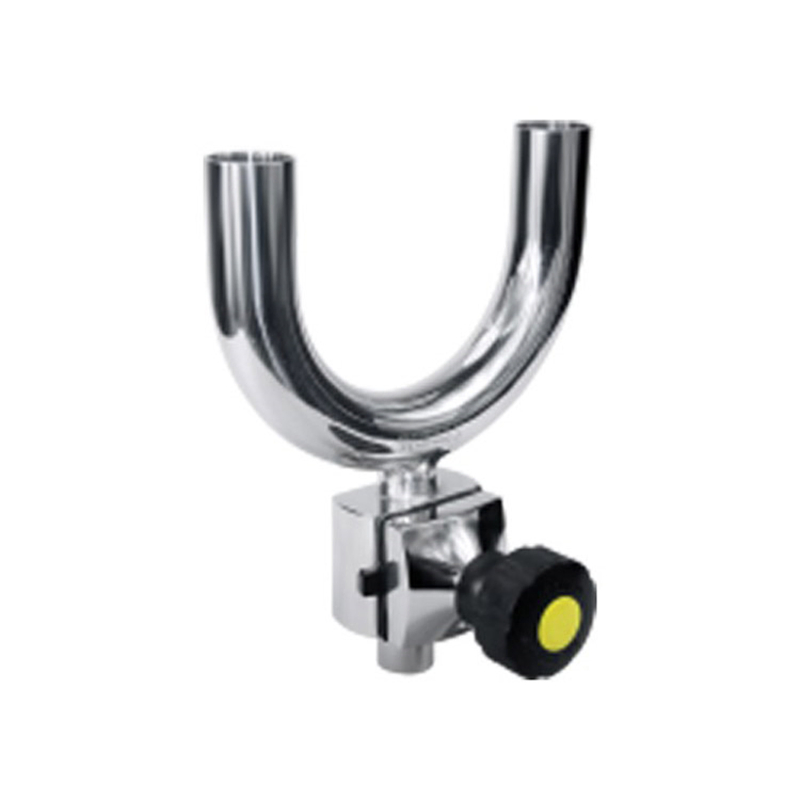

3A Sanitary U-port ASME BPE Diaphragm Valve

Feature:
1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
2.Manufactured more than 1 million pcs

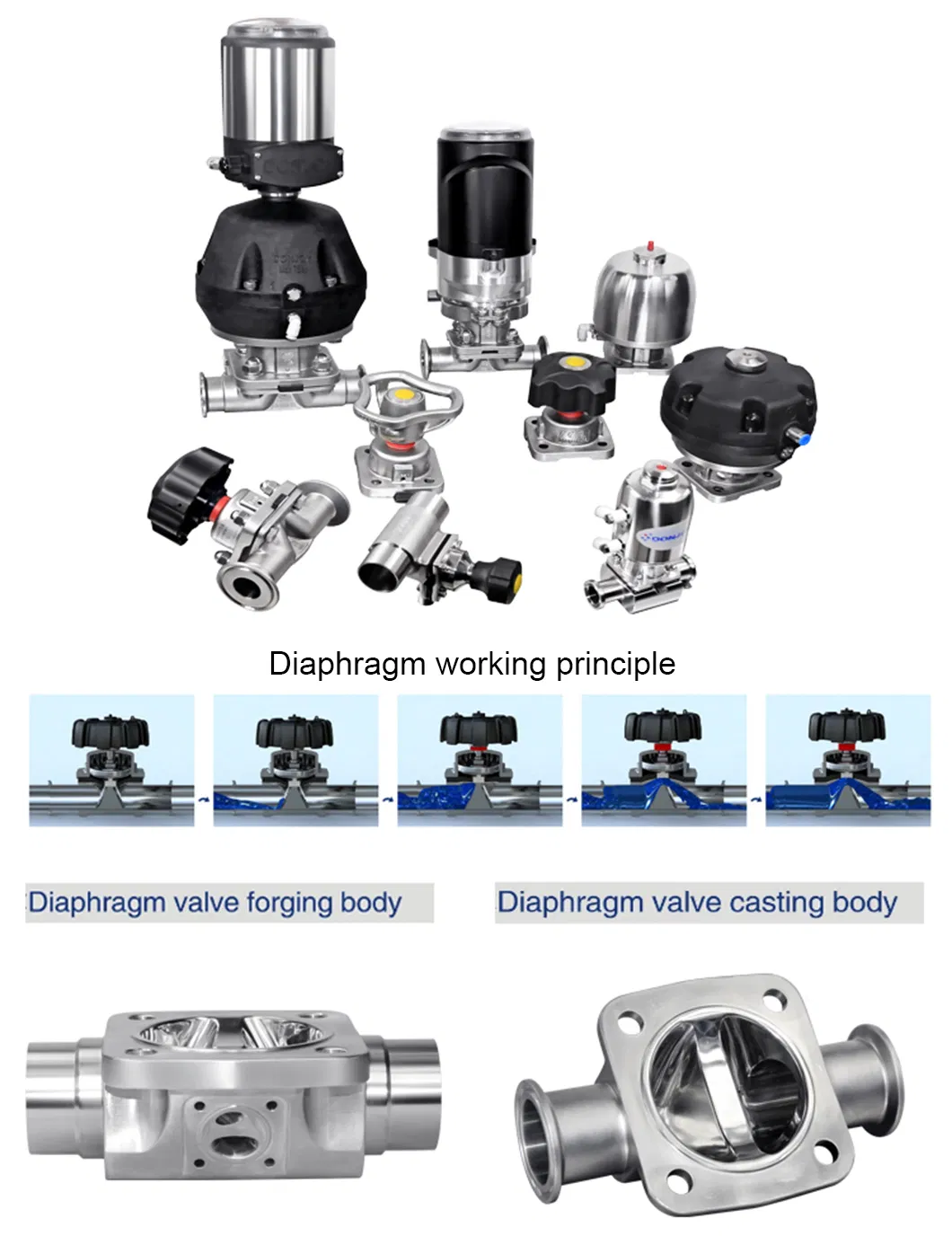

3.Forged body,one time CNC machining, guarantee machining precision.
4.Euro and Japan mported seals,meet FDA standard.
5.Manual type,pneumatic type, electric type all interchangeable.

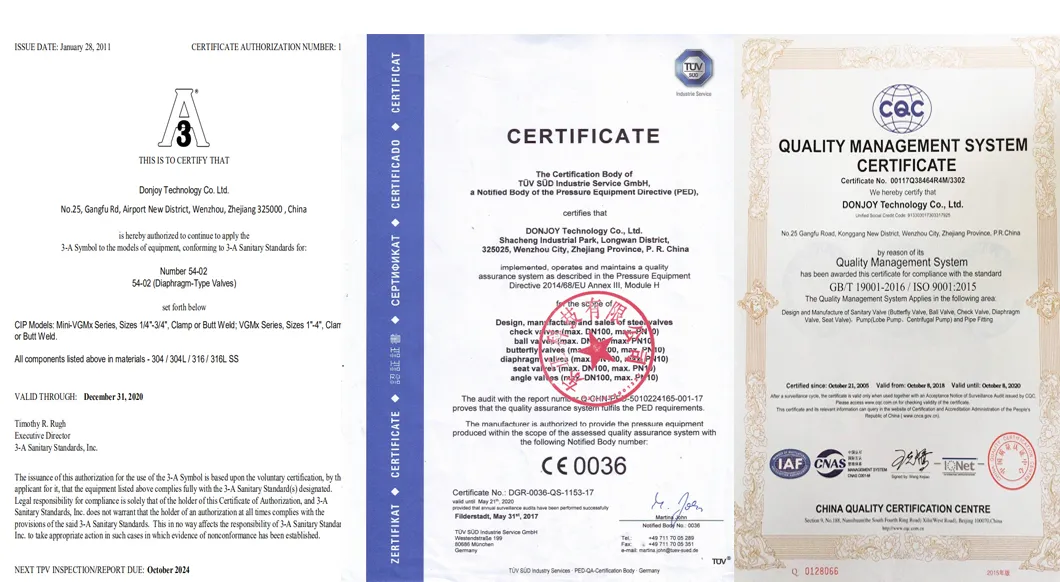

6.Have certificate of FDA,3-A ,CE.

Connection:
Clamped, welded and threaded,flanged etc.

Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
