Sanitary Stainless Steel SS304/SS316 Casting Manual Clamped Diaphragm Valve
Sanitary Stainless Steel Clamped diaphragm valveProduct nameStainless Steel Sanitary Clamped diaphragm valveApplication: RG diaphragm valve is a series of sanitary diaphragm valve,it is widely used on wine ,diary products,beverage,foodstuff industry,pharmacy etc.achieving the requirement of control ......
Send Inquiry
Product Description

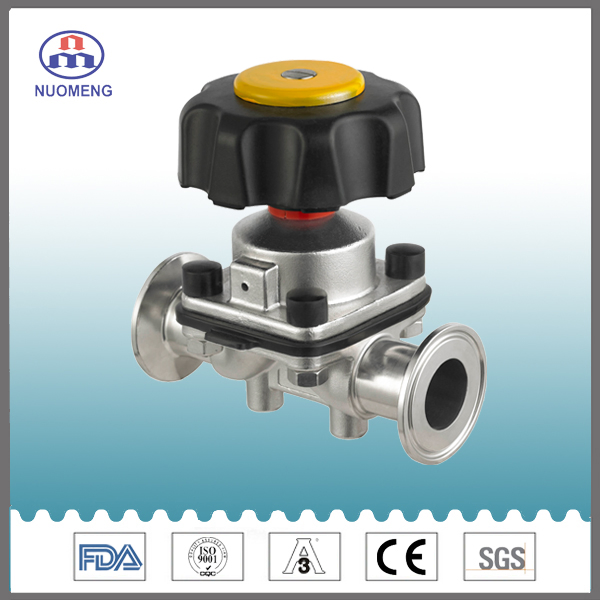

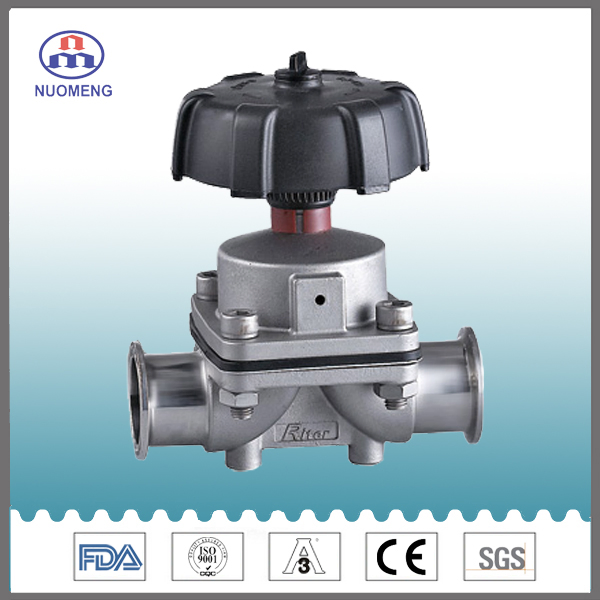

Sanitary Stainless Steel Clamped diaphragm valve
DN-No.RG1204

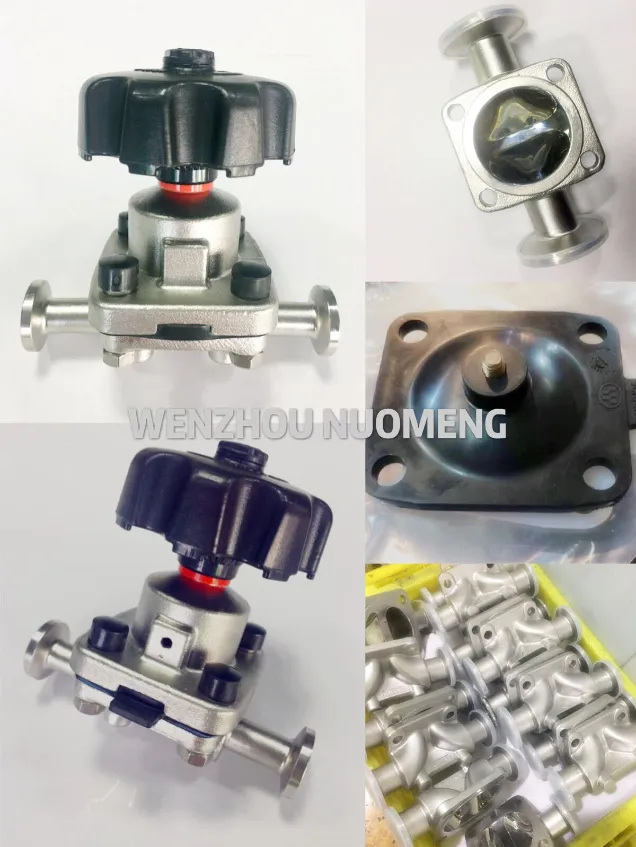

Product Show:
Packing:
2021 CIPM(SPRING):

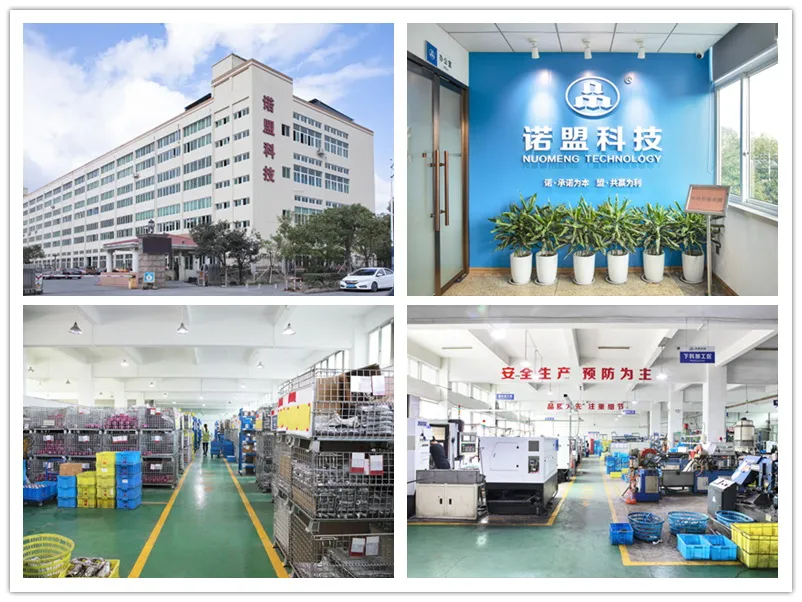

Factory related picture:
Product name | Stainless Steel Sanitary Clamped diaphragm valve |
Application: RG diaphragm valve is a series of sanitary diaphragm valve,it is widely used on wine ,diary products,beverage,foodstuff industry,pharmacy etc.achieving the requirement of control and open/close for the pipeline system. | |
| Materials | |
| · Body Materials: | AISI- 316L |
| · Gasket Material: | EPDM+PTFE |
| · Valve seat and gasket comply with FDA 21CFR177 2600 | |
| Standard Design | |
| · Standard Avaliable: | DIN, 3A, SMS, ISO, ASME BPE. |
| · End connection: | Butt-weld, Clamp, thread or others upon request. |
| · Actuator Available: | Pneumatic aluminum actuator (horizontal type), electric actuator. Manual |
| · Size Available: | 1/4"-4", DIN6-DN76 |
DN-No.RG1204
| SIZE | A | B | H | |
| DN6 | 1/4" | 72.0 | 34 | 74.5/79.5 |
| DN8 | 3/8" | 72.0 | 34 | 74.5/79.5 |
| DN10 | 1/2" | 72.0 | 34 | 74.5/79.5 |
| DN15 | 3/4" | 108.0 | 34 | 90.5/99.5 |
| DN20 | 118.0 | 50.5 | 111.5/122 | |
| DN25 | 1" | 127.0 | 50.5 | 111.5/122 |
| DN32 | 1 1/4" | 146.0 | 50.5 | 131.01/148.5 |
| DN40 | 1 1/2" | 160.0 | 50.5 | 131.01/148.5 |
| DN50 | 2" | 190.0 | 64 | 167/190 |
| DN65 | 2 1/2" | 216.0 | 91 | 199/228 |
Product Show:
Packing:
2021 CIPM(SPRING):
Factory related picture:
