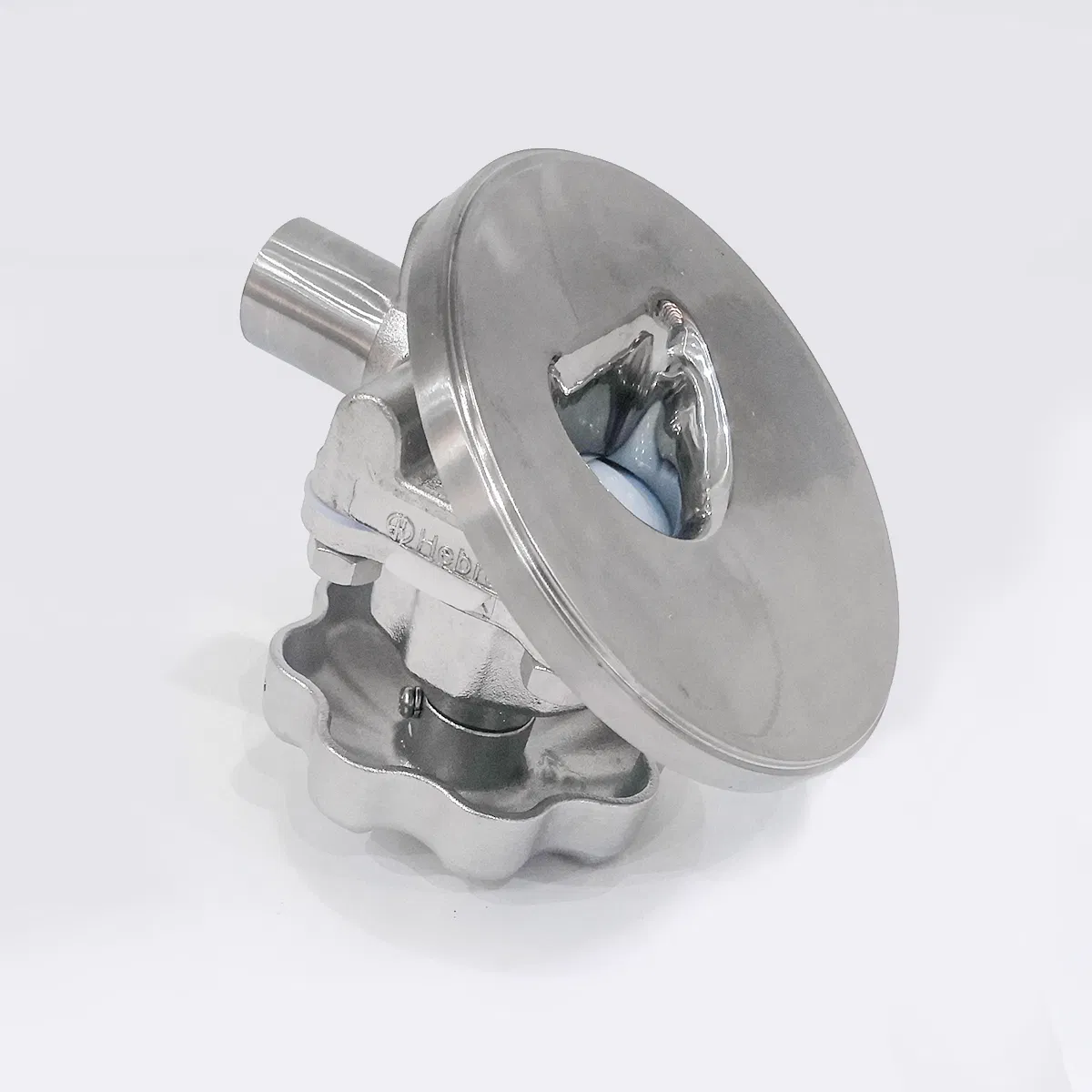

Stainless Steel Sanitary Manual Diaphragm Tank Bottom Valve
Stainless Steel Sanitary Manual Diaphragm Tank Bottom ValveThe tank bottom valve is welded to the container bottom, it can achieve optimum emptying, cleaning and disinfecting effect. In addition, according to the technological requirements, it can also achieve good mixing of working media. The tank ......
Send Inquiry
Product Description

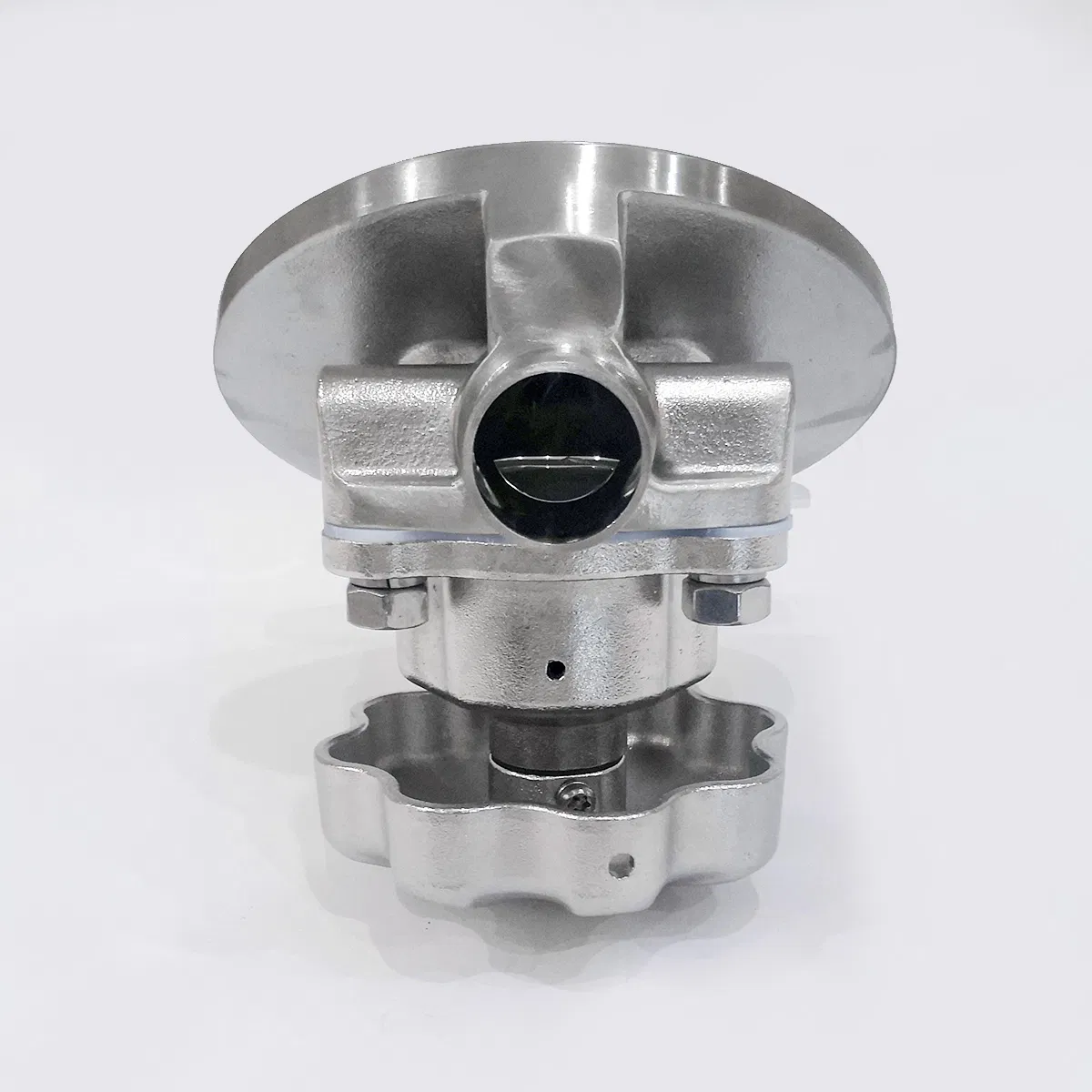

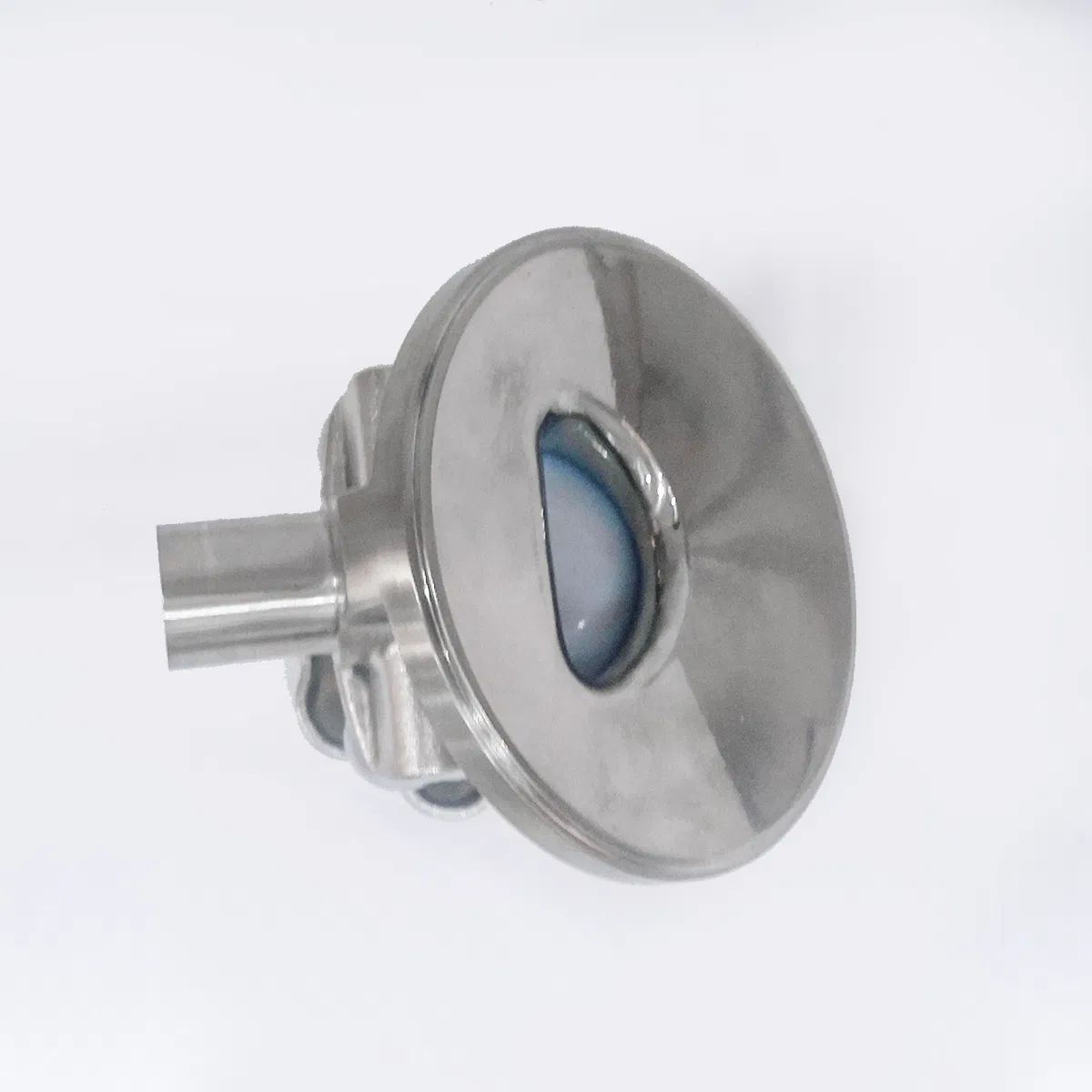

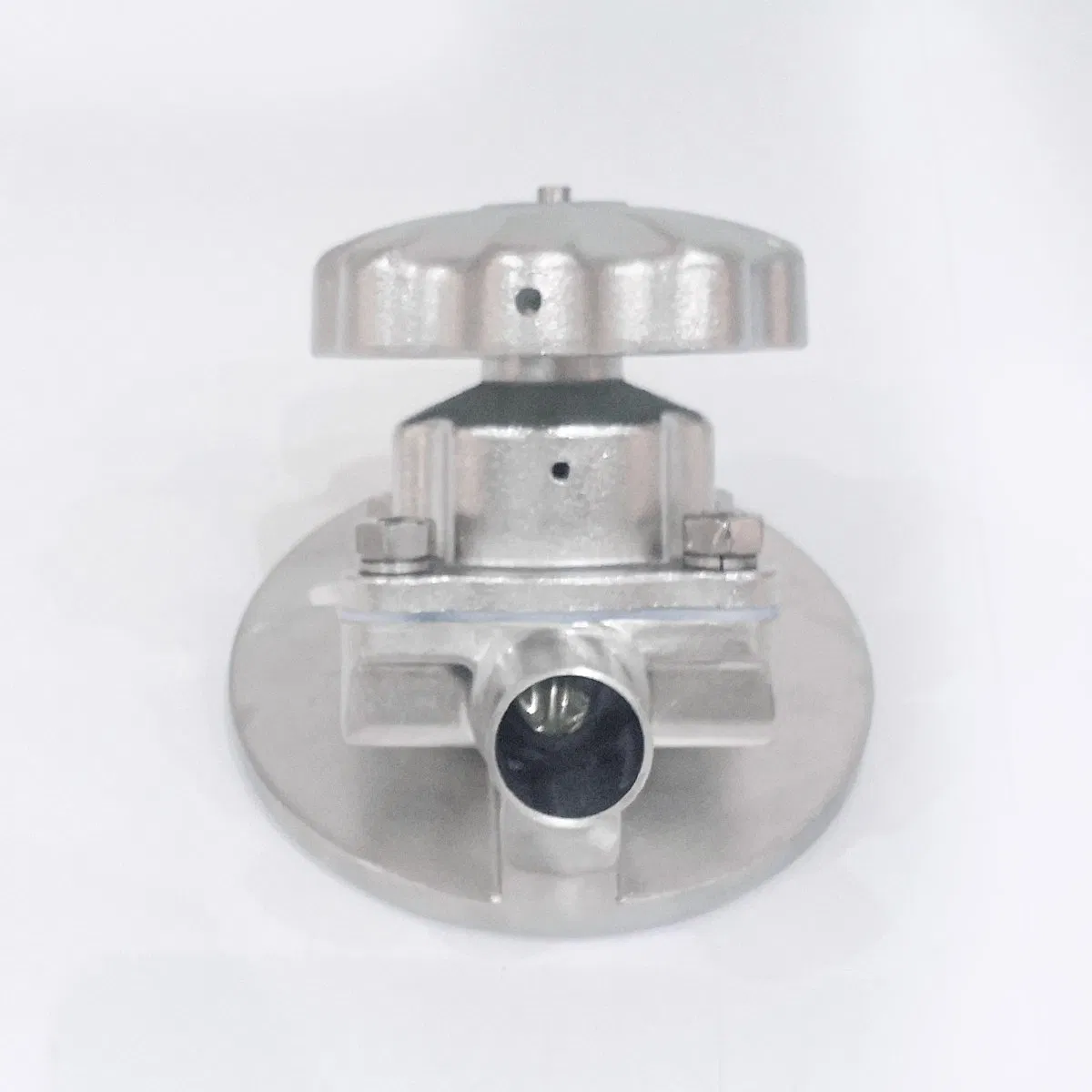

Stainless Steel Sanitary Manual Diaphragm Tank Bottom Valve

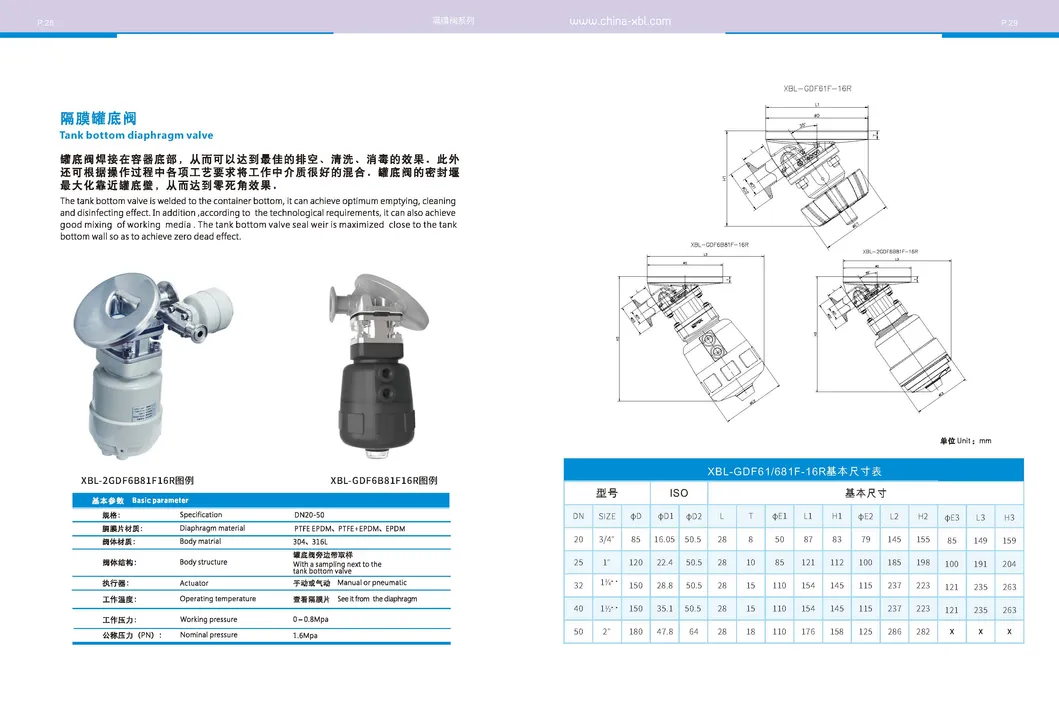

The tank bottom valve is welded to the container bottom, it can achieve optimum emptying, cleaning and disinfecting effect. In addition, according to the technological requirements, it can also achieve good mixing of working media. The tank bottom valve seal weir is maximized close to the tank bottom wall so as to achieve zero dead effect.
SPECIFICATION:
Our Certification

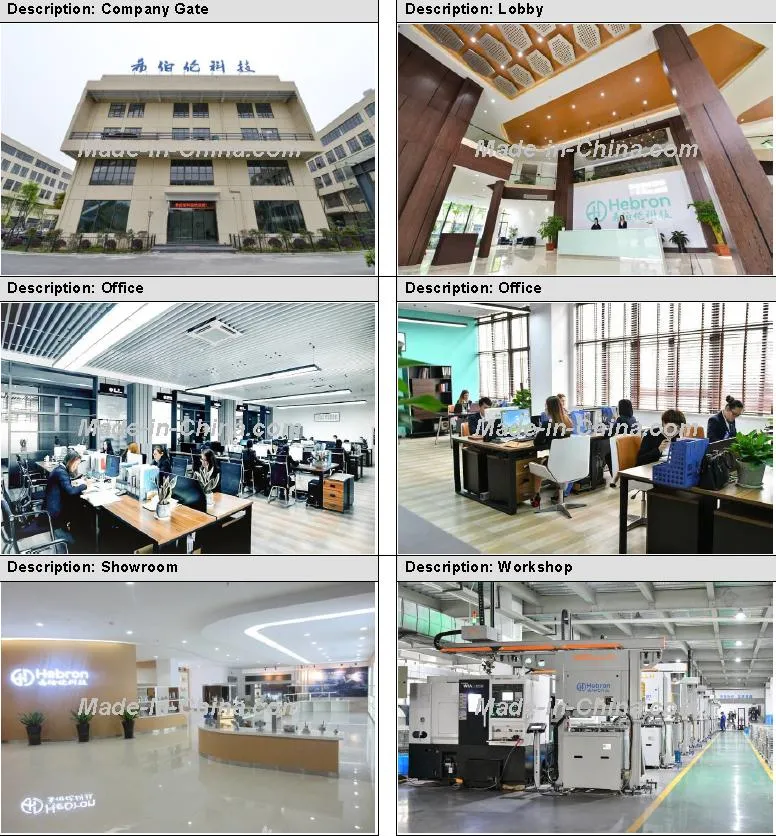

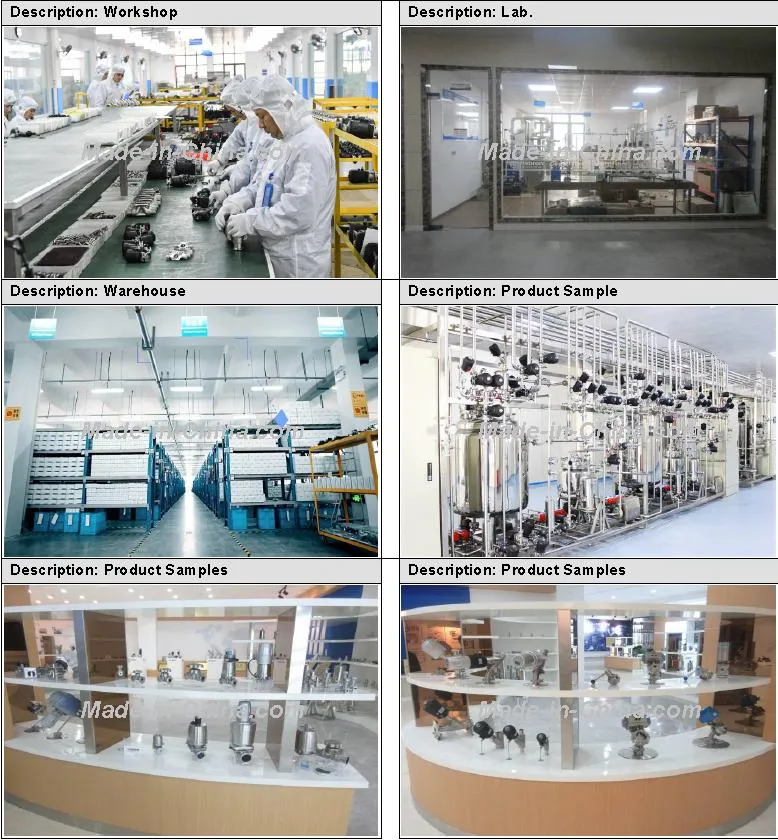

Our Company
The tank bottom valve is welded to the container bottom, it can achieve optimum emptying, cleaning and disinfecting effect. In addition, according to the technological requirements, it can also achieve good mixing of working media. The tank bottom valve seal weir is maximized close to the tank bottom wall so as to achieve zero dead effect.
SPECIFICATION:
| ITEM: | DN20-50 |
| Material of valve body: | SS316L, SS304 |
| Seal material: | EPDM+PTFE, EPDM |
| Size: | 1/2-2 INCH, DN10-DN50 |
| Max. temperature: | -30~150 degree centigrade (up to diaphragm gasket) |
| Max. pressure: | Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR) |
| Casting valve body: | CF3M 1.4404/316L |
| Forging valve body: | 1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5% |
| Connection way: | Welded, clamped, flanged, threaded |
| Optional operaton: | By pneumatic actuator, electric actuator, control unit, positioner etc. |
| Optional flow port: | 2 way, 3 way, multi-port |
| Application: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Certification: | 3A, CE, ISO, FDA, USP Class VI |
| Standard: | 3A/BPE/DIN/ISO/IDF |
| Packing details: | With bubble pack for each valve. Outside packing is by carton or plywood case. Or be custom-made. |
Our CertificationOur Company
