Product Description

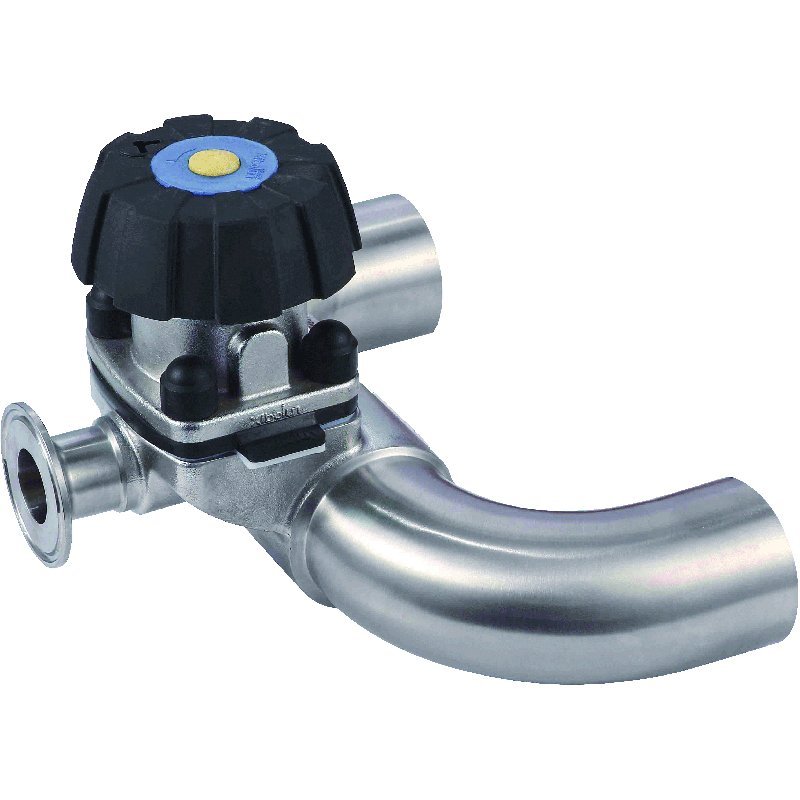

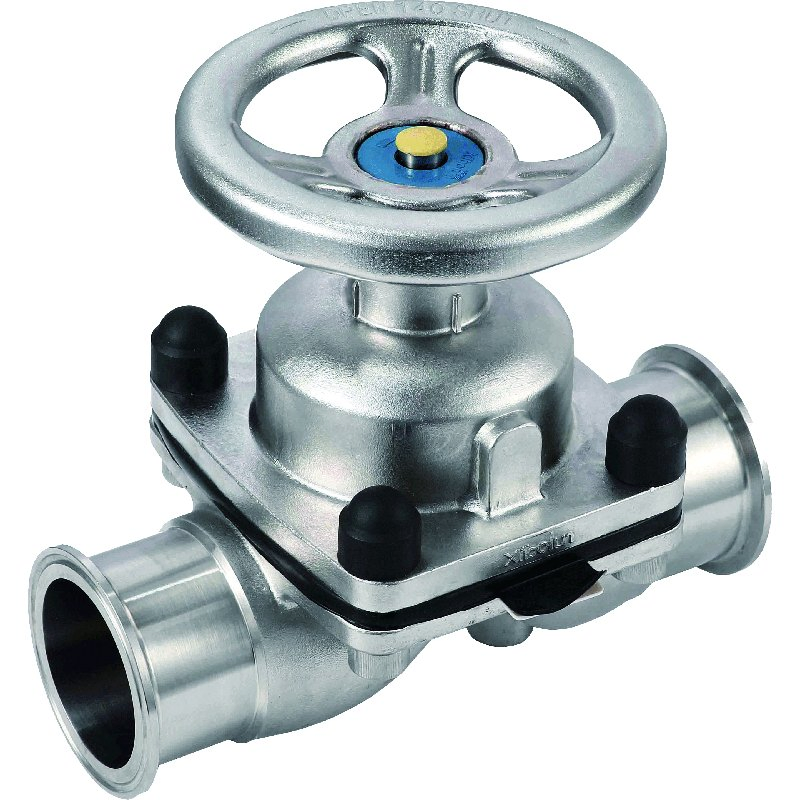

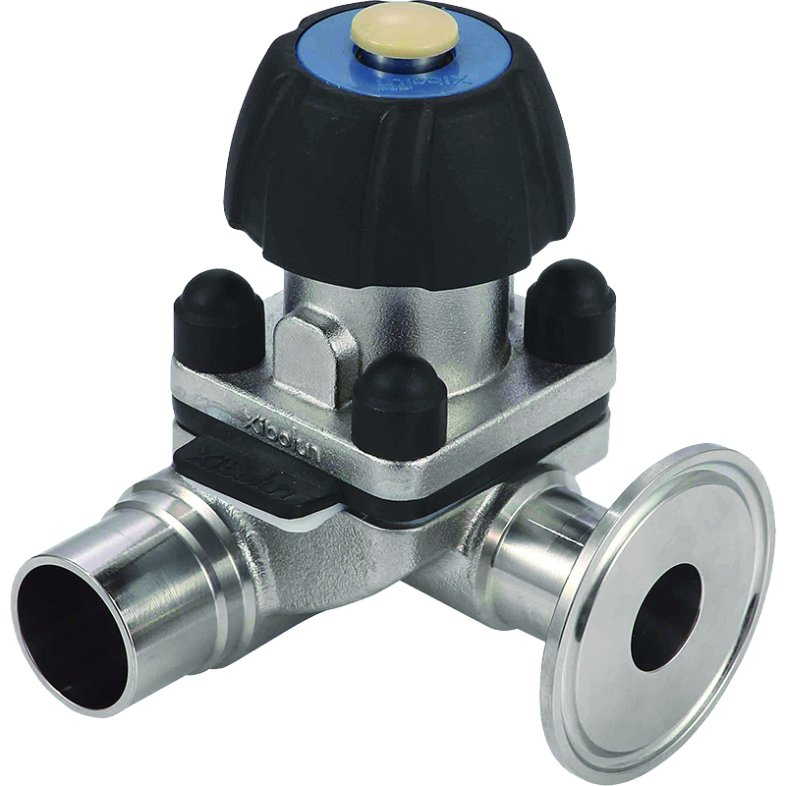

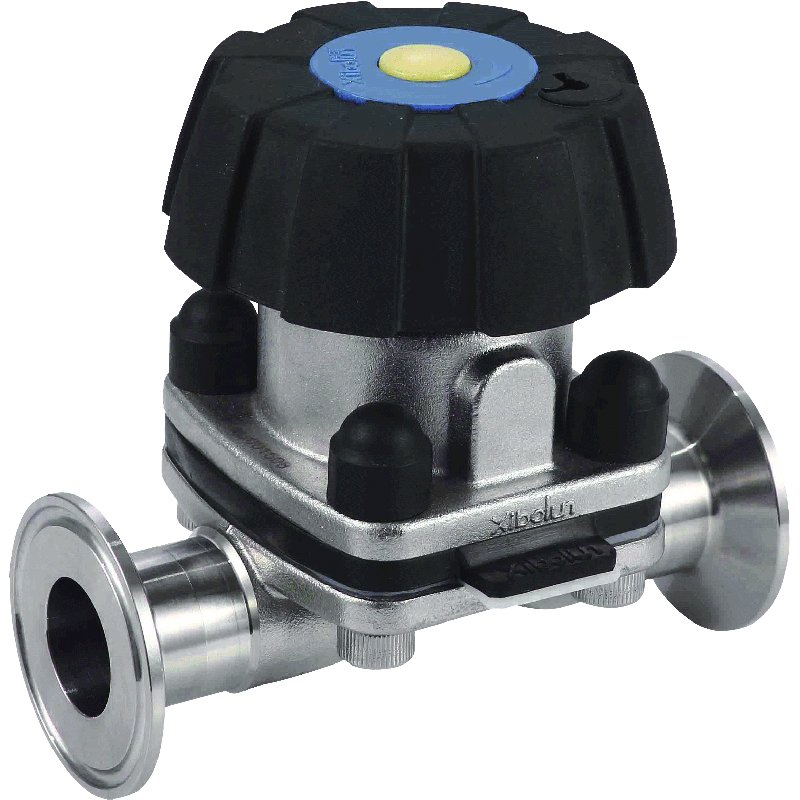

Stainless Steel Sanitary Manual Diaphragm Valve Control Valve

The products are widely used in the fields of biopharming, biological vaccines, electronic semiconductor, water purification, food and beverage, dairy products, etc.

XiBoLun/Hebron (Nasdaq Stock Code: HEBT) is a high-tech enterprises which integrates R&D with manufacture and selling sanitary products including self-control actuators ,valves , pumps,pipe fittings and other fluid equipment.

All the products are designed and produced base on ISO standard, SMS, ASME standard strictly and comply with certification requirements of American FDA, CGMP and GMP, as one of the few domestic providers of "product manufacturing, process pipeline system engineering overall solution"

We specialize in this filed for decades, with the strength of, with good quality and pretty competitive price.

SPECIFICATION:

Item:	Stainless Steel Sanitary Manual Diaphragm Valve Control Valve
Material of valve body:	SS316L, SS304
Seal material:	EPDM+PTFE, EPDM
Size:	1/4"-3"
Max. temperature:	-30~150 degree centigrade (up to diaphragm gasket)
Max. pressure:	Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR)
Casting valve body:	1.4404/316L
Forging valve body:	1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5%
Connection way:	Welded, clamped, flanged, threaded
Optional operaton:	By pneumatic actuator, electric actuator, control unit, positioner etc.
Optional flow port:	2 way, 3 way, multi-port
Application:	Dairy, food, beverage, pharmacy, cosmetic etc
Certification:	3A, CE, ISO, FDA, USP Class VI
Standard:	3A/BPE/DIN/ISO/IDF
Packing details:	With bubble pack for each valve. Outside packing is by carton or plywood case. Or be custom-made.
