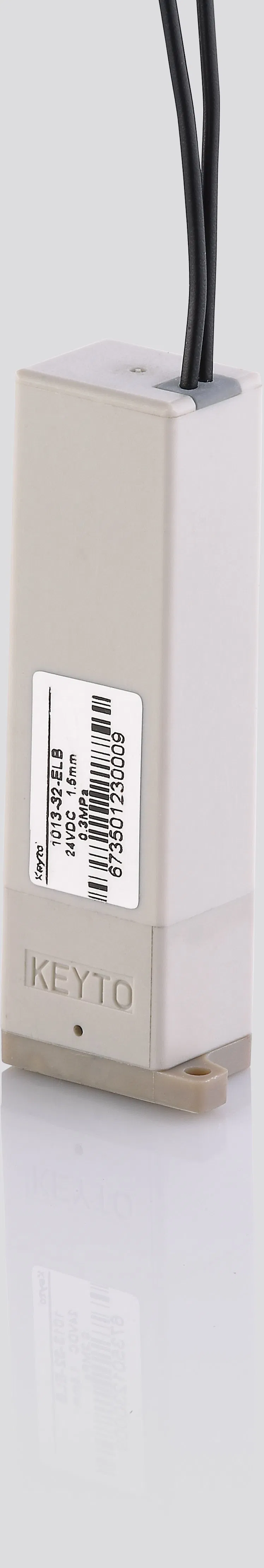

1013 -3 Way Base Style Valve for Medical Instruments Application
Product Features:1. Great anti-pressure ability;2. Long life span;3. Small dead volume;4. Cost effective;5. Suitable for mediums like water, air and some of organic solvents.Specification: Model1013-32-EPB/5NBody materialPEEKDiaphragm material FFKMOutline Dimension13*24.5*58.05 mmStructureRocker dia......
Send Inquiry
Product Description
Product Features:
1. Great anti-pressure ability;
2. Long life span;
3. Small dead volume;
4. Cost effective;
5. Suitable for mediums like water, air and some of organic solvents.
Specification:
Attention:
1. The pressure should be put on the inlet, no matter what kind of pressure.
2. To prevent the nozzle from broken, body ported valve should be inserted or pulled out the hose along with the direction of nozzle.
Installation dimension:
1. Great anti-pressure ability;
2. Long life span;
3. Small dead volume;
4. Cost effective;
5. Suitable for mediums like water, air and some of organic solvents.
Specification:
| Model | 1013-32-EPB/5N |
| Body material | PEEK |
| Diaphragm material | FFKM |
| Outline Dimension | 13*24.5*58.05 mm |
| Structure | Rocker diaphragm type |
| No. of ports | 3 |
| Orifice diameter | 1.5 mm |
| Flow | 5.1 g/s (25ºC, 50kPa, water) |
| Power consumption | 2.8 W |
| Operating pressure | -70 kPa ~ 0.3 MPa |
Attention:
1. The pressure should be put on the inlet, no matter what kind of pressure.
2. To prevent the nozzle from broken, body ported valve should be inserted or pulled out the hose along with the direction of nozzle.
Installation dimension:
