1013 Rocker Diaphragm Valve for Medical Laboratory Environmental Instruments Application

Product Description

1. Production Overview

The solenoid valve of 1013 series is a family of rocker diaphragm valve with 1.5mm orifice

diameter, controlling the switch of fluid flow path. This series solenoid valve is a high

performance, low cost and maintenance free rocker diaphragm valve with multiple model options,

which are suitable for different reagents under different working condition.The life cycle of

valves can be operated more than 2 million.
1013 Rocker Diaphragm Valve for Medical Laboratory Environmental Instruments Application

1.1.Characteristics Of 1013 Series

Orifice diameter: 1.5mm; small resistance along the way

Large flow: CV≥0.03; flow≥5.1g/s(differential pressure 50KPa, 25ºC, pure water)

Small dead volume: zero dead volume inside the solenoid valve

Multiple option for wetted material:

1. Body material: PPS, POM,PTFE,PVDF.

2. Seal material: EPDM, FKM,FFKM.

Long lifetime, high performance

Specification:

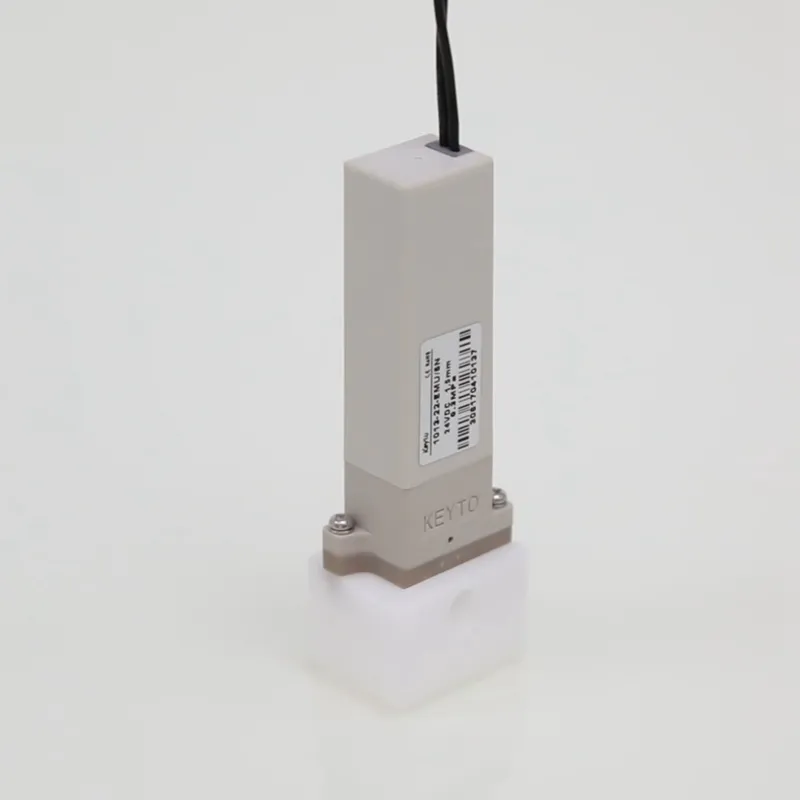

Model	1013-22-EPN/5N Body Barbed Solenoid Valve
Body material	PEEK/ POM+PEEK/ PVDF for option
Seal material	EPDM, FFKM
Outline Dimension	13 * 16.5 * 64.2 mm
Structure	Rocker diaphragm
Number of port	2/3
Orifice diameter	1.5 mm
Flow	5.1g/s (water, 25ºC, 50 kPa)
Operating pressure	-80kpa~0.25MPa
Power consumption	2.8 W
Ambient temperature range	-10ºC(No freezing)~60ºC
Leakage rate	0
Allowable voltage fluctuation	±10%
Response Time	<30ms
Flow coefficient of valve (CV)	0.03
