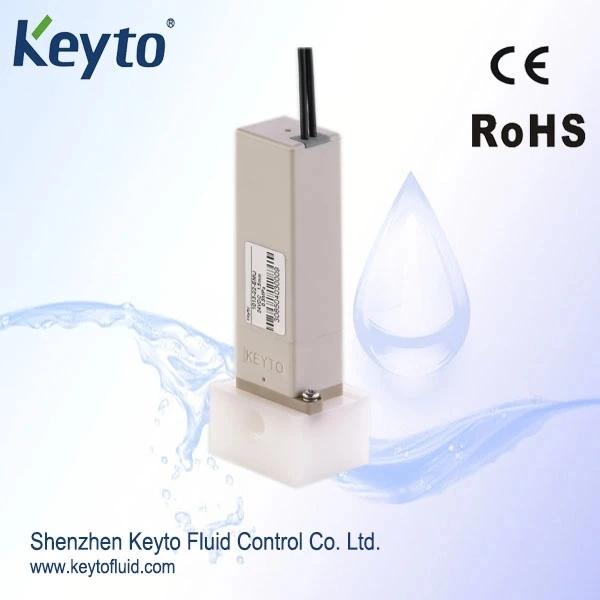

1013 Series 2-Way N. C. Micro Fluid Diaphragm Valve
Product Features:1. Compact construction;2. Small inner capacity;3. High precision;4. Suitable for mediums like water, air, some organic solvents;5. Application in limited installation space, and integrated manifold occasions.Specification: Model1013-22 Threaded Solenoid ValveBody materialPOM+PEEKSe......
Send Inquiry
Product Description
Product Features:
1. Compact construction;
2. Small inner capacity;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.
Specification:
Installation dimension:
1. Compact construction;
2. Small inner capacity;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.
Specification:
| Model | 1013-22 Threaded Solenoid Valve |
| Body material | POM+PEEK |
| Seal material | EPDM, FFKM, FKM |
| Outline Dimension | 19 * 24.5 * 73.5 mm |
| Structure | Rocker diaphragm |
| Number of port | 2 |
| Orifice diameter | 1.5 mm |
| Flow | 5.1g/s (under 25ºC, 50 kPa) |
| Power consumption | 2.8W |
| Operating pressure | -70 kPa ~ 0.25 mPa |
Installation dimension:
