China 1013 Valve Usage for Ivd/Laboratory/Environmental Instruments

Product Description

1. Production Overview

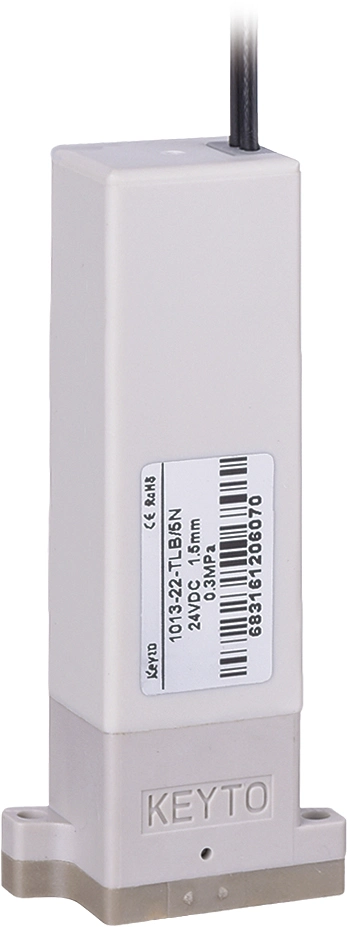

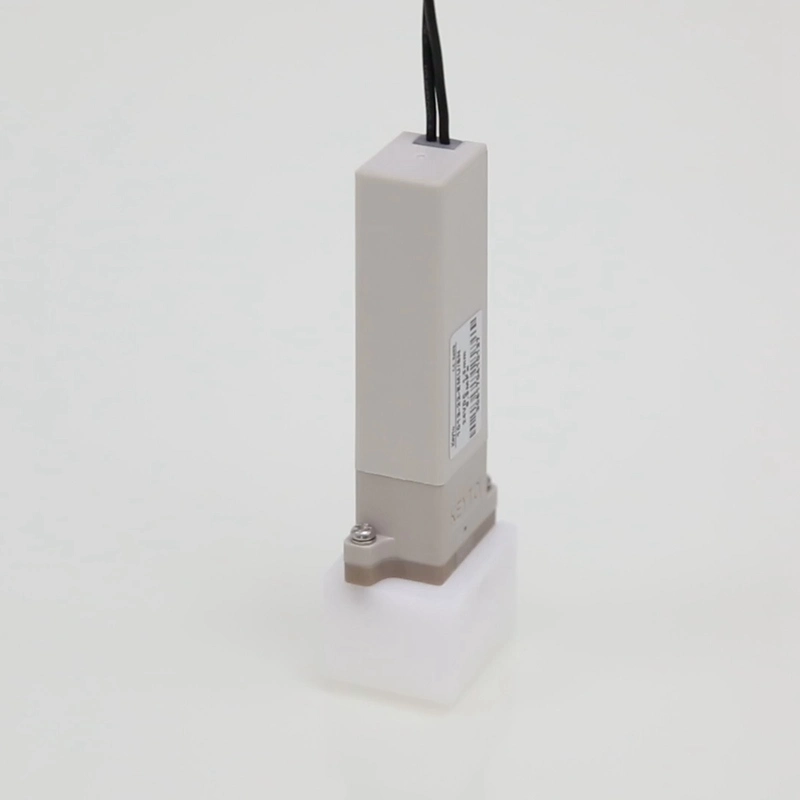

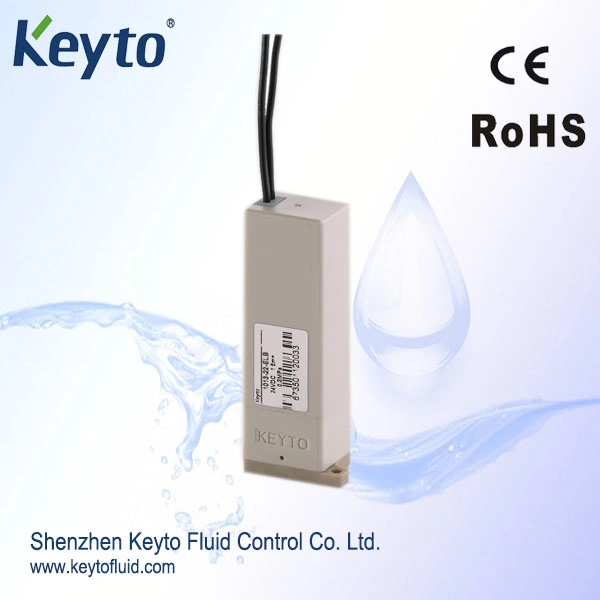

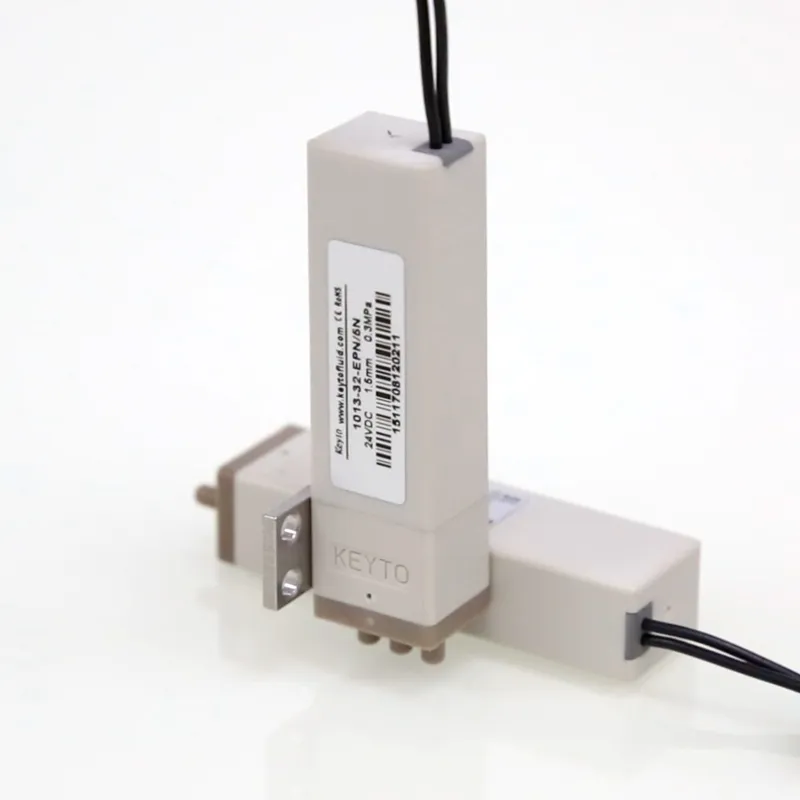

The solenoid valve of 1013 series is a family of rocker diaphragm valve with 1.5mm orifice

diameter, controlling the switch of fluid flow path. This series solenoid valve is a high

performance, low cost and maintenance free rocker diaphragm valve with multiple model options,

which are suitable for different reagents under different working condition.The life cycle of

valves can be operated more than 2 million.

1.1.Characteristics Of 1013 Series

Orifice diameter: 1.5mm; small resistance along the way

Large flow: CV≥0.03; flow≥5.1g/s(differential pressure 50KPa, 25ºC, pure water)

Small dead volume: zero dead volume inside the solenoid valve

Multiple option for wetted material:

1. Body material: PPS, POM,PTFE,PVDF.

2. Seal material: EPDM, FKM,FFKM.

Long lifetime, high performance.

Product Features:
1. Compact construction;
2. Small inner capacity;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.

Specification:

Model	1013-22-ELB/5N Base Mounted Solenoid Valve
Body material	PEEK, PVDF,POM
Seal material	EPDM, FKM, FFKM
Outline Dimension	1324.558.05mm
Structure	Rocker diaphragm, 2way-NC
Number of port	2
Orifice diameter	1.5mm
Flow	5.1g/s (water, 25ºC, 50 kPa)
Power consumption	2.8W
Operating pressure	-70 kPa ~ 0.25 mPa
