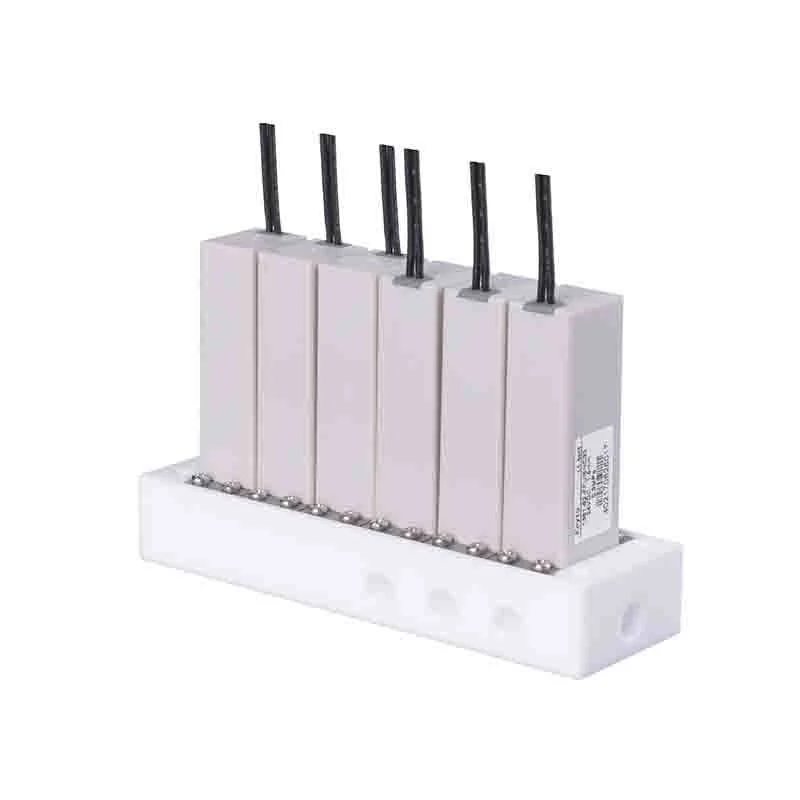

                                            2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve
                                            • 2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve
                                            • 2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve
                                            • 2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve
                                            • 2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve

                                            2-Way 1013 Series Valve Manifold Direct-Acting Diaphragm Isolate Solenoid Valve

                                            Product Features: Configuration with one common inlet and multiple outlets; Easy to install, small size and save space, each valve can be control seperately, strong acid and base resistance.Ideal for application in limited space.Advantage of Integrated solution: Customized as customer requirement; L......

                                            Send Inquiry

                                            Product Description

                                            Product Features:
                                            Configuration with one common inlet and multiple outlets;
                                            Easy to install, small size and save space, each valve can be control seperately, strong acid and base resistance.
                                            Ideal for application in limited space.

                                            Advantage of Integrated solution:
                                            Customized as customer requirement;
                                            Less assembly time, lower assembly defects;
                                            Optimize details, improve customers' competitiveness;
                                            System package, maintenance free.


                                            Specification:
                                            Model1361-6 Direct-acting Solenoid Valve Module
                                            Body materialPMMA, POM, PTFE, PVDF
                                            Seal material FFKM
                                            StructureDirect-acting diaphragm
                                            Number of port2 common port + 6 (optional branch)
                                            Orifice diameter1.5 mm
                                            Flow3.0 g/s (water, 25ºC, 50KPa)
                                            Power consumption2.8W (single valve)
                                            Operating pressure-70 KPa ~ 0.25 MPa
