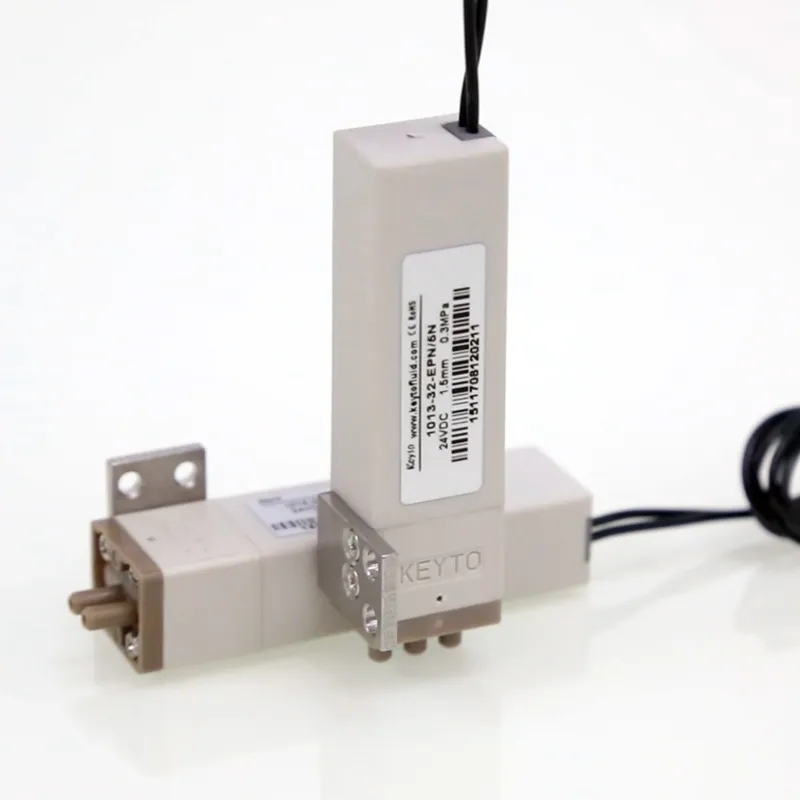

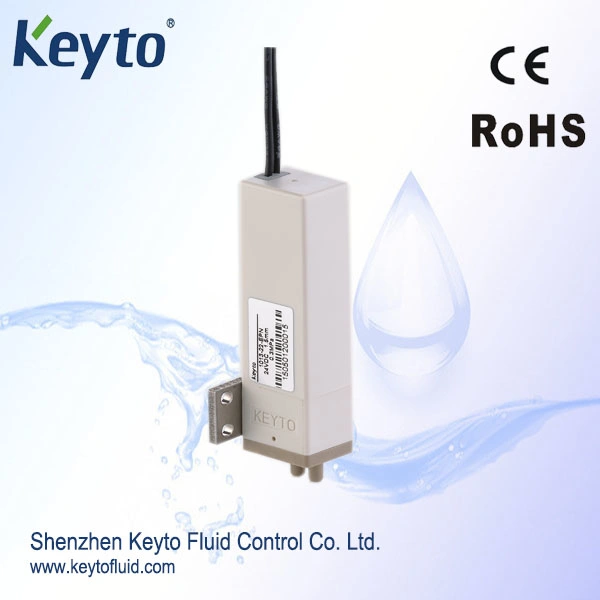

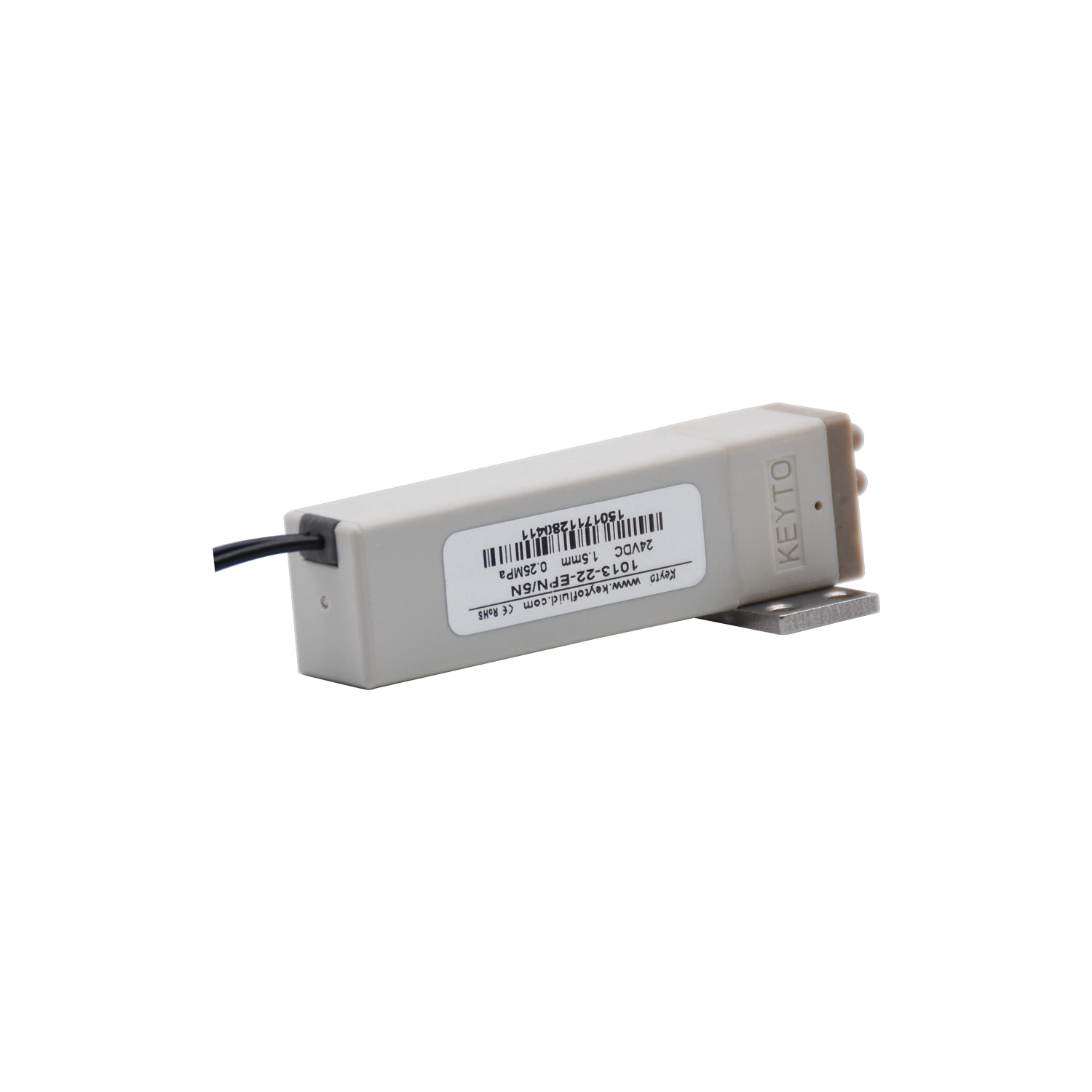

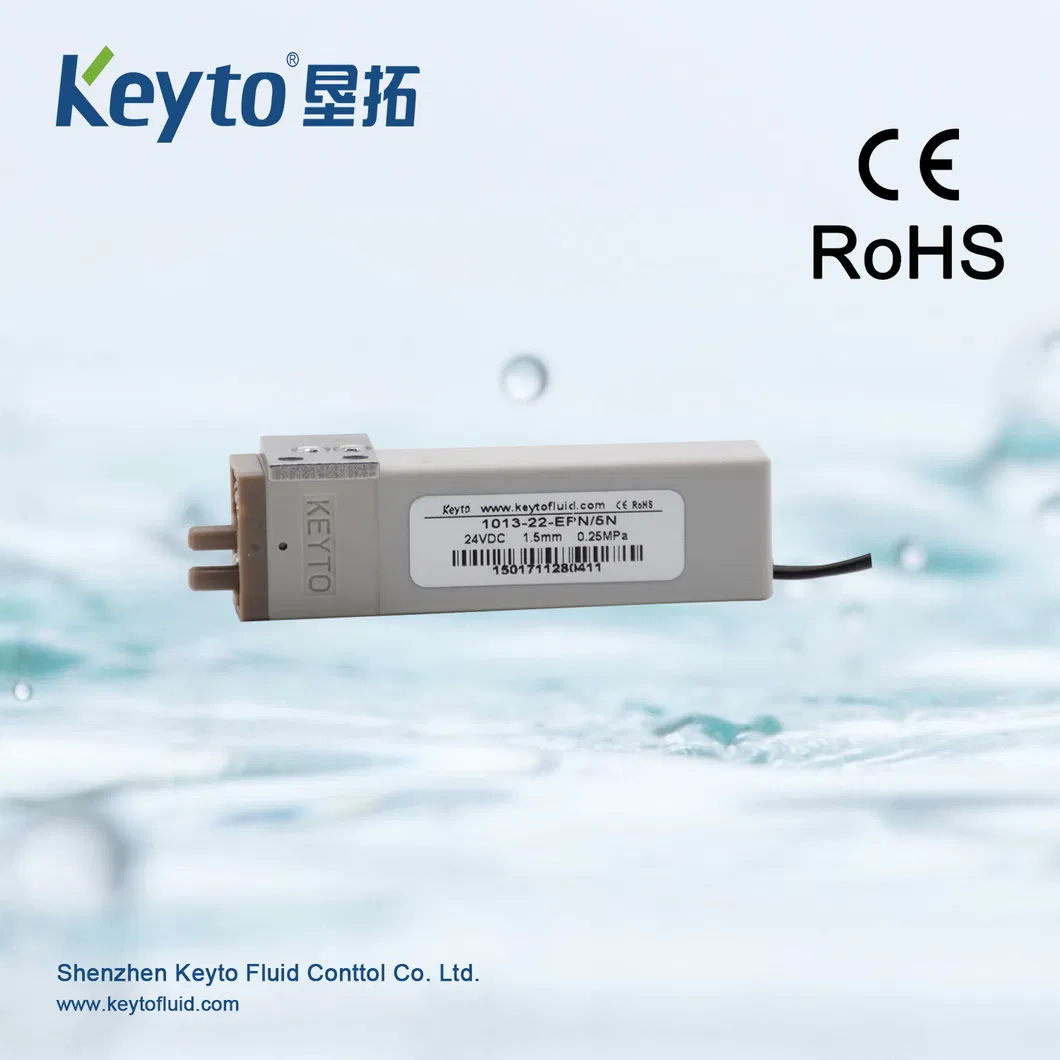

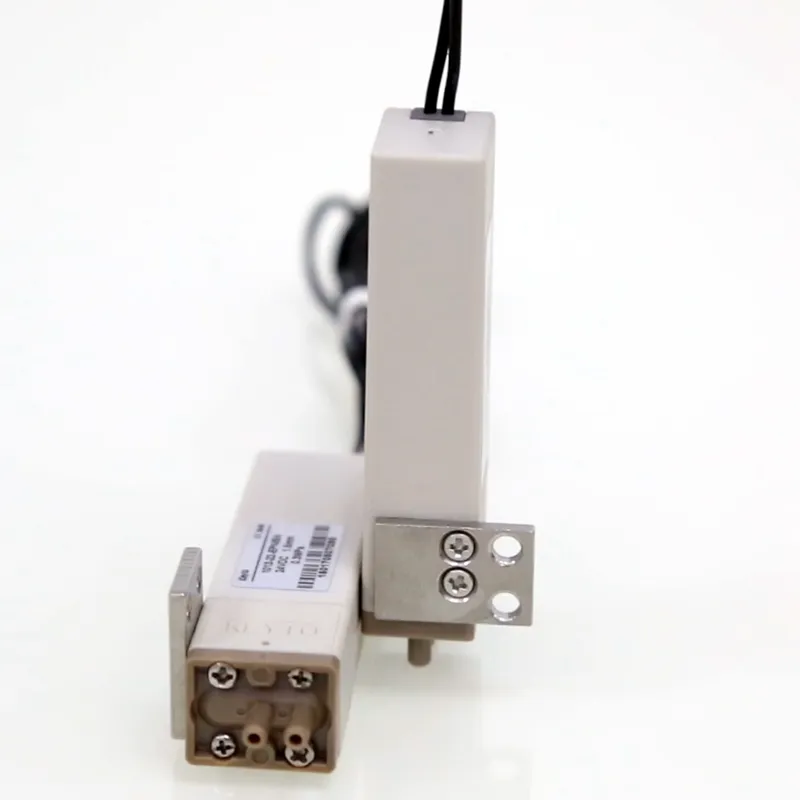

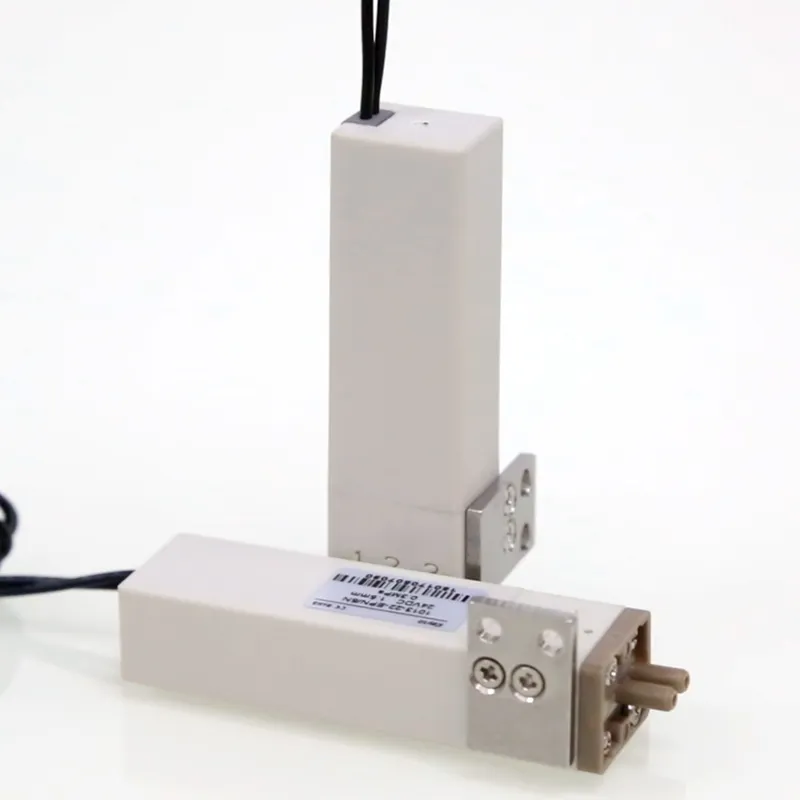

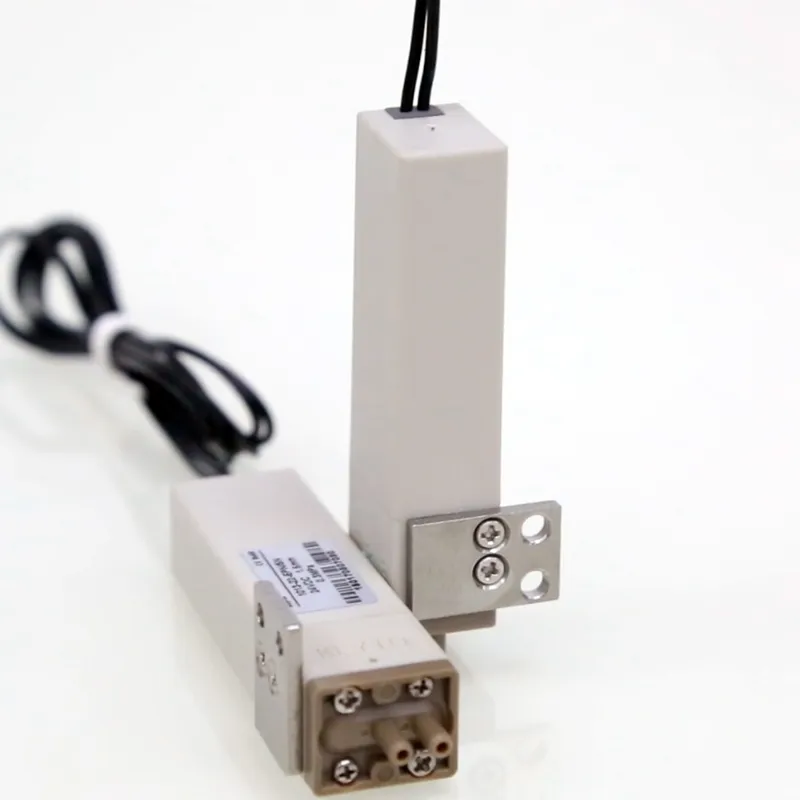

Diaphragm Fluid Valve with 2way N. C ( 1013 Series)
Product Features:1. Compact construction;2. Small inner capacity;3. High precision;4. Suitable for mediums like water, air, some organic solvents;5. Application in limited installation space, and integrated manifold occasions.Specification:Model1013-22 Body Parted Solenoid ValveBody materialPEEKSeal......
Send Inquiry
Product Description
Product Features:
1. Compact construction;
2. Small inner capacity;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.
Specification:
Installation dimension:
1. Compact construction;
2. Small inner capacity;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.
Specification:
| Model | 1013-22 Body Parted Solenoid Valve |
| Body material | PEEK |
| Seal material | EPDM, FKM |
| Outline Dimension | 13 * 16.5 * 64.2 mm |
| Structure | Rocker diaphragm |
| Number of port | 2 |
| Orifice diameter | 1.5 mm |
| Flow | 5.1g/s (water, 25ºC, 50 kPa) |
| Power consumption | 2.8 W |
| Operating pressure | -70 kPa ~ 0.25 mPa |
Installation dimension:
