Product Description
Electromagnetic gas valve solenoid valve for combustion equipments
Combined regulator and safety shut-off valves
Two-stage function

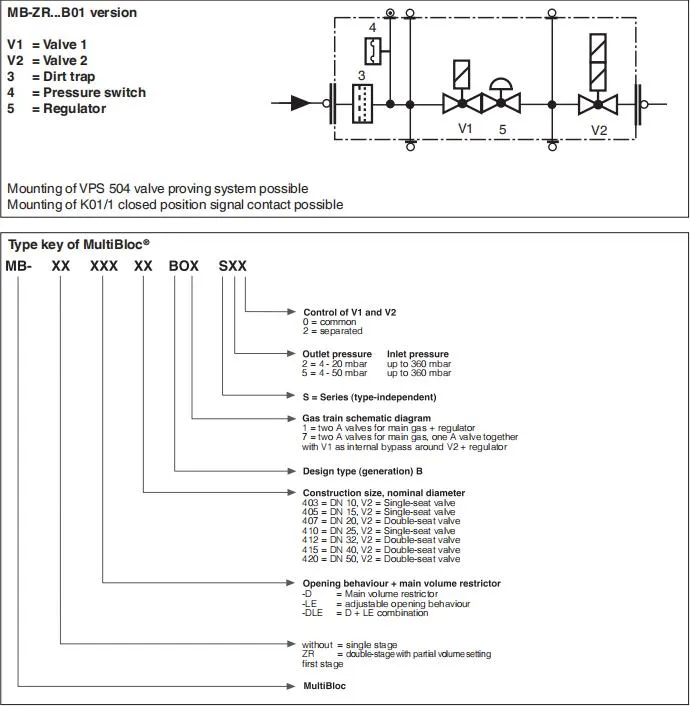

MB-ZRD(LE) 405 - 412 B01

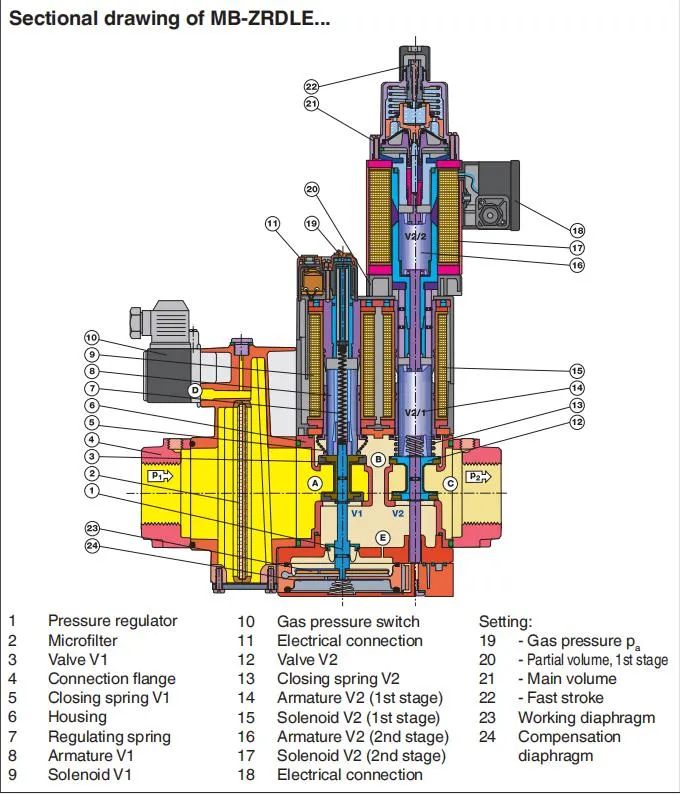

The GasMultiBloc®integrates filter, regulator, valves and pressure switches in one compact fitting.
- Dirt trap: Fine-mesh sieve

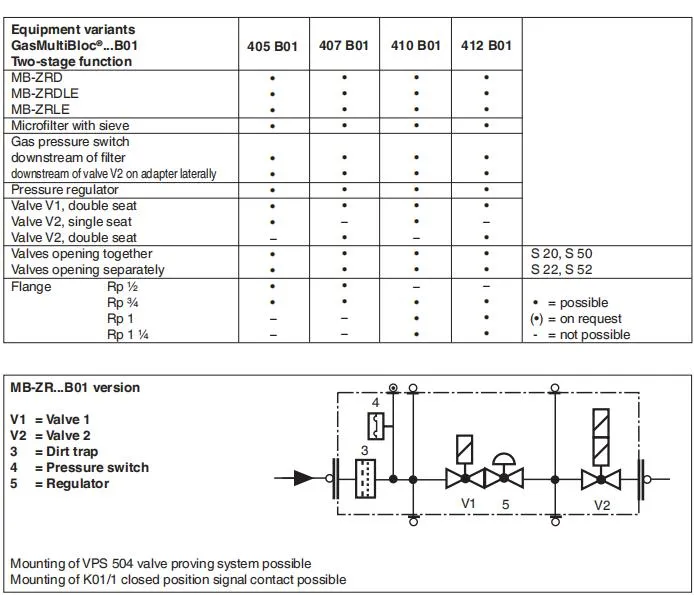

- One regulator and two main valves: B01
- One one-stage valve and one two-stage valve
- One valve is fast opening, one valve is slow or fast opening

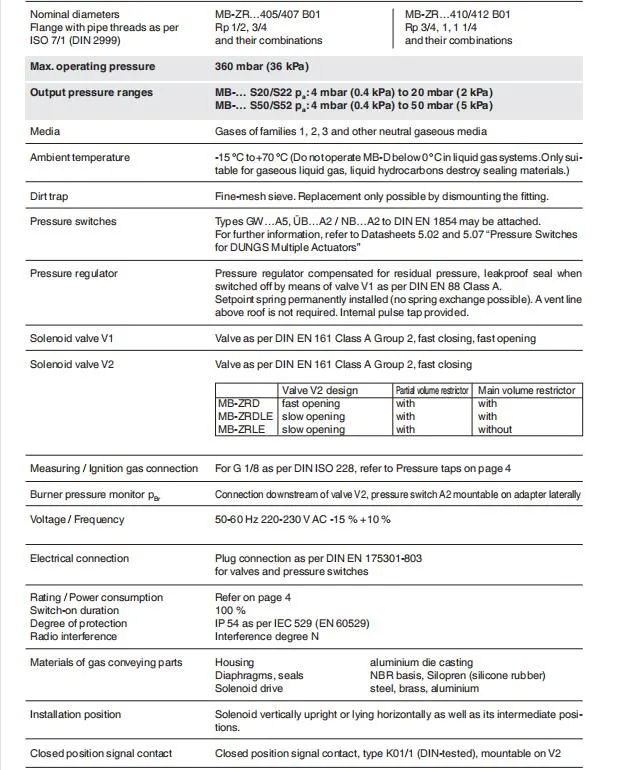

- Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
- Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
- High flow rates with low pressure drop
- DC solenoid drive interference degree N
- Main volume restrictor and partial vol- ume restrictor at valve V2
- Hydraulic opening delay
- Flange connections with pipe threads as per ISO 7/1
- Simple mounting, compact, light-weight
The modular system permits individual solutions by using external ignition gas tap in connection with separately controlled valves, by adding a valve proving system, mini/maxi pressure switches, pressure limit- ers, limit switch and closing stroke limiter at valve V2, regulator blocking for liquid gas applications.
Application
The modular system permits individual solutions in gas safety and regulator engi- neering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
Approvals
EU type testing certificate as per:
• EU-Gas Appliances Regulation
• EU-Pressure Equipment Directive
Approvals in other important gas consum- ing countries.
The compact size and light-weighted is very easy for the installation and adjustment, and long distance Express shipment.
Board case or wooden case package, easy for DHL express shipment or LCL sea shipment
Port | Qingdao/China |
MOQ | Any quantity is available |
Delivery Time | For sample orders, 2-5 days after receiving payment; for bulk order larger than 10 pieces, 7-15days after receiving initial payment, based on different item size. |
| Payment | T/T .Western Union and Paypal. |
