China Explosion-Proof Solenoid-Operated Directional Valve Gd-We10 Rekith

Product Description

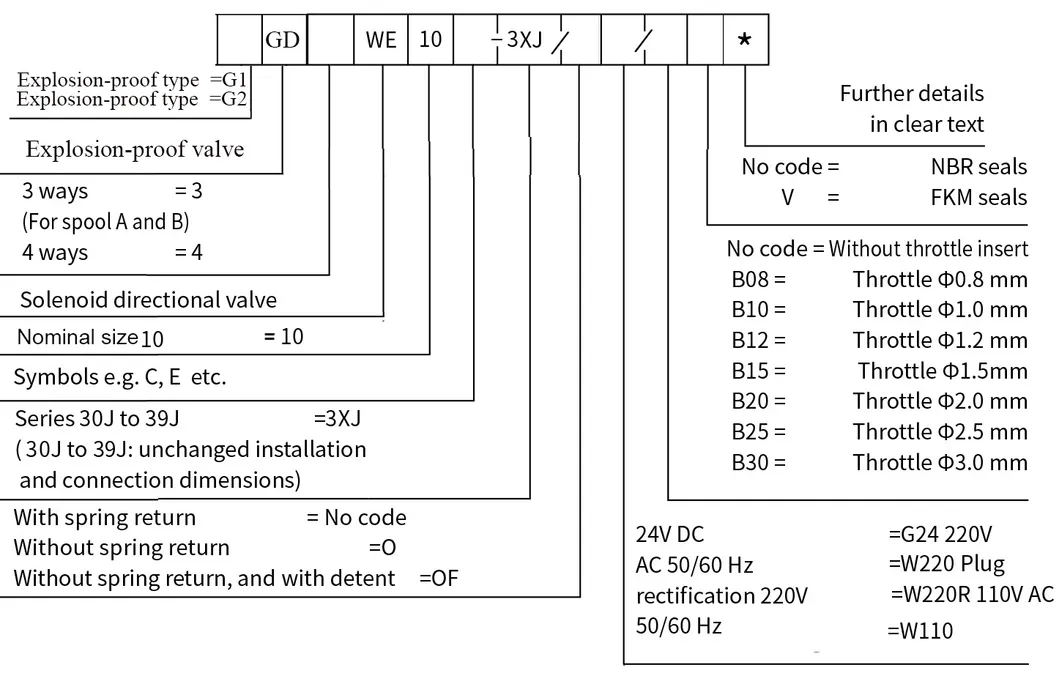

Explosion-proof Solenoid-Operated Directional Valve GD-WE10

Max.operating pressure	Port A,B,P	bar	350
	Port T	bar	210 when the operating pressure exceed the permission value, port T must be be used as a draun port for spool symbol A and B
Max flow-rate		L/min	120
Flow cross section (switching neutral position)	Type Q	mm²	for symbol Q 6% of nominal cross section
	Type W	mm²	for symbol W 3% of nominal cross section
Fluid			Mineral oil suitable for NBR and FKM seal
			Phosphate ester for FKM seal
Fluid temperature range		ºC	-30 to +80 (NBR seal)
			-15 to +80(FKM seal)
Viscosity range		mm²/s	2.8 to 500
Degree of contamination			Maximum permissible degree of fluid contamination: 20/18/15, ISO 4406
Voltage type			DC	AC(rectifier)
Usable voltage			24	220
Allowed voltage (deviation)		%	±10
Power consumption		W	36	-
Holding power		VA	-	90
Making capacity		VA	-	220
Duty			100%	100%
Switching time to ISO 6403	ON	ms	25 to 45	10 to 20
	OFF	ms	10 to 25	15 to 40
Switching frequency		Time/h	15000	7200
Type of protection to DIN 40050			IP65	IP65

Explosion-Proof Solenoid-Operated Directional Valve Gd-We10 Rekith

Explosion-Proof Solenoid-Operated Directional Valve Gd-We10 Rekith

Q1: What is your sample policy?

A: We can supply two free samples, but the customers have to pay the courier cost.

Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.

Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.

Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.

Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.

Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
