Product Description

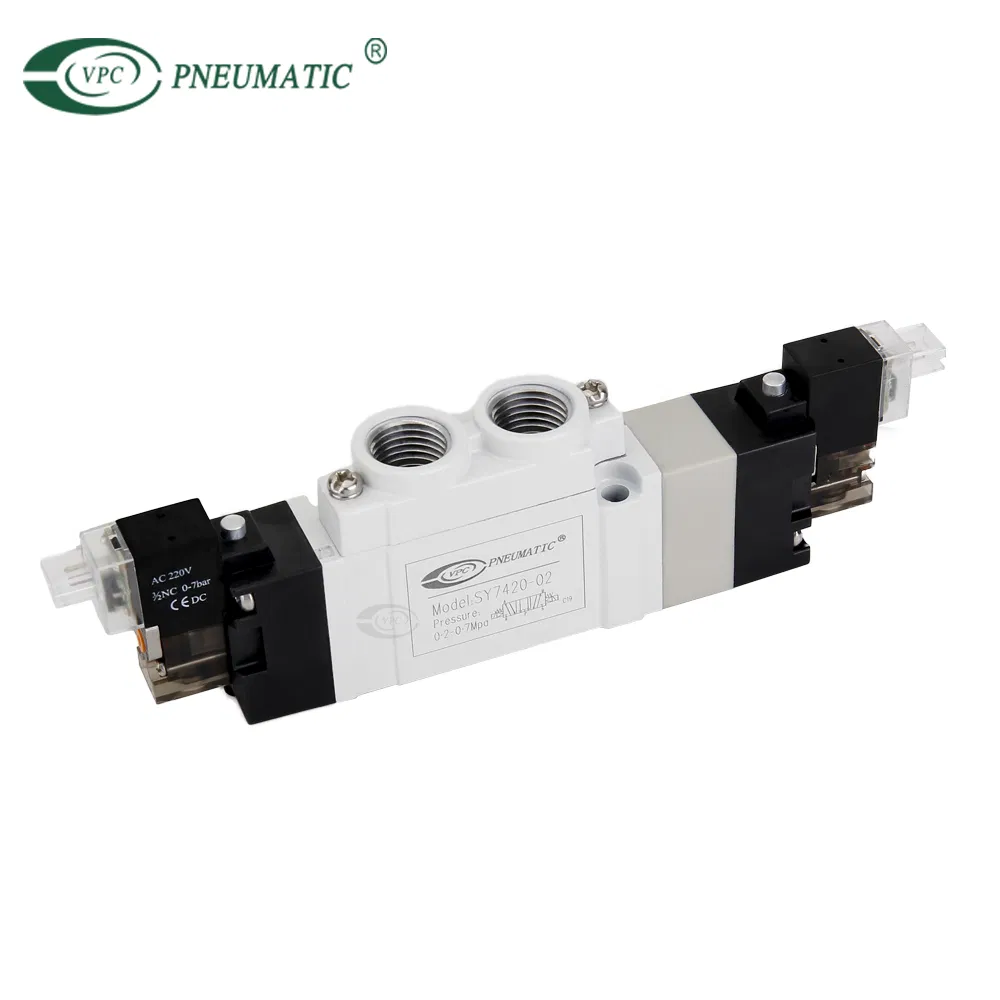

Hot Sell SMC Type Sy Series 5 Way 3 Position Valve

SY Series Single Control Pneumatic Valve

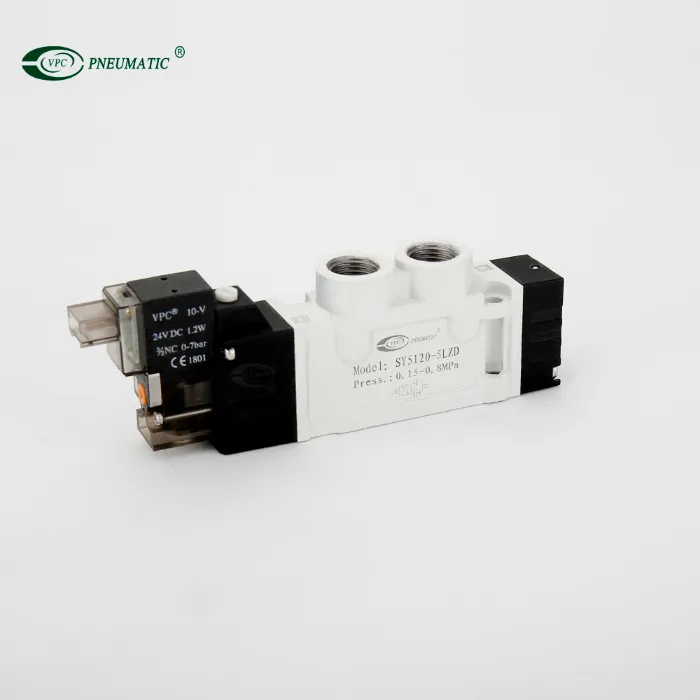

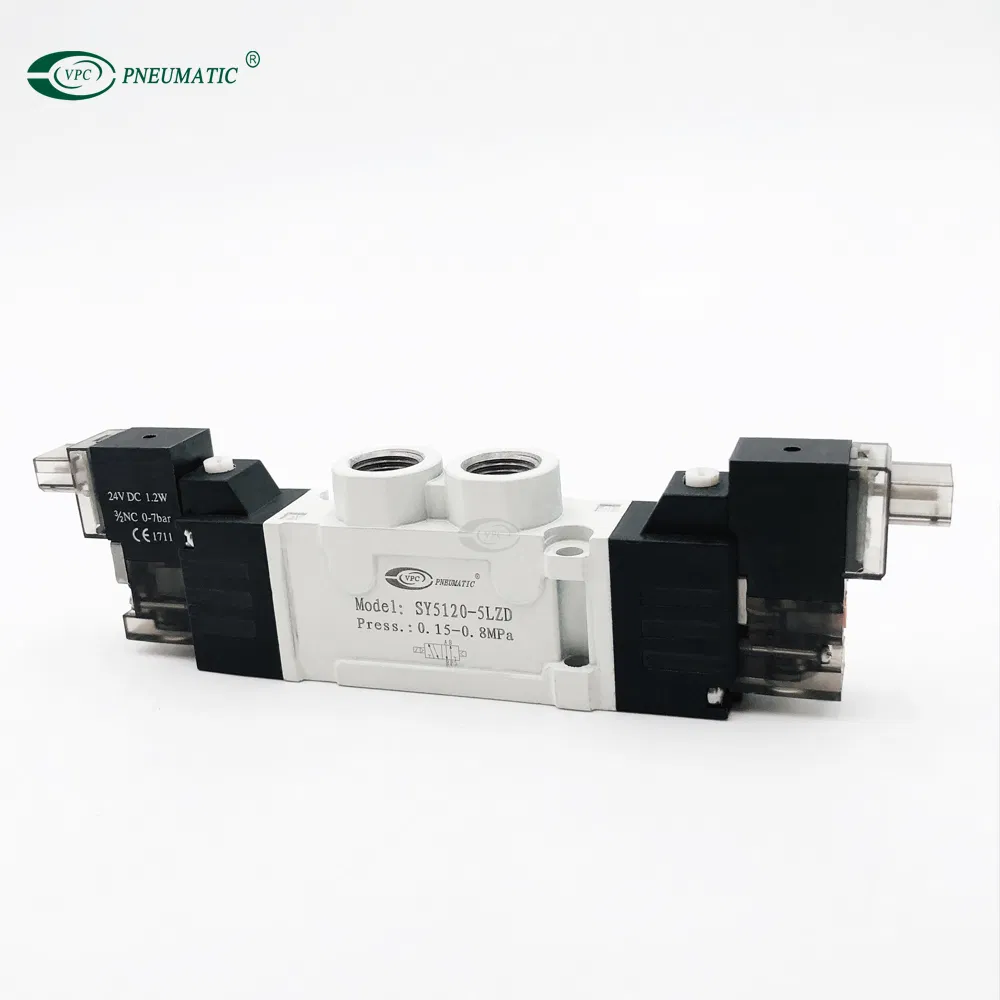

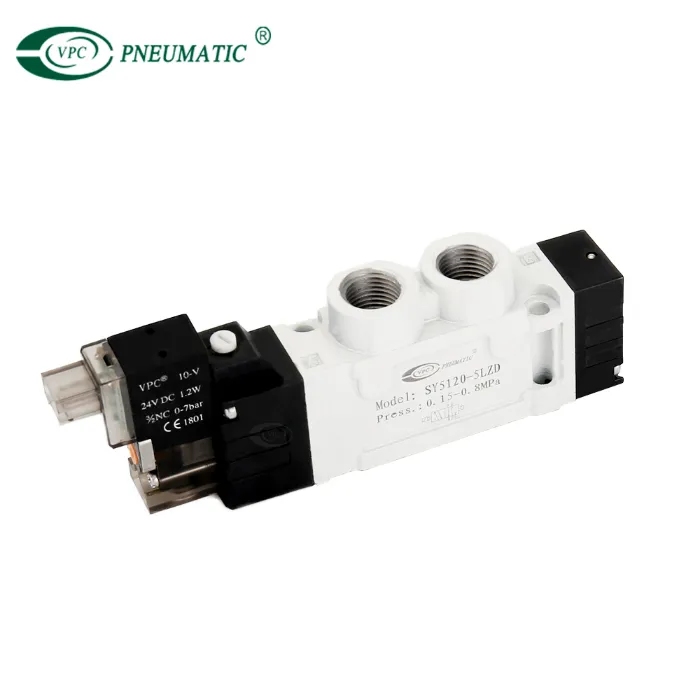

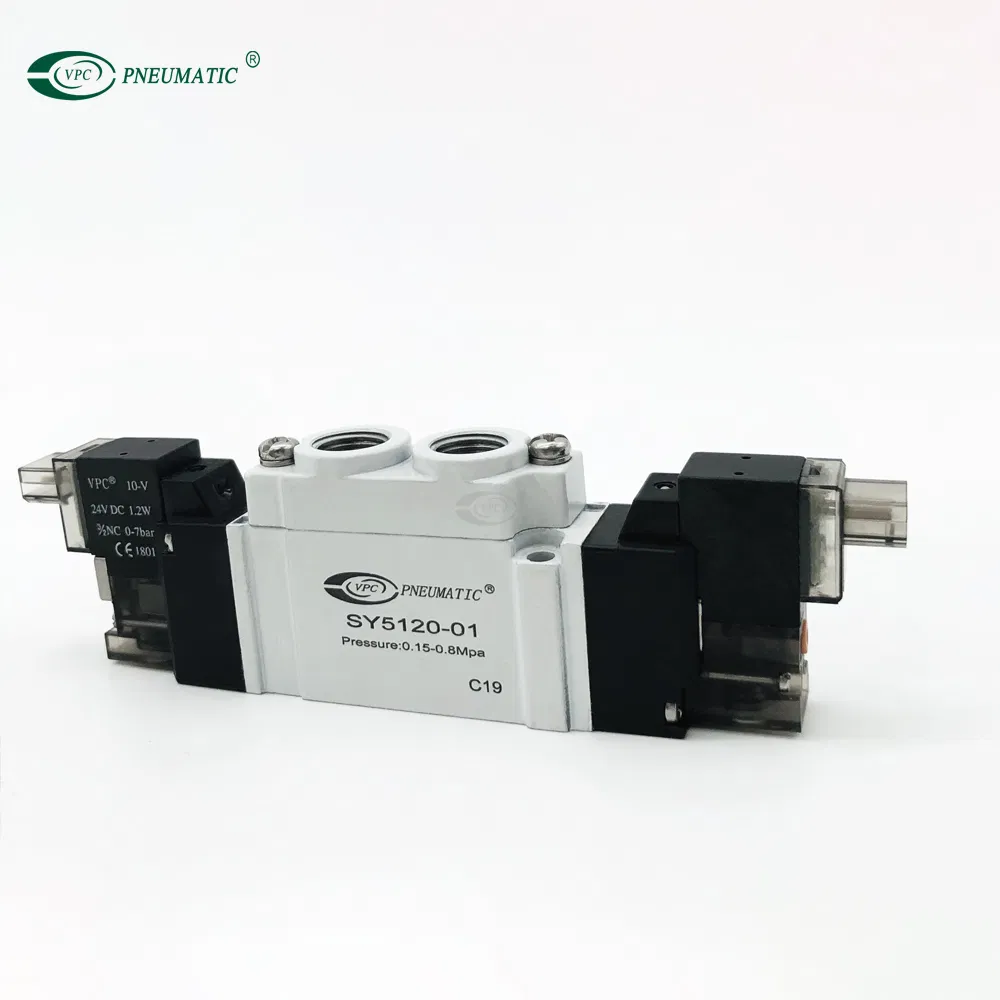

SY5120-02 Single Control Pneumatic Valve Body Material: Die cast Aluminum Operating Temperature:-10~60°C
Equal to SY5120-5LZD High flow capacity Power consumption: 0.1 W (With power saving circuit) A wide variety
of manifold options are available Available in body ported or base mounted styles and can be used individually or
manifold mounted.

Fluid	Air
Ambient & Fluid Temperature	Max. 50°C
Lubricate	Not Required
Hand Control	The screwdriver according to enter locking
Cushion	150/30S2(8.3~2000Hz)
Seal	Guards against the dust

Hot Sell SMC Type Sy Series 5 Way 3 Position Valve

Electrical Entry	Lead Wire,L- Type pluy connector
Standard Voltage	AC	110V
Standard Voltage	DC	24V,12V
Allowable Voltage Range	±10%
Power Consumption	AC	1.0VA/1.1VA Indicator Light
Power Consumption	DC	0.5W/0.55W Indicator Light

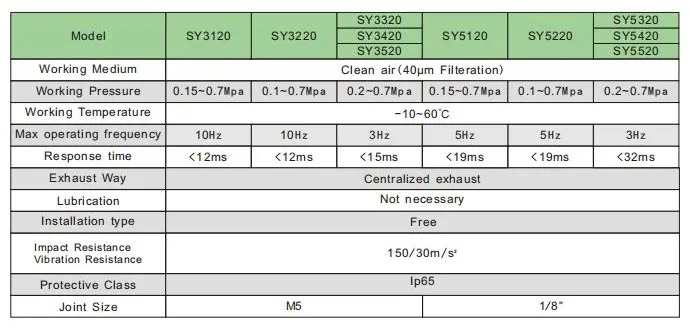

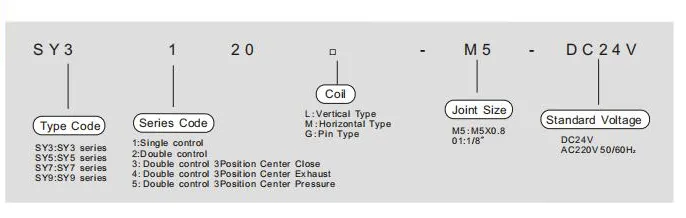

Type	Valve Type	Solenoid	Pressure Range Mpa(kgf/cm2)	Response Time	Working Frequency	Joint Size	Sectional Area	Weight
SY3120-[]D-M5	2	Single Solenoid	0.15~0.71(1.5~7.2)	≤12	10	M5×0.8	3.6(0.2)	48
SY3220-[]D-M5	2	Double Solenoid	0.1~0.71(1.0~7.2)	≤10	10	M5×0.8	3.6(0.2)	62
SY3320-[]D-M5	2	Double(Central Seal)	0.2~0.71(2.0~7.2)	≤15	3	M5×0.8	3.6(0.2)	65
SY3420-[]D-M5	2	Double(Central Exhaust)	0.2~0.71(2.0~7.2)	≤15	3	M5×0.8	3.6(0.2)	65
SY3520-[]D-M5	2	Double(Central Pressuizes)	0.2~0.71(2.0~7.2)	≤15	3	M5×0.8	3.96(0.22)	65

Hot Sell SMC Type Sy Series 5 Way 3 Position Valve

FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems,
you can choose to refund or resend the product, and the freight will be borne by us.

Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.

Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.

Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.

Q5:How about the warranty?
A: All of our products will be guaranteed 1 year warranty.
