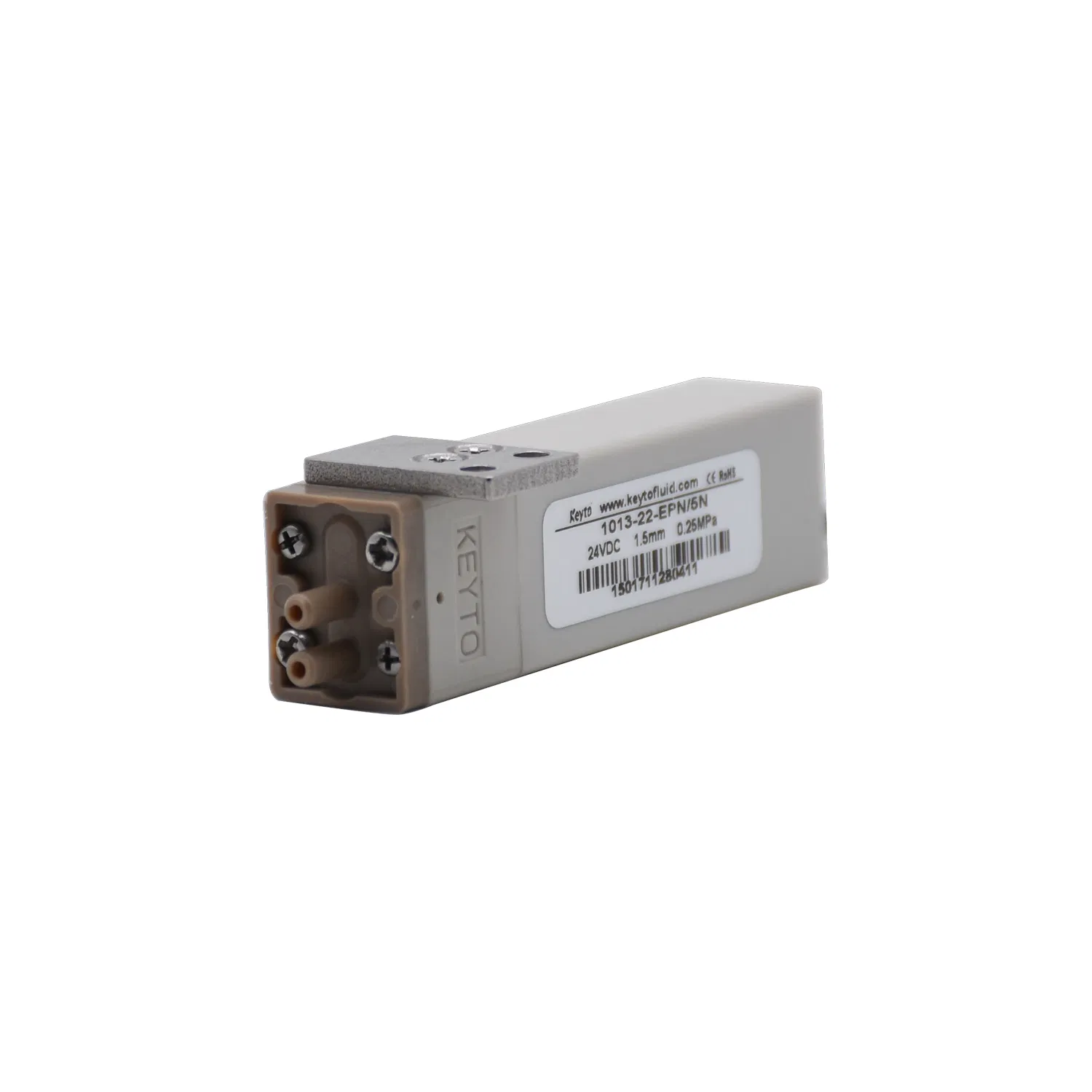

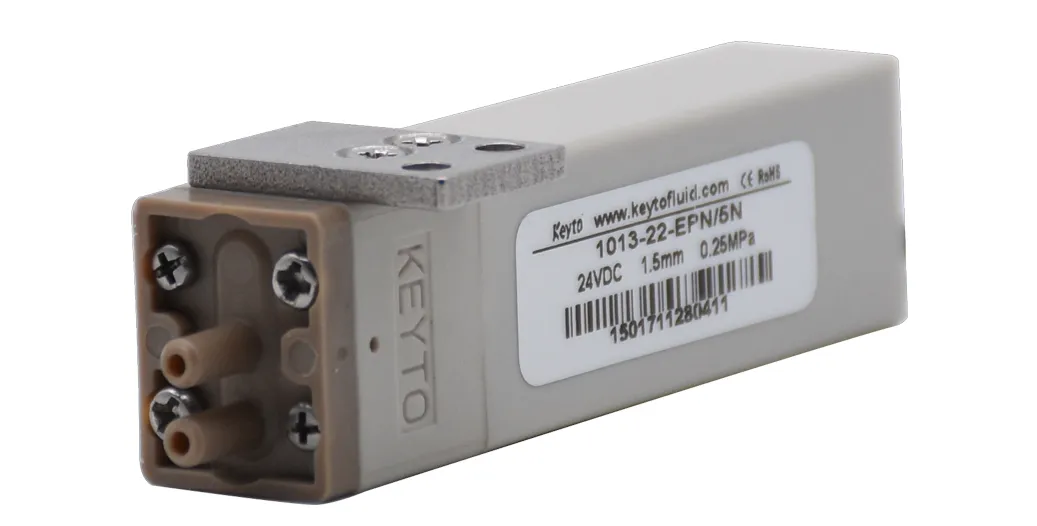

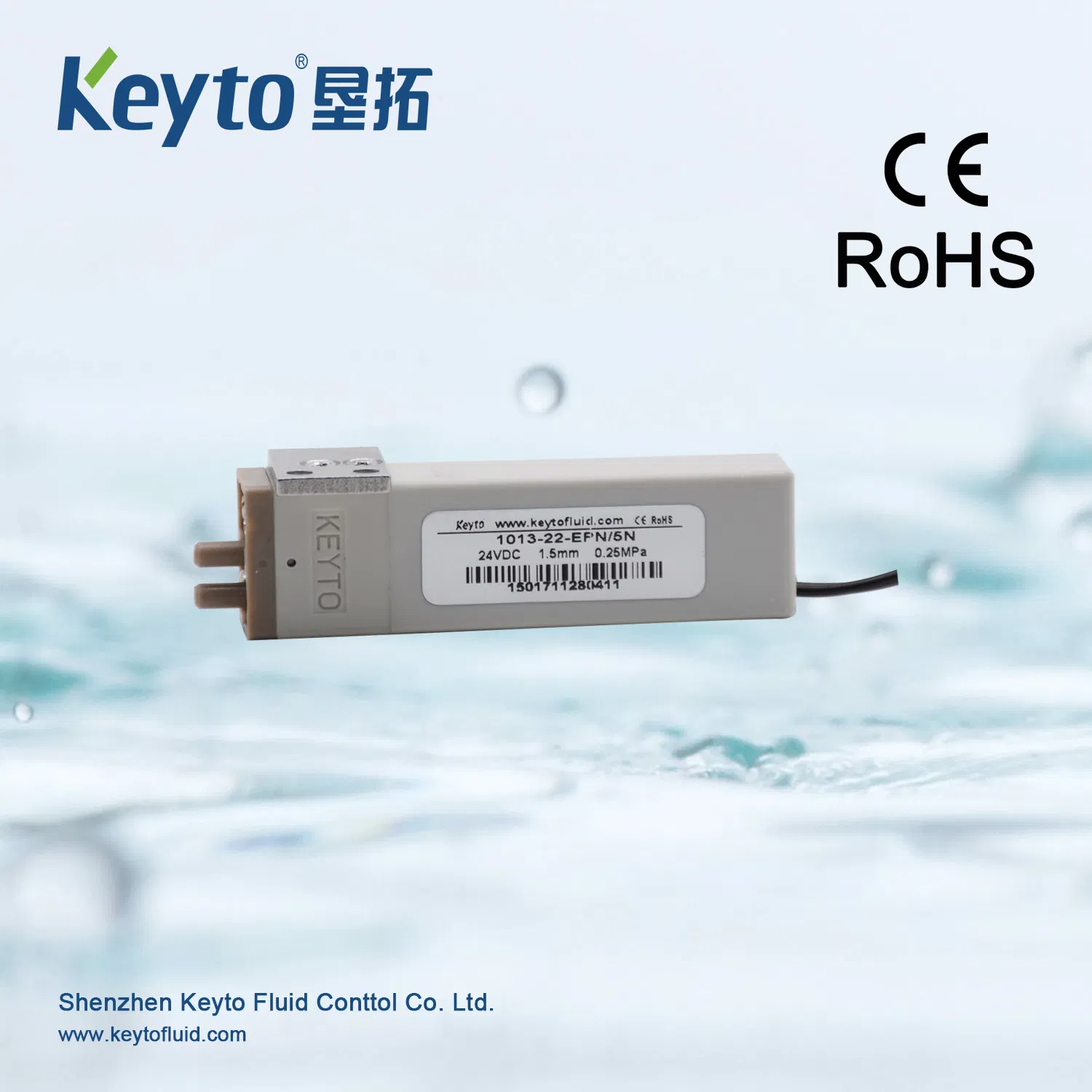

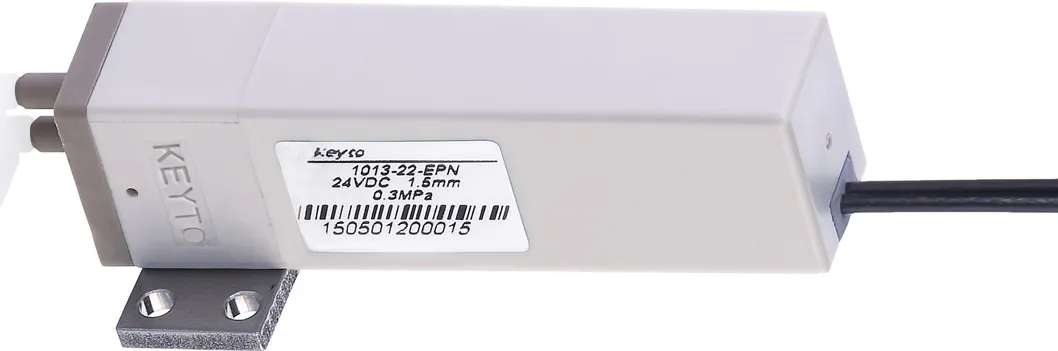

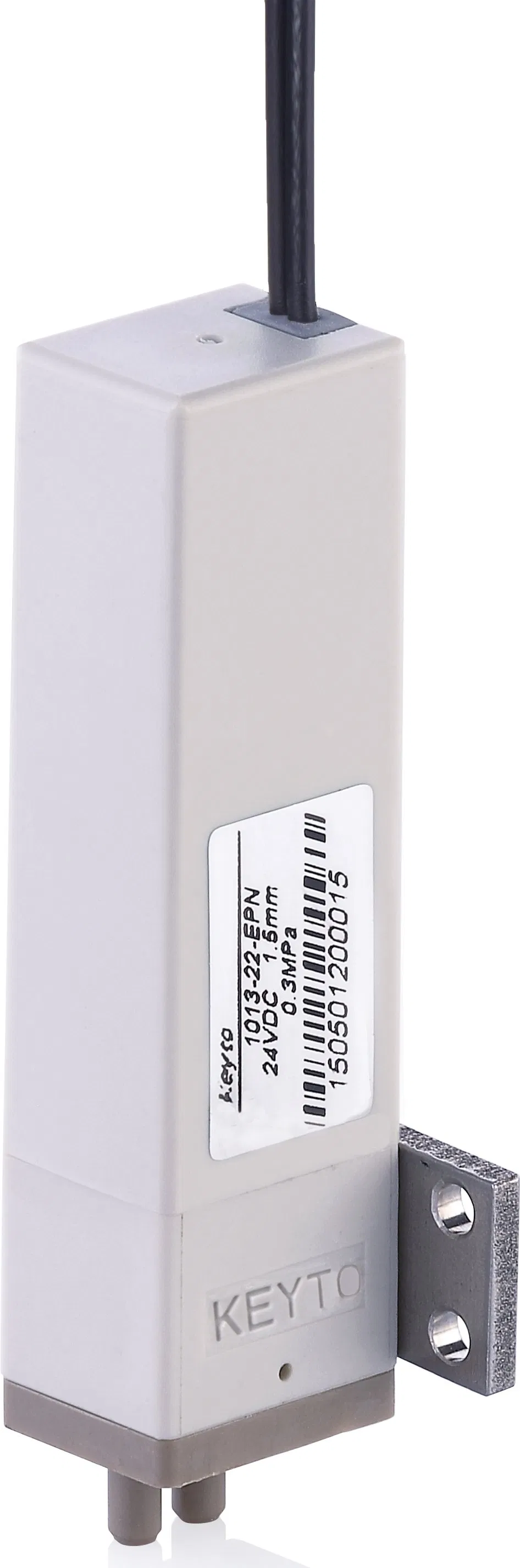

Micro Fluid Diaphragm Solenoid Valve, 1013 Series 2-Way Valve ( 1013 -22-EPN) , Medical Valve, Environmental Protection Valve, Liquid Valve
Product Description The solenoid valve of 1013 series is a family of diaphragm valve with 1.5 mm orifice diameter, controlling the switch of fluid flow path. This series solenoid valve is a high performance, low cost and maintenance free diaphragm valve with multiple model options, which are suitabl......
Send Inquiry
Product Description
The solenoid valve of 1013 series is a family of diaphragm valve with 1.5 mm orifice diameter, controlling the switch of fluid flow path. This series solenoid valve is a high performance, low cost and maintenance free diaphragm valve with multiple model options, which are suitable for different reagents under different working condition.The life cycle of valves can be operated more than 2 million.
| Structure | Isolation diaphragm, rocker type |
| Orifice diameter | 1.5mm |
| Body material | PEEK/ POM+PEEK/ PVDF for option |
| Seal material | EPDM/FKM/ FFKM for option |
| Flow coefficient of valve (CV) | 0.03 |
| Mediums | Water, air, weak acid and base corrosive |
| Recommend tube (for body ported valve) | 1.4mm (shore hardness: about 55) ~ 2.0mm (shore hardness: about 75) |
| Ambient temperature range | -10ºC(No freezing)~60ºC |
| Withstand pressure | -70kpa~0.25MPa |
| Leakage rate | 0 |
| Response | <30ms |
| Dead volume | 0 |
| Allowable voltage fluctuation | ±10% |
| Power consumption | 2.8W |
Remark: please contact us for more details.
Orifice diameter: 1.5 mm; small resistance along the way
Large flow: CV is about 0.03
Small dead volume
Long lifetime, high performance
Multiple option for wetted material:
1. Body material: POM,PEEK,PVDF
2. Seal material: EPDM,FKM,FFKM
