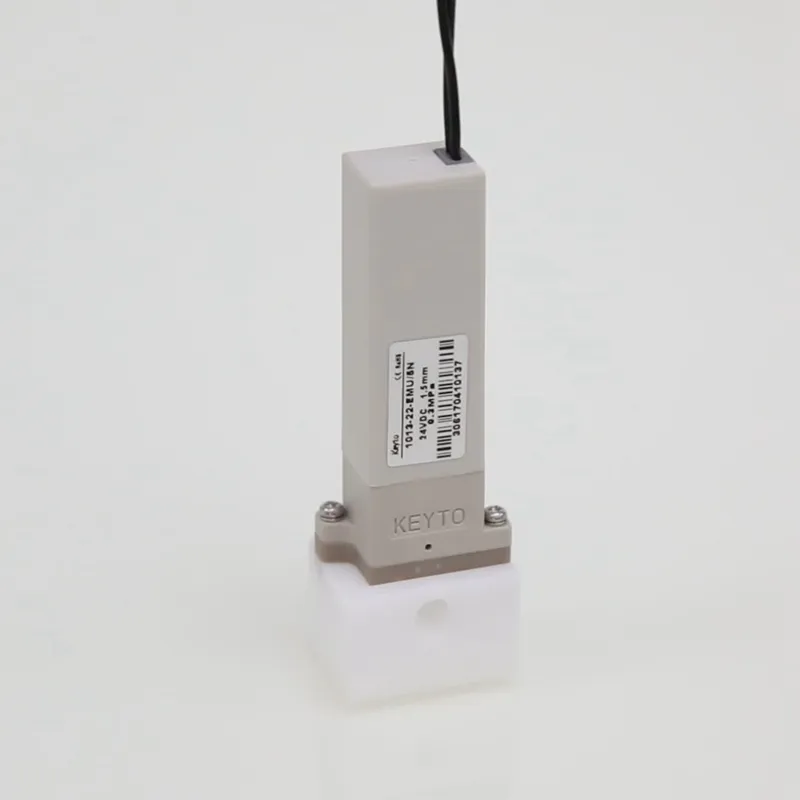

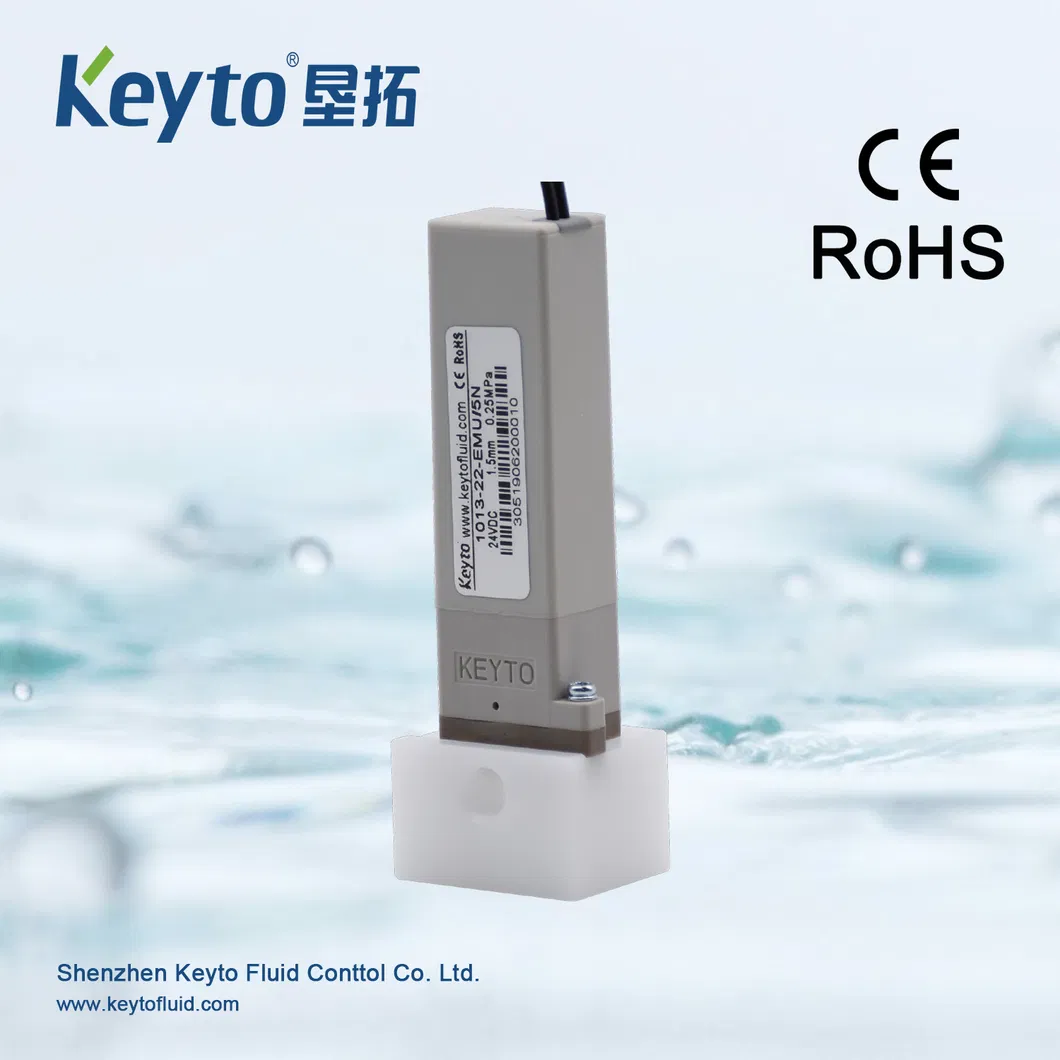

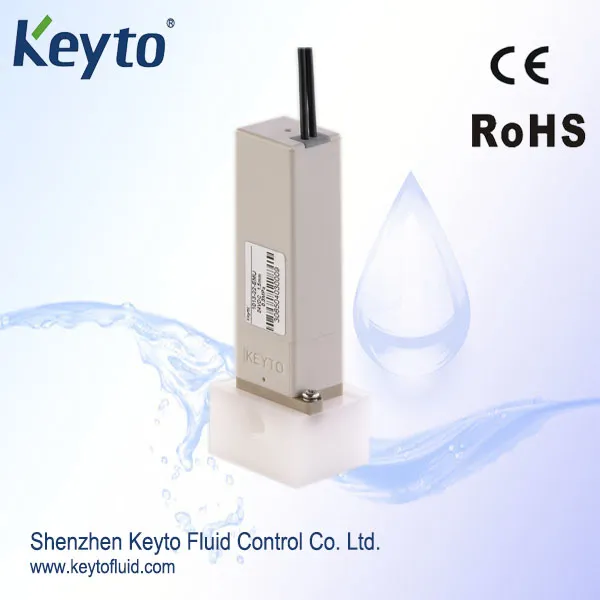

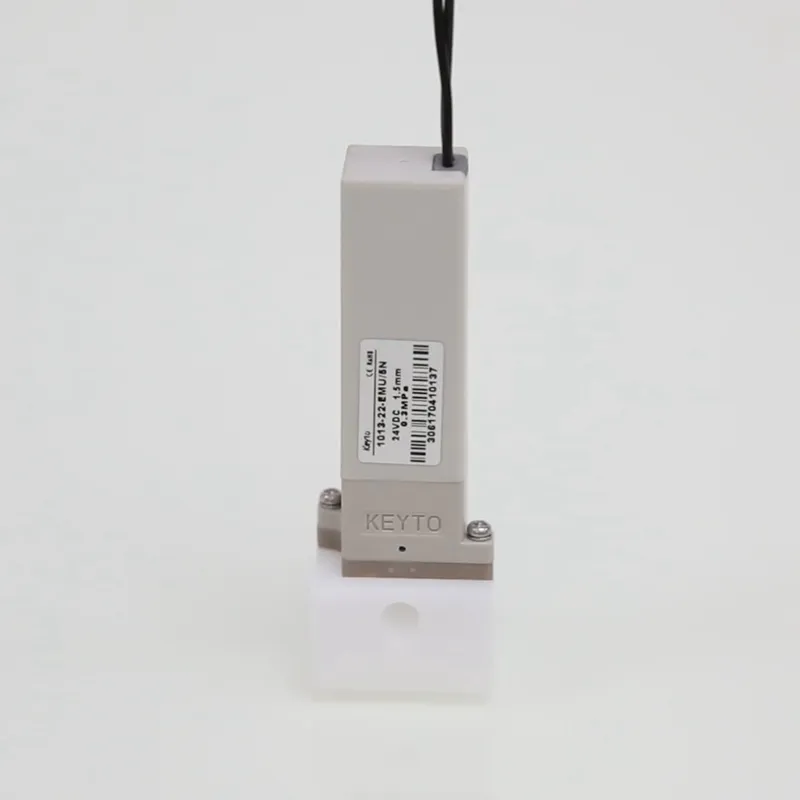

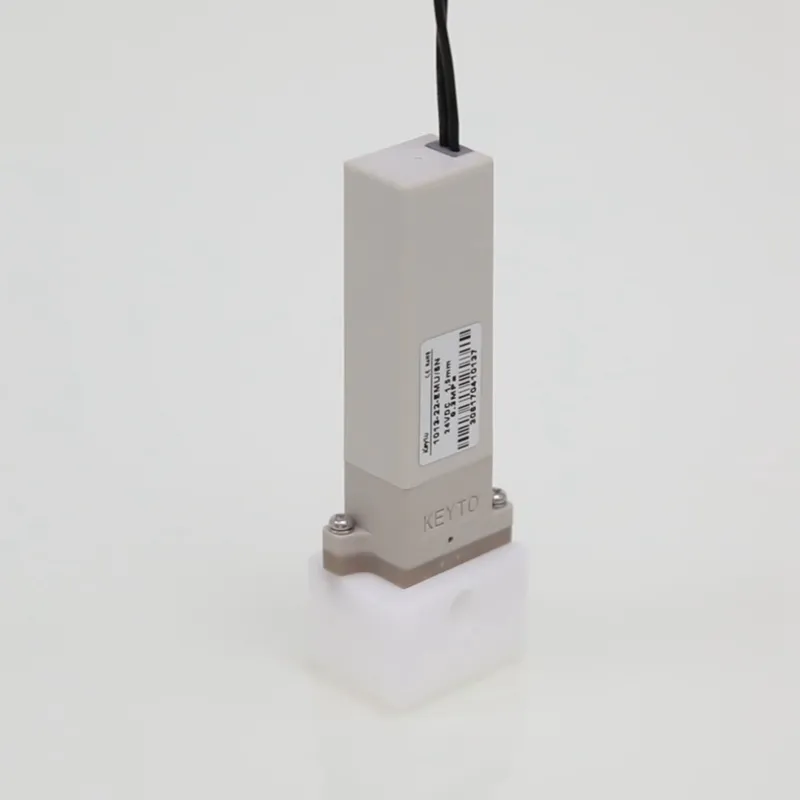

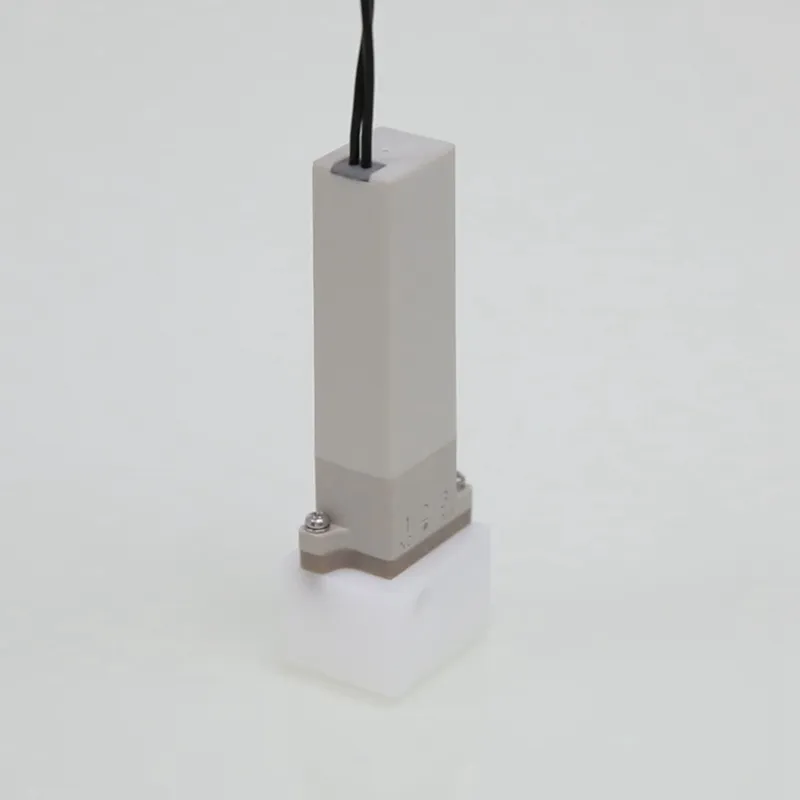

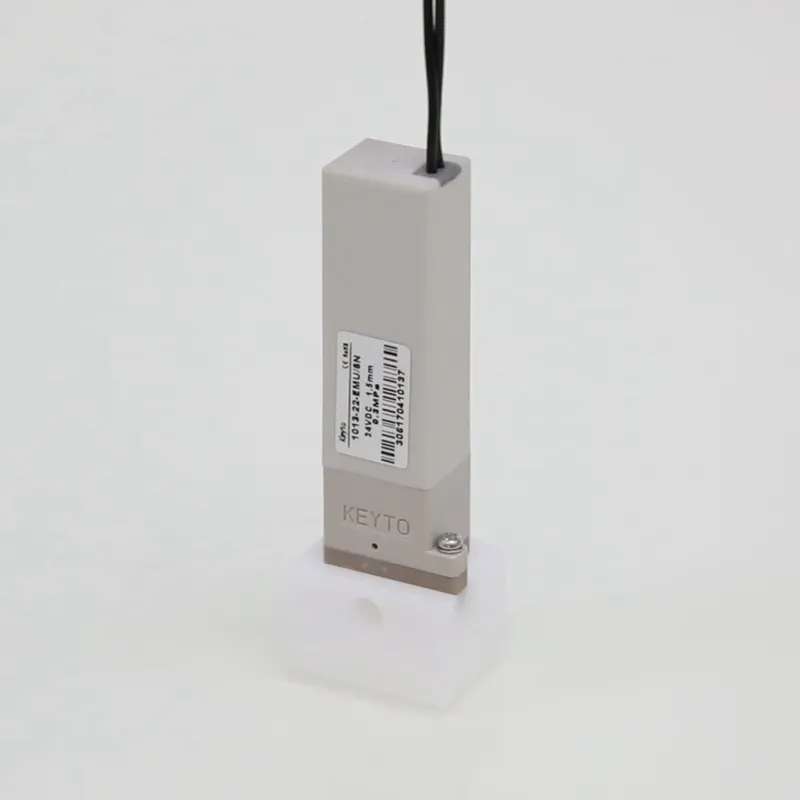

                                            Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)
                                            • Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)
                                            • Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)
                                            • Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)
                                            • Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)

                                            Micro Fluid Diaphragm Valve 2-Way N. C. ( 1013 Series)

                                            Product Features:1. Compact construction;2. Small inner capacity;3. High precision;4. Suitable for mediums like water, air, some organic solvents;5. Application in limited installation space, and integrated manifold occasions.Specification: Model1013-22 Threaded Solenoid ValveBody materialPOM+PEEKSe......

                                            Send Inquiry

                                            Product Description

                                            Product Features:
                                            1. Compact construction;
                                            2. Small inner capacity;
                                            3. High precision;
                                            4. Suitable for mediums like water, air, some organic solvents;
                                            5. Application in limited installation space, and integrated manifold occasions.
                                            Micro Fluid Diaphragm Valve 2-Way N. C. (1013 Series)


                                            Specification:
                                            Model1013-22 Threaded Solenoid Valve
                                            Body materialPOM+PEEK
                                            Seal material EPDM, FFKM, FKM
                                            Outline Dimension19 * 24.5 * 73.5 mm
                                            StructureRocker diaphragm
                                            Number of port2
                                            Orifice diameter1.5 mm
                                            Flow5.1g/s (under 25ºC, 50 kPa)
                                            Power consumption2.8W
                                            Operating pressure-70 kPa ~ 0.25 mPa
                                            Micro Fluid Diaphragm Valve 2-Way N. C. (1013 Series)
                                            Micro Fluid Diaphragm Valve 2-Way N. C. (1013 Series)
                                            Micro Fluid Diaphragm Valve 2-Way N. C. (1013 Series)


                                            Installation dimension:
