China Rocker Diaphragm Isolate Solenoid 2-Way Valve - 1013 Threaded Series

Product Description

Product Features:
1. Compact construction;

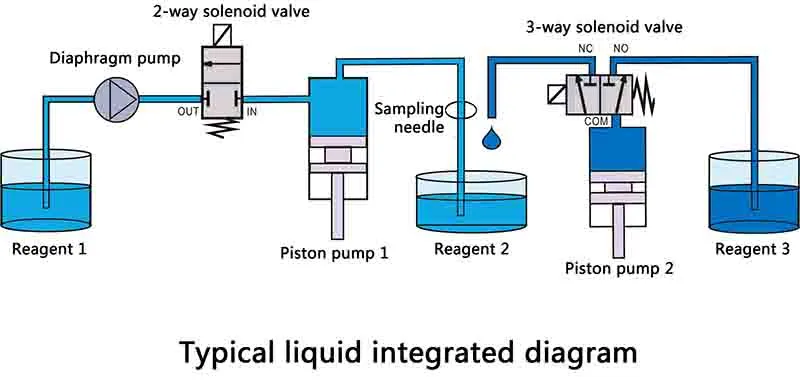

2. Long life span, suitable for sampling system;
3. High precision;
4. Suitable for mediums like water, air, some organic solvents;
5. Application in limited installation space, and integrated manifold occasions.

Rocker Diaphragm Isolate Solenoid 2-Way Valve - 1013 Threaded Series

Specification:

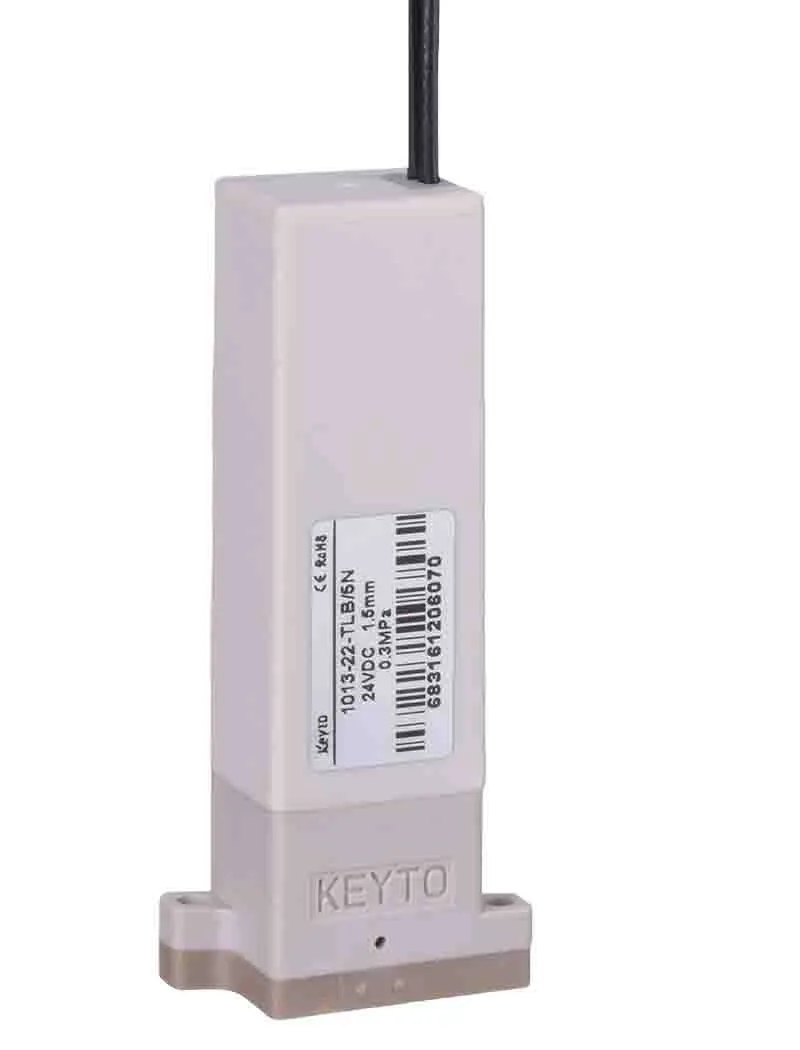

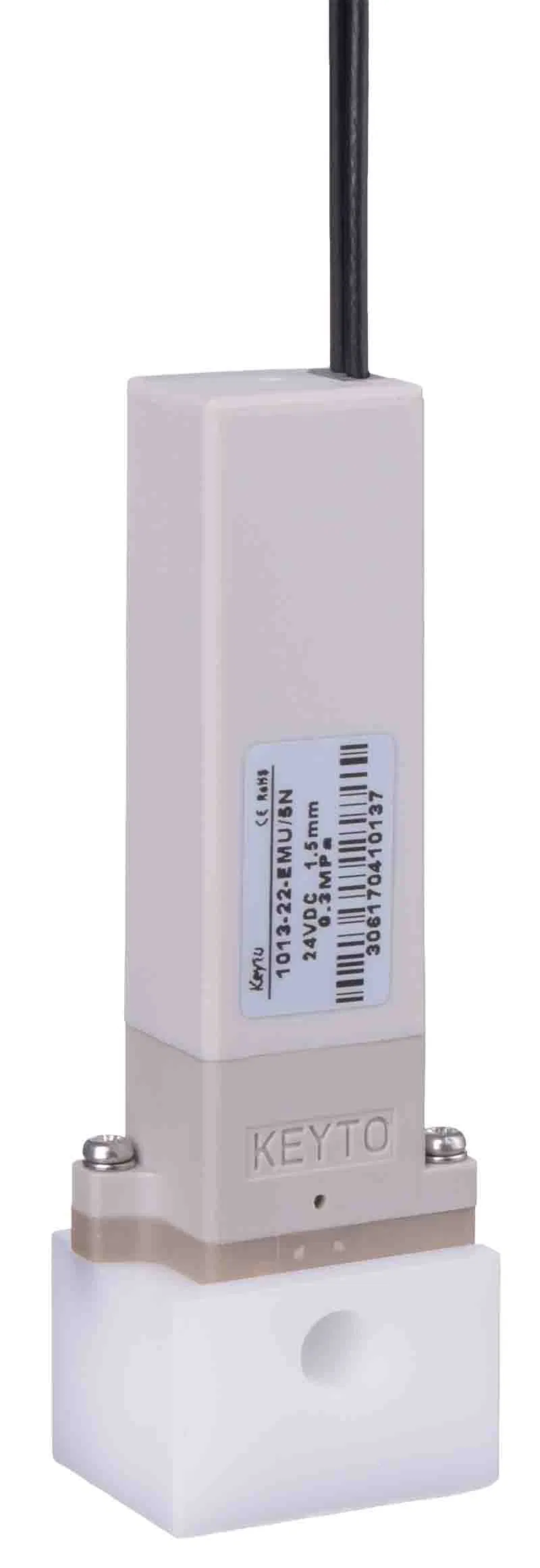

Model	1013-22 Body Thread Solenoid Valve
Body material	PEEK, POM, PVDF
Seal material	EPDM, FFKM
Outline Dimension	19 * 24.5 * 73.5 mm
Structure	Rocker diaphragm
Number of port	2
Orifice diameter	1.5 mm
Flow	5.1 g/s (water, 25ºC, 50 kPa)
Power consumption	2.8 W
Operating pressure	-70 kPa ~ 0.25 mPa

Notes: The hose fitting for this threaded style series should be barbed connectors or rigid tube connectors, and the size of connectors according to diameter of tube.

Installation dimension:

Rocker Diaphragm Isolate Solenoid 2-Way Valve - 1013 Threaded Series
