SMC Solenoid Valve 5/2 Way Electric Control Valve
SMC SY7000 SY5000 Series pneumatic solenoid valve 5/2 way Electric Control valve Solenoid Air Control Valve, 5-Way, 2-Position, Actuator/Return Solenoid/Spring, Body Style Manifold, Voltage 24VDC, 0.29 CFM, Pilot Port Size M5, Pilot Pressure 22, Coefficient of Volume 0.18, Plug Connector with Lead W......
Send Inquiry
Product Description

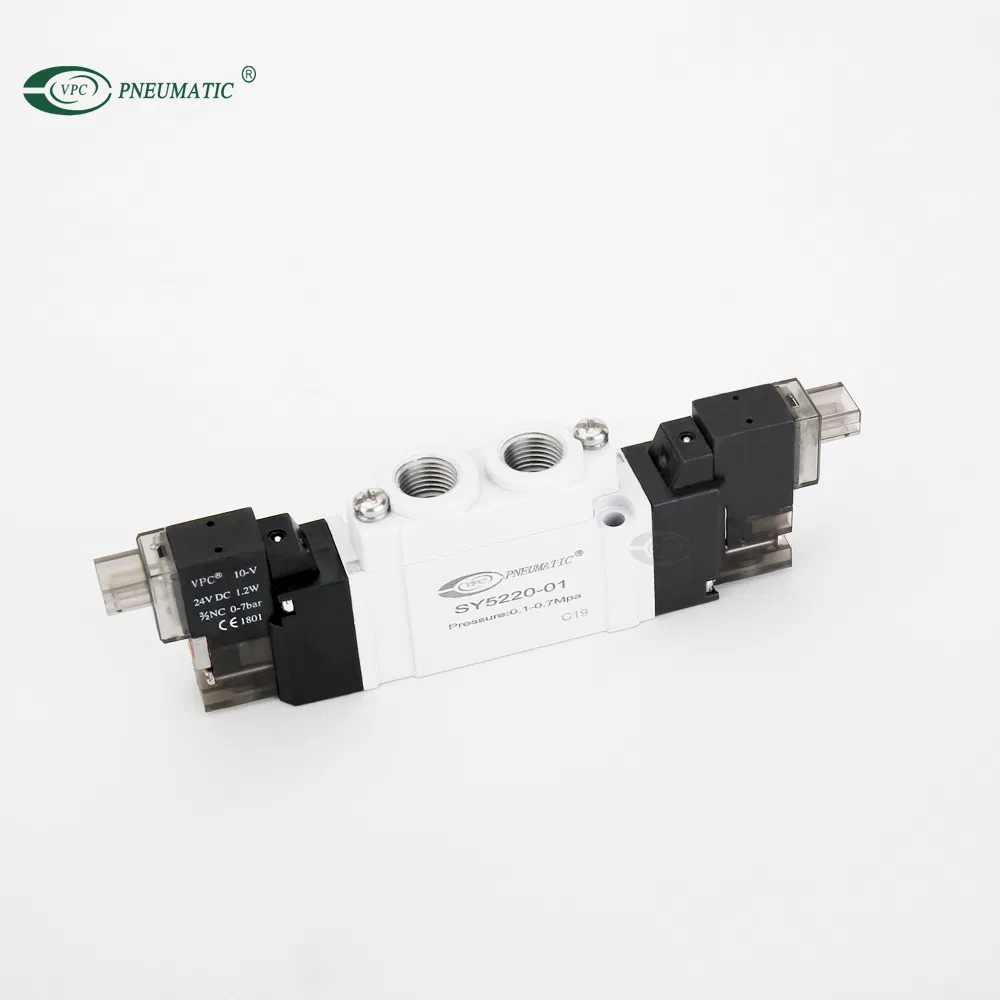

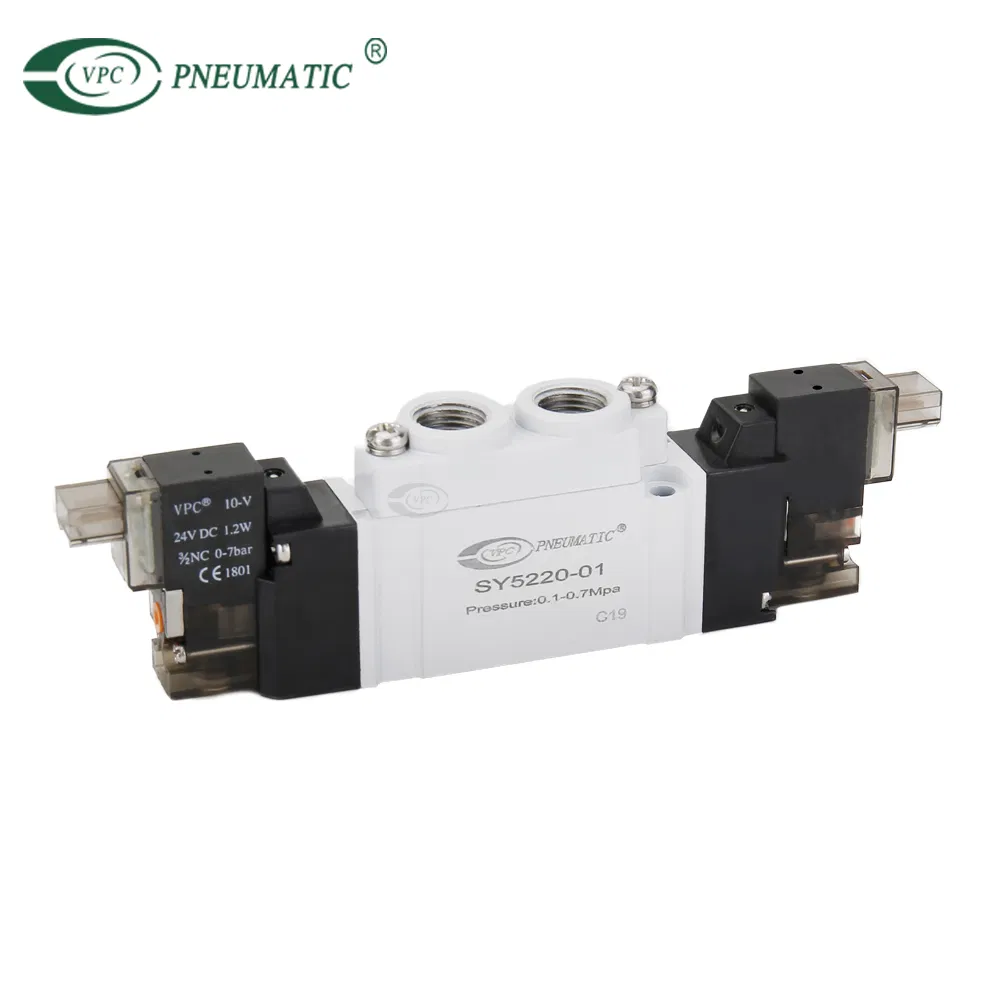

SMC SY7000 SY5000 Series pneumatic solenoid valve 5/2 way Electric Control valve
Solenoid Air Control Valve, 5-Way, 2-Position, Actuator/Return Solenoid/Spring, Body Style Manifold, Voltage 24VDC, 0.29 CFM, Pilot Port Size M5, Pilot Pressure 22, Coefficient of Volume 0.18, Plug Connector with Lead Wire Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.4W, Pressure Range 22 to 100 psi, Ambient Temp. Range 14 Degrees to 122 Degrees F, Overall Height 1 In., Overall Length 3-1/2 In., Overall Width 2 In., Standards CE
SY Series Solenoid Valve can replace the SMC type. They are very compact and good appearance, low consumption, small dimension, big flow, with good resistance to abrasion and long service life.
SY Series Solenoid Valve
Quick action
Small dimension, big flow
Low-consumption power
With good resistance to abrasion
SY Series Solenoid Valve can replace the SMC type. They are very compact and good appearance, low consumption, small dimension, big flow, with good resistance to abrasion and long service life.

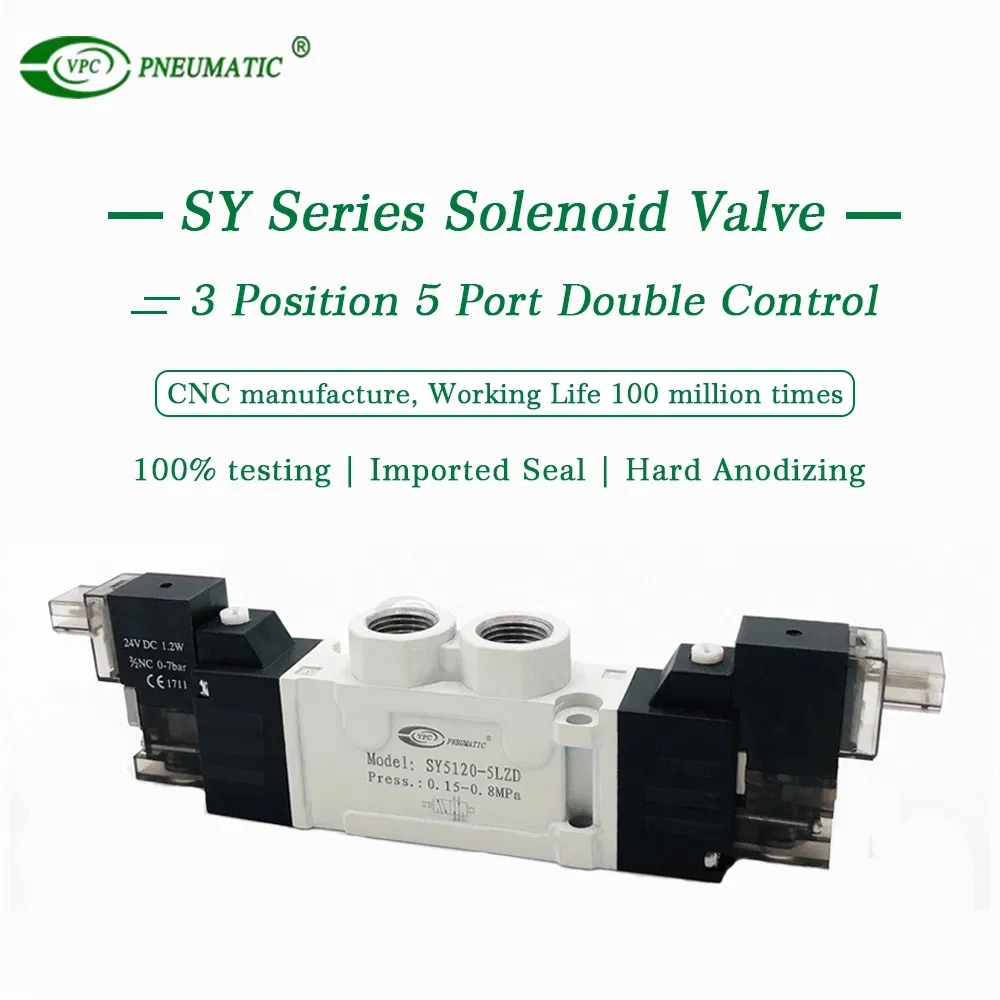

SY Series Solenoid Valve
Quick action
Small dimension, big flow
Low-consumption power
With good resistance to abrasion

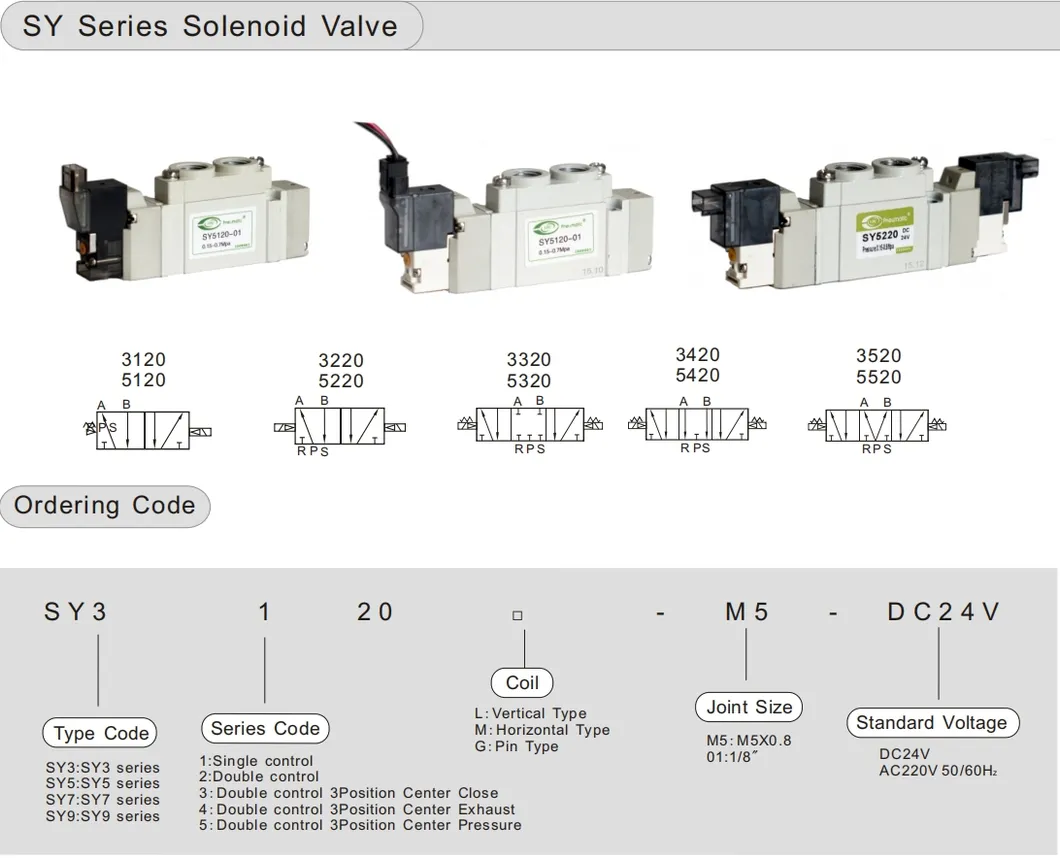

Ordering Code SY Series Solenoid Valve
SY3 1 20 - M5 - DC24V
SY3→Type Code
SY3:SY3 series SY5:SY5 series
SY7:SY7 series SY9:SY9 series
SY7:SY7 series SY9:SY9 series
1→Series Code
1:Single control 2:Double control
3:Double control 3Position Center Close
4:Double control 3Position Center Exhaust
5:Double control 3Position Center Pressure
3:Double control 3Position Center Close
4:Double control 3Position Center Exhaust
5:Double control 3Position Center Pressure
→Coil
L:Vertical Type M:Horizontal Type
G:Pin Type
L:Vertical Type M:Horizontal Type
G:Pin Type
M5→Joint Size M5:M5X0.8 01:1/8"
DC24V→Standard Voltage
DC24V AC220V 50/60HZ
Special processing craft for the inner hole
Inner hole grinding accuracy up to ±0.005mm
No spring air reset structure design ,fast response speed,no fatigue, long life
EMS super nylon material,superior quality injection molding equipment and
ultra-precision mold imported from Germany
High-frequency pilot head
Frequency 15 Hz (15 times/s) or more
Single/Double coils are optional , can be arbitrarily matched
1.2W low power consumption,energy efficiency environmentally friendly

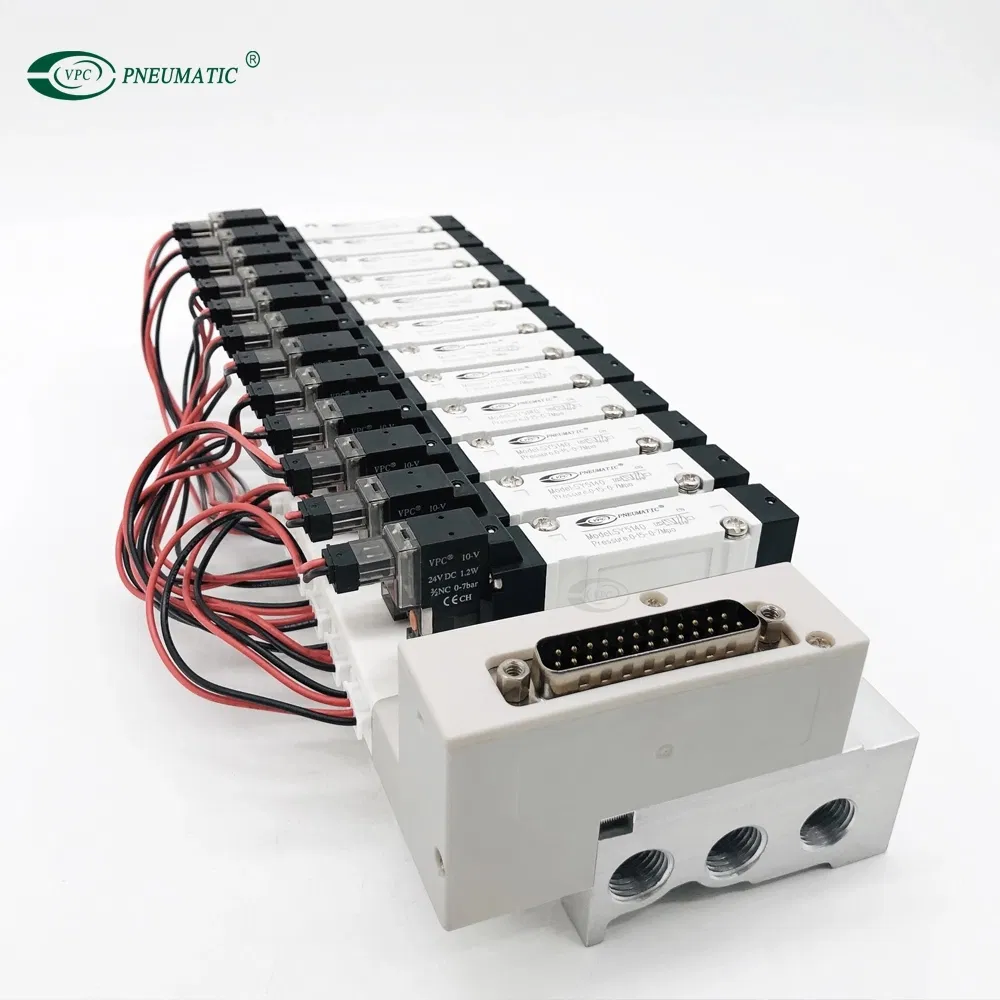

Multiple valve bases integrated
Using 0.06mm enameled wires imported from Germany
guaranteed temperature260ºC,high safety performance
Pluggable wiring,convenient installation
Model | SY3120 | SY3220 | SY3320 | SY5120 | SY5220 | SY5320 |
SY3420 | SY5420 | |||||
SY3520 | SY5520 | |||||
Working medium | Clean air(40um Filteration) | |||||
Working Pressure | 0.15~0.7Mpa | 0.1~0.7Mpa | 0.2~0.7Mpa | 0.15~0.7Mpa | 0.1~0.7Mpa | 0.2~0.7Mpa |
Working temperature | -10-60ºC | |||||
Max operating frequency | 10HZ | 10HZ | 3HZ | 5HZ | 5HZ | 3HZ |
Response time | <12ms | <12ms | <15ms | <19ms | <19ms | <32ms |
Exhaust way | Centralized exhaust | |||||
Lubrication | Not necessary | |||||
Installation type | Free | |||||
Impact resistance vibration resistance | 150/30M/S² | |||||
Protective class | Ip65 | |||||
Joint size | M5 | 1/8" | ||||
