Product Description

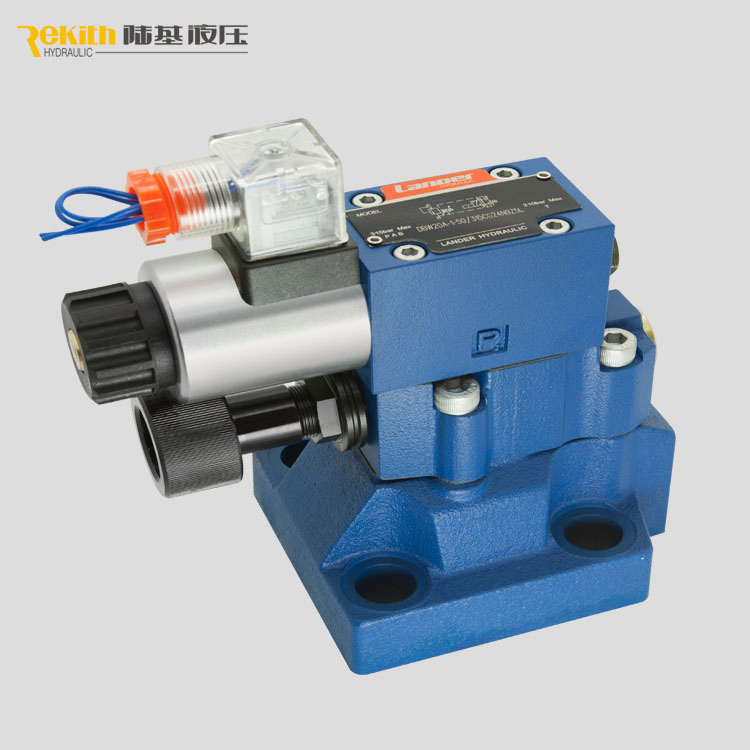

Solenoid Pilot Relief Pressure Valve DBW10/20/30

Fixing position			Opitional
Weight			10	15 (DB...15)	25 (DB...20)	25 (DB...25)	32
Subplate connection	DB	kg	2.6	-	3.5	-	4.4
	DBW	kg	4.05	-	4.95	-	5.85
	DBC	kg	1.2
	DBWC	kg	2.65
	DBC10/30	kg	1.5
	DBWC10/30	kg	2.95
Thread connection	DB...G	kg	5.3	5.2	5.1	5.0	4.8
	DBW...G	kg	6.75	6.65	6.55	6.45	6.25
Environment temperature range	DB	ºC	-30 to +80 (for NBR seal)
			-15 to +80 (for FKM seal)
	DBW		-30 to +50 (for NBR seal)
			-15 to +50 (for FKM seal)
Max.operating pressure	Port P,X	MPa	35.0
	Port T	MPa	31.5
Max.back pressure	Port Y (DB)	MPa	31.5
	Port Y,T(DBW)	MPa	DC 21 AC 16
Max.setting pressure		MPa	5,10,50,31.5,35.0
Min.setting pressure		MPa	Related to flow(refer to the curve)
Max flow-rate	Subplate connection	L/min	250	-	500	-	650
	Thread connection		250	500	500	500	650
Fluid			Mineral oil suitable for NBR and FKM seal
			Phosphate ester for FKM seal
Fluid temperature range		ºC	-30 to +80 (NBR seal)
			-15 to +80(FKM seal)
Viscosity range		mm²/s	10 to 800
Degree of contamination			Maximum permissible degree of fluid contamination: 20/18/15, ISO 4406

Solenoid Operated Relief Valve Dbw10/20/30 Normally Close Lander
