Vpc 2/2 Way Pilot Diaphragm Brass Normal Close Solenoid Valve
VPC Series Brass Pilot Diaphragm Solenoid Valve for European Market 100% testGood qualityManual overrideFast delivery timeCE, Rohs CertificatePopular in European marketDamped design for quiet closingMoulded housing with high surface qualityVibration-proof, central screwwed coild systemServo-assisted......
Send Inquiry
Product Description

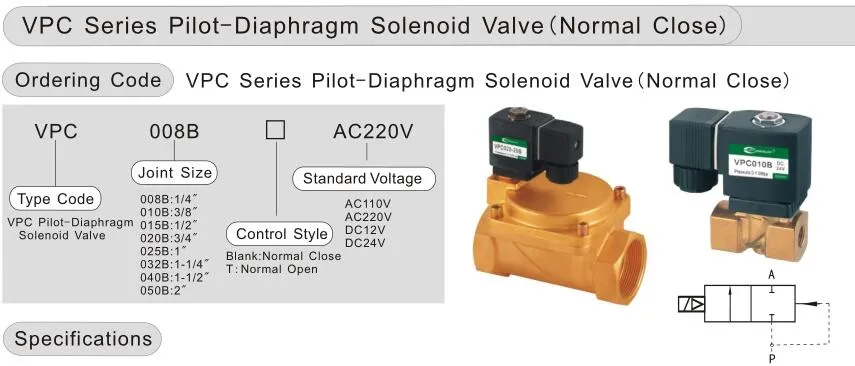

VPC Series Brass Pilot Diaphragm Solenoid Valve for European Market
100% test
Good quality
Manual override
Fast delivery time
CE, Rohs Certificate
Popular in European market
Damped design for quiet closing
Moulded housing with high surface quality
Vibration-proof, central screwwed coild system
Servo-assisted diaphgragm with diameter of up to DN50
| Motion Way | Guide Type |
| Control Type | Nomally Closde(Standard) Normally Open(the part may elect) |
| Joint Size | G1/4"~G2" |
| Flow Rate | DN14~DN50 |
| Working Pressure | Max. 1.6Mpa |
| Applicable Fluid | Neutral Gas or Liquid |
| Fluid Viscosity | ≤21mm2/s |
| Fluid Temperature | -10ºC~+80ºC(+130ºC) |
| Ambient Temperature | -10ºC~+50ºC |
| Body Material | Brass |
| Seals Material | NBR/FPM/EPDM |
| Standard Voltage | AC:220V(50/60HZ) DC:24V |
| Protection Class | IP65 |

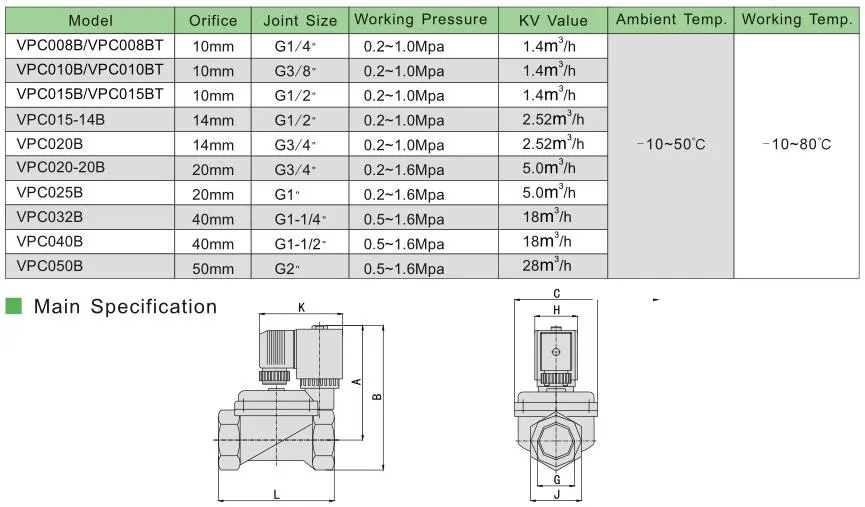

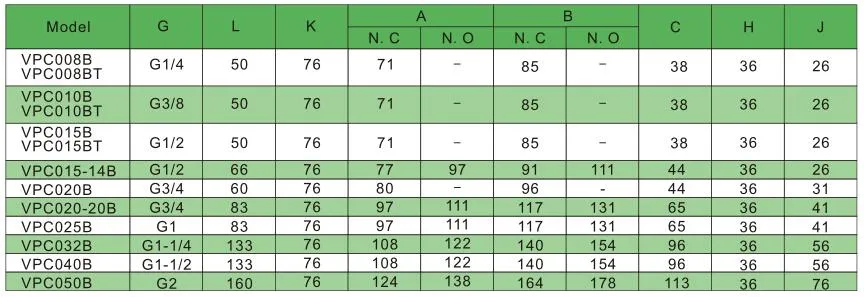

| Model | Orifice (mm) | Joint Size (G) | Work Pressure (Mpa) | KV(m³/h) | LxWxH (mm) |
| VPC008B/VPC008BT | 8 | G1/4" | 0.02~1.0 | 4 | 66*44*91 |
| VPC010B/VPC010BT | 10 | G3/8" | 0.02~1.0 | 4 | 66*44*91 |

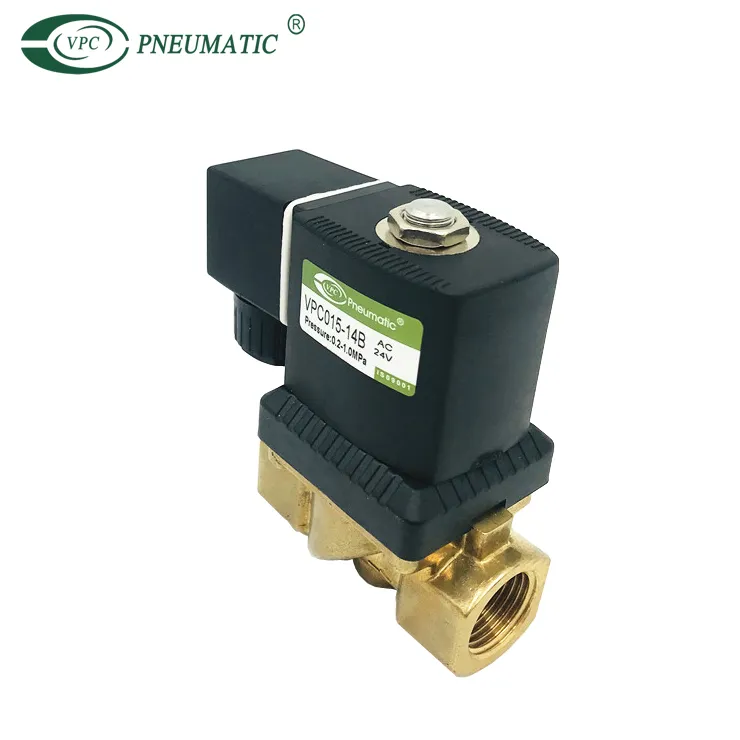

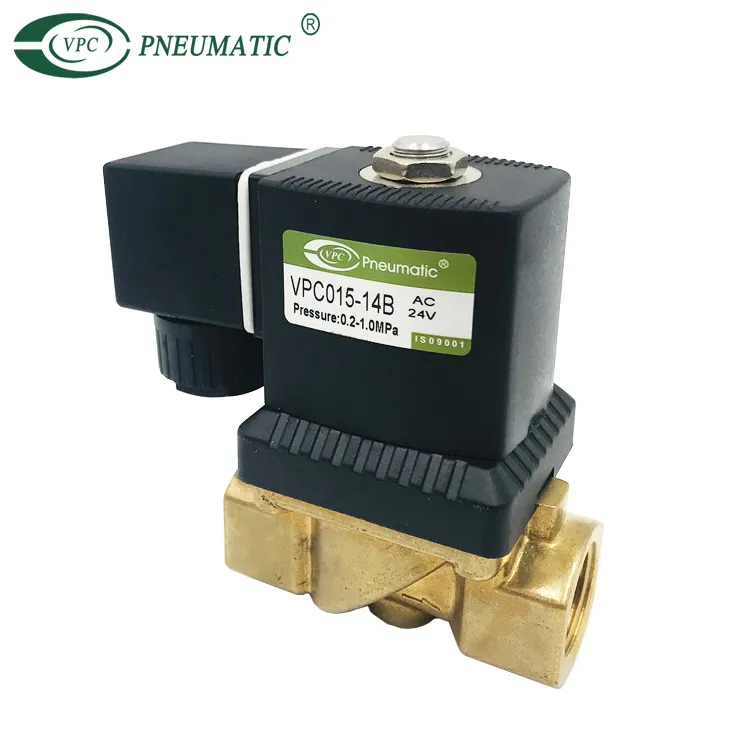

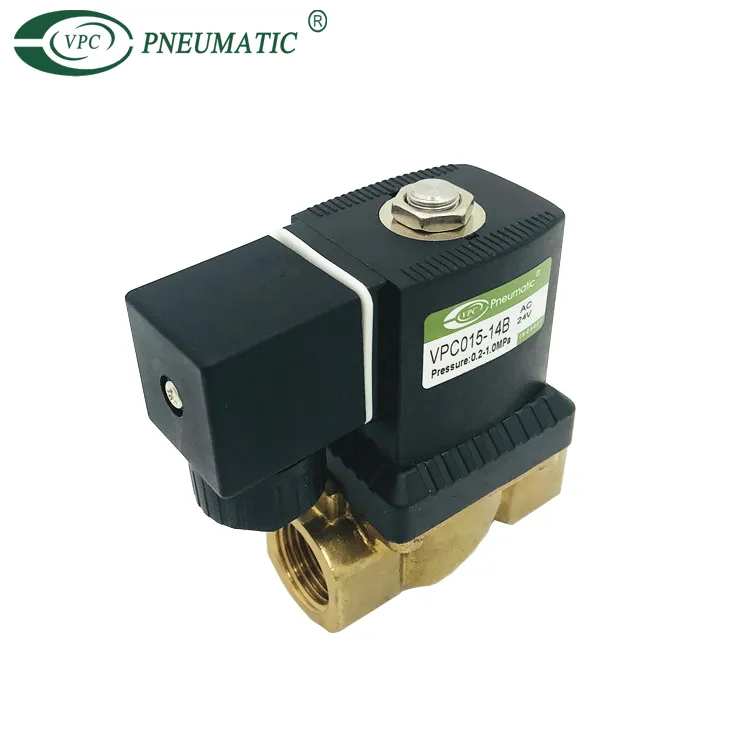

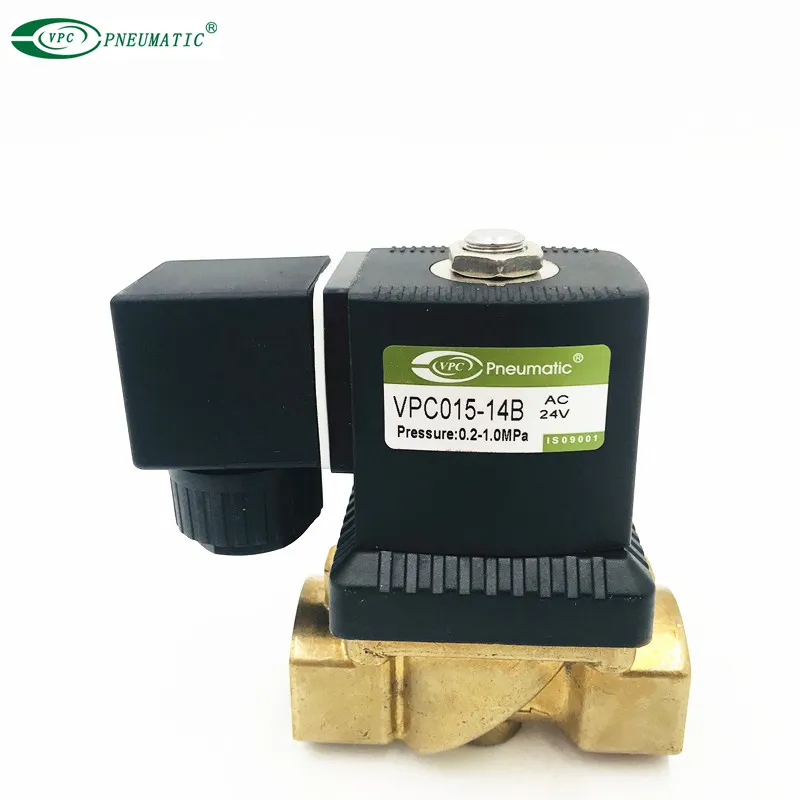

| VPC015-14B | 14 | G1/2" | 0.02~1.0 | 4 | 66*44*91 |
| VPC020B | 20 | G3/4" | 0.02~1.6 | 5 | 88*65*117 |
| VPC020-20B | 20 | G3/4" | 0.02~1.6 | 5 | 100*60*107 |
| VPC025B | 25 | G1" | 0.02~1.6 | 10 | 115*70*116 |
| VPC032B | 32 | G1-1/4" | 0.05~1.6 | 20 | 136*95*132 |
| VPC040B | 40 | G1-1/2" | 0.05~1.6 | 20 | 136*95*132 |
| VPC050B | 50 | G2" | 0.05~1.6 | 40 | 161*112*145 |
