Vpc Airtac Type 5way 2position Single Control Solenoid Valva
4M Series 2 Position 5 Port Solenoid Valve The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid,which opens or closes the valve, by controlling the amount of air--via a pilot--to the pneumatic actuator. A pneumaticactuator converts e......
Send Inquiry
Product Description

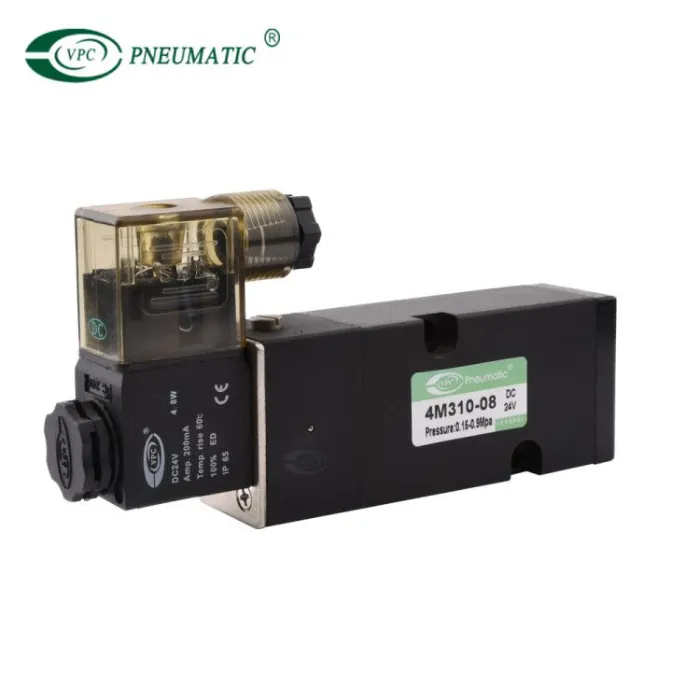

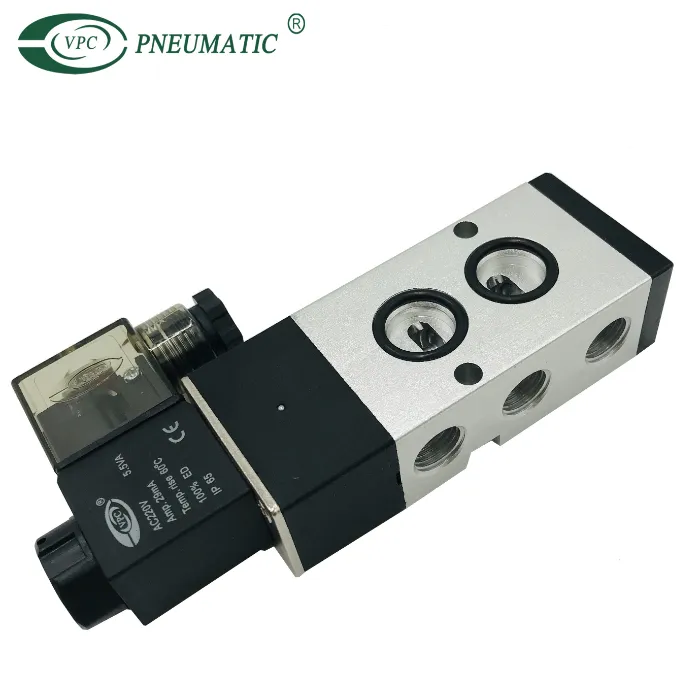

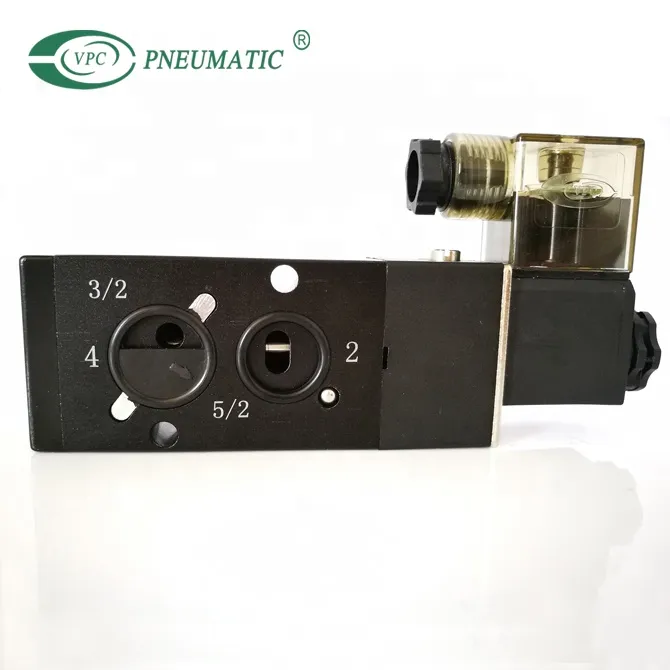

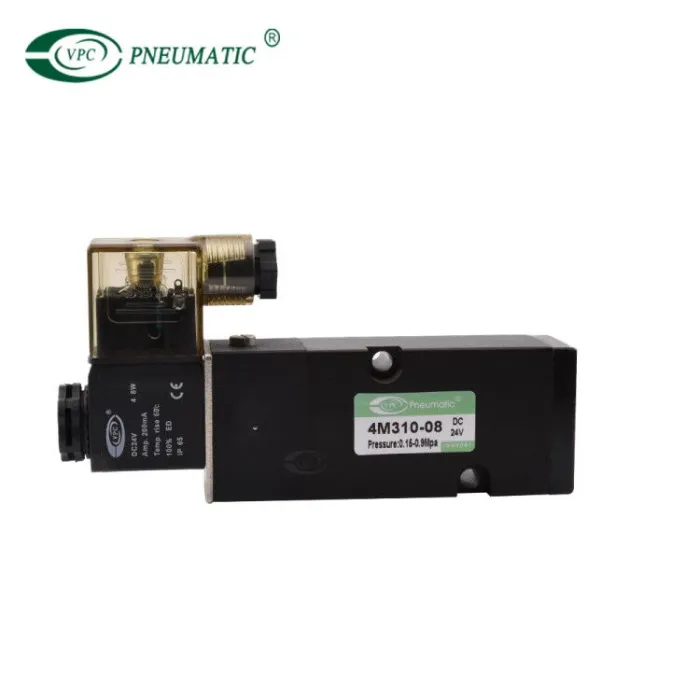

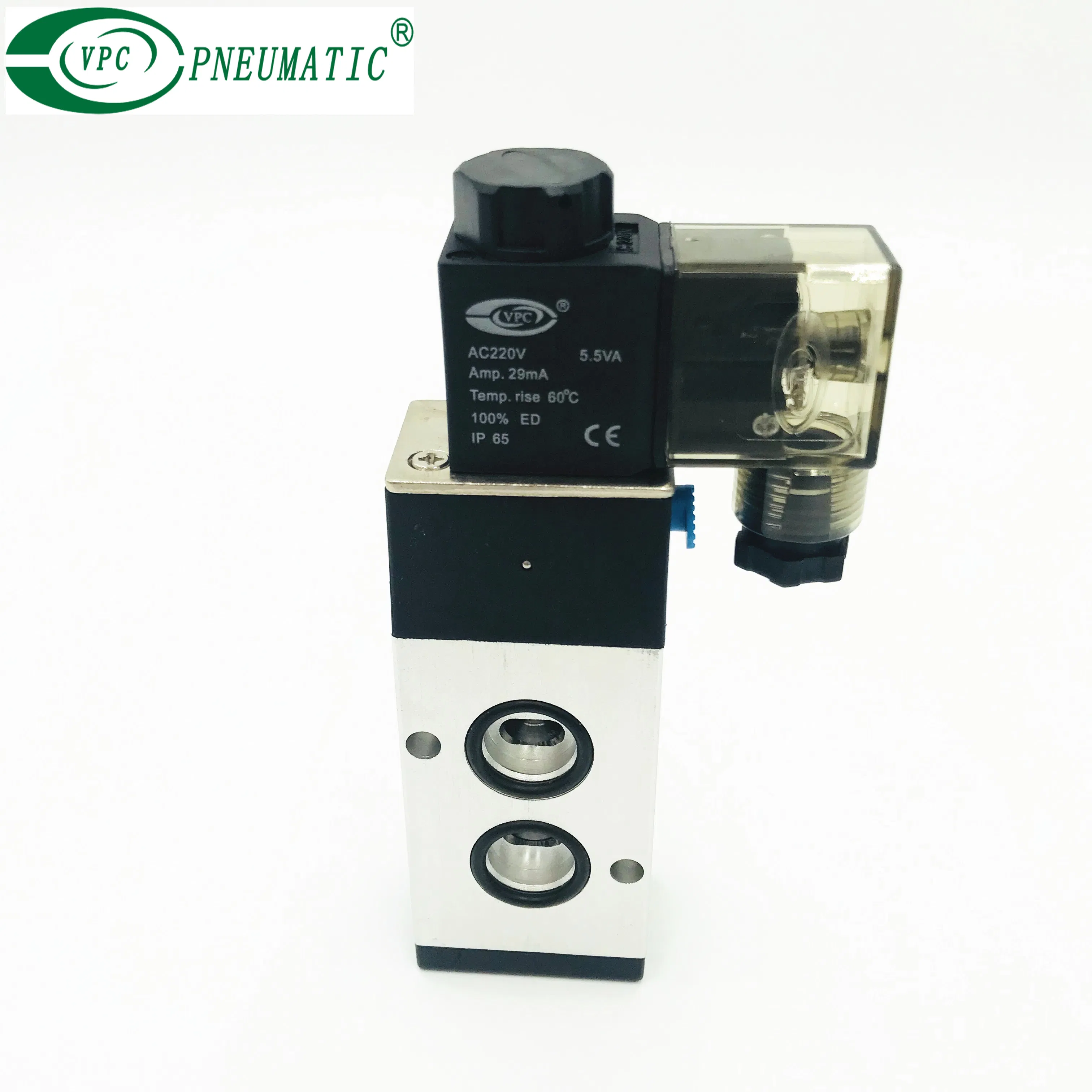

4M Series 2 Position 5 Port Solenoid Valve
The function of a NAMUR solenoid valve is to control media flow: the valve itself is controlled by an electric solenoid,
which opens or closes the valve, by controlling the amount of air--via a pilot--to the pneumatic actuator. A pneumatic
actuator converts energy--compressed air--into motion. The solenoid and actuator work in tandem to control flow
speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally
open position.
which opens or closes the valve, by controlling the amount of air--via a pilot--to the pneumatic actuator. A pneumatic
actuator converts energy--compressed air--into motion. The solenoid and actuator work in tandem to control flow
speed, flow amount, and flow direction. Likewise, the valve is operated in either the normally closed, or normally
open position.

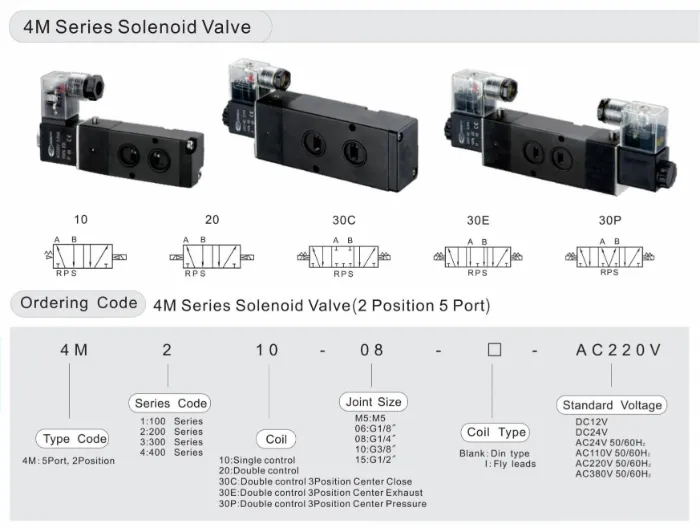

Model | 4M110-M5 | 4M110-06 | 4M210-06 | 4M210-08 | 4M310-08 | 4M310-10 | 4M410-10 | 4M410-15 | |
| 4M120-M5 | 4M120-06 | 4M220-06 | 4M220-08 | 4M320-08 | 4M320-10 | 4M420-10 | 4M420-15 | ||
| Working medium | Clean air | ||||||||
| Acting type | Internal guide | ||||||||
Joint size | Import=M5 | Import=1/8 | Import=1/8 | Import=1/4 | Import=1/4 | Import=1/4 | Import=3/8 | Import=1/2 | |
| Export=M5 | Export=1/8 | Export=1/8 | Export=1/8 | Export=1/4 | Export=3/8 | Export=3/8 | Export=1/2 | ||
| Sectional area | 5.5mm² (CV=0.31) | 12mm² (CV=0.67) | 14mm² (CV=0.78) | 16mm² (CV=0.89) | 25mm² (CV=1.4) | 30mm² (CV=1.68) | 30mm² (CV=1.68) | 50mm² (CV=2.79) | |
| Working pressure | 0.15 to 0.9Mpa | ||||||||
| Max. pressure | 1.2Mpa | ||||||||
| Working temperature | -5 to 60ºC | ||||||||
| Voltage range | -15% to 10% | ||||||||
| Heat resistant grade | B | ||||||||
| Protective class | IP65(DIN40050) | ||||||||
| Coil Type | Din type, Flying leads | ||||||||
| Max.Acting Frequency | 4 times/s | ||||||||
FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Western Union,Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: All of our products will be guaranteed 1 year warranty.
