ANSI Cast Iron Wafer Check Valve

Product Description

ANSI Cast Iron Wafer Check Valve
Product Description

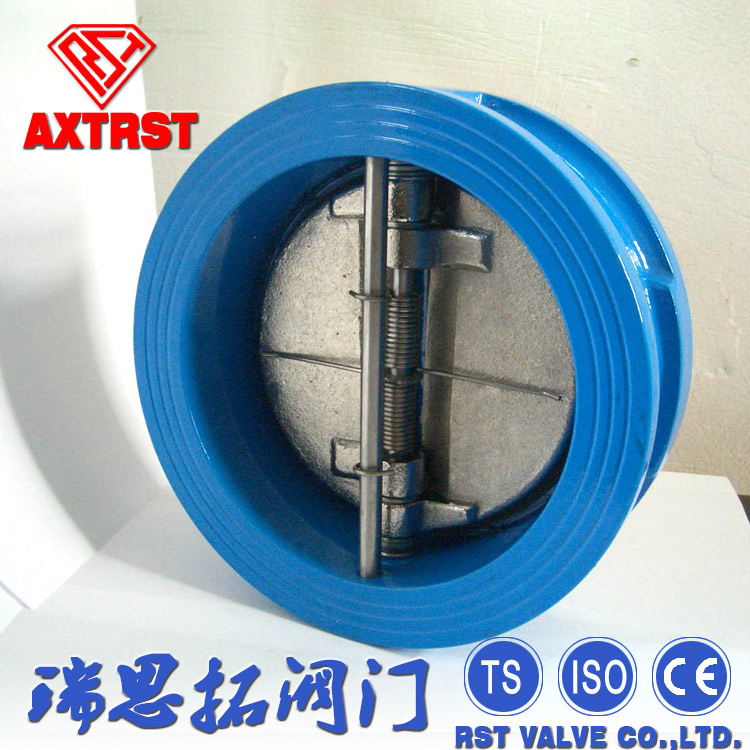

1. Products Name: DUAL PLATE CHECK VALVE WAFER TYPE
2. Working pressure: PN10/16/25
3. Tests: API598; DIN3230
4. Flange standard: DIN2501 PN10/PN16; BS4504 PN10/PN16;
BS10 TABLE"D"/"E" /JIS2220 10K/16K; ANSI125/150
5. Face to face: ANSI125/150; DIN3203 K3-1999
6. Applications: Water, industrial systems
7. Working temp: EPDM: -10° C~+120° C/NBR: -10° C~+80° C/VITON: -23° C~+150° C/
8. Medium: Fresh water, sea water, waste water, food stuff, steam, all kinds of oil, all kinds of acid and alkaline liquid etc
MATERIALS LIST

Body	Cast iron GG25
	Ductile Iron GGG40
	Stainless Steel CF8M/SS316
Disc	Stainless Steel SS316/SS304
	AL Bronze
	Carbon Steel
Seat Gasket	Rubber NBR/EPDM
Spring	Stainless Steel
Axle	Stainless Steel
Washer	TEFLON
