API CAST STEEL PRESSURE SEAL SWING CHECK VALVE
Cl900, 1500,2500Lb
MAIN FEATURES:
The valve is opened or closed by the valve disc to rotate around the spindle outside the valve seat;
and it is an automatic valve when it is automatically opened or closed by the force generated by the medium flowing within the pipeline.
Its major function is to prevent the backflow of the medium in the pipeline,
reverse rotation of the pump and its driving motor, and discharge of the medium in the container.
Main Parameter Specification
Design and Manufacture:Cast Steel Check Valve to BS 1868,ASME B16.34,API 6D
Inspection and Test:API598,API600 or API 6D
End Flange Dimension:ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS>24)
BW end Dimension:ASME B16.25
Face to Face and End to End:ASME B16.10
Pressure-temperature ratings:ASME B16.34
Wall Thickness Dimension:API 600,BS 1868
Product Range
Body material: carbon steel, stainless steel, alloy steel,bronze
Nominal diameter:1/2"~48"(DN15~DN1200)
End Connection: RF,RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-196ºC~+560ºC
| No. | Parts | Materials |
| 1 | Body | ASTM A216 GR.WCB |
| 2 | Disc | ASTM A105 + Setllite Faced |
| 3 | Disc Washer | ASTM A276 Type 410 |
| 4 | Disc Nut | ASTM A276 Type 410 |
| 5 | Disc Nut Pin | Stainless Steel |
| 6 | Disc Nut | Stainless Steel |
| 7 | Hinge | ASTM A216 GR.WCB |
| 8 | Hinge Pin | ASTM A182 GR.F6 |
| 9 | Bearing Bracket | ASTM A216 GR.WCB |
| 10 | Spring Washer | Carbon Steel |
| 11 | Hex, Bolt | Carbon Steel |
| 12 | Bonnet | ASTM A216 GR.WCB |
| 13 | Gasket | ASTM A182 GR.F304 |
| 14 | Thrust Ring | ASTM A276 Type 410 |
| 15 | Separate Ring | ASTM A276 Type 410 |
| 16 | Cover | ASTM A216 GR.WCB |
| 17 | Cover Bolts | ASTM A193 GR.B7 |
| 18 | Cover Bolt Nuts | ASTM A194 GR.2H |
| 19 | Eye Bolt | Carbon Steel |

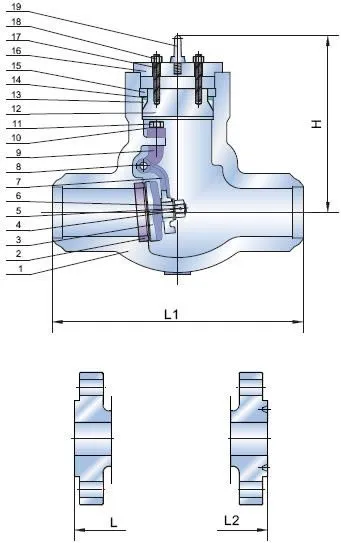

ASME Pressure Class 900 Lb-Dimensions and Weights
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| L-L2 | mm | 292 | 330 | 355 | 431 | 508 | 558 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
| L-L1 | mm | 178 | 216 | 245 | 304 | 381 | 457 | 584 | 711 | 812 | 889 | 991 | 1092 | 1194 |
| H | mm | 240 | 265 | 275 | 325 | 370 | 425 | 500 | 555 | 610 | 725 | 755 | 850 | 925 |
| W | Kg | 20 | 38 | 45 | 45 | 95 | 125 | 220 | 330 | 505 | 595 | 800 | 1150 | 1600 |
ASME Pressure Class 1500 Lb-Dimensions and Weights
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| L-L2 | mm | 368 | 419 | 381 | 457 | 559 | 609 | 736 | 838 | 965 | 1029 | 1130 | 1219 |
| L-L1 | mm | 368 | 254 | 305 | 355 | 432 | 508 | 660 | 787 | 914 | 991 | 1092 | 1219 |
| H | mm | 250 | 580 | 290 | 335 | 380 | 440 | 510 | 570 | 620 | 730 | 790 | 860 |
| W | Kg | 44 | 57 | 75 | 105 | 140 | 230 | 440 | 590 | 870 | 1085 | 1225 | 1700 |
ASME Pressure Class 2500 Lb-Dimensions and Weights
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L-L2 | mm | 451 | 508 | 578 | 673 | 794 | 914 | 1022 | 1270 | 1422 |
| L-L1 | mm | 279 | 330 | 368 | 457 | 533 | 610 | 762 | 914 | 1014 |
| H | mm | 280 | 310 | 325 | 370 | 425 | 500 | 525 | 630 | 695 |
| W | Kg | 78 | 95 | 110 | 205 | 395 | 495 | 900 | 1300 | 1950 |
Features
Pressure Seal
Swing Type Disc
Type 1 Standard
Type 2 Optional
With Eye Bolt
By Pass on Request
Lever & Weight Optional
Specifications
Design: ASME B16.34
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75
