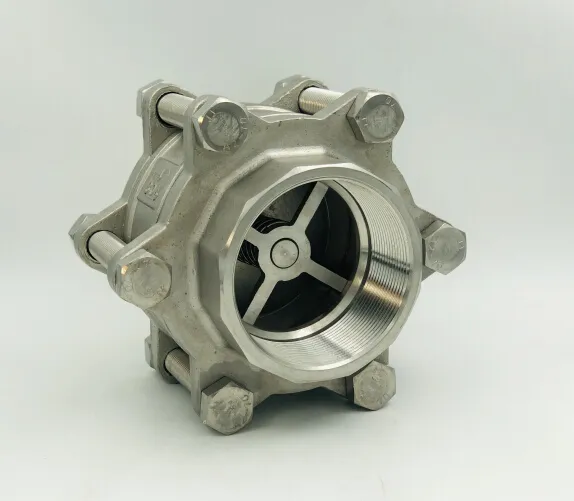

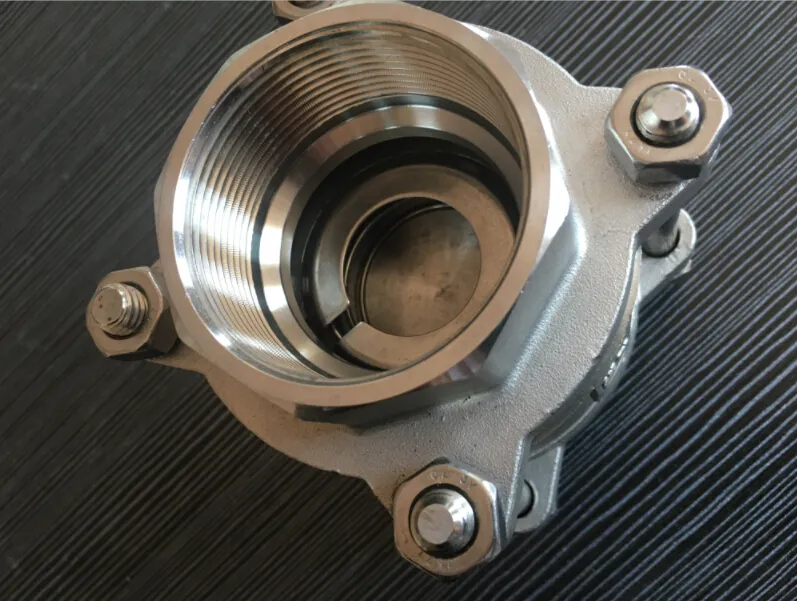

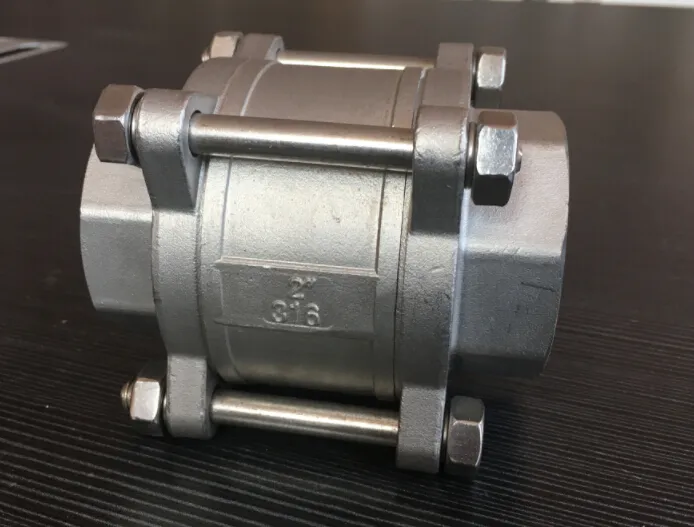

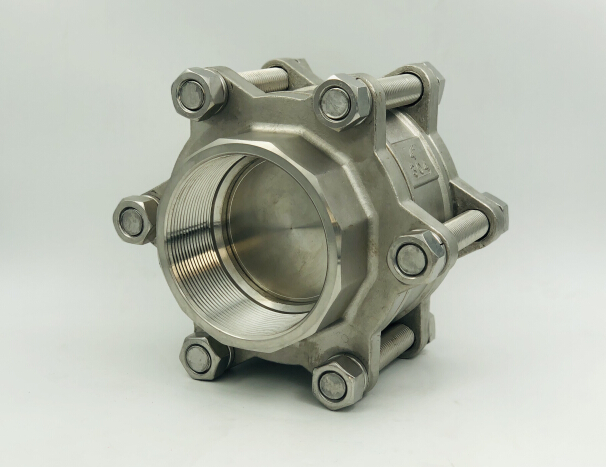

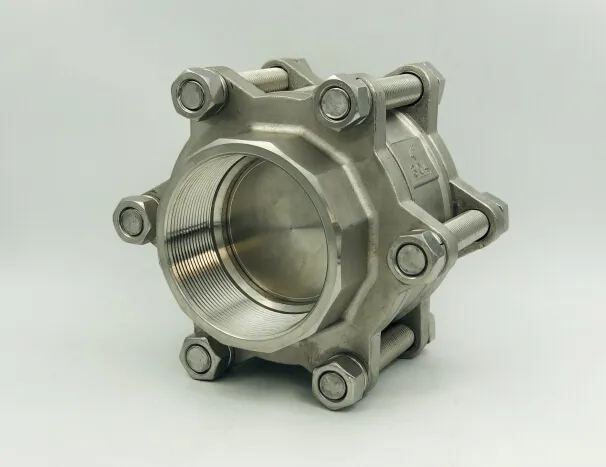

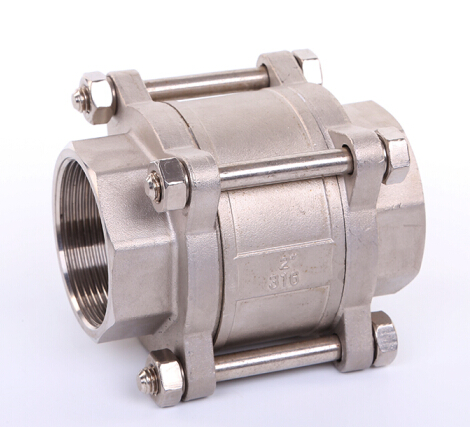

Product DescriptionCast Stainless Steel/SS Spring Thread 3PC Check/Non Return Valve

1)      Vertical type
2)      Size: 1/2''-2''(DN15-DN50)
3)      Material: CF8(SS304), CF8M(SS316), DIN1.4408/1.4308
4)      Threaded: BSP, NPT, PT, DIN259/2999
5)      Working Pressure: 200PSI
6)      Suitable Temp.: -20~200ºC~350ºC
7)      Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid

Features:
1.      Investment casting Body
2.      Screwed bonnet, replaceable seat
3.      Low pressure drop
4.      Working pressure 200 psi for W.O.G.
5.      Temperature range: -60 to 450 °F
6.      100% leakage tested at 100 psi air under water
7.      Hydrostatic test pressure: 300psi

Product Name	Cast Stainless Steel/SS Spring Thread 3PC Check/Non Return Valve
1. Material	Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M)

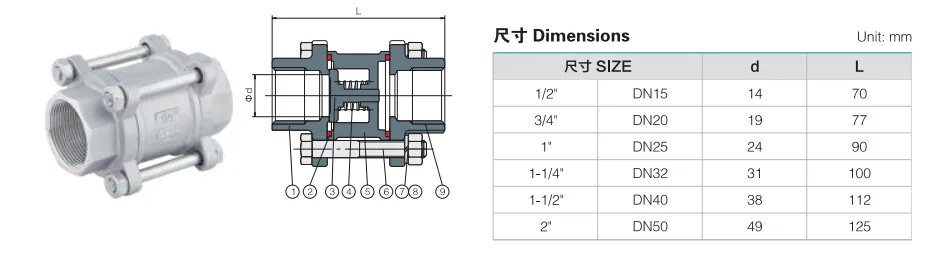

2. Size	1/2''~2'' ( DN15~DN50)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	200PSI (PN13.8/1.38Mpa)
6. Connection Ends	NPT/BSP/BSPT/DIN259/DIN2999
7. Working Temp.	-20~350ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal
10. Locking	Option
11. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty	18 Months after leaving factory
Advantage	OEM/ODM is applicable
Others	We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

Cast Stainless Steel/Ss Spring Thread 3PC Check/Non Return Valve

Other Products We Manufacture
       1  .Sanitary valve
            Sanitary Butterfly Valves
            Sanitary Check Valves
            Sanitary Ball Valvess
            Sanitary Reversal Valve
            Sanitary Diaphragm Valves
            Sanitary Sample Valves
            Sanitary Safety Valves
            Sanitary Control Valves
            Sanitary Relief Pressure Valves
        2. Sanitary Pipe Fittings
            Sanitary Elbow
            Sanitary TeeSanitary Reducer
            Sanitary Cross
            Sanitary Triclamp Ferrule
            Sanitary Cap
            Sanitary Pipe Hanger
            Sanitary Tank Cleaning Ball
            Sanitary Hose Joint
            Sanitary Unions
            Sanitary Sight Glass
            Sanitary Strainer
        3.Industry Valves
            Ball Valve
            3 Way Ball Valve
            1 PC Male/Female Thread Ball Valve
            2 PC Male/Female Thread Ball Valve
            3 PC Male/Female Thread Ball Valve
            1 PC Flange/Welding/Union Ball Valve
            2 PC Flange/Welding/Union Ball Valve
            3 PC Flange/Welding/Union Ball Valve
            Globe Valve
            Male/Female Thread Globe Valve
            Flange Globe Valve
            Gate Valve
            Male/Female Thread Gate Valve
            Flange Gate Valve
            Check Valve
            Wafer Check Valve
            Spring Check Valve

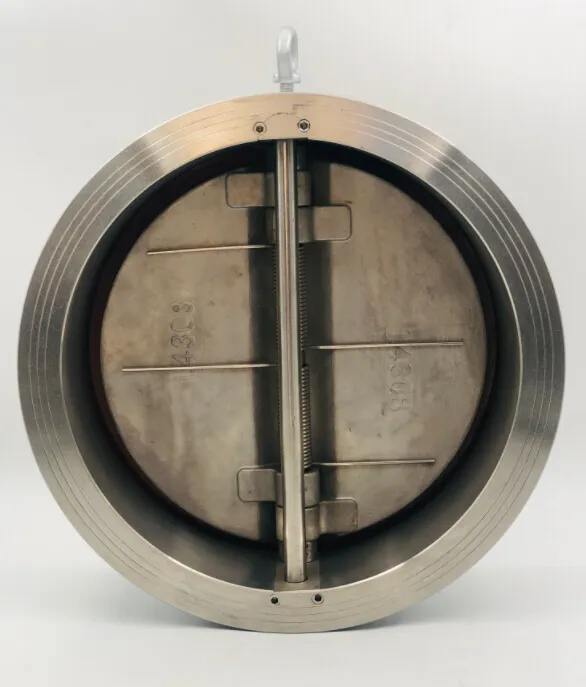

            Dual Disc/Plat Wafer Check Valve
