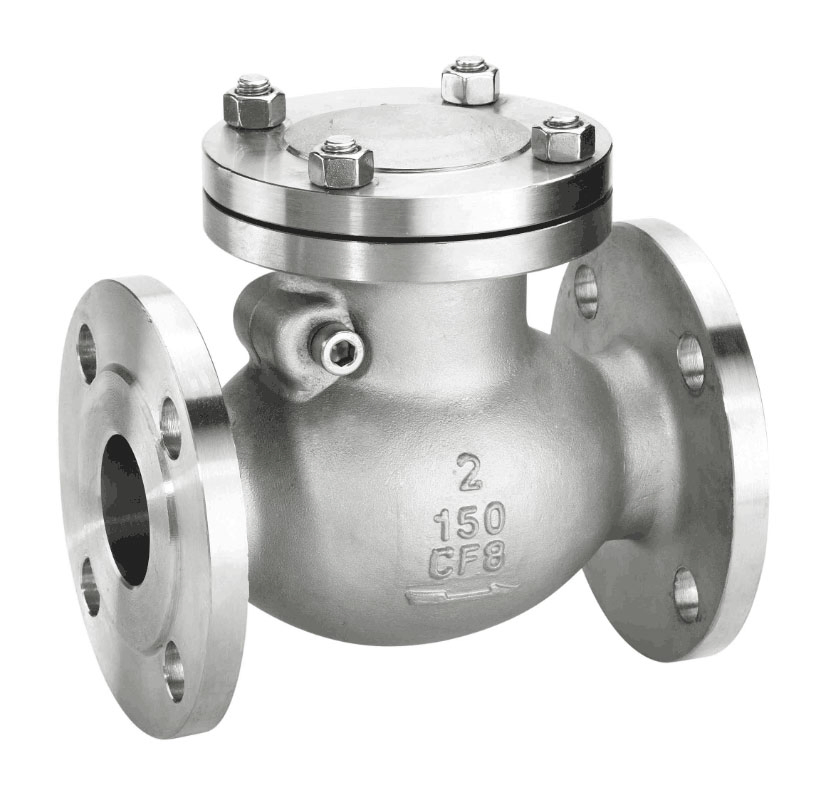

CF8m/Wcb/Wc6/Wc9 Flange Swing 150lb Check Valve

Cast Steel Flange Ends API standard Swing Type Check Valve

1. RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.

2. Check Valves mainly has Thread ends Swing Check Valve, Stainless Steel Vertical type Check Valve, Screwed ends CF8M 200PSI Y type Check Valve, Stainless Steel Wafer type Check Valve, Single Disc Wafer type Check Valve, Single plate Lift type Wafer Check Valve, Dual Plate Wafer Type Check Valve, Cast Steel Flange ends Swing Check Valve, Stainless Steel Flange ends Lift type Check Valve, API Flange ends 150LB Swing Check Valve, DIN Standard Lift type Flange Check Valve.

3. A check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are one of the few self-automated valves that do not require assistance to open and close. While some can be fitted with externally weighted and dampened devices for special circumstances, the majority do not have any outside assistance, such as that found with on/off or other valves. Unlike other valves, they continue to work even if the plant facility loses air, electricity, or the human being that might manually cycle them.

4. As with other types of valves, check valves are found in a full range of sizes, materials, and end connections. The line sizes range from 1/8 inch or smaller to 50 inches and larger. They are made of bronze, cast iron, plastics, carbon steel, and various grades of stainless steel, alloys such as Hastelloy, Inconel, Monel, and titanium. End connections include threaded, socket weld, butt weld, flange, Victaulic, wafer, and insert type.

5. Check valves are found everywhere, including the home. If you have a sump pump in the basement, a check valve is probably in the discharge line of the pump. Outside the home they are found in industries such as automotive, desalination, aviation, commercial construction, water and waste, chemical, colleges and universities, food and beverage, geothermal, hospitals, mining, oil and gas, pharmaceutical, power, pulp and paper, refining, sanitary, marine, steel, tire, and ultrapure water. Like other valves, check valves are used with a variety of media: liquids, air, other gases, steam, condensate, and in some cases, liquids with fines or slurries. Applications include pump and compressor discharge, header lines, vacuum breakers, steam lines, condensate lines, chemical feed pumps, cooling towers, loading racks, nitrogen purge lines, boilers, HVAC systems, utilities, pressure pumps, sump pumps, wash-down stations, and injection lines.
Specifications:

Features:

1. Bolted Cover
2. Swing Type
3. Horizontal or Vertical lines
4. Welded Seat
5. Renewable Seat Rings

Applicable Standards:

1. Steel valves ANSI B16.34
2. Face to face ANSI B16.10
3. End flanges ANSI B16.5
4. Butt weld ends ANSI B16.25
5. Inspection and test API 598

Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.
2. We offer free sample if interest before orders.
3. Technology renovation, process improvement, structure optimization and quality improvement.
4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
6. 100% inspection & testing before delivery.
7. Third party inspection on customer requirement.

Material List:

Dimensions (mm) & Weight (KG):
 Note: All the data should be confirmed with the approved drawings of manufacturer.



Material List:

Dimensions (mm) & Weight (KG):
 Note: All the data should be confirmed with the approved drawings of manufacturer.


FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 50pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.
