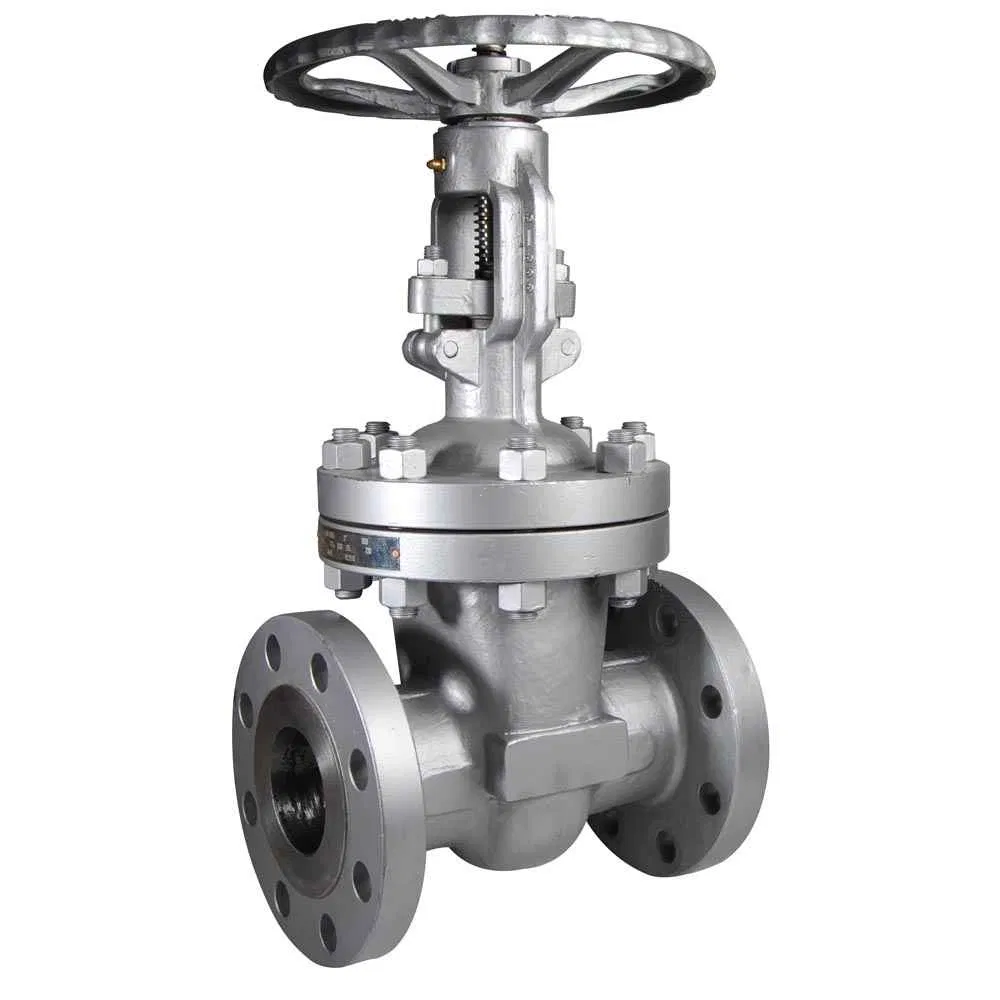

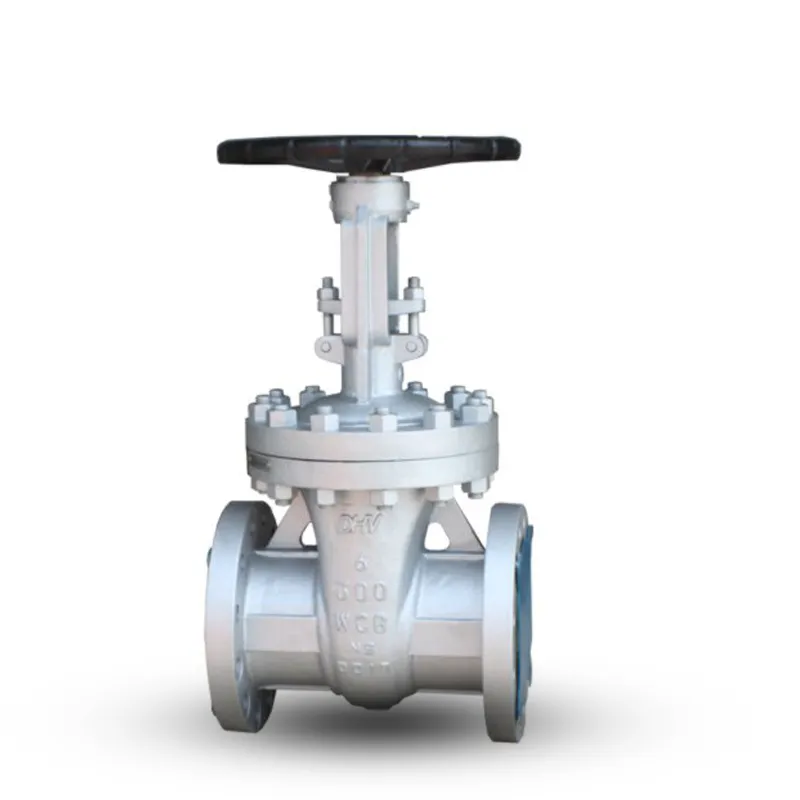

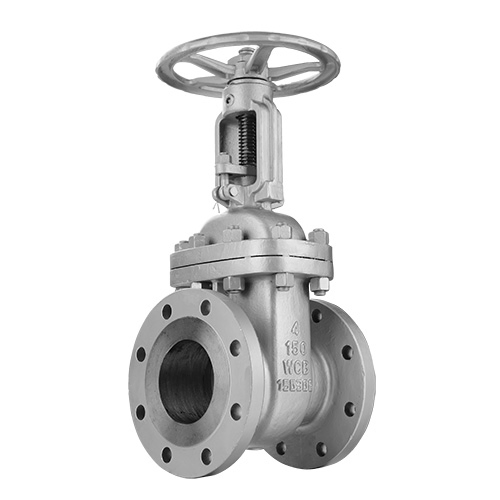

Product Description

Main Parameters :

Design and Manufacture:API 602,API 600,BS1414,BS6364

Face to Face Dimension:ASME B16.10,EN558

Flange Connection Dimension:ASME B16.5

BW Connection Dimension:ASME B16.25

Pressure-Temperature Ratings:ASME B16.34

Test and Inspection:API 598,BS6364

Main Materials:LF2,LF3,F304,F316 ,LCB,LCC,LC3,CF8,CF8M.

Advantages:
1. The fastest delivery
2. The lowest price
3. Most comprehensive standards and materials for your choice.
4.100% export.
5. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Body	A536 Gr.60-40-18	LCB	WCB	CF8	CF8M
Bonnet	A536 Gr.60-40-18	LCB	WCB	CF8	CF8M
Disc	A536 Gr.60-40-18	CF8	WCB	CF8	CF8M
Stem	410	304	410	304	316
Packing	graphite	graphite	graphite	graphite	graphite
Seat rings	Bronze B62	Hardfeced	Hardfeced	Hardfeced	Hardfeced

Type(For your reference)	DN(mm)	Measurement(mm)
		L	D	D1	D2	b-f	Z×φd
		L	D	D1	D2	b-f	Z×φd

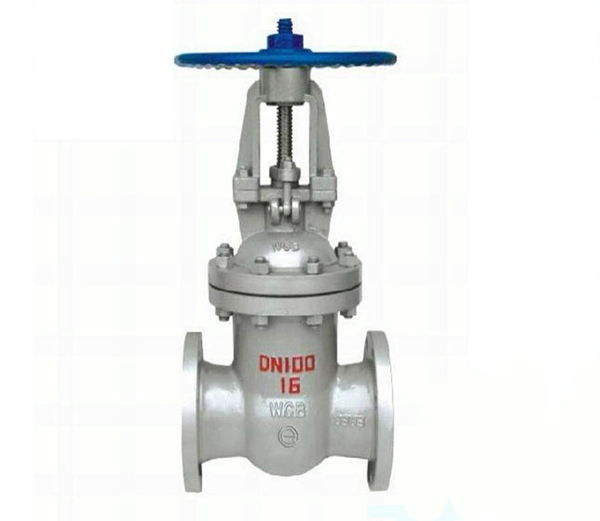

Cast steel gate valve PN1	50	180	160	125	102	3-16	4×φ18
	80	210	195	160	133	3-18	4×φ18
	100	230	215	180	158	3-20	8×φ18
	150	280	280	240	212	3-24	8×φ22
	200	330	335	295	268	3-26	12×φ22
	250	450	405	355	320	30-3	12×φ25
	300	500	460	410	375	30-4	12×φ25
	350	550	520	470	435	34-4	16×φ225
	400	600	580	525	485	36-4	16×φ230
	450	650	640	585	545	40-4	20×φ230
	500	700	705	650	608	44-4	20×φ234
	600	800	840	770	718	48-4	20×φ241
	700	900	910	840	788	50-5	24×φ241
	800	1000	1020	950	898	52-5	24×φ241
	900	1100	1120	1050	998	54-5	28×φ241
	1000	1200	1255	1170	1110	56-5	28×φ248
