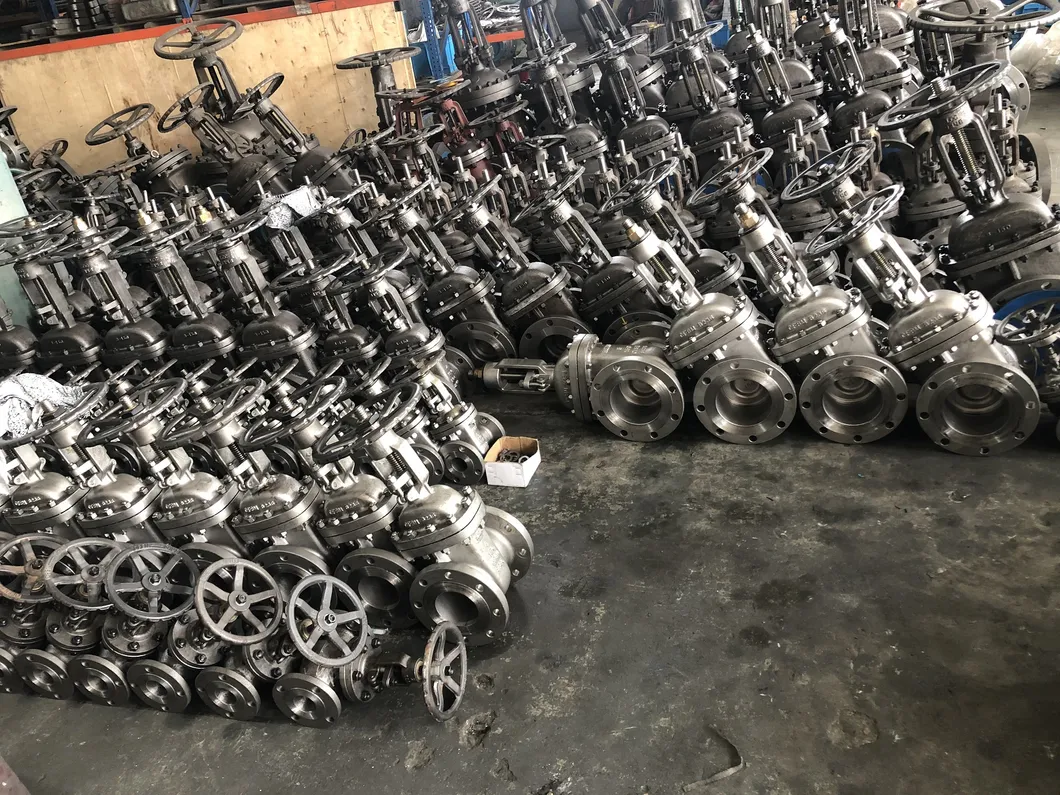

China API /JIS //DIN Gate Valve /Globe Valve /Check Valve /Y Type Globe Valve/Globe Check Valve/Sdnr Valve

Product Description

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVE STANDARDS .
1.Designand Manufacture : API 600, ASME B16.34 , BS1414
2. Face to face dimensions : ASME B16.10 .
3. Flange dimensions : 2"~24" to ANSI B16.5, 22", 26"~36" to MSS-SP-44 to API605 on Request
4. Test and Inspection : API 598, BS 6755, Certified to EN10204 3.1B
5. Butt Welding Ends: ANSI B16.25
6. Manufacturing to NACE MR-01-75 (On Request)
7. Pressure-Temp. Rating: ANSI B16.34
8.Suitable Medium: Oil, Nature Gas, Water, Steam;Acid, Alkali, Organic Compounds

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVESTRUCTURE .

OS&Y, Rising stem,Bolted Bonnet,Flexible Wedge, Pressure Sealed Bonnet, Welded Bonnet

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVE OTHER SPECIFICATIONS AVAILABLE .

Materials : WCB,WC6,WC9,C5,C12,LCB,LCC,CF8M,CF3,CF3M,CN7M,and other high temperature alloys.
End connections : Butt weld , Raised face , Ring type joint.
Seat : Removable or welded.
Trim : Trim no.1, Trim NO.5, Trim No.8, Trim No.12, Trim No.16

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVE Specifications:

Product Name	API600&ASME Cast Steel Wcb&304/316 Stainless Steel Flanged 150lb 300lb Ball Globe Check Gate Valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
2. Size	1/2''~48'' ( DN15~DN1200)
4. Port	Full Port
5. Working Pressure	150LB~1500LB
6. Connection Ends	RF, FF. RTJ, Butt Welded.
7. Working Temp.	-29~425ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handwheel
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

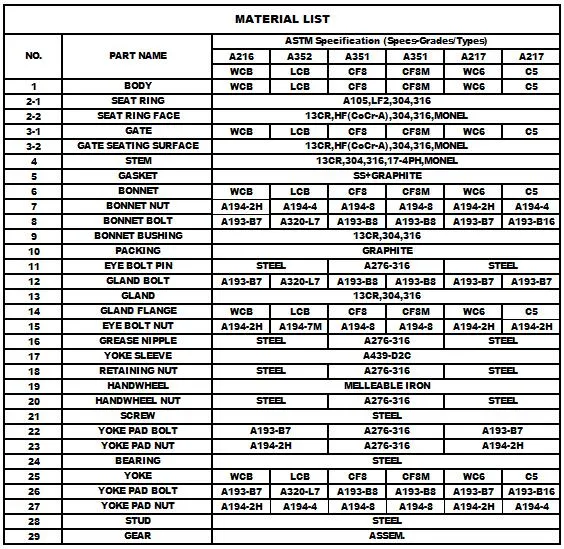

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVE MAIN PARTS & MATERIALS

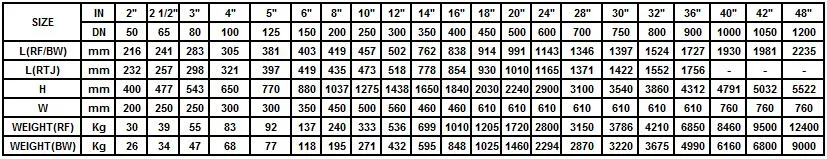

API /JIS //DIN GATE VALVE /GLOBE VALVE /CHECK VALVE /Y TYPE GLOBE VALVE/GLOBE CHECK VALVE/SDNR VALVE DIMENSIONS (mm) & WEIGHTS (Kg) .

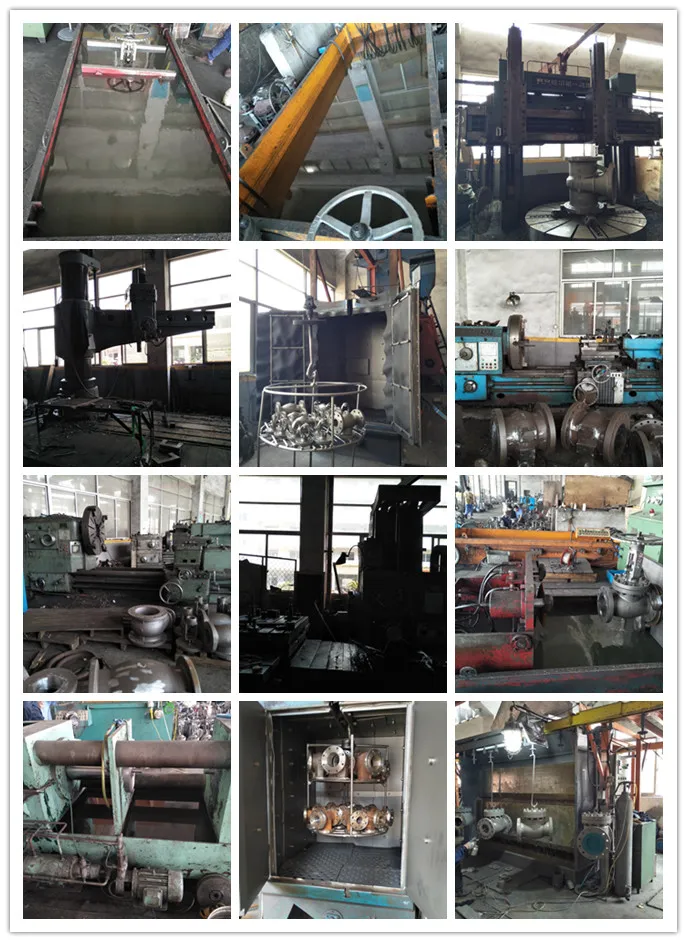

OUR EQUIPMENTS .
