API 6A Good Quality Wellhead Valves

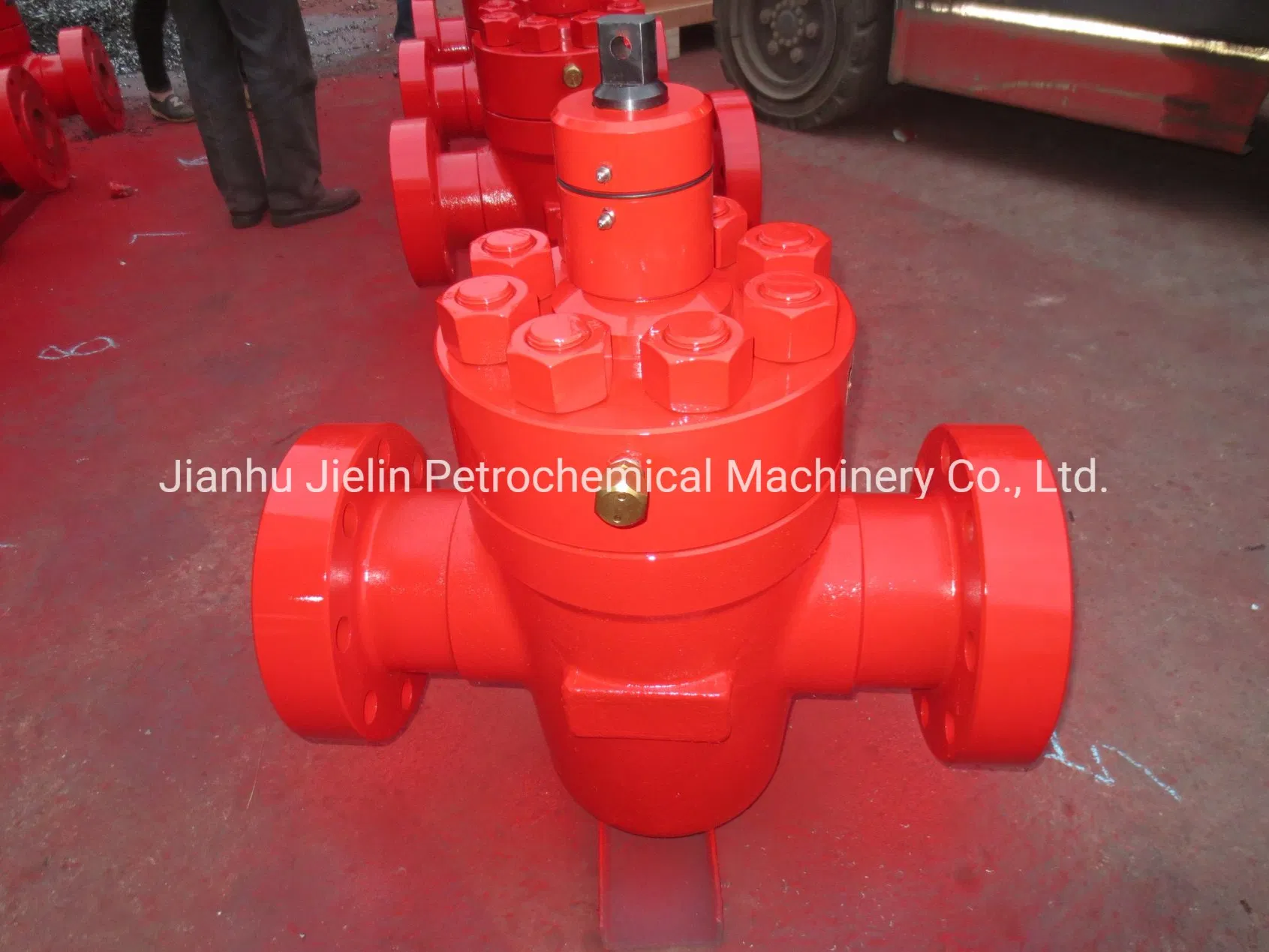

The expanding gate valves are made according to API 6A and consists of one gate body and related gate segment. It's designed for mainly used in the thermal recovery wellhead,production trees and manifolds. Products can be used under tough conditions such as H2S,CO2,high temperature, low temperature and acute corrosion.
Features:
Forging valve bonnet.
Forging valve body.
Low torque.
Hard seal between body and bonnet.
Manual or gear driving operation.


2,000 psi Working Pressure
Size    Bore(mm)    A(mm)    D(mm)    B(mm)    C(mm)      Weight(kg)
2-1/16"    52.4    295    280    125    470    45
2-9/16"    65.1    233    330    150    475    60
3-1/8"    79.4    359    330    190    550    100
4-1/16"    103.2    435    405    435    425    160

3,000 psi Working Pressure
Size    Bore(mm)    A(mm)    D(mm)    B(mm)    C(mm)      Weight(kg)
2-1/16"    52.4    371    330    125    475    50
2-9/16"    65.1    422    330    150    490    95
3-1/8"    79.4    435    400    190    550    150
4-1/16"    103.2    511    480    240    635    260
7-1/16"    179.4    714    760    355    615    260
