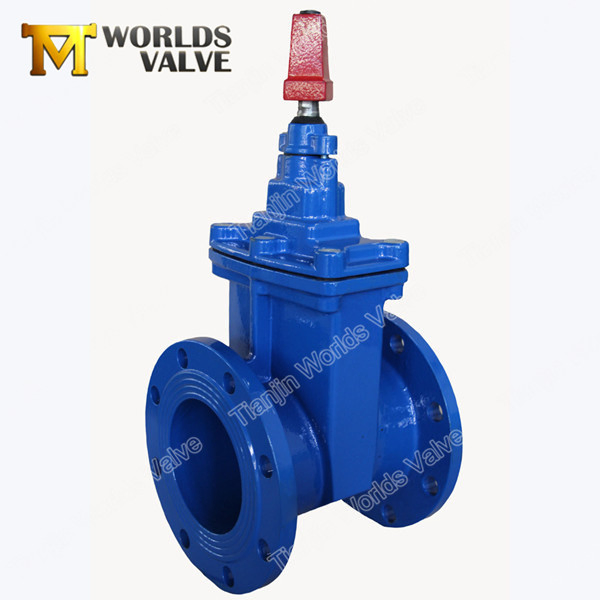

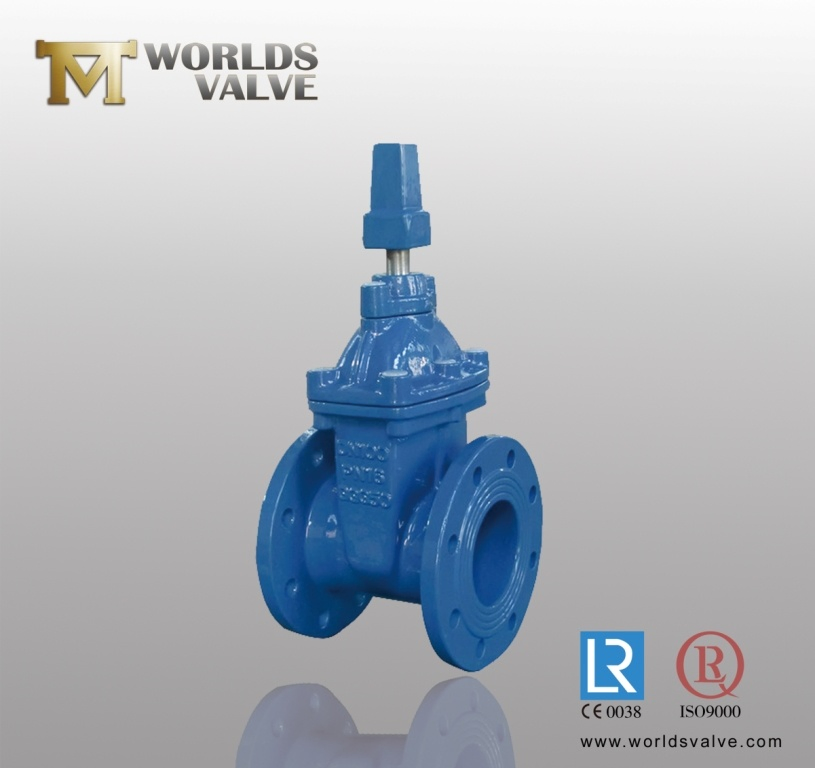

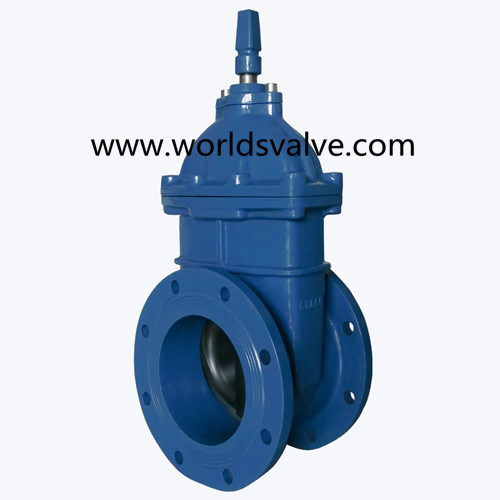

Awwa C509 Sluice Gate Valves with Top Cap Square Stem

Non-rising Stem Resilient Seated Gate Valve




Standard:
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598

Design characters:
1. Equipment used in cutting off medium in pipeline.
2. Suitable for hand wheel, gear operators or electric actuators.
Performance:

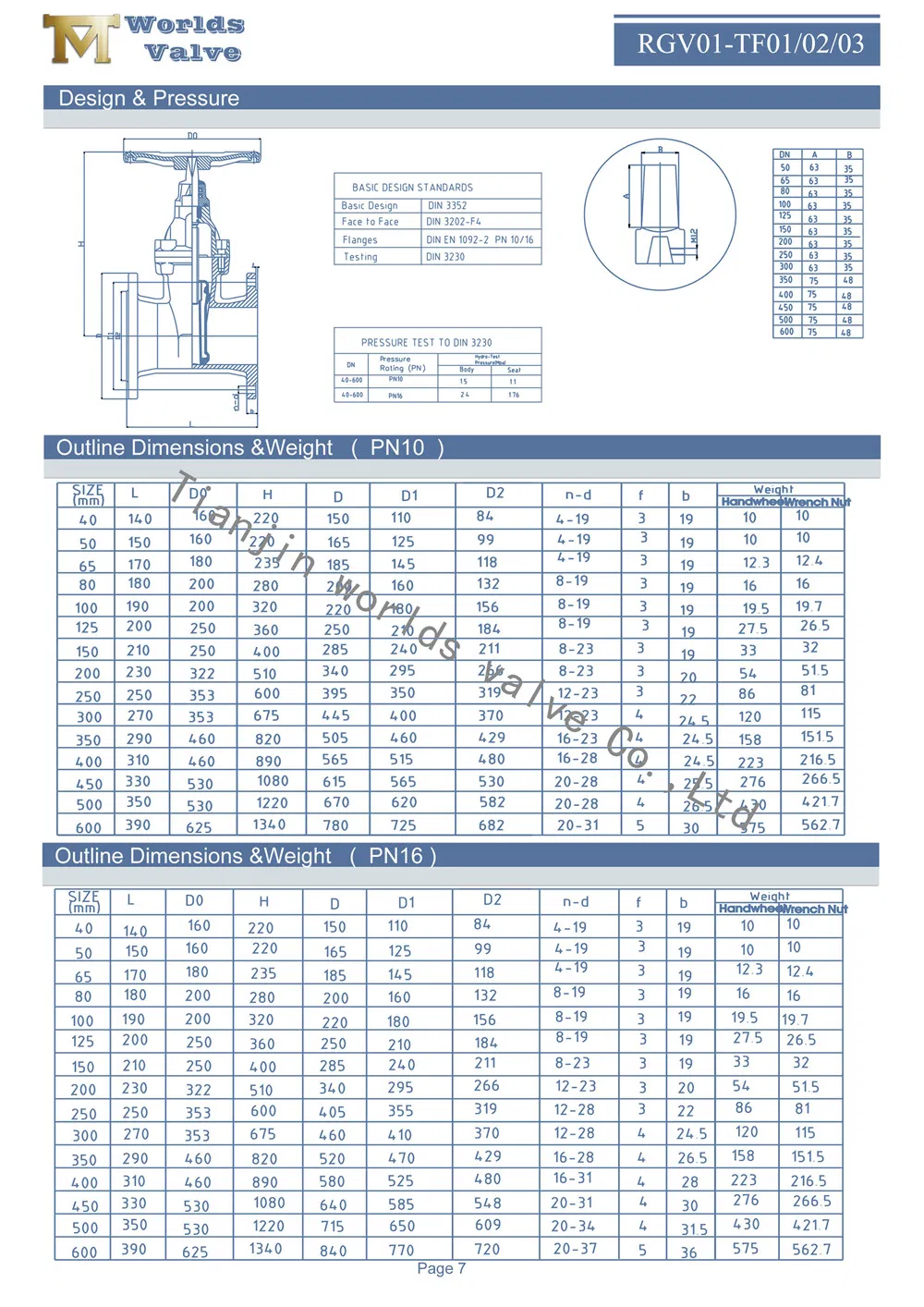

Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure

Non-rising stem resilient seated gate valve are widely used in water supply and drainage, hydre or thermal power, building project as well as industrial water system, such as steel and petrochemical.
1. Equipment used in cutting off medium in pipeline.
2. Suitalbe for hand wheel, gear operators or electric actuators.

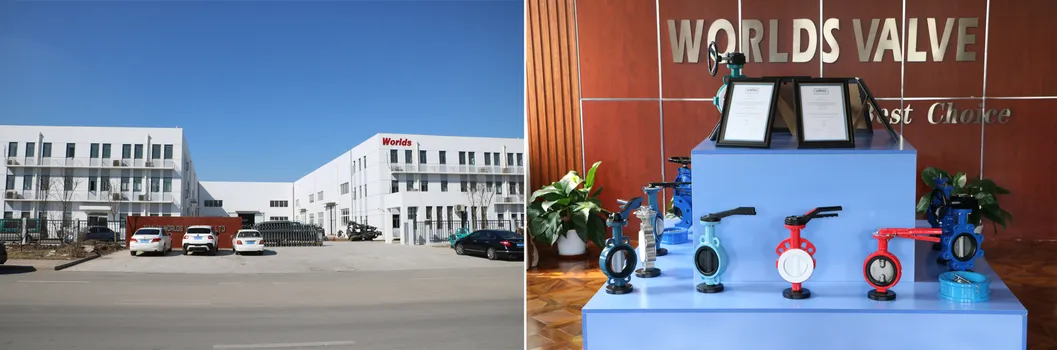

**COMPANY INTRODUCTION


**Company Goal : OEM service for world-famous valve brand.

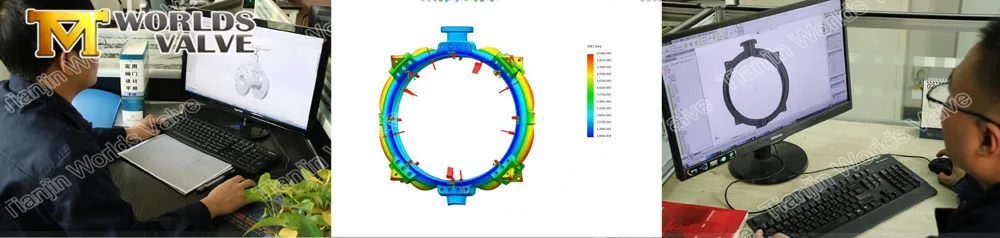

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc

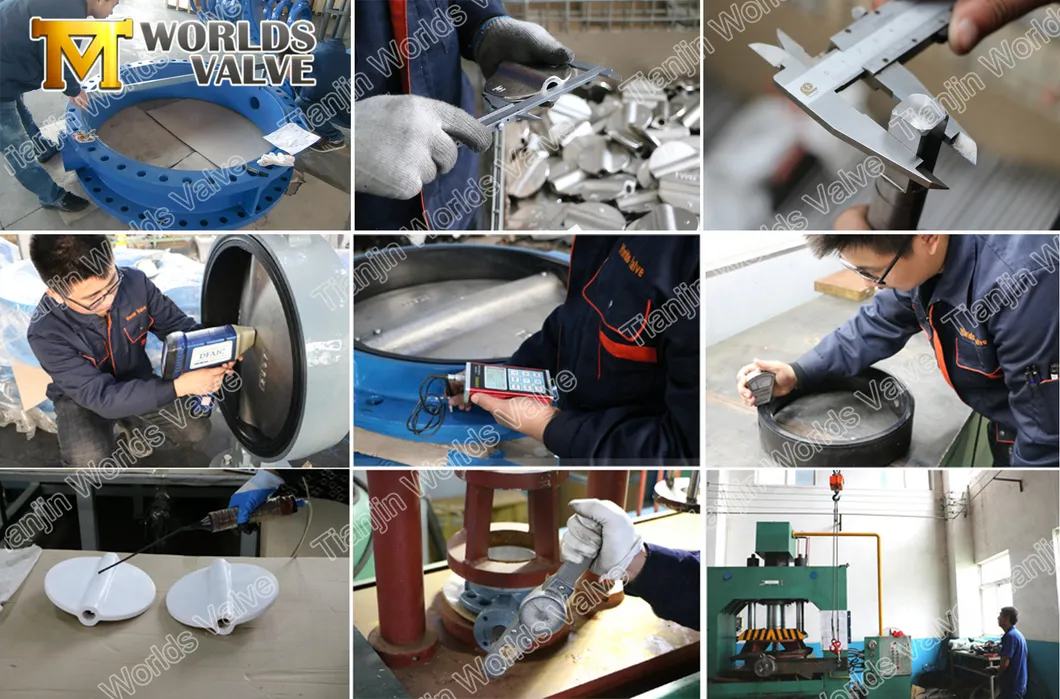

**Dimension Measurement &Inspection

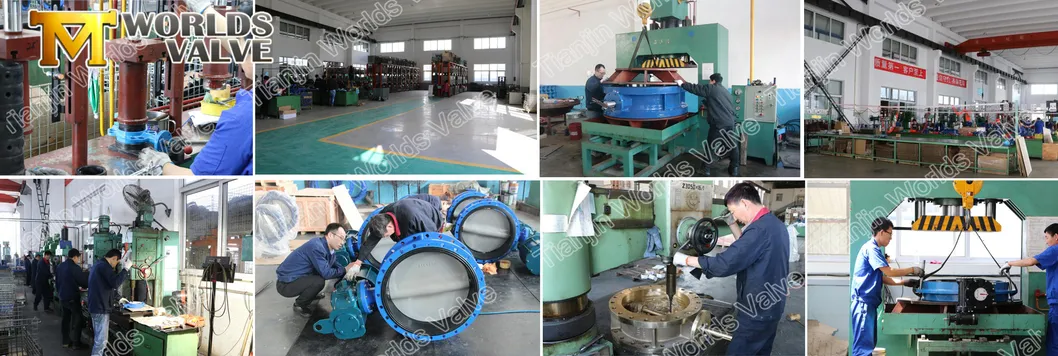

**Assembly Workshop

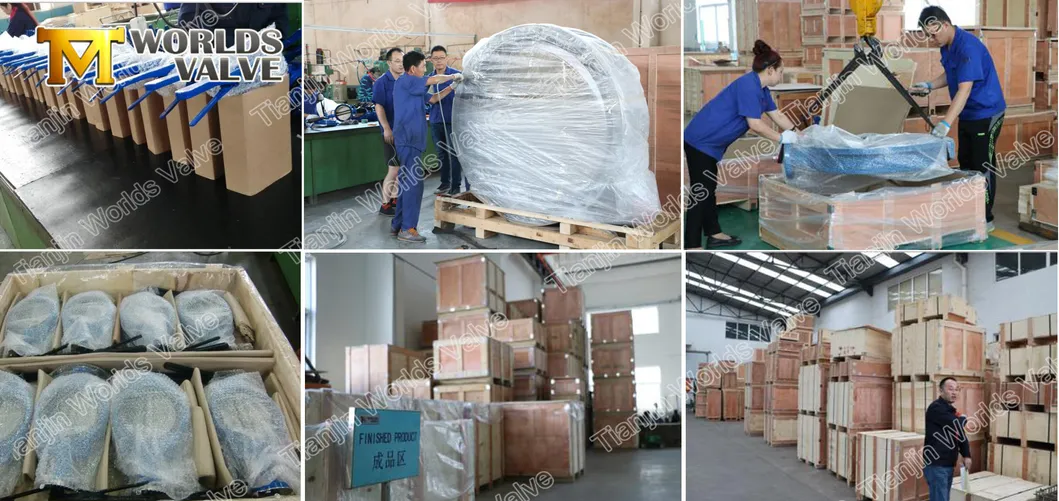

**Packaging

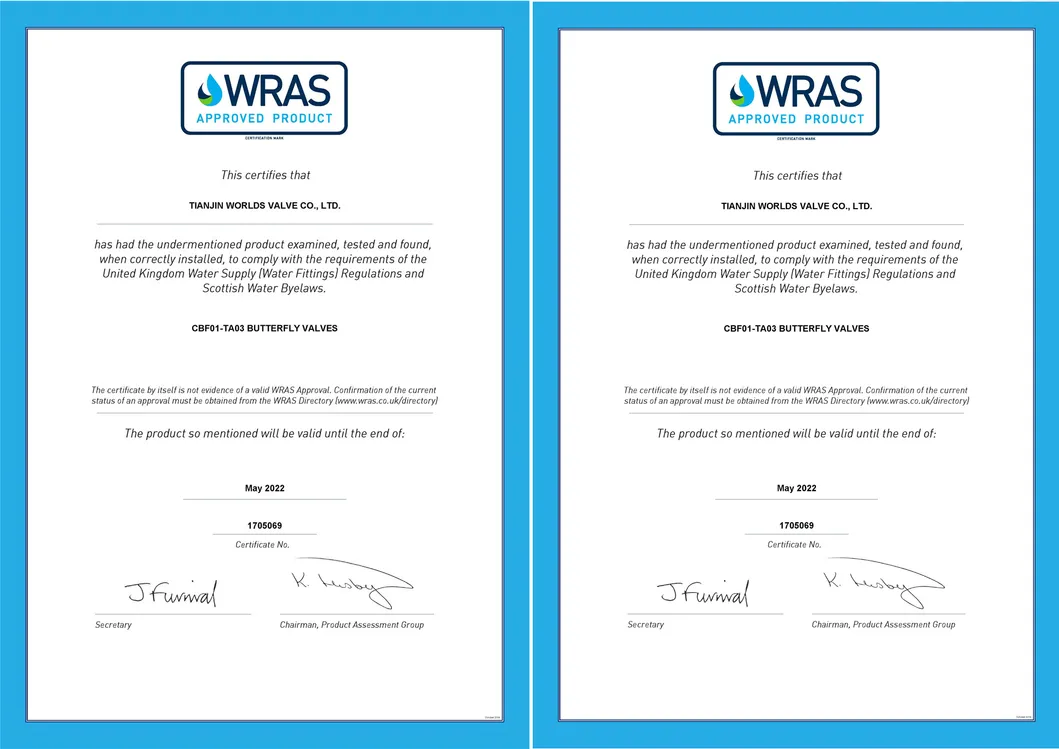

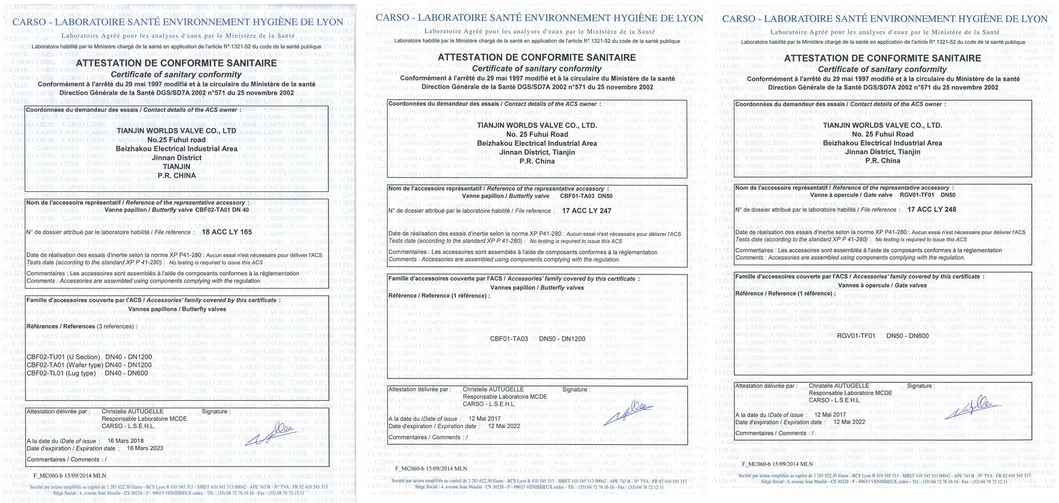

**Certificates --  CE  ISO  WRAS  ACS certificates
