Cast Iron Flanged Rubber Resilient Seated F5 Gate Valve
Cast iron flanged rubber resilient seated f5 gate valveTechnical specification:Valve Design: EN 1171/DIN 3352/EN 1074-1Face to Face: EN 558-1 Series 15/ DIN 3202 F5Flange Drilling: EN 1092-2/ ISO 7005-2Hydraulic Test: EN 12266/ ISO 5208Shell Test Pressure: 24 barSealing Test Pressure: 17.6 barSome E......
Send Inquiry
Product Description

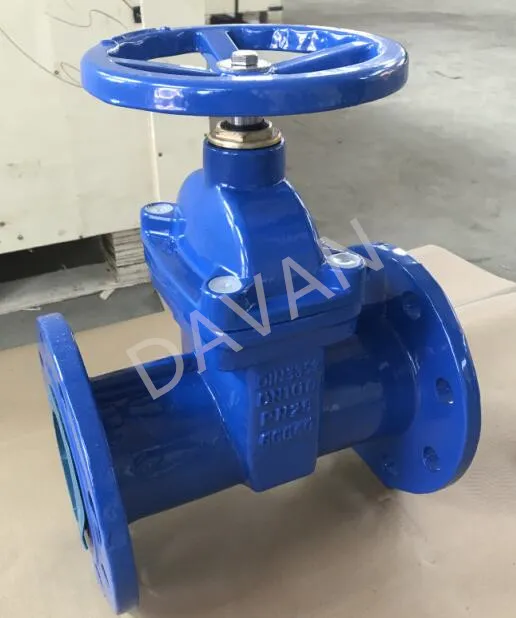

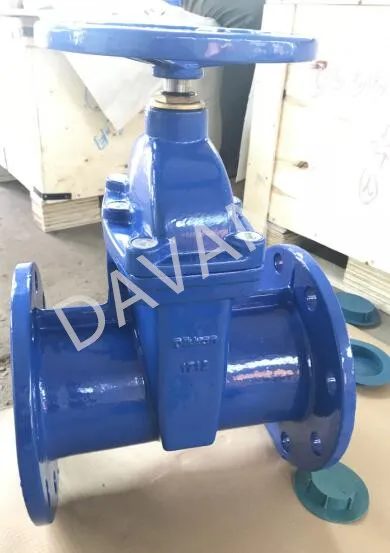

Cast iron flanged rubber resilient seated f5 gate valve
Technical specification:
- Valve Design: EN 1171/DIN 3352/EN 1074-1
- Face to Face: EN 558-1 Series 15/ DIN 3202 F5
- Flange Drilling: EN 1092-2/ ISO 7005-2
- Hydraulic Test: EN 12266/ ISO 5208
- Shell Test Pressure: 24 bar
- Sealing Test Pressure: 17.6 bar
Some Ending Customer:
The main advantages of gate valve include:
1. The fluid resistance of the valve is small. Because the valve body of the gate valve is a straight-through type and the flow of the medium doesn't change direction, the fluid resistance of it is small compared with other kinds of valves.
2. The sealing performance is better than that of other shut-off valves. The opening and closing of it are more convenient.
3. The range of applications is wider. In addition to steam, oil and other media, it can be used in medium containing granular solid and with large viscosity. It can also be used as an air-venting valve and a low vacuum system valve.
4. The gate valve has dual flow directions. It's not subject to the flow directions of the medium. Therefore, it is suitable for use in a pipeline where the medium may change the flow direction. It is also easy to install.

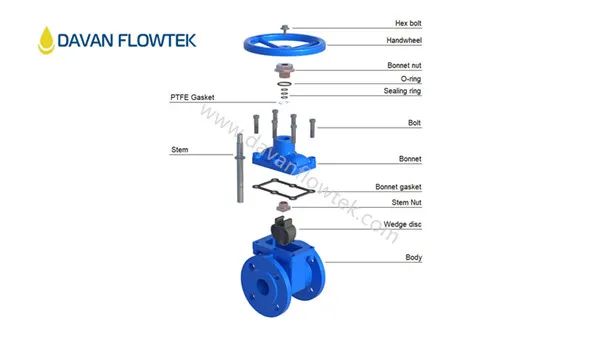

Cast iron resilient seat gate valve material list
Body: Ductile Iron GGG40/50
Wedge: Ductile Iron GGG40/50
Wedge Coating: NBR/ EPDM EN681-1
Wedge Nut: Copper Alloy
Stem: Stainless Steel X20 Cr13
Bonnet Gasket: NBR/ EPDM EN681-1
Bonnet: Ductile Iron GGG40/50
O Ring Back Sealing: EPDM/ NBR
Stem Collar: Stainless Steel/ Brass
O-Ring: EPDM/ NBR
Stuffing Nut: Copper Alloy
Dust Guard: EPDM/ NBR
Handwheel: Ductile Iron GGG40/50
Stem Cap: Ductile Iron GGG40/50
MOQ
We do not have any MOQ for this valve, 1 set order is also can be accepted.
Delivery
It depends on the order quantity, the common delivery time will be 15-20days after received payment.
| Small order | Shipment by LCL |
| Bulk order | Shipment by FCL |
| Urgent or sample order | By air cargo or courier |
Payment way
30% deposit, the balance will be paid before loading.

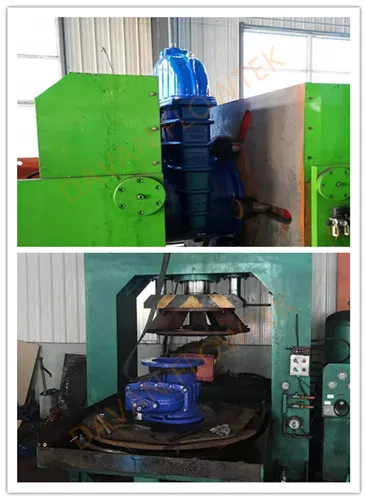

Hydraulic testing
We promise 100% hydraulic testing before exporting, with the testing machine.
Body testing: 1.5* design pressure
Sealing testing 1.1* design pressure
We can provide a 12-month warranty after the shipping date.

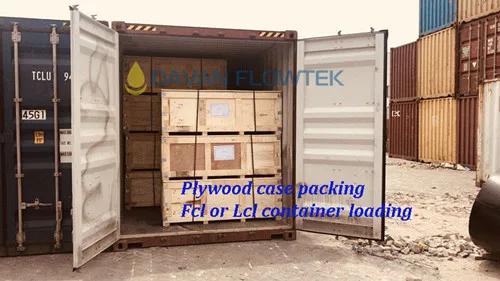

Packing way
Plywood case in exporting standard, bubble plastic packing inside
